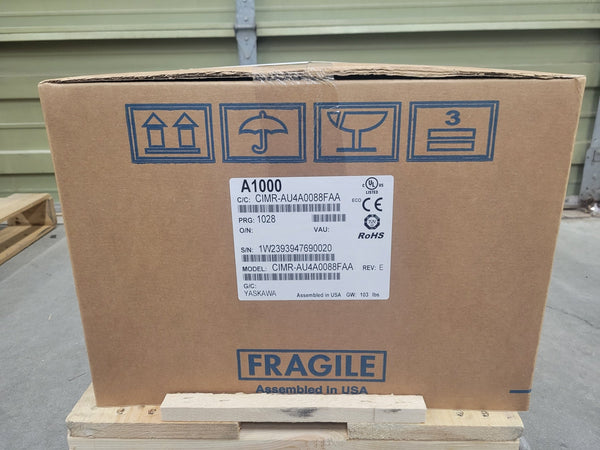

Yaskawa CIMR-AU4A0088FAA
Yaskawa CIMR-AU4A0088FAA
One high-performance variable frequency drive from Yaskawa's A1000 series, the CIMR-AU4A0088FAA, is ideal for a wide range of industrial uses thanks to its adaptability and high-quality construction. This drive is perfect for new installations as well as retrofits because of its extensive features and reputation for robustness.
Technical Specifications:
The Yaskawa CIMR-AU4A0088FAA can accept a three-phase input and runs on a voltage range of 380 to 480V. With 60 HP as its maximum, it's more than enough power for tough jobs. In addition to enabling 380480V three-phase output, the drive's output voltage is compatible with the input range. Reliability under heavy loads is guaranteed by its 88 amp output current rating.
The model's LCD screen and keypad are both customizable, and the keypad has built-in memory for parameter backup. Its two programmable analog outputs and three analog inputs make it a flexible controller. To further enhance its adaptability for different control requirements, the drive comes with eight programmable digital inputs, one of which can act as a pulse input and four digital outputs.
The Yaskawa CIMR-AU4A0088FAA has accurate process control thanks to its built-in PID control, which adjusts the drive's output to maintain a particular setpoint. Applications where a specified condition must be kept, such as temperature control and pumping systems, find this feature extremely valuable. Optimal performance and efficiency for induction and permanent magnet motors are guaranteed by the drive's support for modern motor control algorithms, such as vector control.
Housed in a NEMA 1 chassis, the Yaskawa CIMR-AU4A0088FAA is physically 24.8 inches tall, 12.95 inches wide, and 10.16 inches deep, making it appropriate for a wide range of industrial settings. To make sure the drive lasts and works reliably even in extreme settings, it has built-in safety measures like overcurrent, overvoltage, and heat protection.
Features and Benefits:
Supporting network connections and feedback for complicated machine management, the Yaskawa A1000 series drive offers excellent performance while being environmentally friendly. Incorporating regenerative braking into its design improves energy efficiency and lowers operating expenses. This drive is ideal for delicate applications because of its low electromagnetic interference and quiet operation, which are both made possible by its high-frequency switching.
The CIMR-AU4A0088FAA's adaptability to many input types is another impressive feature. Ideal for processes needing precision control, it can be customized for constant torque applications, including conveyors, mixers, and extruders. The drive's flexible I/O capabilities make it easy to scale and integrate with current control systems.
Applications and Usage:
Many different sectors make use of the adaptable Yaskawa CIMR-AU4A0088FAA, such as the manufacturing sector, the water treatment industry, and HVAC systems. It can handle both basic and complex machines thanks to its sturdy construction and sophisticated control features. For mission-critical operations, the drive's smooth acceleration and deceleration profiles and capacity to manage loads with high inertia are essential.
Frequently Asked Questions:
The Yaskawa CIMR-AU4A0088FAA has how many digital inputs and outputs?
The Yaskawa CIMR-AU4A0088FAA is programmable with four digital outputs and eight digital inputs. Pairing a pulse input with a digital input gives you multiple control options for automation projects.
Is regenerative braking an integrated feature of the Yaskawa CIMR-AU4A0088FAA?
The Yaskawa CIMR-AU4A0088FAA has built-in regenerative braking. Energy efficiency is improved by converting braking energy into reusable electrical energy, which reduces operational costs and increases sustainability.
What kind of screen and controls does the Yaskawa CIMR-AU4A0088FAA employ?
Yaskawa CIMR-AU4A0088FAA includes a customizable LCD screen and keyboard. This interface makes setting up and restoring drive specifications easy with its intuitive design and built-in memory for backing up parameters.
Product Specifications Table:
| Attribute | Specification |
|---|---|
| Product Series | A1000 |
| Input Voltage | 380-480V AC |
| Maximum Horsepower | 60 HP |
| Output Current | 88 Amps |
| Analog Inputs | 3 |
| Digital Inputs | 8 (1 can be pulse input) |
| Analog Outputs | 2 programmable |
| Digital Outputs | 4 programmable |
| Dimensions (H x W x D) | 24.8" x 12.95" x 10.16" |
| Enclosure | NEMA 1 |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
