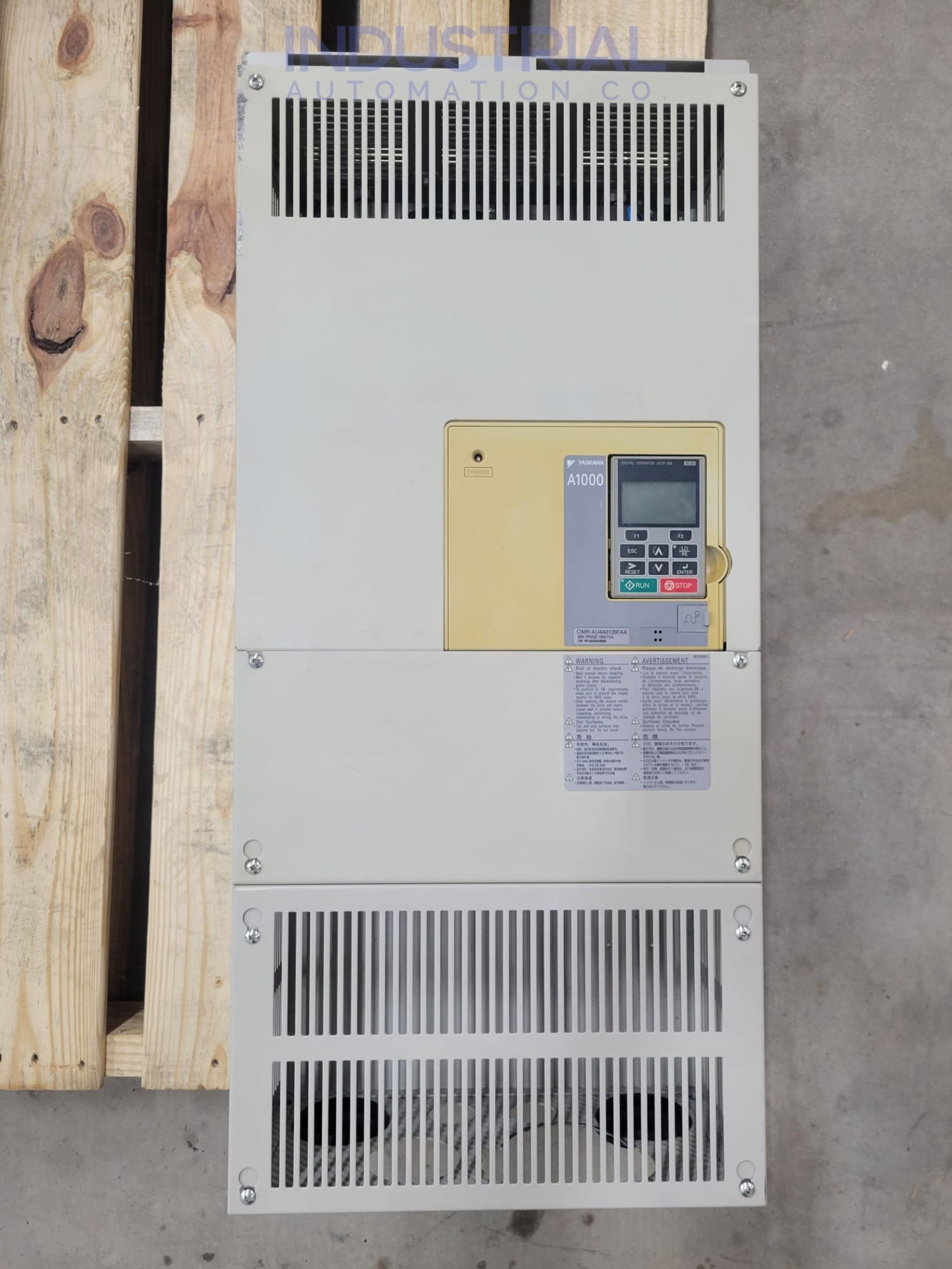

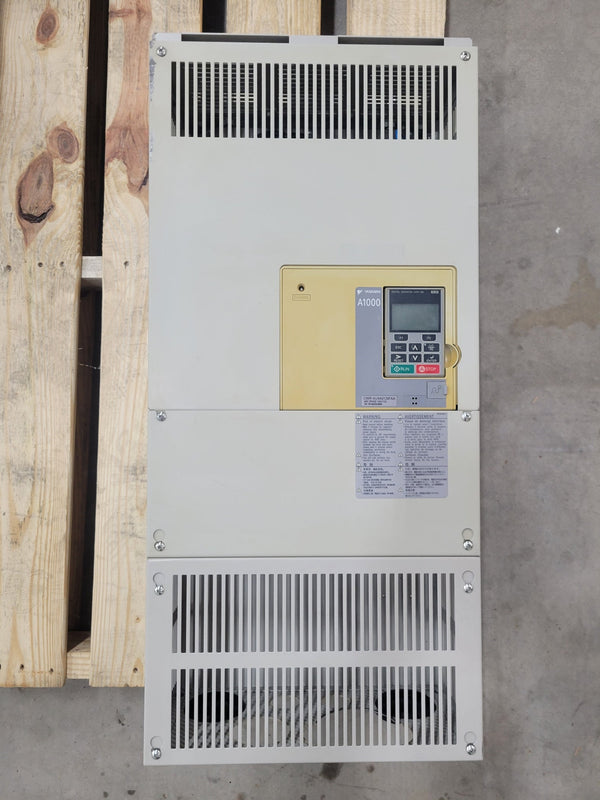

Yaskawa CIMR-AU4A0139FAA

The Yaskawa CIMR-AU4A0139FAA is an AC drive part of A100 Series. The high-performance drive is used to control the motors efficiently while saving energy. This variable frequency drive is used in industrial applications, including pumps, fans, conveyors, and machine tools, providing reliable performance and flexibility.

Technical Specifications and Performance:

The Yaskawa CIMR-AU4A0139FAA variable frequency drive is designed to perform heavy operations in the industry. It has a power rating 100HP and a voltage rating of 380-480V when used in three-phase. The drive has an output current rating of 139A for high precision and operation efficiency.

The drive has two options for input, three-phase and single-phase, depending upon the application. It offers 40HP of power and a current output of 52A when used in a single phase. The variable AC drive operates at a wide range of frequencies ranging from 0.01 to 400Hz.

The Yaskawa CIMR-AU4A0139FAA variable frequency drive has three analogue inputs and eight programmable digital inputs, of which one is a pulse input. The drive has two programmable outputs and four digital outputs for precise control.

The drive is enclosed in a NEMA 1-type protected chassis. The drive weighs 74.8kg and has dimensions of a width of 12.95 ", a height of 28.74 ", and a depth of 11.14". The optimum temperature for operation is -10 to 50 degrees Celsius.

Key Features:

The variable frequency drive has multiple control methods: one is the open and closed loop current method, and the second is the open and closed loop V/f method. The drive has an overload protection capacity of 150% for 60 sec. Induction, surface, and interior permanent magnet-type motors can be controlled.

The drive has function-blocking features. It can block up to a hundred connections and has only a 1ms program scan time. It can be easily programmable with DRIVEWorksEZ, which allows for blocking specific controllers for flexible applications.

The drive can control the motor speed precisely with a speed control accuracy of less than 0.02% for the closed loop vector and less than 0.2% for the open loop vector. The Yaskawa CIMR-AU4A0139FAA drive offers torque response greater than 300Hz for a closed loop vector.

Communication Protocol and Applications:

The Yaskawa CIMR-AU4A0139FAA variable frequency drive has multiple network communication interfaces. Modbus RTU and RS-422/485,115kbps are the built-in interfaces offered by the drive. Other supported interfaces are DeviceNet, EtherNet/IP, MECHATROLINK-II, MECHATROLINK-III, Modbus TCP/IP, PROFIBUS-DP, PROFINET, and EtherCAT.

The variable frequency drive has many applications in different industries. Pump and fan systems, conveyors, hoists, HVAC systems, industrial mixers, and tram drives use this drive commonly.

Frequently Asked Questions :

How much Yaskawa CIMR-AU4A0139FAACPU weighs?

The Yaskawa CIMR-AU4A0139FAA is designed to weigh 74.8 kg, and the dimensions are a width of 12.95 ", a height of 28.74 ", and a depth of 11.14".

What network communication interface Yaskawa CIMR-AU4A0139FAA has?

The Yaskawa CIMR-AU4A0139FAACPU has Modbus RTU and RS-422/485,115kbps built-in interfaces offered. Other supported interfaces are DeviceNet, EtherNet/IP, and MECHATROLINK-II.

What is the Current and Power rating of Yaskawa CIMR-AU4A0139FAA?

The Yaskawa CIMR-AU4A0139FAA has a current rating of 139A and 100HP power when operated on a three-phase current. This drive is designed for high-performance applications, ensuring efficiency and reliability in demanding industrial environments.

Product Specifications Table

Attribute	Specifications
Voltage output	480V
Current output	139A
Program scan time	1ms
	200:1
Analog input	03
Ambient temperature	-10 to +50 degree Celsius
VFD line	CIMR-AU
Enclosure Protection	NEMA 1
Feedback	Incremental / Absolute
Weight	74.8 kg
