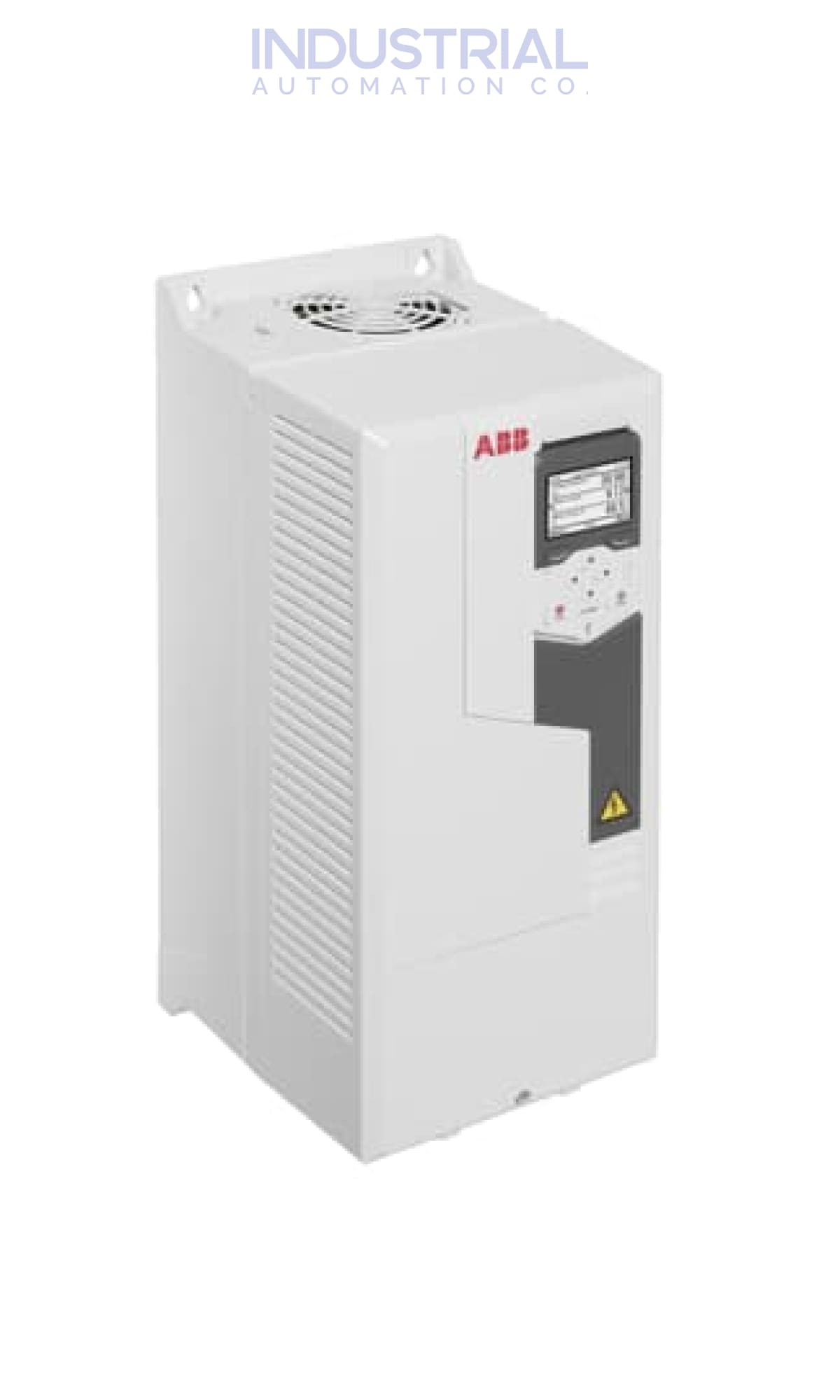

ABB ACS580-01-044A-4

Abb Acs580-01-044A-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
$3,790.00
Sale price
$3,790.00

Drives, ACS580 Series
Drive, AC, 25HP, 480V, 34.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can Use for Commercial Applications

The ABB ACS580-01-044A-4 offers efficient, reliable motor control. Its performance-oriented features include fast control response, fast dynamic speed control, and wide voltage supply range with high overload capabilities. It's the ideal choice for controlling motor applications with precision and accuracy.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-044A-4



This reliable and versatile drive, ACS580-01-044A-4 from ABB, boasts advanced technology that delivers exceptional performance and unparalleled energy efficiency. Malicious applications can utilize the model and achieve maximum efficiency.

Technical Specifications:

The ACS580-01-044A-4 variable frequency drive is adaptable and dependable, with accurate speed control and advanced communication features.

The variable drive has a maximum output current of 61.2 A and an output power of 30 HP. This drive operates at a 380 - 480 V AC voltage and a frequency of 50 - 60 Hz.

The VFD ACS580-01-044A-4 measures 780 mm in height, 320 mm in width, and 300 mm in depth. The model weighs about 6 kilograms. The drive has an IP20 enclosure classification, which means it is protected against solid objects larger than 12.5 mm but does not protect against liquids.

The drive has a 44 A input current and a 25 hp heavy-duty power output. It dissipates 656 W of total heat, has an airflow of 179 m3/h, and generates 76 dB of noise. The resistance range of this North American type R3 drive (ACS580-01-044A-4) is 10 to 22 ohms.

Operating Conditions:

The model ACS580-01-044A-4 is a variable frequency drive capable of great performance and can function in diverse environments. At high installation altitudes, the output current, on the other hand, should have a lower rating.

The frequency drive should not be subject to a derating process when operating at elevations up to 1000 meters above sea level. The model handle vibrations that reach up to 1 g (0.1 to 100 Hz) and can withstand conditions of up to 4000 m with derating.



Additionally, it can function in humid environments with a relative humidity range of 5% to 95%; however, it implements protective steps to prevent condensation, which may harm its performance.

Installation and Transportation:

When transporting the ACS580-01-044A-4 drive, protecting it from damage by using the original packaging is essential. Choose a location with good ventilation and no dust or contaminants during installation. Follow the Manufacturer's instructions and use the proper tools to install the drive.



Always ground the drive properly to prevent electrical shock and damage. To ensure secure connections, tighten all connections. Make sure you properly connect the power supply and load to the drive.

Safety Precautions:

Before beginning any maintenance or repair work on the drive, ensure all power to the device is turned off and disconnected to avoid any accidental electrocution or equipment damage.

Wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, to prevent injuries or accidental exposure to hazardous materials.

Strictly adhere to the Manufacturer's instructions and operate the drive as intended. Overloading or operating the drive outside its rated conditions can result in serious safety hazards and equipment damage.

Ensure the ACS580-01-044A-4 drive is properly grounded and all electrical connections are correctly installed and tightened.

Its firmware plays a vital role in attaining the best possible performance from the drive. Keeping the firmware up-to-date is imperative for ensuring optimum efficiency and enduring optimal performance for your variable frequency drives (VFDs).

Neglecting regular software and firmware updates can affect the VFD's efficiency and performance. Therefore, we must address this step promptly.
