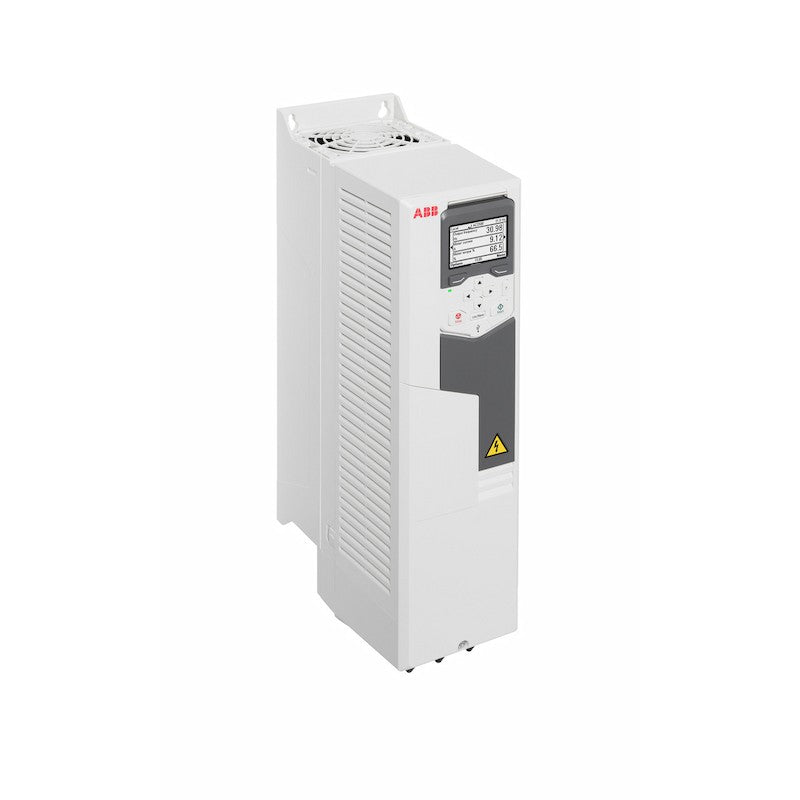

ABB ACS580-01-09A0-6+B056

Abb Acs580-01-09A0-6+B056 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
Sale price
$3,268.37

Product Description
Drive, AC, 5.0HP, 575V, 6.1A, CT, N12

The ABB ACS580-01-09A0-6+B056 variable frequency drive is perfect for motor control applications that require a wide range of speed adjustment. This product offers adjustable speed control and features an intuitive user interface, making it easy to configure for a variety of uses. Its reliable performance and strong construction make it a durable choice for years of reliable operation.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ACS580-01-09A0-6+B056

The ACS580-01-09A0-6+B056 is a highly-regarded universal drive created by ABB Group, a leading innovator in power and automation technologies. It is a key component of ABB's comprehensive range of compatible drives, developed to provide dependable motor control in diverse industrial settings.

Technical Details:

The ACS580-01-09A0-6+B056 is a powerful drive capable of handling medium-sized loads. With a maximum voltage of 600 V and a three-phase input, this drive is perfect for industries that require precise and efficient power management. Its minimum operating voltage of 575V further enhances its suitability for critical applications.

Equipped with a standard output current of 9 A, the ACS580-01-09A0-6+B056 boasts a power capacity of up to 7.5 Hp, making it ideal for demanding operations. Despite its substantial output, this drive maintains a compact design, measuring just 5.1 inches in width, 21.49 inches in height, and 9.4 inches in depth. Its weight of 6.804 Kg and frame size of R2 allows for convenient installation in complex industrial settings.

With a power dissipation of 174 W, the drive efficiently converts energy to heat while ensuring optimal performance. It also offers a protection degree of IP55, providing reliable protection against intrusion, dust, accidental contact, and water.

To guarantee optimal operating temperature and longevity, this drive maintains an airflow rate of 59 Cubic Feet per Minute (CFM). Additionally, the 09A0-6+B056 features an integrated keyboard, allowing convenient configuration and control. This user-friendly feature simplifies operations and makes navigation through settings and functionalities a breeze.

Operating Parameters:

The ACS580-01-09A0-6+B056 is designed to work efficiently in temperatures ranging from -15 to +50 degrees Celsius. However, operating it above 40 degrees Celsius may reduce its performance. The drive can operate at altitudes up to 1000 meters without any decrease in rated current. Beyond that altitude, the rated current decreases by 1%.

The drive can handle sinusoidal vibrations with frequencies between 57 and 150 Hz, with a displacement of 2 Hz. It has been tested for resistance to random vibrations according to IEC 60068-2-64 standards, making it suitable for industries where machine vibration is common.

Mounting Instructions:

To ensure proper installation of the ACS580-01-09A0-6+B056 drive, securely mount it on a flat, vertical surface that is not flammable. Make sure there is sufficient air circulation and space for heat dissipation. Maintain a minimum clearance of 100 mm above and below the drive and 50 mm on the sides. The mounting surface must support the drive's weight of approximately 6.8 kg.

Choose a suitable location for mounting the drive, ensuring the ambient temperature falls within the permissible range specified in the product manual. Provide adequate airflow around the drive to prevent overheating and avoid mounting it in confined spaces or areas with restricted airflow. Easy access to the drive should be ensured for maintenance and servicing purposes.

When mounting the ACS580-01-09A0-6+B056 drive, place it vertically with the terminals at the bottom for convenient wiring. This orientation helps with cable management and optimal cooling. Carefully connect the input and output power cables and any control and communication cables to their respective terminals on the drive.

Safety Recommendations:

Safety is essential when working with and installing the ACS580-01-09A0-6+B056 drive. During operation, the drive can generate heat, so it is essential to allow it to cool down before attempting to touch it. Avoid exposing the drive to moisture and dust is crucial to prevent damage or failure.

Regular inspections should be conducted to check for any signs of damage, wear, or contamination. Additionally, it is vital to ensure that all protective covers and safety barriers are in place to guarantee optimal safety.
