Indramat DKC03.3-040-7-FW

Indramat DKC03.3-040-7-FW

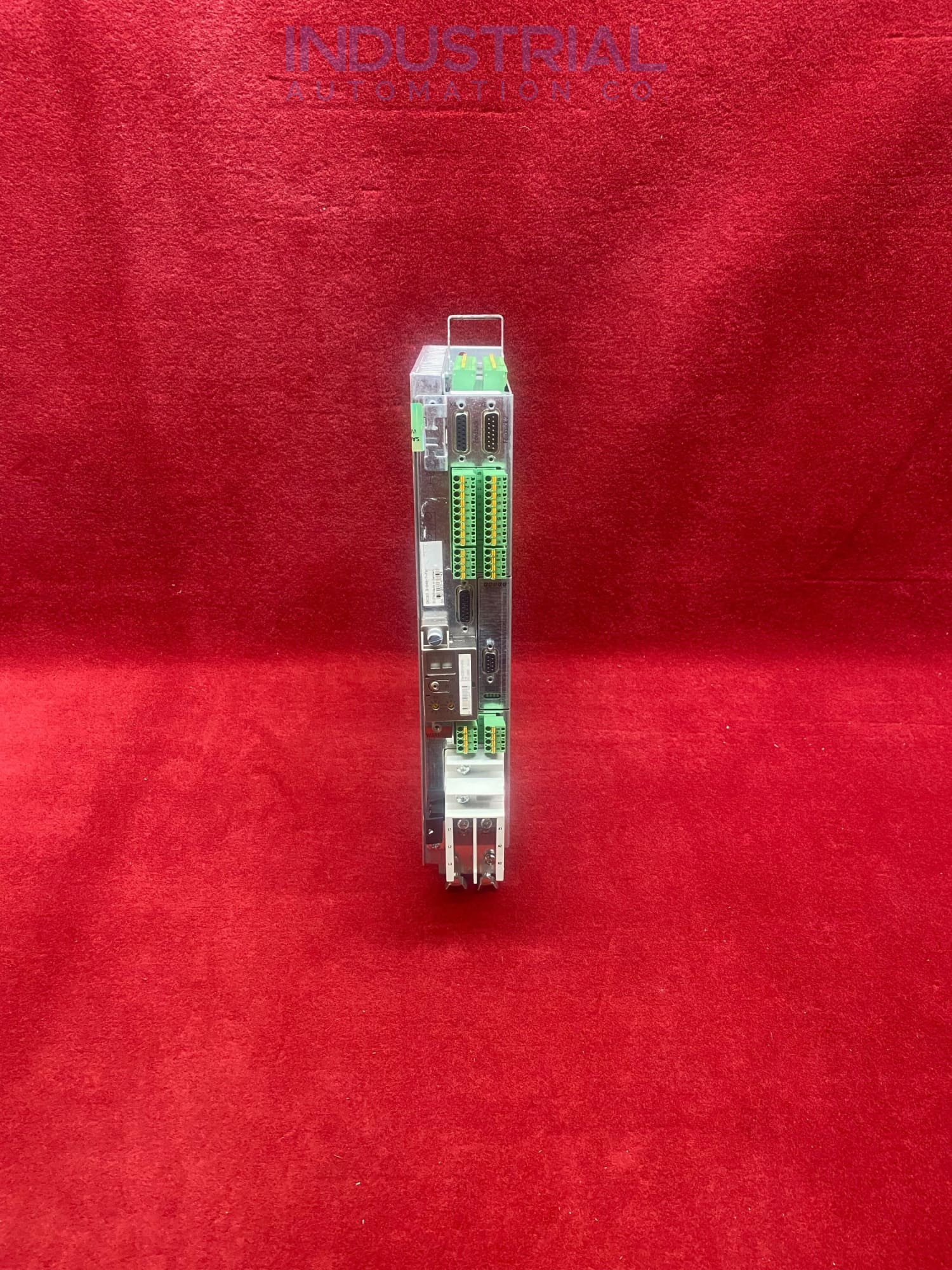

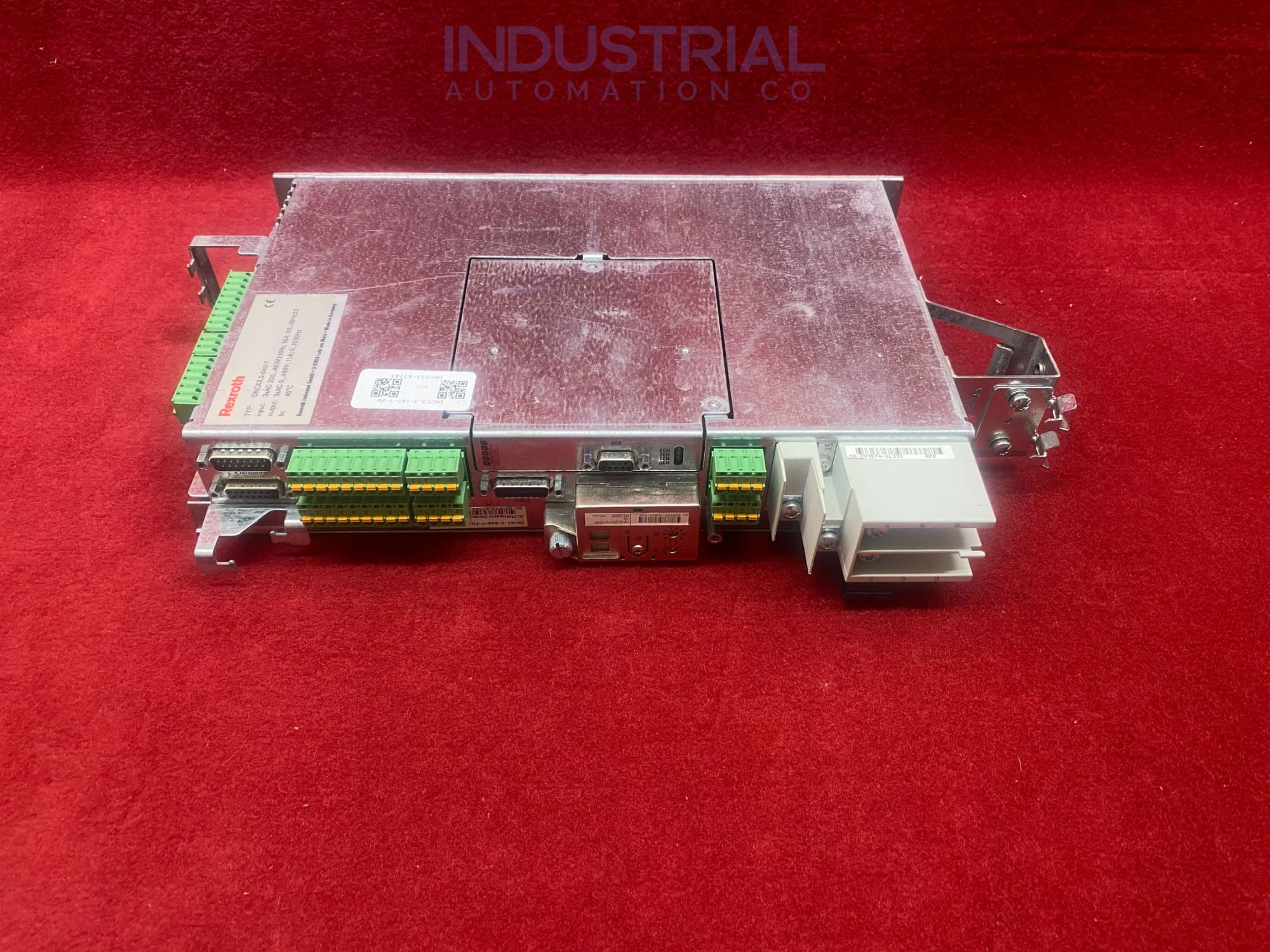

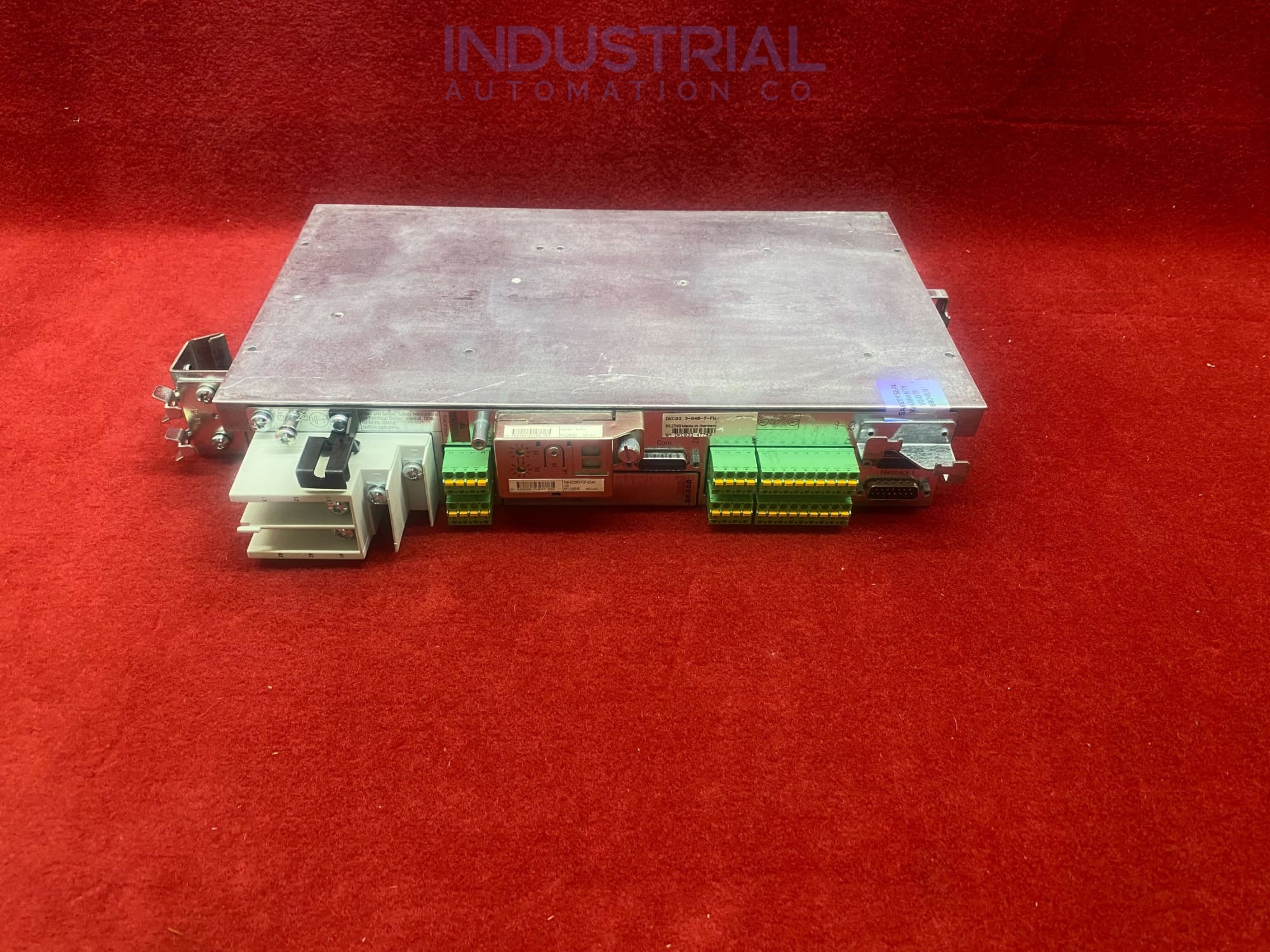

The Indramat DKC03.3-040-7-FW is an AC servo amplifier drive controller by Indramat Bosch. The drive controller belongs to the DKC series (series=3, version=3) called the ECODRIVE series. This model is mostly integrated with the MKD motor series. It proves smooth and precise operation across different industrial applications.

Technical Specification:

The Indramat DKC03.3-040-7-FW drive controller is reliable and highly efficient for position control applications in the industry. In demanding conditions, the drive performs efficiently as it has a current rating of 40A and a DC bus nominal voltage of 700V for heavy loads. The maximum Input current allowed is 16A. The PROFIBUS DP Interfaces used in the system.

The drive controller can have a control voltage of 24V DC, and input frequency ranges from 50-60Hz. The rated input voltage it can handle is between 200 V and 480 V. Maximum output frequency range is 1000Hz. The drive controller is equipped with a fuse rated at 20A for branch circuit protection, enhancing reliability in the industry.

The Indramat DKC03.3-040-7-FW can provide a maximum output voltage of 800V to meet industrial demand. It can operate efficiently at a temperature of up to 40 degrees centigrade. The drive can result in pollution of up to degree 2. It can be used at a maximum elevation of 1000 meters without degrading efficiency.

The unique design of the drive controller only weighs 5.7 kg, is easy to handle, and installs tight spaces. The drive has physical dimensions of 360 mm (height), 261 mm (depth) and 65 mm (width). The drive casing is rated for IP20 degrees of protection.

The firmware model is placed outside the controller for easy access and troubleshooting. The short circuit current rating for the drive is 42000A rms. The controller has a built-in heat dissipation system with blowers to maintain operating temperature.

Functional Specifications:

The Indramat DKC03.3-040-7-FW drive controller has three control modes (Position control, velocity control, and torque control). The drive can be integrated into many systems with multiple control methods. The drive supports encoder and resolver feedback systems.

The drive controller offers multiple protection features for safe and reliable operation. Overload protection, short circuit protection, and thermal protection. The drive controller uses the forced convection (Built-in Blowers) method to maintain operating temperature.

Application:

The Indramat DKC03.3-040-7-FW drive controller is widely used across various industries due to its precise control and robust communication capabilities. In robotics, precise and accurate control is required for robotic arms and complex motions.

In Material Handling Systems, conveyors and palletizers are controlled using this drive. In Packaging Machinery, all the rollers, belts, and feeders are controlled. CNC Machinery and Printing Press are the other demanding industries for DKC03.3-040-7-FW.

Frequently Asked Questions :

Which cooling method DKC03.3-040-7-FW use?

The DKC03.3-040-7-FW features an internal blower cooling system. This system efficiently manages heat dissipation during operation.

What is the rated current type for this drive controller?

The DKC03.3-040-7-FW runs on a current type of 40 A. This ensures consistent and reliable performance.

What is the input voltage range for the DKC03.3-040-7-FW?
