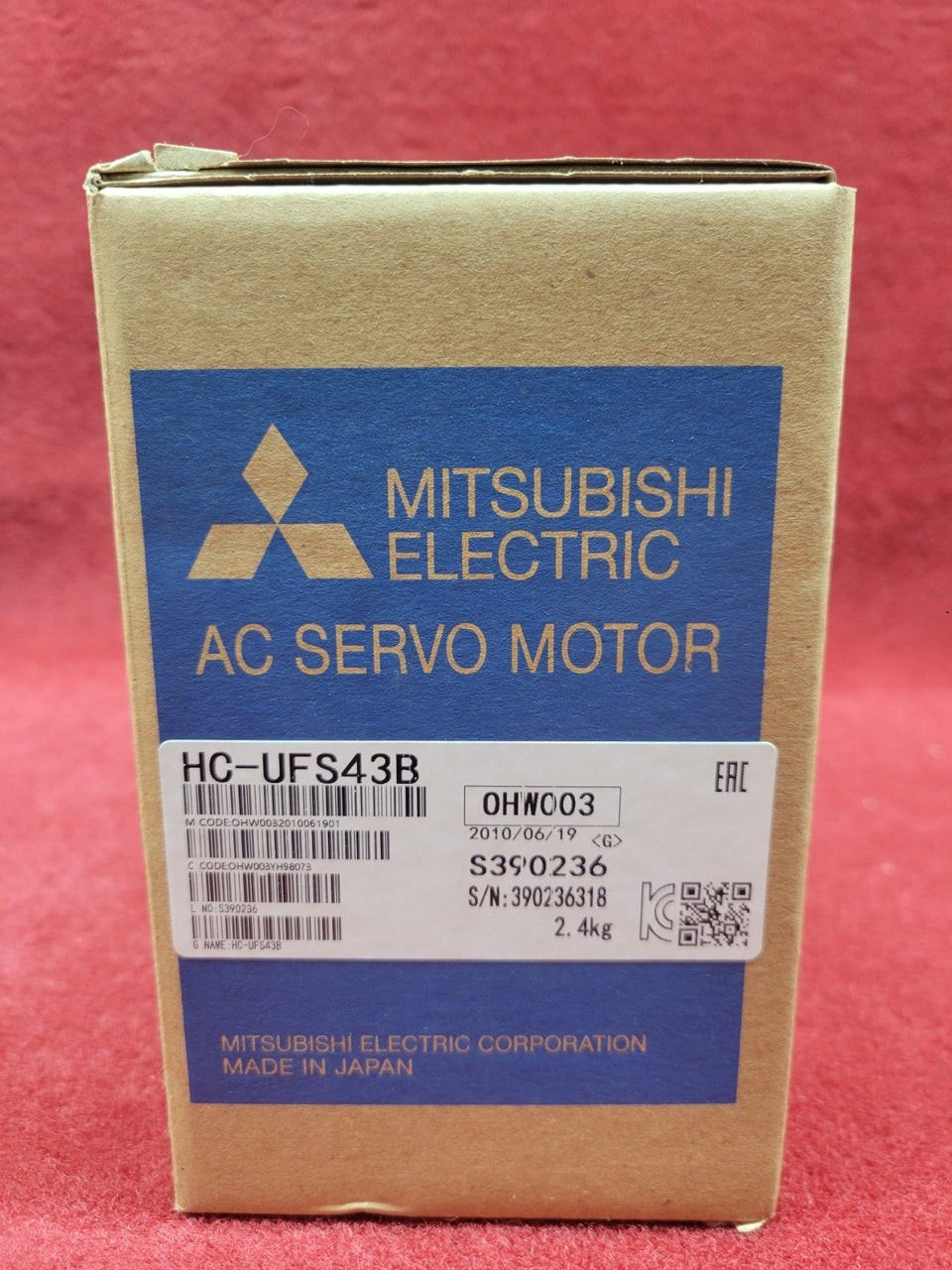

Mitsubishi HC-UFS43B
Mitsubishi HC-UFS43B
The Mitsubishi HC-UFS43B is a cutting-edge AC servo motor engineered for high-precision industrial applications. As part of Mitsubishi's HC-UF series, it provides high performance and dependability, making it an excellent choice for various automation applications. This servo motor is designed to work effectively in harsh situations, assuring maximum performance and longevity.
Technical Specifications:
The HC-UFS43B AC servo motor has a rated output of 0.4 kW and a rated torque of 1.3 Nm, which is enough power for various industrial applications. The motor's maximum torque is 3.8 Nm, allowing it to manage brief periods of increased load without sacrificing performance.
This servo motor has a rated rotation speed of 3000 r/min and a maximum speed of 4500 r/min. Its maximum instantaneous rotation speed is 5175 r/min, ideal for applications requiring quick acceleration and deceleration.
The motor's rated current is 2.8 A, and the maximum is 9.24 A. This ensures the motor can handle massive current demands during peak hours. The power rate at continuous rated torque is 47.7 kW/s, indicating engine efficiency under a steady load.
With a moment of inertia of 0.191 x 10^-4 kg.m^2, the motor responds swiftly and precisely. Standard HC-UFS43Bs weigh 5.0 kg (11.0 lb), but the electromagnetic brake type weighs 6.2 kg (13.7 lb). This weight range lets the motor fit into numerous systems without major adjustments.
Power Specifications:
The energy-efficient HC-UFS43B requires 0.9 kVA of power facility capacity for industrial applications. This power demand conserves energy and optimises performance. The design allows the motor to work efficiently with this power capacity, minimising operational costs without losing output or functionality.
The HC-UFS43B's power supply is designed to work consistently under input fluctuations. Industrial situations with unstable power supplies require this feature for constant functioning. The motor's flexibility with various power supplies makes it adaptable to numerous industrial environments without significant adjustments.
Safety Specifications:
HC-UFS43B is designed for safety and reliability in specified environments. Operation temperatures are 0 to 40°C (32 to 104°F), while storage temperatures are -15 to 70°C (5 to 158°F). This wide temperature range ensures the motor works reliably in all weather.
The motor can be kept at up to 90% RH and operate at 80% RH (non-condensing). This specification prevents moisture damage and prolongs motor life. Indoor use is recommended for the HC-UFS43B, away from direct sunlight, corrosive gasses, flammable gases, oil mist, and dust. Safe operating conditions prevent dangers that could damage the motor or affect its performance.
Mitsubishi HC-UFS43B servo motors work 1000 meters or less above sea level. They are excellent for industrial environments with heavy movement and vibration, as they can withstand up to 24.5 m/s² on the X and Y axes and 49 m/s² on the Z axis.
Frequently Asked Questions:
How much power can the Mitsubishi HC-UFS43B handle? What is its rated output?
The HC-UFS43 B's rated output and power facility capacity are 0.4 kW and 0.9 kV, respectively. These requirements guarantee effective operation in a wide range of industrial domains.
How much torque and moment of inertia can the Mitsubishi HC-UFS43B handle?
The moment of inertia of the HC-UFS43B is 0.191 x 10^-4 kg.m^2, and it has a rated torque of 1.3 Nm. These attributes facilitate its precise control and rapid response.
What is the weight of the Mitsubishi HC-UFS43B with and without the electromagnetic brake?
The HC-UFS43B weighs 5.0 kg without the brake and 6.2 kg with the brake. This facilitates flexible integration into a variety of systems.
Product Specifications Table:
| Attribute | Specification |
|---|---|
| Motor Type | AC Servo Motor |
| Rated Output | 0.4 kW |
| Rated Torque | 1.3 Nm (184.1 oz.in) |
| Maximum Torque | 3.8 Nm (538.1 oz.in) |
| Rated Rotation Speed | 3000 r/min |
| Maximum Rotation Speed | 4500 r/min |
| Permissible Instantaneous Rotation Speed | 5175 r/min |
| Rated Current | 2.8 A |
| Maximum Current | 9.24 A |
| Weight (Standard) | 5.0 kg (11.0 lb) |
