TECHNICAL SPECIFICATIONS

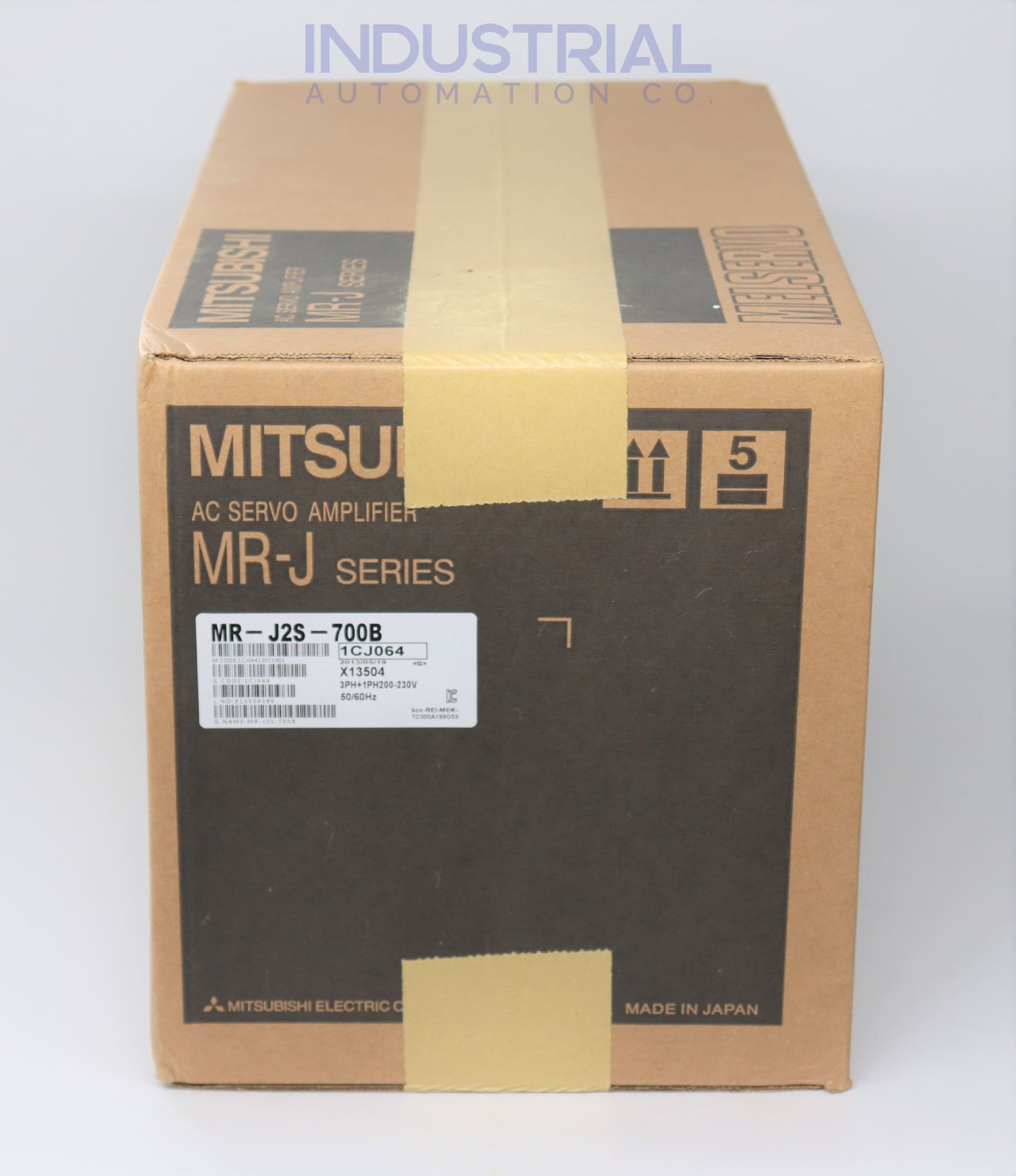

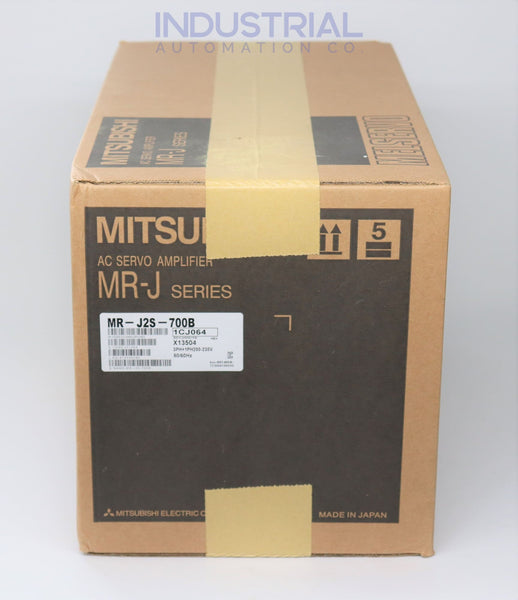

MR-J2S-700B

The MR-J2S-700B model is manufactured by Mitsubishi, boasting a dynamic brake and advanced current control system for performance optimization. Both sophisticated advancements ensure superior reliability in operation with more efficient results.

With a simple activation, the model's auto-tuning feature instantly adjusts gain levels to provide a steady performance even with shifting motor shaft loads.

Technical Specifications of MR-J2S-700B:

This MR-J2S-700B model has a powerful encoder with a phenomenal resolution, tracking up to 131072 pulses per rotation. Additionally, it can be used with servo motors due to its three-phase power supply operating on a voltage between 200 and 230 VAC.

The MR-J2S-700B model's gain search algorithm optimizes adaptive adjustment capabilities without creating overshoots. To enable this, the MR Configurator software plays a crucial role in providing swift and efficient operation.

To ensure optimal performance, the model is designed such that when regeneration falls below desired levels, it automatically switches from regenerative power to return converter. Damping harmonic resonance that heightens servo system responsiveness is guaranteed through a low-pass filter in the servo amplifier (MR-J2S-700B) for superior control and stability.

The servo amplifier MR-J2S-700B features an inbuilt regenerative resistor designed to handle the available power supply; however, if this is not enough to manage the regenerative energy output, a supplementary option may be employed for additional support.

This model MR-J2S-700B harnesses the power of an 'automatic analyzer' to accurately analyze mechanical system frequencies through an MR configurator connection. In addition, it has an adaptive vibration suppression mechanism that can actively adjust filter parameters and reduce noise levels generated from detected vibrations.

This 7.2-kilogram model MR-J2S-700B is equipped to respond swiftly in urgent situations, such as sudden power outages, overcurrents, and regenerative voltage increases - ensuring smooth operation despite its small size. It can also detect encoder errors, overloads, and excessive speeds; truly an ultra-reliable device for any application.

Ambiance Conditions (operating and Installation):

This servo amplifier MR-J2S-700B is designed to be used indoors, away from direct sunlight and dirt, dust, or combustible gases. With the capability of being deployed up to 1000 meters above sea level altitudes without losing performance power - it's an ideal choice when needing a reliable operation in challenging conditions.

The model MR-J2S-700B boasts a temperature range from 0°C to 55°C, plus an impressive storage capacity of -20°C up to 65°C. The servo amplifier must be coupled with its intended motor counterpart to ensure superior performance.

To ensure maximum performance and safety, a qualified professional should install your model vertically. Doing so will minimize vibrations while helping you avoid any costly accidents or malfunctions.

To ensure optimal performance, the model MR-J2S-700B must be installed in a control cabinet with an IP54 rating. Install a fan of at least 10.16 inches to keep it cool during operation.

Statutory Safety Guidelines:

Ensure that the servo amplifier and motor are properly installed before connecting the cables. Ensure each cable termination has been crimped with an insulating tube to avoid electrical shocks or short circuits when plugging in the wiring.

To ensure your machine's smooth operation, double-check the parameters before activating the servo amplifier. A missed configuration detail could lead to undesired behavior, so read through all safety recommendations outlined in its user manual.
