TECHNICAL SPECIFICATIONS

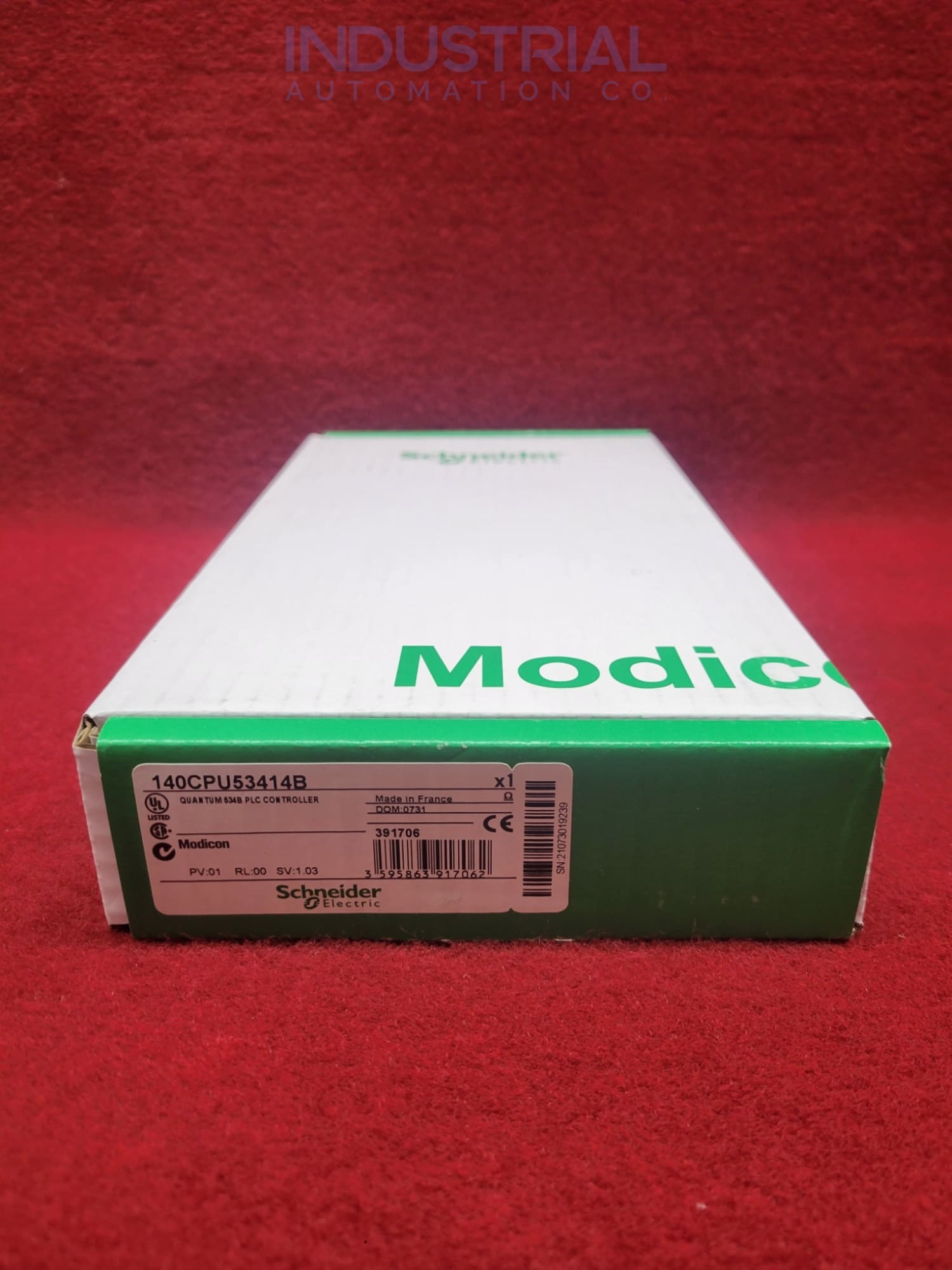

Schneider Electric 140CPU53414B

Schneider Electric has designed and engineered this powerful CPU module 140CPU53414B, suitable for various deployments in both commercial and industrial settings. The Quantum system module functions as a controller, facilitating the management of I/O operations on local and remote levels. This technological marvel delivers seamless integration between varying hardware components to keep any project running smoothly.

Technical Description of 140CPU53414B:

The model 140CPU53414B holds a substantial 2972 kb of internal RAM while sporting an impressive clock frequency of 100 Mhz, though regrettably lacks the convenience of a mathematical coprocessor. At 0.85 kilograms and requiring 1250 mA bus current, it is equipped with a watchdog timer set at 250 ms intervals to protect against malfunctions or other irregularities in system performance.

This powerful CPU module 140CPU53414B is located on the local I/O backplane, providing users with a digitally-operable electronic system that features an internal programmable memory to store user instructions.

The CPU module has a powerful 6.25 W power dissipation and provides ample storage with 64 K words of ladder logic capacity, both input and output. Its internal register is an impressive 57-word capacity, while the external can reach 96 K words for additional convenience.

The model 140CPU53414B boasts three ports of Modbus RS232 and one port of Modbus Plus. The device has a Lithium battery that uses 10µA on average and 420µA at maximum. It can last up to 1.2 Ah of service life and has a shelf life of up to ten years.

Ambient Conditions:

Keep model 140CPU53414B in an environment with temperatures ranging from -40 to 85 degrees Celsius and humidity that does not exceed 95 percent for optimal performance. Make it an active voice to reach maximum efficiency; utilizing the latest model in a dry climate is necessary.

General Information:

With 1435 KB of Flash EPROM memory, the model 140CPU53414B boasts ample space to store and preserve programs and their initial variables. Using a PLC MEM switch on the processor's front panel upon start-up, you can easily select your desired operating mode from previously stored programs.

The model's slide switch offers three selectable comm parameter settings for the Modbus (RS232) ports. In its topmost position, this versatile feature grants access to ASCII functionality €“ an invaluable option in several applications.

By adjusting the switch to its middle position, you unlock RTU functionality for your port. Alternatively, flipping it down allows you to configure common parameters directly in software - providing a third option of utilizing this port's capabilities.

In bridge mode, the CPU hardware facilitates communication between Modbus Panels and Controllers. This compatibility with other network nodes on the Modbus Plus platform makes seamless data exchange possible.

Standard Safety Instructions:

Skilled personnel must successfully install, operate, service, and maintain this analog module (140CPU53414B). The company cannot be held responsible for any consequences resulting from the use thereof.

This 140CPU53414B CPU module is a powerful tool for controlling industrial processes, providing expert oversight and management. For optimal safety, however, appropriate point-of-operation guarding should always be in place before use; otherwise, the potential risk of operator injury grows significantly.
