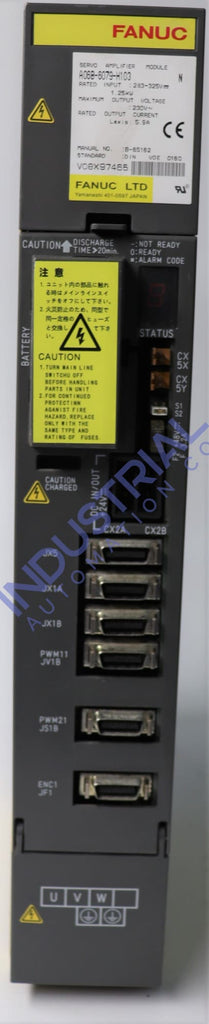

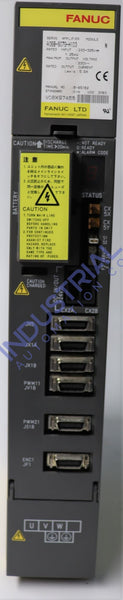

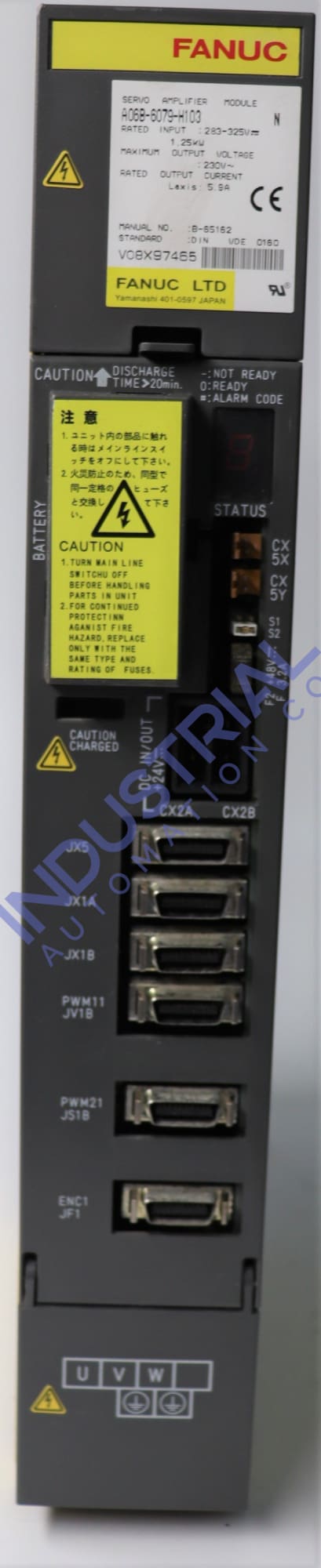

FANUC A06B-6079-H103

The servo amplifier module A06B-6079-H103 boasts optimal compatibility with various system components, providing an efficient and highly effective solution for industrial applications.

The servo amplifier A06B-6079-H103 is an ideal solution for optimizing performance and accuracy in industrial automation systems, enabling higher current levels to drive dynamic motion control.

Technical Description of A06B-6079-H103:

This A06B-6079-H103 module harnesses an advanced 200-V input series to quickly and accurately power servo motors. By amplifying signals from a control system, the module creates greater torque and speed - translating directly into increased precision in any motor or actuator movement.

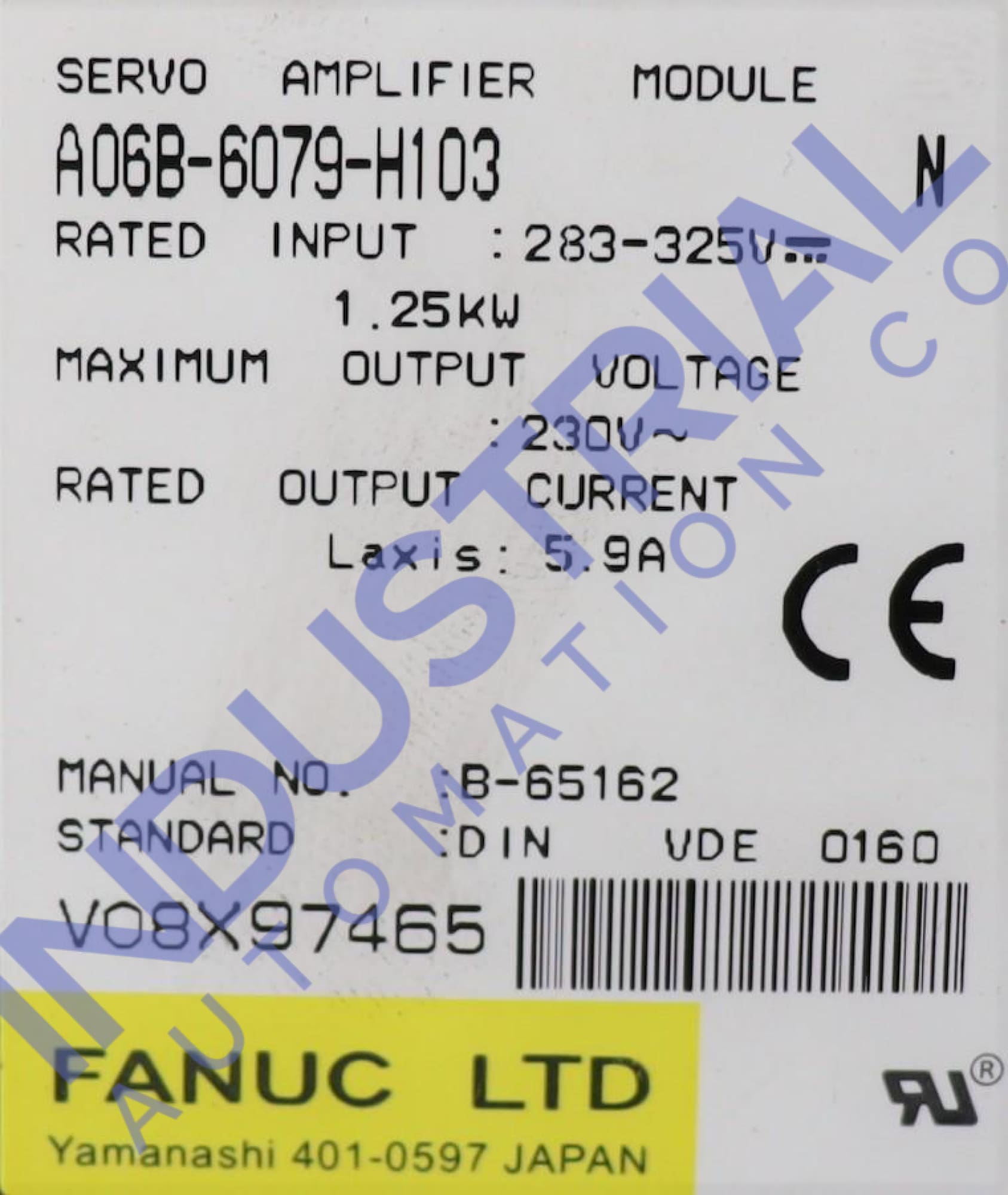

This A06B-6079-H103 model is a powerful 3.9 A device, utilizing advanced Sine€“wave PWM control and an IGBT bridge to provide superior performance. The power requirements for this model range from 283 - 325 V, offering a 1.25 kW capacity with a maximum output voltage of 230 V.

The model boasts an impressive array of features designed to ensure the highest level of functionality, including current limiting, voltage protection, and temperature regulation.

The servo amplifier A06B-6079-H103 employs a transistor PWM inverter to drive the motor, resulting in high€“frequency leakage current flowing through capacitance present in the motor winding, power cable, and amplifier.

Environmental Conditions:

Please maintain the internal temperature of model A06B-6079-H103 between 0 and 55°C for optimal operation. Should external conditions require output power to exceed this limit, take immediate steps to lower it to avoid excessive device heating.

To ensure optimal performance, keep the model A06B-6079-H103 within a temperature range of -20°C to +60°C and in an indoor environment with minimal dust or particles. Store it away from direct sunlight and moisture for the best results. The model A06B-6079-H103 can reach heights up to 1,000 meters with no restrictions. Consider the drop in ambient temperatures by one °C per 100 m when operating the model at a greater elevation above the maximum peak mark.

General Wiring and Usage Precautions:

Securely attach the motor power cable's ground wire to the terminal module block. Additionally, link one side of the terminal block and frame ground while anchoring the metal framework with a connection on its separate earth terminus. Once you have satisfactorily finished wiring, ensure that you close up any amplifier casings to prevent the presence of electric shock hazards when left open.

Ensure you securely join the amplifier A06B-6079-H103 and peripheral components to maximize system performance. Furthermore, confirm the proper connection of all external magnetic contactors, circuit breakers & other devices to each other and the amplifier itself.

Firmly affix the amplifier to the power magnetics cabinet. If any gaps exist between it and its mounting surface, these may allow for dust accumulation, which could lead to the detriment of the operating efficiency of this component.

To facilitate regular checkups and upkeep, install the A06B-6079-H103 amplifier in an easily accessible spot. Before detaching it from its place, turn off all power supply sources €“ look out for any glowing DC link charging LEDs. Also, be mindful not to allow your fingers to get jammed between the cabinet of powerful magnets and the amplifier when removing them.
