TECHNICAL SPECIFICATIONS

FANUC A06B-6111-H011#H550

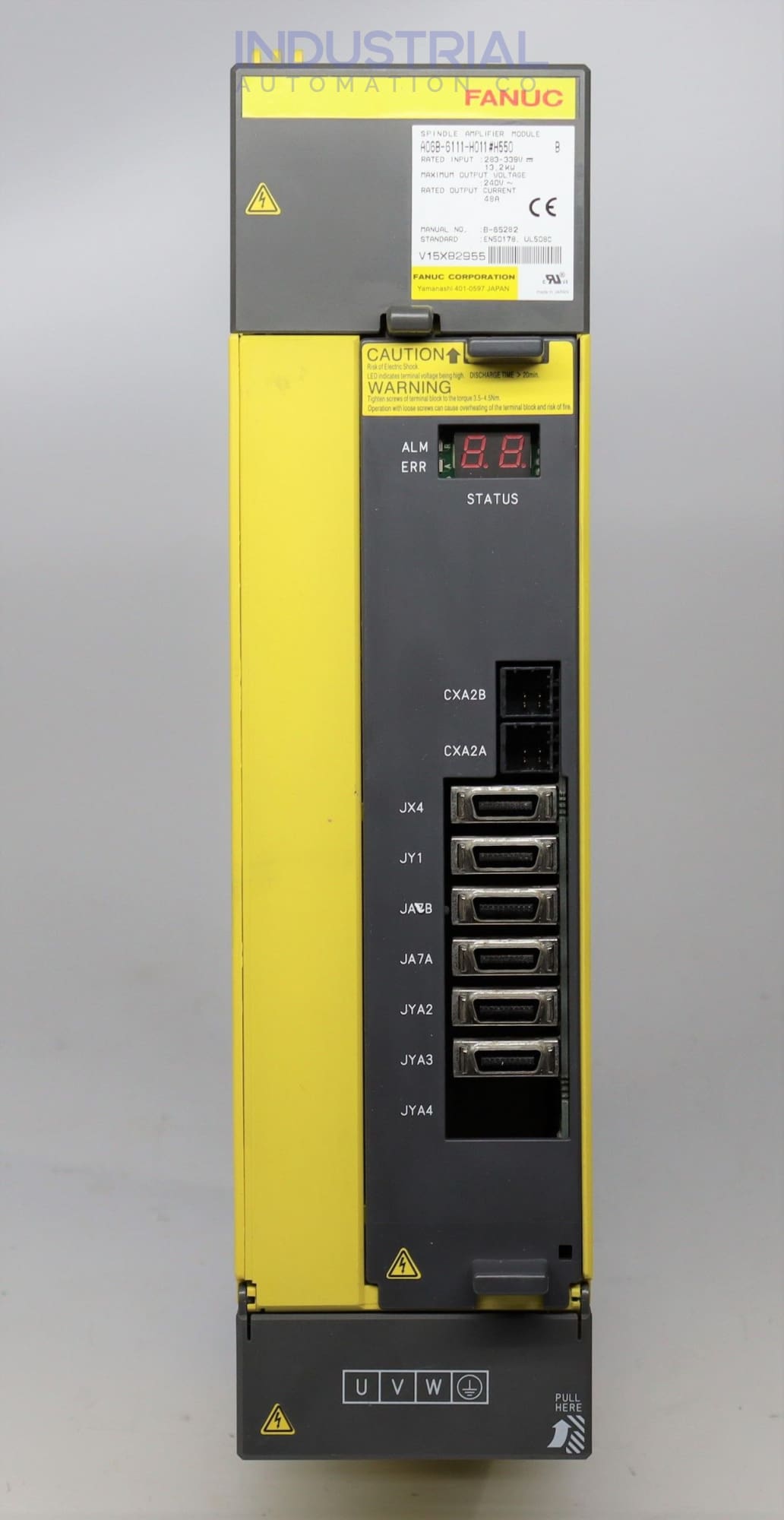

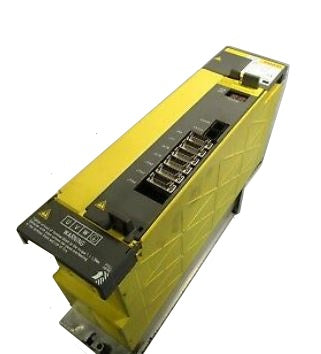

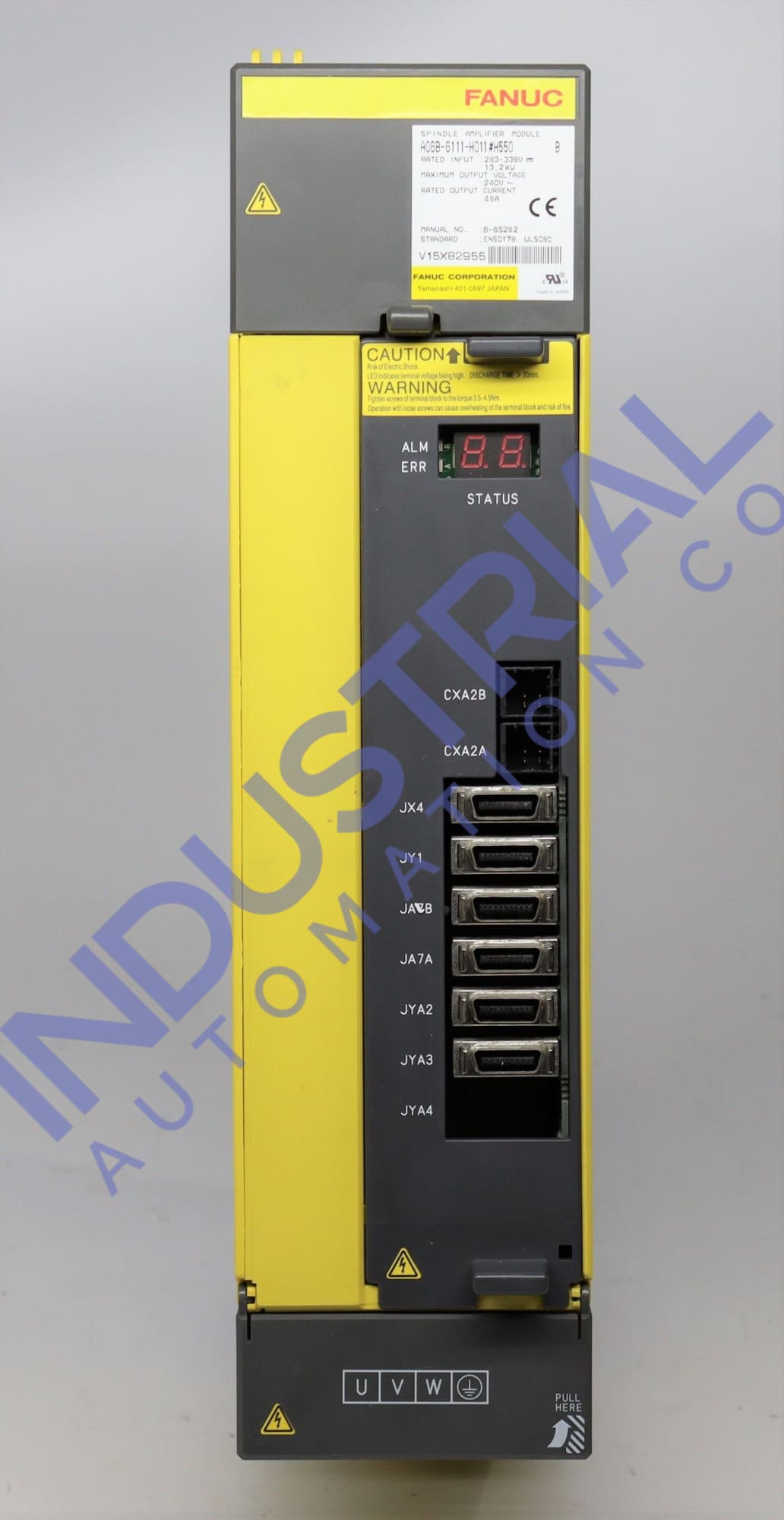

The FANUC A06B-6111-H011#H550 spindle amplifier module is a critical component in high-performance machine tools designed to control the speed and torque of the spindle motor. It can drive larger spindle motors with higher power requirements, making it suitable for more extensive machine tools and heavier machining operations.

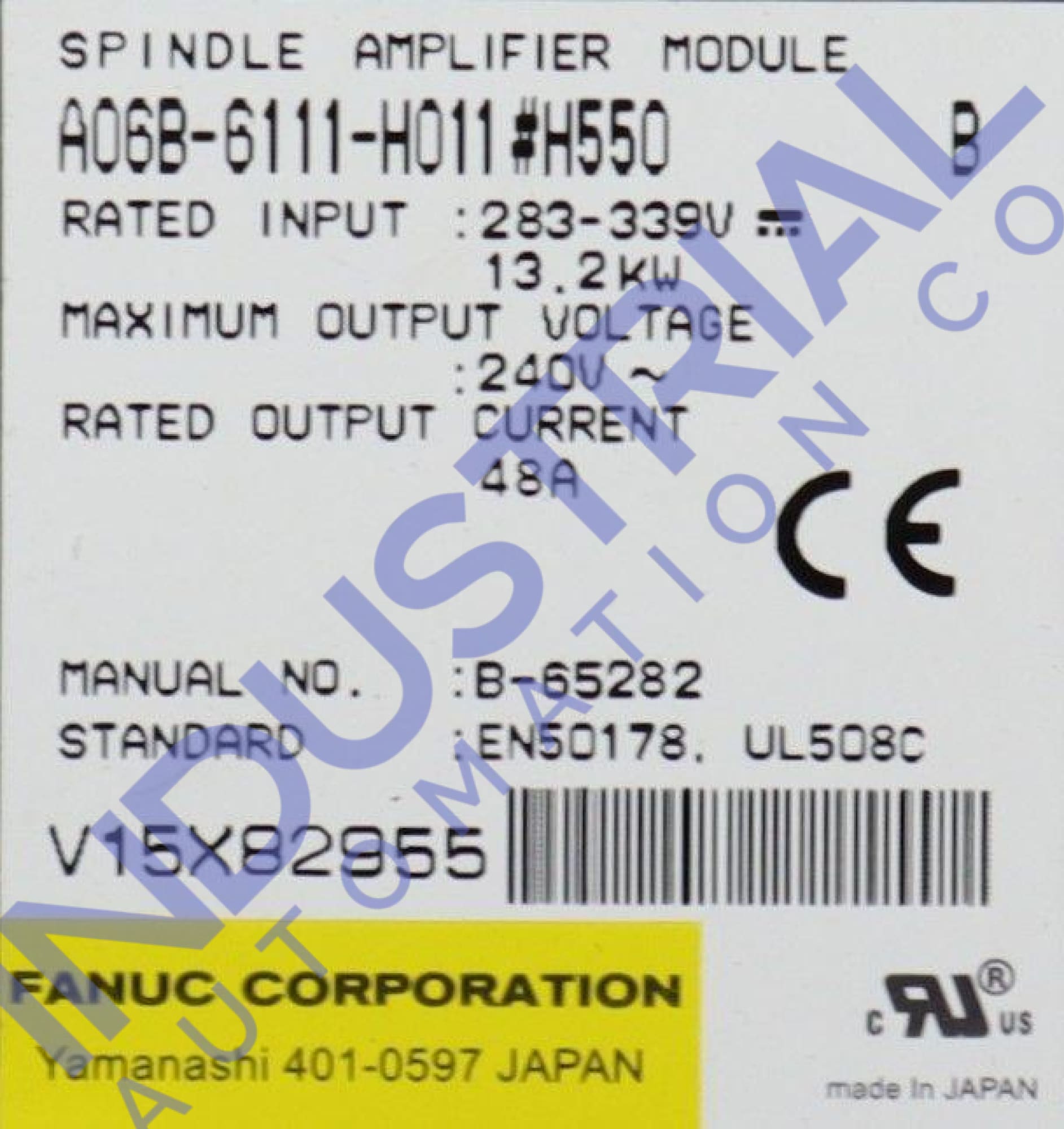

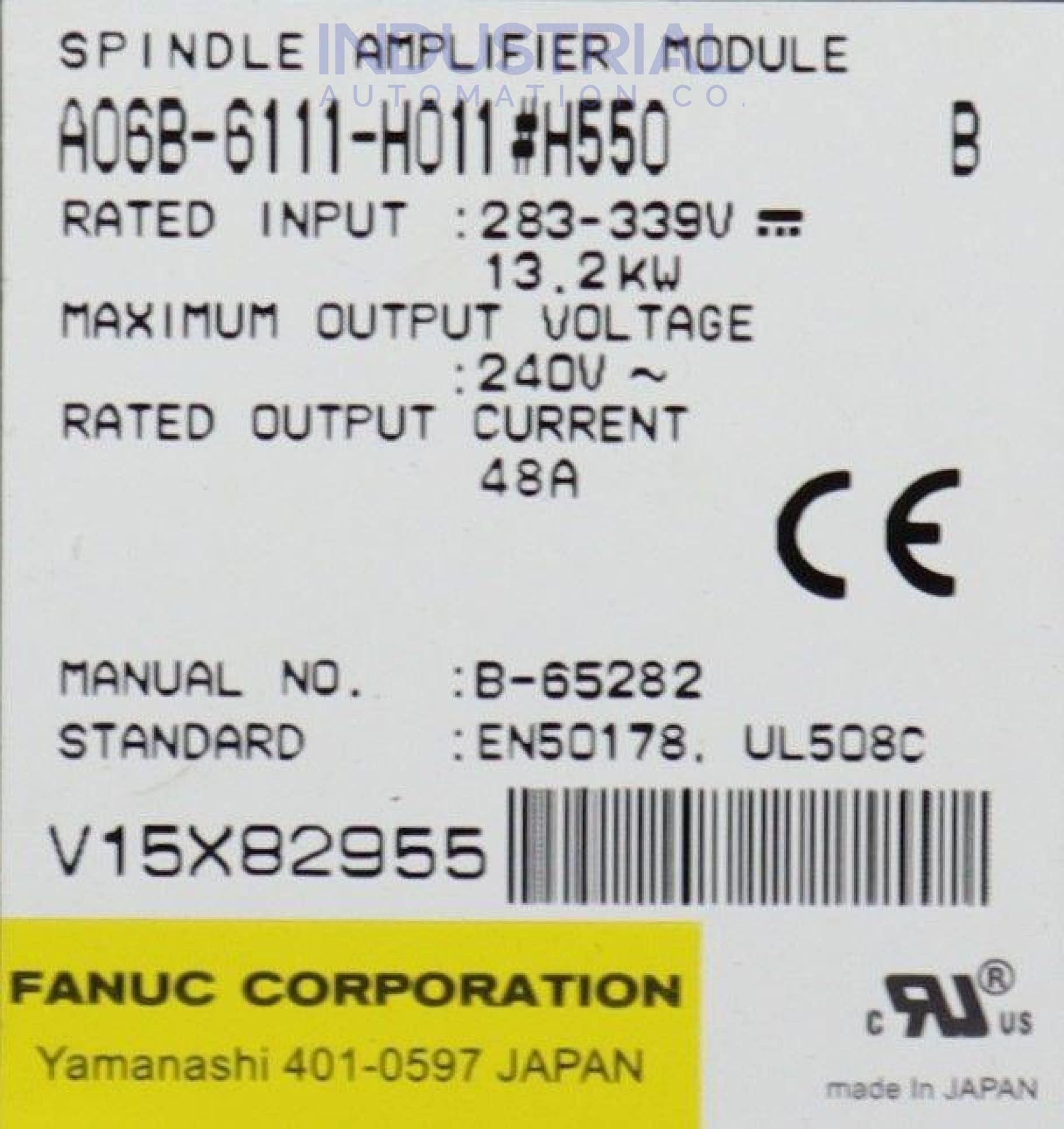

Technical Details of FANUC A06B-6111-H011#H550:

The A06B-6111-H011#H550 spindle amplifier module is a flexible solution for various machine tools because it can drive AC and DC spindle motors.

It can drive larger spindle motors that need higher power outputs thanks to its maximum output power of 11 kW. The amplifier module has a maximum output voltage of 240V and runs on a DC bus voltage of 200-240V.

This SPM-11i spindle amplifier module's sophisticated control functions are one of its standout characteristics. The spindle motor's speed and torque are precisely controlled by the module using a closed-loop control system.

This control system's high-resolution encoder accurately reports the spindle motor's position and speed, enabling the module to modify the motor's output to maintain the desired speed and torque.

For the machine tool's safe and dependable functioning, the A06B-6111-H011#H550 spindle amplifier module also has some safety and diagnostic features. When an excessive amount of current is detected flowing through the system, the module's built-in overcurrent protection instantly turns off the amplifier.

It (A06B-6111-H011#H550) also has a variety of diagnostic functions that allow operators to monitor the amplifier's performance and quickly identify any potential issues.

Regarding physical dimensions, the SPM-11i is designed to fit into a standard FANUC rack, making it easy to integrate into a wide range of machine tools. The module measures 380mm x 310mm x 170mm (height x width x depth) and weighs approximately 6.3kg.

Operating and Environmental Conditions:

The A06B-6111-H011#H550 spindle amplifier module is designed to operate at 0 to 600 Hz and can handle spindle motor loads.

This spindle amplifier module can deliver high torque to the motor. The precise torque parameters vary accordingly depending on the particular spindle motor utilized.

The module is intended to function in temperatures between 0 and 50 degrees Celsius. The module may shut down or sustain damage if the temperature rises above this range. Ensure the machine tool enclosure maintains an appropriate ambient temperature for proper functioning.

Intelligent Velocity Control (IVC) Feature:

The module has a built-in function called "Intelligent Velocity Control" (IVC), which allows for precise control of the spindle motor's rotational speed.

To ensure the proper function of IVC, the cutting tool's load requires dynamic adjustment of the spindle motor's speed. When working with complicated or challenging-to-machine materials, in particular, this aids in preventing tool breakage and increases machining precision.

Additionally, IVC allows the spindle motor to reach high rotational speeds more quickly and effectively, cutting down on cycle times and boosting overall output. The module's IVC function distinguishes it from other spindle amplifier modules for high-precision machining applications and makes it a popular option.

General Precautions

Before using this spindle amplifier module, carefully review the user manual. The module requires proper setup, use, and maintenance to ensure safety. Take note of the crucial details provided in the handbook.

Regular maintenance is crucial for safe and dependable module operation. Ensure optimal performance by consistently cleaning, lubricating, and inspecting all components.

Only individuals with proper training and authorization should use and maintain this module. It will reduce the likelihood of accidents or equipment damage and ensure that the module is utilized and cared for correctly.
