FANUC A06B-6096-H106
SKU: A06B-6096-H106-FS
We have 1 in stock
Estimated delivery: September 10th - September 12th
Order for next-day shipment.
- Regular price
-
$2,872.00
- Sale price
- $2,872.00
New
$2,872
1 in stock
Ships today
IAC Certified Refurbished
$1,897
3 in stock
Ships today
Description

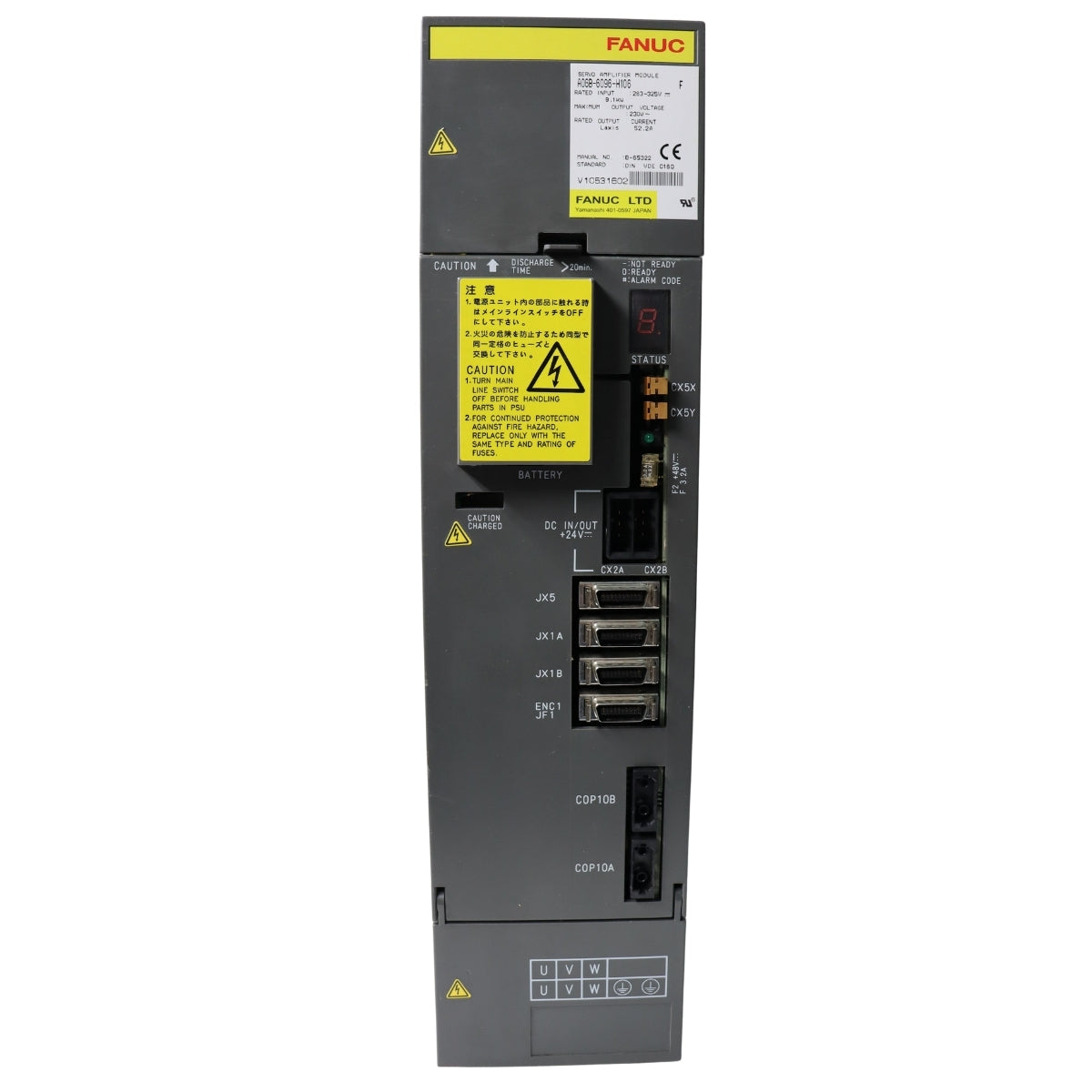

The FANUC A06B-6096-H106 is a Alpha series servo amplifier module (SVM), model SVM1-130. It is part of FANUC's modular Alpha series drive system, where it mounts alongside a power supply module (PSM) and spindle module (SPM) on a shared DC link to drive Alpha series AC servo motors on CNC machine tool feed axes.
It is a higher-current single-axis module matched to Model 22 class Alpha servo motors, typically found on larger feed axes of machine tools.
Technical Specifications
| Part Number | A06B-6096-H106 |
| Manufacturer | FANUC |
| Series | FANUC Alpha servo amplifier module |
| Model | SVM1-130 |
| Axes | 1 |
| Interface | FSSB (FANUC Serial Servo Bus) |

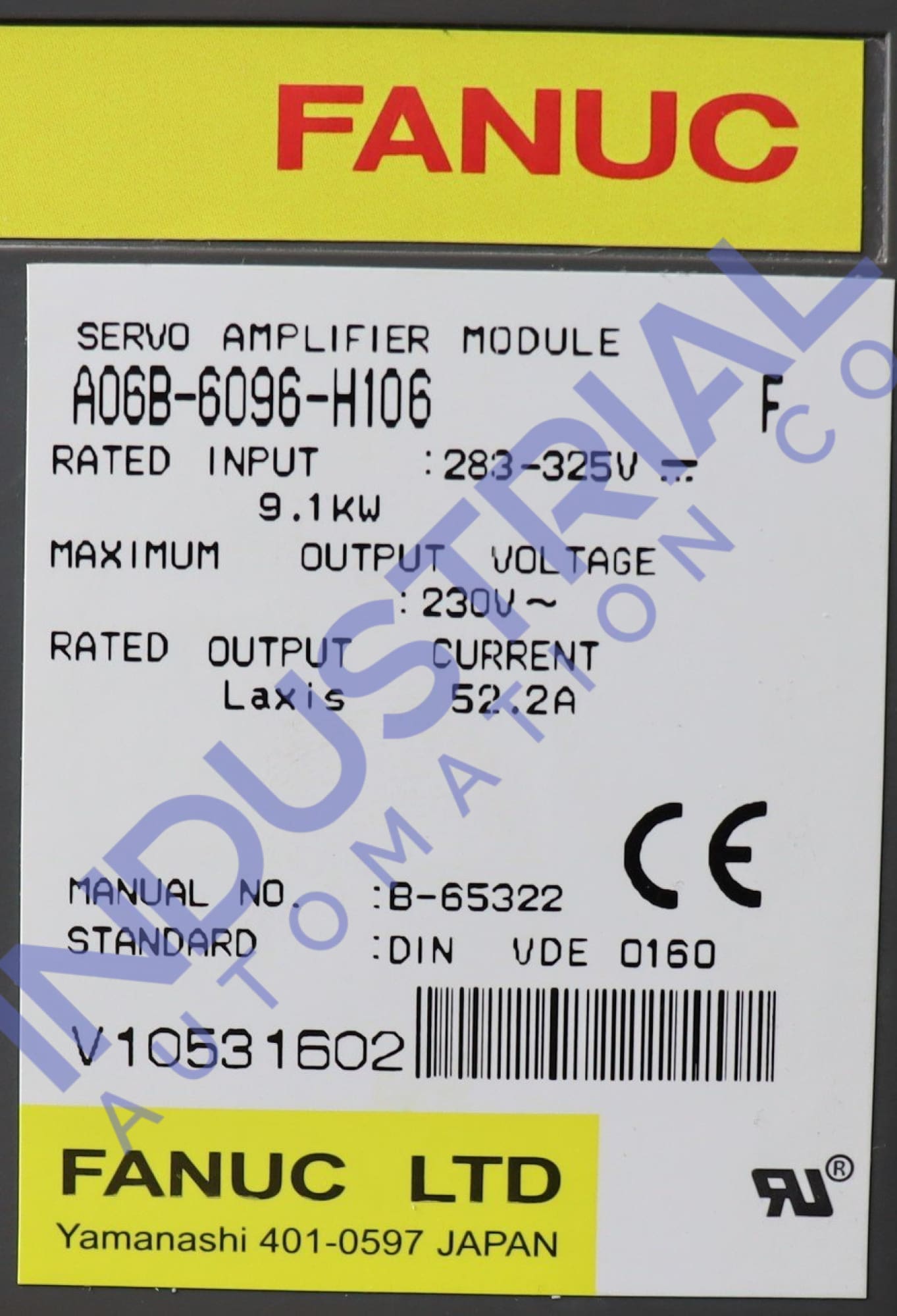

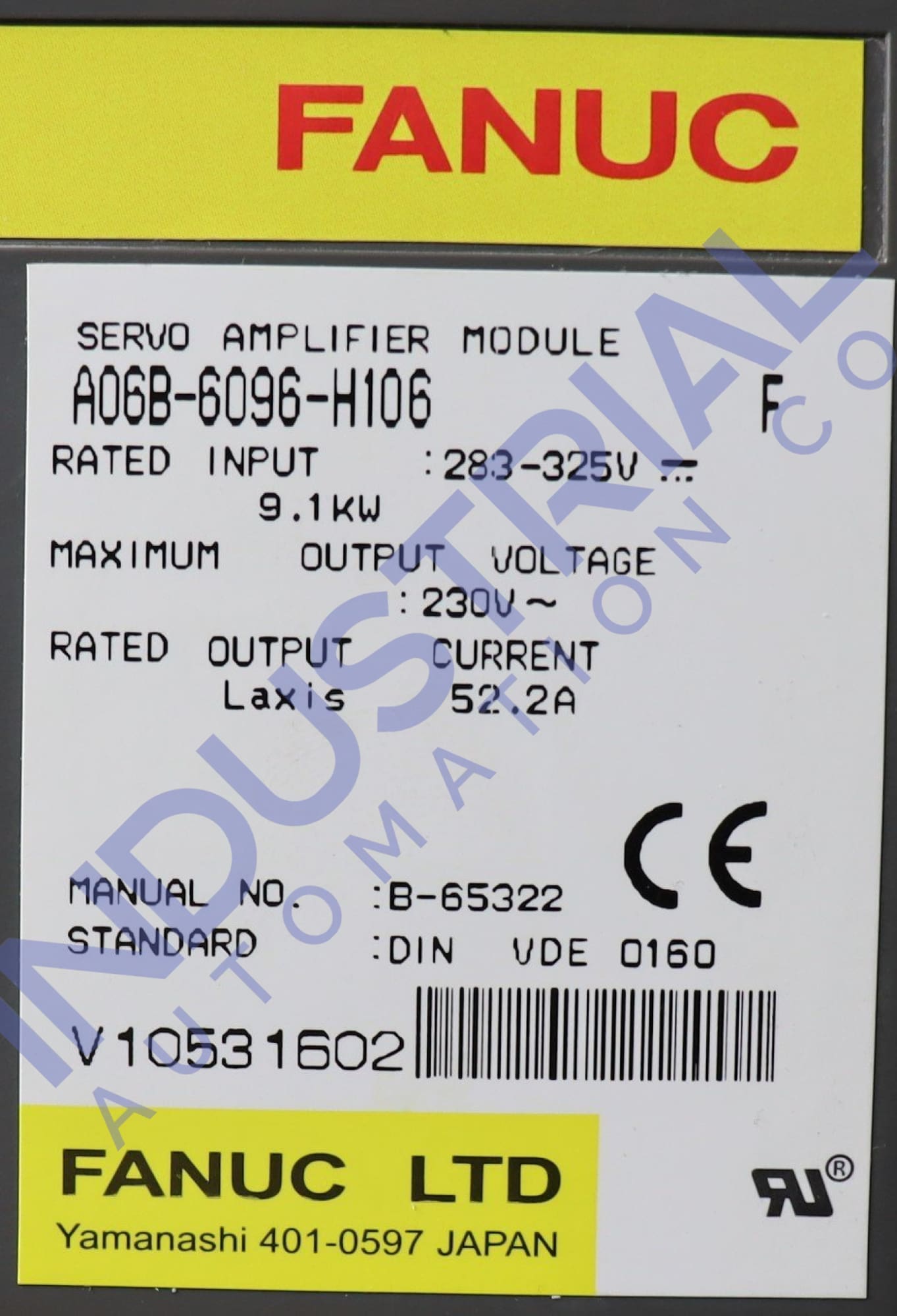

| DC link input | 283-325 VDC |
| Maximum output voltage | 230 VAC |
| Motor type | Alpha series AC servo motors, Model 22 class |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $431/yr+3 yrs → 5 total $383/yr+5 yrs → 7 total $287/yrBEST VALUE+8 yrs → 10 total $215/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-6096-H106 is a Alpha series servo amplifier module (SVM), model SVM1-130. It is part of FANUC's modular Alpha series drive system, where it mounts alongside a power supply module (PSM) and spindle module (SPM) on a shared DC link to drive Alpha series AC servo motors on CNC machine tool feed axes.
It is a higher-current single-axis module matched to Model 22 class Alpha servo motors, typically found on larger feed axes of machine tools.
Technical Specifications
Part Number A06B-6096-H106 Manufacturer FANUC Series FANUC Alpha servo amplifier module Model SVM1-130 Axes 1 Interface FSSB (FANUC Serial Servo Bus) DC link input 283-325 VDC Maximum output voltage 230 VAC Motor type Alpha series AC servo motors, Model 22 class -
Specifications
FANUC A06B-6096-H106: A High-Performance Servo Amplifier Module
Overview
The FANUC A06B-6096-H106, part of the ALPHA SVM1-130 series, is a high-performance servo amplifier module with a single channel and a powerful maximum current capacity of 130 amps. Designed for smooth, uninterrupted operations, this module is a location-sensing wonder that expands its possibilities beyond measure.
Ambient Conditions of Operation
Temperature Range: Operates in various temperatures, from 0°C to 55°C.
Humidity: To maintain peak performance, ensure the working area's relative humidity stays below 90%.
Altitude: Designed to maintain peak performance up to 3281 feet above sea level.
Maintenance: Keep the module in optimal condition by replacing damaged connections and refreshing components.
Installation and Transportation Instructions
Assembly: Create a clean and organized work area, free of debris and potential hazards. Proper grounding is crucial to avoid the risk of electrical shock.
Location: Install in a location with minimal vibrations, moisture, and dust. Connect the feedback device and motor with quality cables and connectors.
Handling: Use lifting straps or hooks specifically designed for the job. Execute smooth, steady movements to prevent any jostling or sudden drops.
Conclusion
The FANUC A06B-6096-H106 module is a robust and versatile solution for industrial applications. With its advanced features, compatibility, and safety measures, it stands as a testament to innovation in the field of industrial automation. Whether you're looking to enhance efficiency or seeking a reliable partner for your manufacturing needs, the A06B-6096-H106 is engineered to deliver top-notch performance without compromise.
-
Part Number Breakdown
Part number breakdown — A06B-6096-H106
α Series Servo Amplifier Module SVM (FSSB interface, 200-V input)
Amplifier model H106SVM1-130 Specifications
axes 1 axis1LimitA 130 axis1RatedCurrentArms 52.2 weightKg 6.5 Alarm codes (17)
Full troubleshooting reference for this servo amplifier:
- Alarm 8 — Abnormal Current Alarm 8
- Alarm 9 — Abnormal Current Alarm 9
- Alarm A — Abnormal Current Alarm A
- Alarm b — Abnormal Current Alarm b
- Alarm C — Abnormal Current Alarm C
- Alarm d — Abnormal Current Alarm d
- Alarm E — Abnormal Current Alarm E
- Alarm 8. — IPM Alarm 8.
- Alarm 9. — IPM Alarm 9.
- Alarm A. — IPM Alarm A.
- Alarm b. — IPM Alarm b.
- Alarm C. — IPM Alarm C.
See all 17 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65162E/03). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
