TECHNICAL SPECIFICATIONS

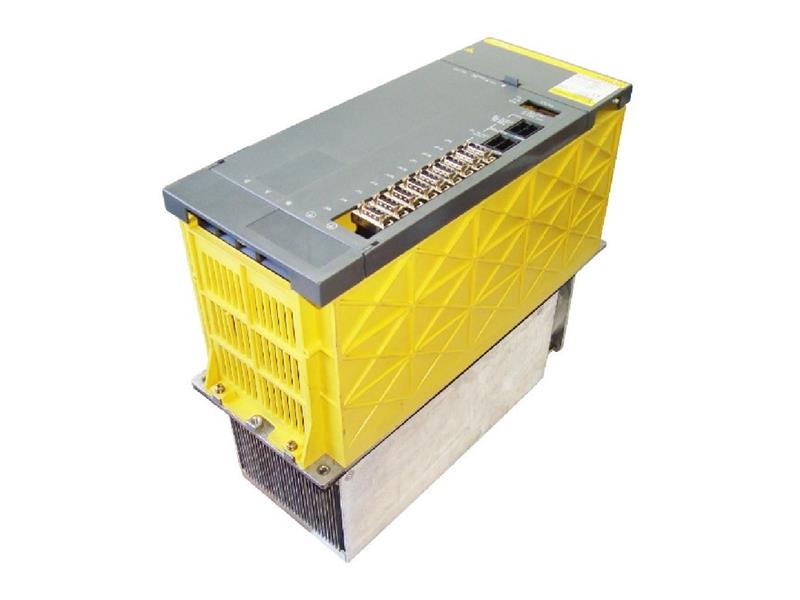

FANUC A06B-6088-H222#H500

This spindle amplifier module A06B-6088-H222#H500 offers versatile usage in various settings, providing powerful performance every time. The spindle amplifier module has several key technical features, making it a sought-after solution for industrial manufacturers.

Technical Description of A06B-6088-H222#H500:

The spindle amplifier module A06B-6088-H222#H500 features an advanced feedback circuit allowing real-time monitoring of the spindle motor's position, speed, and torque. This feedback system ensures precise motor control, leading to uniform and accurate part production.

This sophisticated model A06B-6088-H222#H500 promises to produce a powerful output of up to 230 V and 95 A, with its reliable performance. The spindle amplifier module also utilizes a high-quality voltage regulator to provide stable voltage and eliminate voltage fluctuations, resulting in smoother and more consistent operations.

The spindle amplifier module features a high-speed CPU that delivers quick and precise control signals to the motor. The CPU ensures that the motor operates within the set speed and torque limits, which prevents wear and tear and prolongs the spindle's lifespan.

Another feature of the Fanuc spindle amplifier module is its ability to operate at high temperatures without losing performance or reliability. During operation, it effectively dissipates heat through advanced cooling technology.

The efficient model A06B-6088-H222#H500 requires an input voltage range of 283 - 325 V for optimal performance. Moreover, the module can withstand harsh production environments, including exposure to dust and vibration. Additionally, spindle amplifier modules support multiple control modes, providing additional flexibility during operation.

This module packs a punch - boasting an impressive 25.2 kW of output power in a minimal and lightweight form factor, making it ideal for applications where space and weight are major considerations.

Standard Operating and Storage Conditions:

To protect the integrity of the model A06B-6088-H222#H500 and keep it in optimal condition, always store it indoors. Avoid drastic temperature changes between -20°C to +60°C as extreme temperatures can damage its exterior over time €“ Avoid direct sunlight for this reason.

Exceeding the recommended temperature range of 0 - 55°C can put the model under additional stress and cause it to overheat, so for optimal performance, be sure to adjust its power accordingly.

Keep the A06B-6088-H222#H500 module in optimal working condition by shielding it from moisture and debris. The slightest exposure to these external factors can degrade the system's performance, so protect against them for long-term reliability.

General Wiring Instructions:

The A06B-6088-H222#H500 module's performance and safe operation rely on the applied voltage within its specified range. Failure to wire with a power supply at or below this value can irreparably damage it, leading to hazardous user conditions.

To ensure that module A06B-6088-H222#H500 functions properly and safely, you must achieve proper grounding. Securely fasten the ground connection on the unit's terminal - doing so will help reduce electrical shock risk while protecting against potential damage.

The wire size used in the wiring of the A06B-6088-H222#H500 module is essential to ensure its safe and effective operation. Using wires too small can cause major problems, such as overheating, which may lead to serious fire hazards if left unchecked.

To ensure the safety of yourself and the equipment, remember to turn off all electrical power before making any connections to the module. It will help prevent hazardous voltage levels or avoidable damage from occurring.
