TECHNICAL SPECIFICATIONS

FANUC A06B-6096-H105

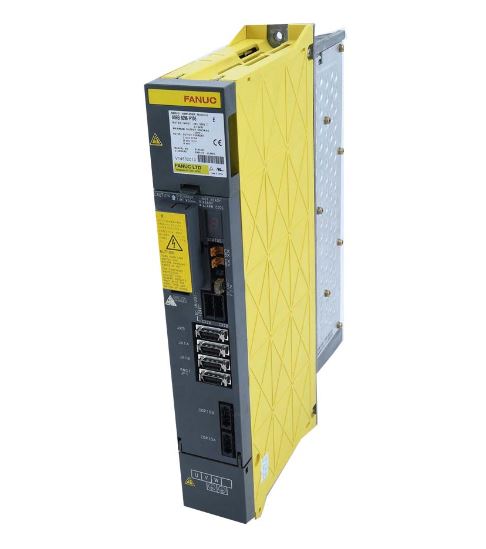

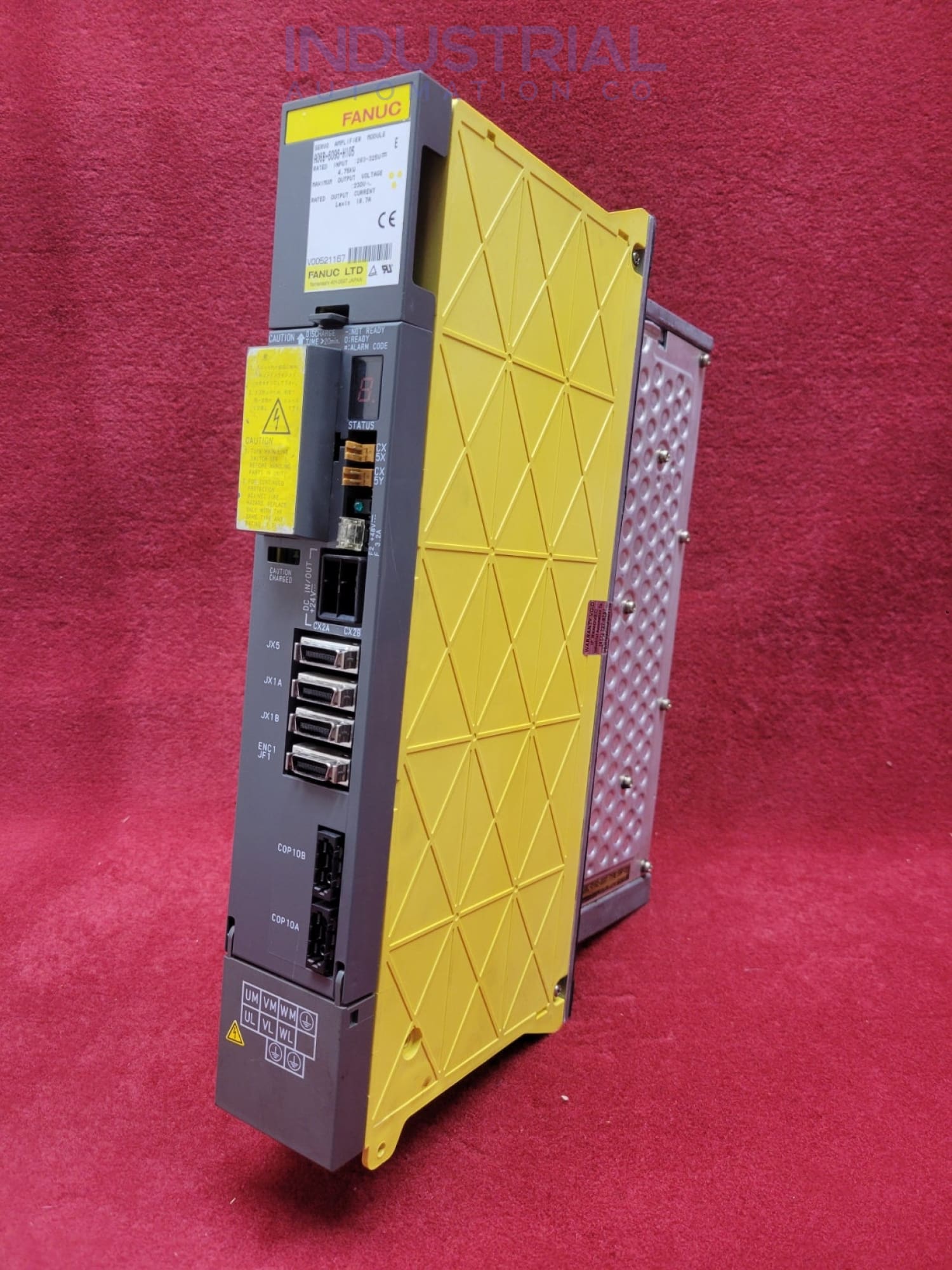

The FANUC Alpha Silicon Motor A06B-6096-H105 is an exceptional servo module delivering top-notch operation with unequaled durability. The reliable operation of its sophisticated design ensures that a malfunctioning motor will never put your applications on hold.

General Specifications of A06B-6096-H105:

This high-performing A06B-6096-H105 motor runs at a remarkable 3000 rpm and supplies impressive torque of up to 2Nm, making it ideal for applications that need reliable power. A power rating of 4.75 kW is sufficient for driving high-performance servo motors. The module delivers high performance and operates over an extended range.

For industrial applications, A06B-6096-H105 offers superior protection from dust and moisture due to its IP67-certified rating. Its heavy ball-bearing construction ensures smooth operation, while the tapered shaft design makes installation a breeze - making this product an ideal choice for any rugged application. Due to its robust shaft design, this A06B model can withstand high axial and radial loads.

The A06B-6096-H105 model is part of the Alpha Servo Module MDL SVM1-80 product series, so it can easily pair with other components in that same line. Having compatible products makes installation easier and keeps your system running smoothly at its highest efficiency level.

Operating Conditions of A06B-6096-H105:

The A06B-6096-H105 module is a top choice for precise, smooth operation in industrial settings. With reliable construction and long service life, it pairs perfectly with high-performance servo motors to deliver excellent results across various applications. Maximize the efficiency and accuracy of your motor control system - choose this powerful module today.

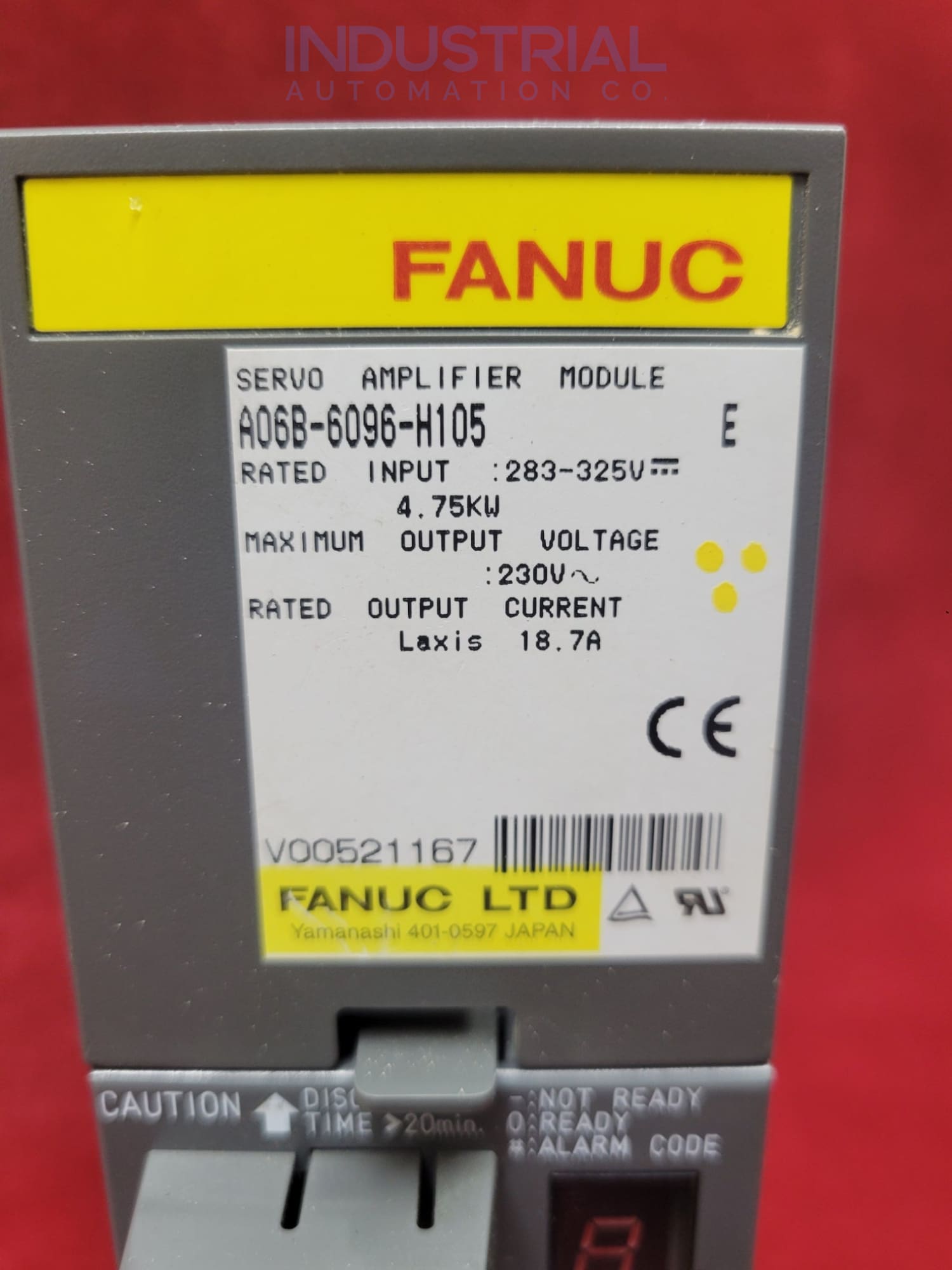

This model A06B-6096-H105 provides maximum flexibility with a wide input voltage range of 283 - 325 VDC and an output voltage of 230 VAC. This module is especially beneficial for driving servo motors; this module utilizes the FSSB (FANUC Servo Serial Bus) interface to ensure easy integration into existing systems.

The A06B-6096-H105 module is renowned for its superior performance and dependability when used with a Computer Numerical Control system. Ideal in industrial automation applications, this module ensures maximum productivity every time.

Guidelines €“ Safety Precautions and Handling:

Maximize safety and peace of mind with the A06B-6096-H105 servo drive and amplifier module, specifically designed for reliable performance in industrial applications. We expertly crafted this piece with many preventative features that keep you safe every step of the way.

With its range of built-in protections, the A06B-6096-H105 servo motor can help protect itself and connected equipment against unexpected surges or drops in voltage. The system incorporates overcurrent protection to prevent damage from current spikes and includes overvoltage and under voltage safeguards for additional stability.

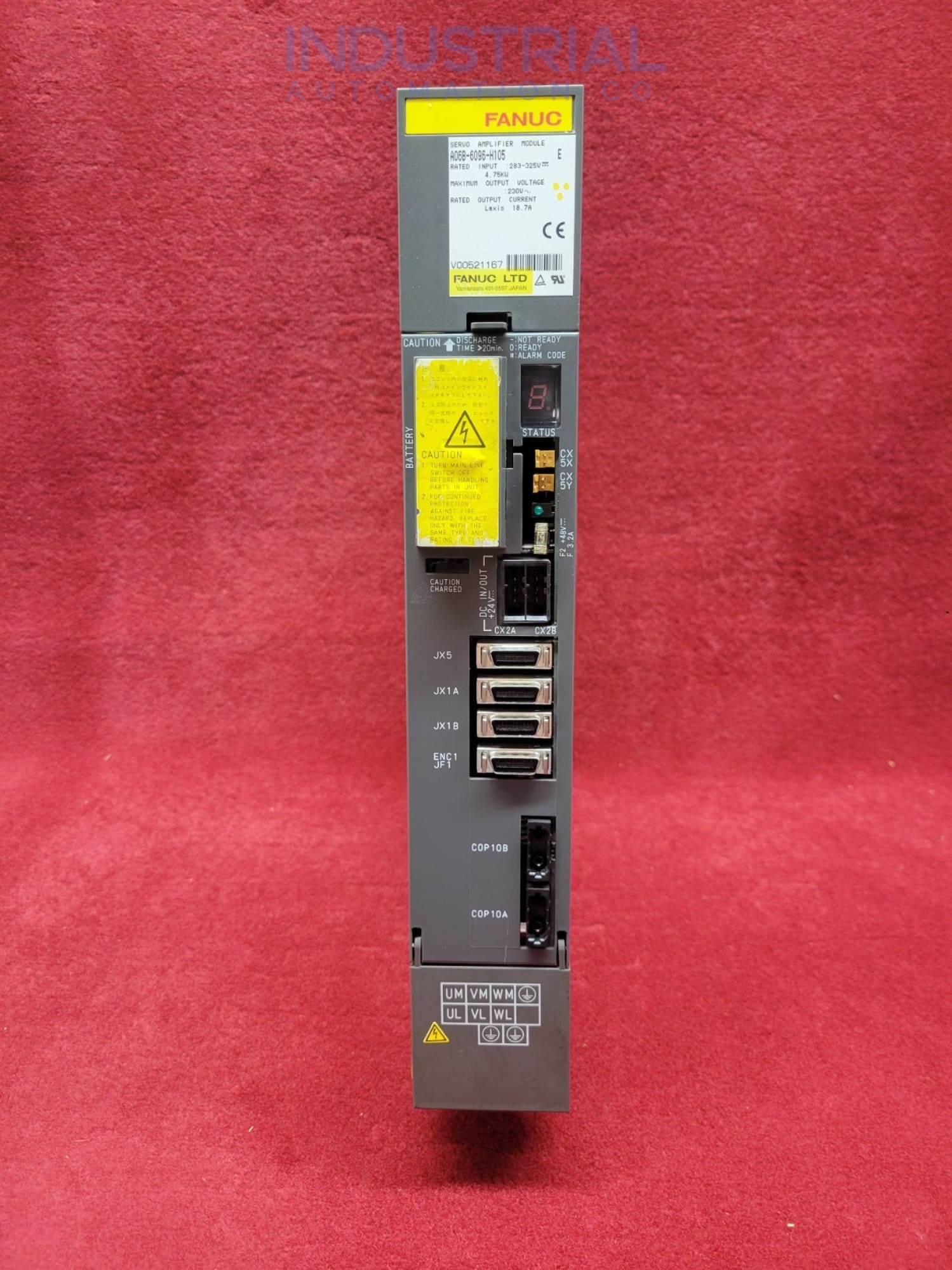

The Servo amplifier module Fanuc A06B-6096-H105 offers enhanced protection against overheating and damage with its built-in over-temperature layer. The design includes LED indicators for easy problem identification so operators can swiftly identify any issues that surface during use.

Installation and Transportation:

To ensure proper function and safety, a qualified technician must install the Fanuc A06B-6096-H105 servo drive and amplifier module. This critical device should be kept in dry and clean conditions when transporting or storing to protect its integrity.

When setting up Fanuc A06B-6096-H105, all electrically wired connections must be safely fastened and properly grounded. Don't forget to install any necessary cooling systems and ensure they're configured correctly for optimal functioning.
