TECHNICAL SPECIFICATIONS

FANUC A06B-6089-H105

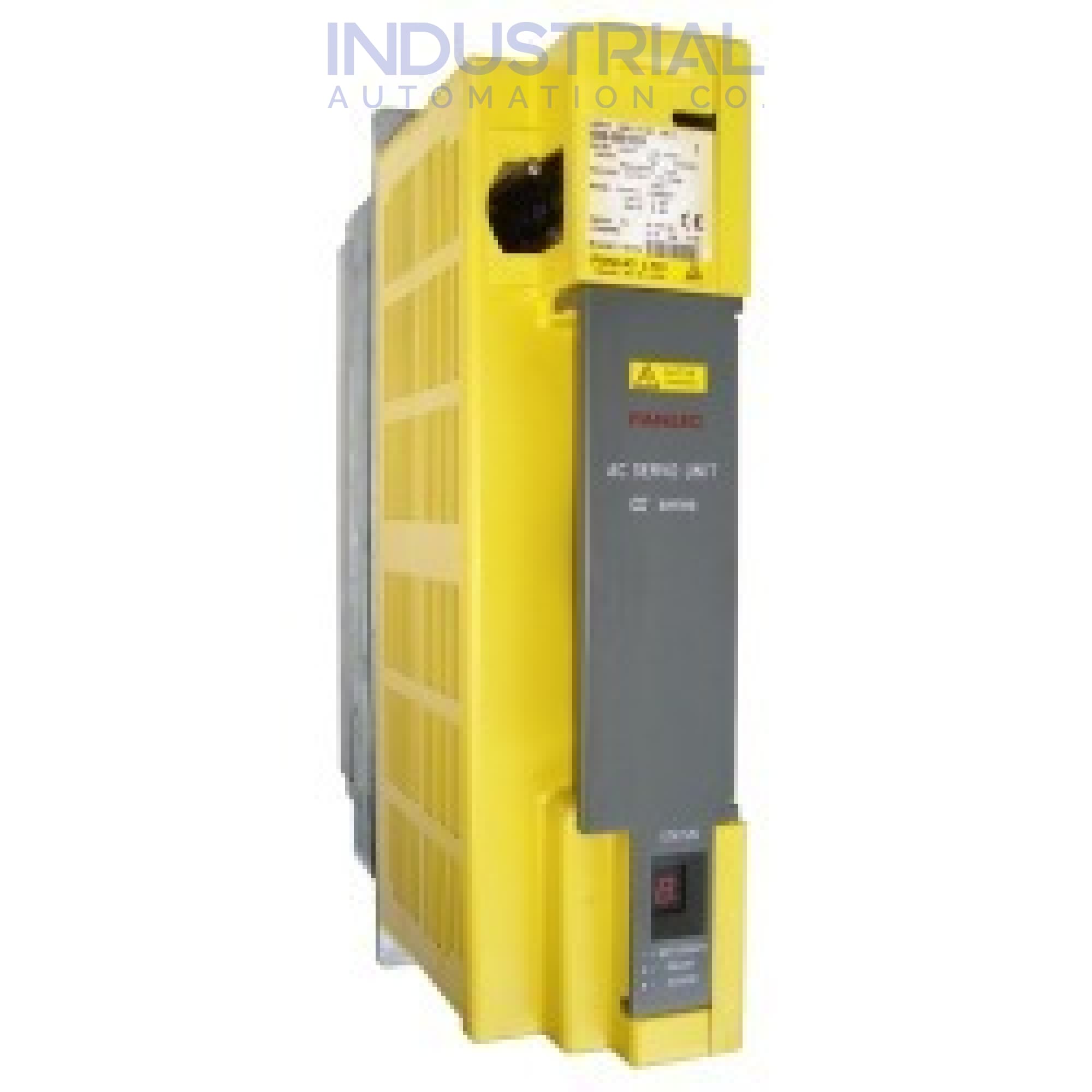

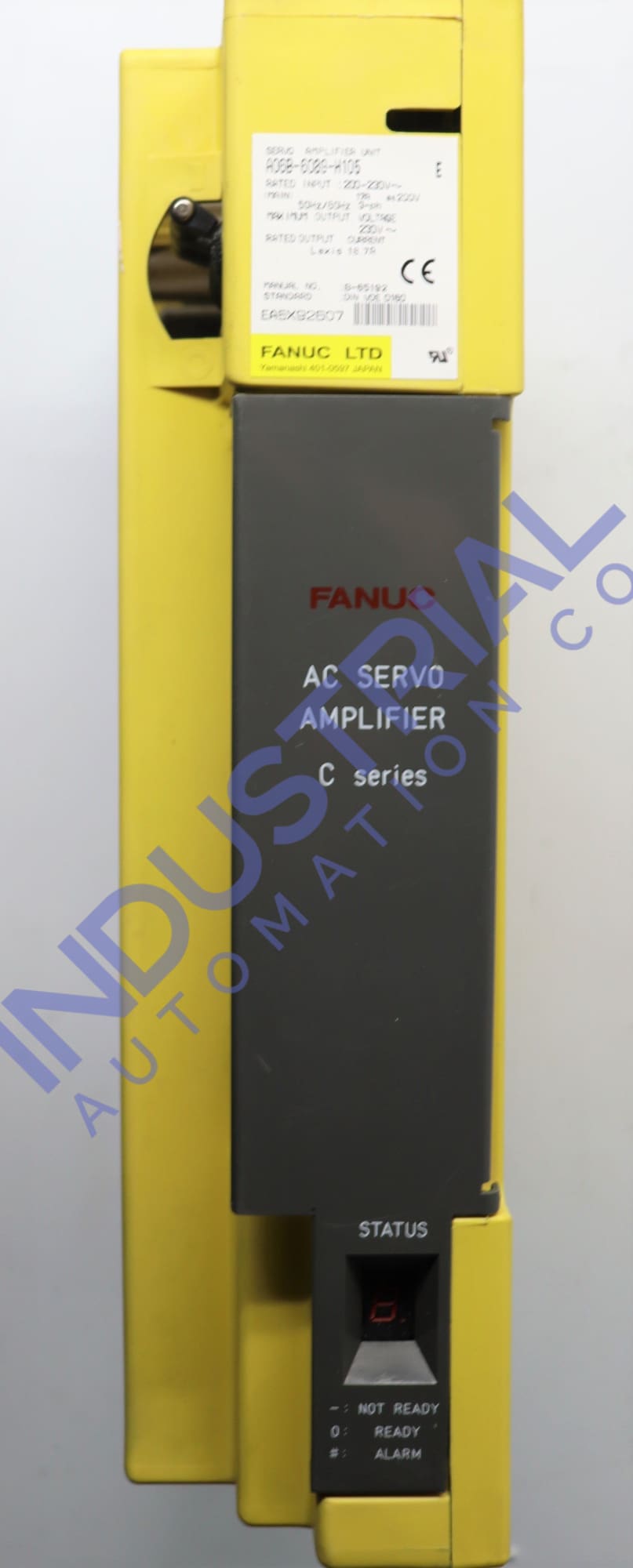

This Fanuc AC servo drive A06B-6089-H105 is an ideal solution for industries that demand precise and reliable motion control. The advanced control technology, accurate feedback, flexibility, and robust design make it suitable for various industrial applications.

Technical Description of A06B-6089-H105:

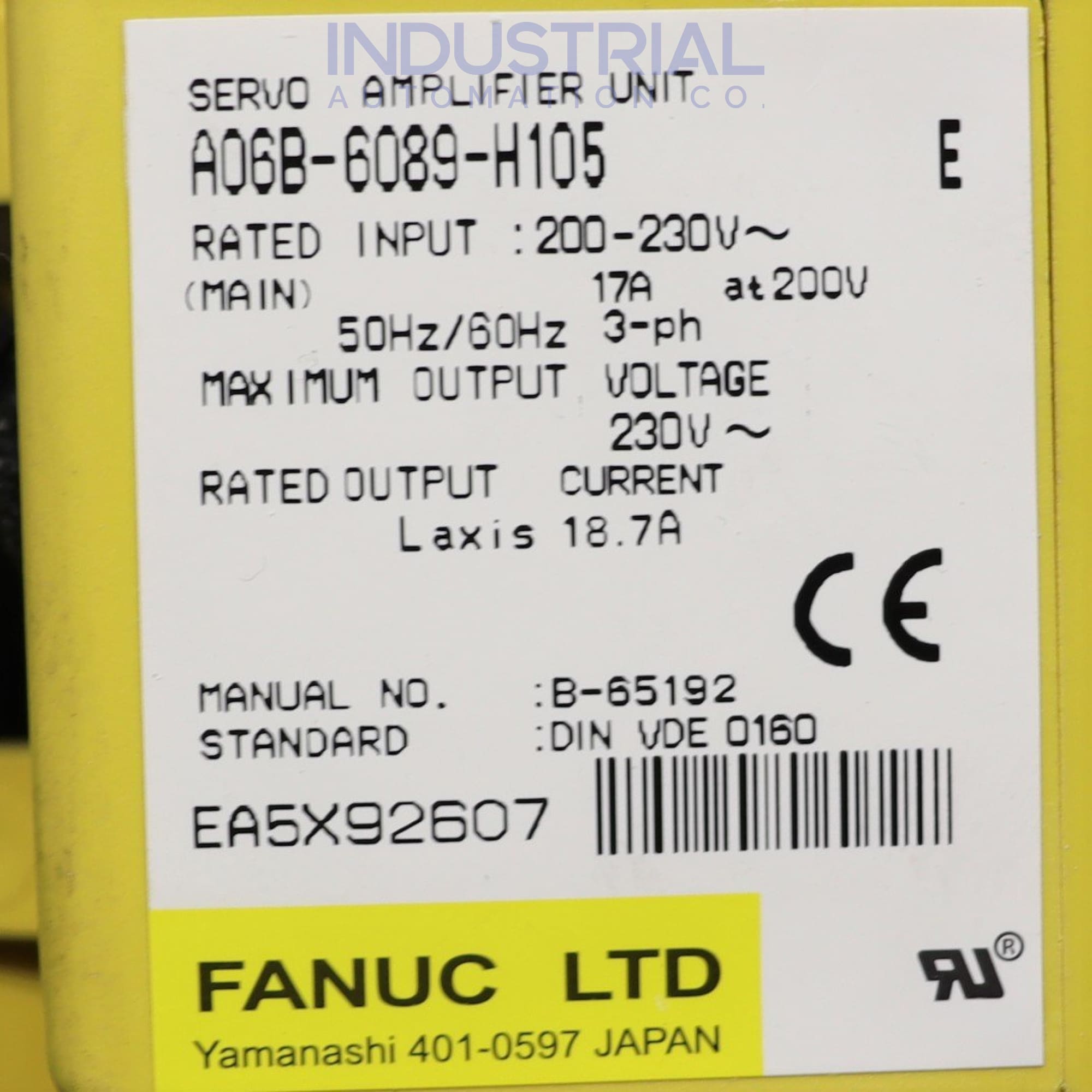

The A06B-6089-H105 model features an input voltage rating spanning 200 V to 230 V and an input current rating of 17 A. The electrical specifications of this model are certainly impressive, boasting a maximum output voltage rating of 230 V and an output-rated current of 18.7 A (L-axis).

The AC servo drive A06B-6089-H105 has advanced adaptive control technology that monitors and adjusts the motor's performance, ensuring consistent and precise positioning and velocity control. The innovative control algorithms also optimize the overall system performance, reducing energy consumption and extending the lifespan of the motors.

The A06B-6089-H105 model is designed to be highly flexible and customizable. For instance, you can configure it to operate in various modes, such as torque, speed, and position control, making them suitable for different applications.

The high-resolution encoder feedback in the A06B-6089-H105 model provides exceptionally accurate feedback on the motor's position and velocity. The encoder feedback technology ensures precise motion control even in high-speed applications where accuracy is critical, such as CNC machining, robotics, and automated material handling systems.

This AC servo drive is a compact and robust device designed to withstand extreme environmental conditions. The model's cutting-edge thermal management technologies ensure that the drive delivers optimum performance even in high-temperature environments.

General Wiring Instructions:

Proper grounding of the servo drive A06B-6089-H105 is critical to prevent electrical shock and damage to equipment due to electrostatic discharge. Connect the appropriate grounding terminal to the provided ground wire.

Pay attention to detail when making the motor connection for the drive. Connect the motor to the correct terminals and wire the torque and feedback cables correctly. Improper motor wiring can result in incorrect motor movement or even permanent damage.

The AC servo drive A06B-6089-H105 should be connected to the appropriate communication interface, which is often a CNC machine controller. Ensure the wiring between the controller and the drive is properly connected and within the specified length limits. Wiring that is too long or too short can cause communication problems that can lead to erratic or unpredictable behavior of the system.

Standard Safety Precautions:

Ensure that the power supply voltage is within the specified range recommended by the manufacturer. Not complying may cause the servo drive to fail or damage the connected equipment.

To ensure swift and effective shutdown in an emergency, installing an emergency stop switch near the AC servo drive is crucial. This measure guarantees optimal safety and protection for equipment and personnel.

The AC servo drive (A06B-6089-H105) must be installed by a qualified technician according to the manufacturer's instructions. Improper installation may lead to malfunctioning of the servo drive or even damage to the equipment.

Regular AC servo drive A06B-6089-H105 maintenance is critical to ensure optimal functionality. Cleaning the unit with a soft and dry cloth is recommended. Always disconnect the servo drive from the power supply before performing maintenance.
