TECHNICAL SPECIFICATIONS

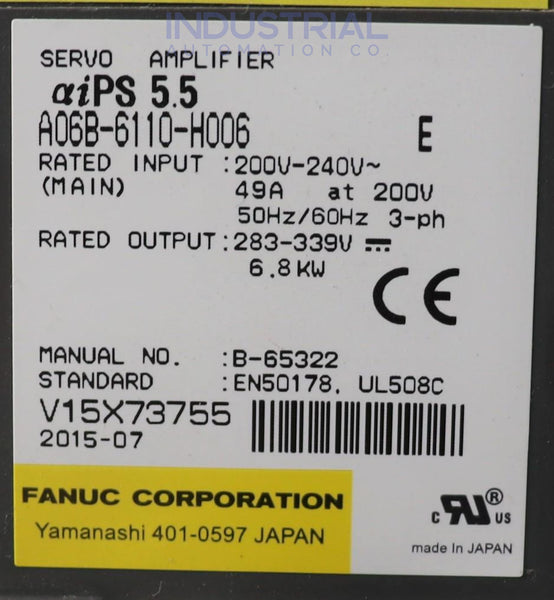

FANUC A06B-6110-H006

The FANUC A06B-6110-H006 is a Power Supply Module (PSM) 5.5i, designed to power the servo amplifiers and motors of the FANUC Alpha iSV series. This power supply module is coupled to an electrical power source, sending DC power to the servo amplifiers and motors that regulate the movement and positioning of various machinery parts.

Technical Specifications of FANUC A06B-6110-H006:

The FANUC A06B-6110-H006 power supply module operates with input voltages between 200 and 240 VAC and has a 5.5 kW rated power output. Its maximum output capability is 11kW, while its peak output capability is 22kW.

With a maximum output voltage of 283 VDC and a maximum output current of 10.5 A, it can supply servo amplifiers and motors with a steady and dependable power source. It operates at a frequency of 50/60 Hz.

The FANUC A06B-6110-H006 power supply module has compact dimensions (150 mm x 290 mm x 275 mm) and weighs approximately 4.9kg.

This power supply module, including the Series 30i, 31i, and 32i model lines, is commonly used in FANUC CNC systems.

Due to its compact design, it is simple to integrate into various industrial machinery applications. Thanks to its robust construction, it can resist the rigors of difficult operating situations.

Installation Instructions of the Power Supply Module:

A basic understanding of electrical wiring and safety considerations is needed to install the FANUC A06B-6110-H006 power supply module. Before installing the module, ground the machine and turn off the power.

Finding the module's installation location€”typically close to the CNC control unit€”is the first step in installing the module. Secure the module to a flat surface using the included mounting brackets and screws.

Connect the power cables to the module's input terminals while observing the correct voltage and current ratings. The input current should be rated suitably according to the machine's current draw.

After connecting the input cables, attach the output cables to the module's output terminals while maintaining polarity. The output voltage, typically 400VDC, must be observed appropriately to protect the machine.

To ensure the module operates correctly, turn on the machine and run a test cycle. Check the machine's operation carefully for any unusual behavior or indications of overheating. For any troubleshooting advice, consult the user handbook for the module.

Special Features:

This module has a remarkable capacity to regulate the input power factor, which allows it to optimize the timing and voltage of incoming AC power for more effective energy consumption and lower operating costs.

Additionally, the module is lightweight and compact, making it simple to install and maintain in several CNC systems.

The module is moreover made to function effectively in a variety of climatic situations, including temperatures up to 55°C, non-condensing humidity up to 95%, and elevations up to 1000m above sea level.

General Cautions:

While working with FANUC A06B-6110-H006, it is advisable to read the instruction manual properly and follow all the guidelines.

Personal protective equipment such as safety glasses, gloves, and clothing is highly recommended. Touching electrical components or connections with bare hands or conductive materials can lead to severe consequences.

Keep the work area clean, dry, and well-lit, and avoid working in wet conditions. Altering or modifying the module can also fail the equipment.
