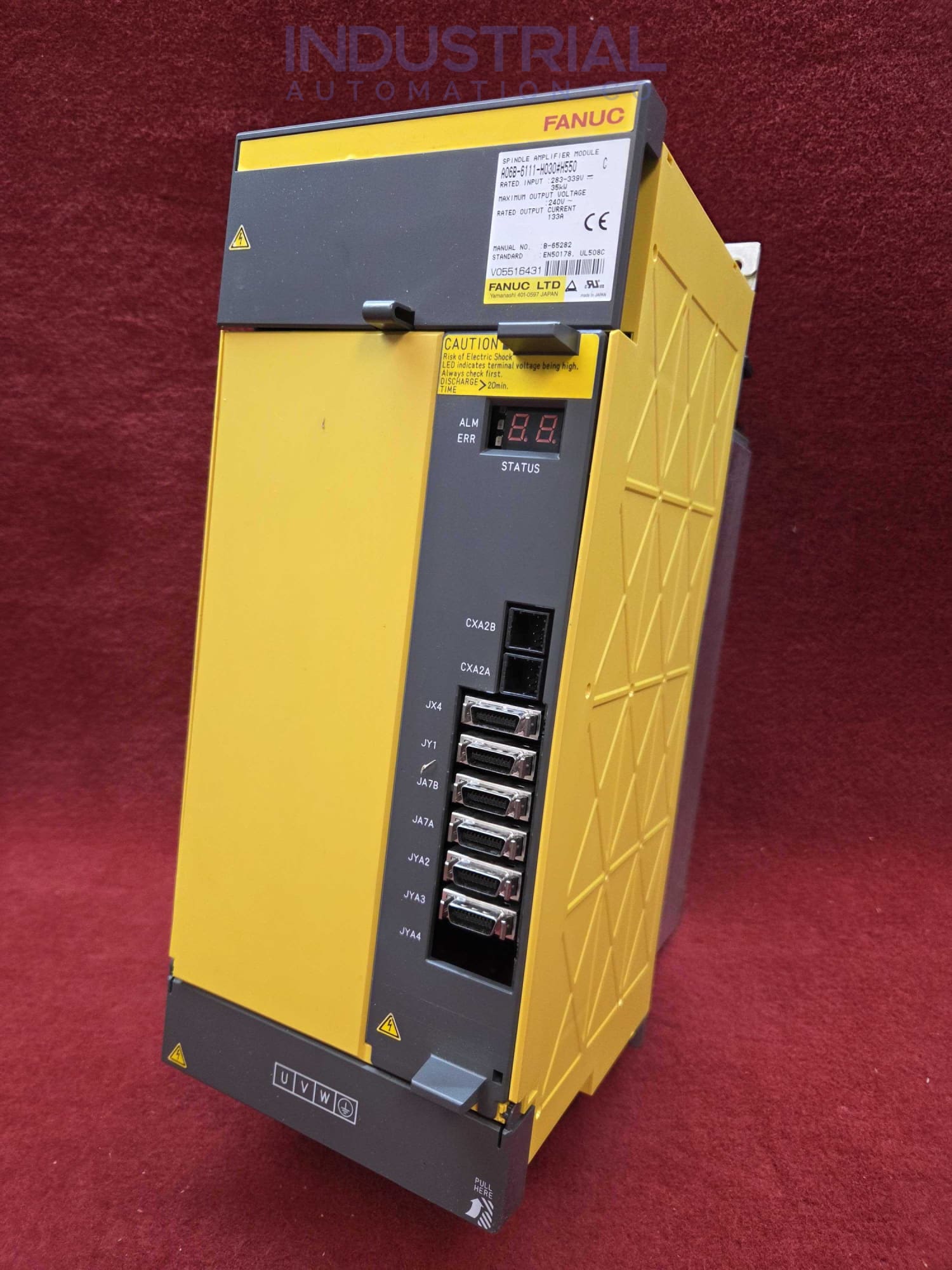

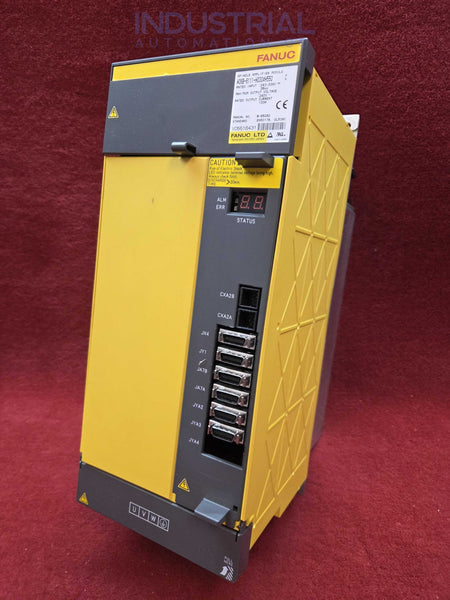

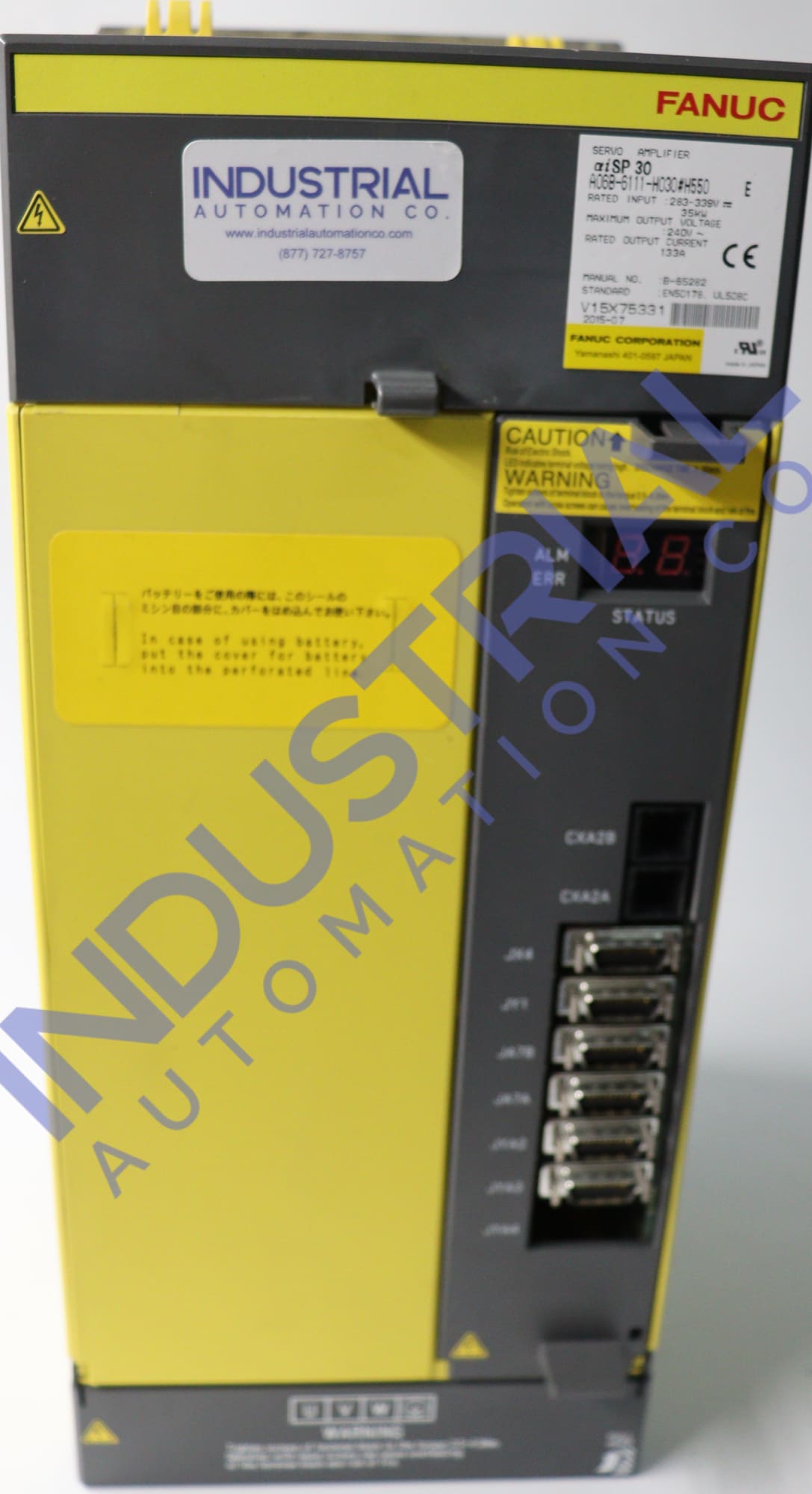

FANUC A06B-6111-H030#H550

The FANUC A06B-6111-H030#H550 is a spindle amplifier module designed for CNC machines. It is a high-performance module that is capable of driving a variety of spindle motors, making it a versatile and reliable component for use in industrial applications.

Technical Specifications of FANUC A06B-6111-H030#H55:

The module can deliver a maximum output power of 30 kW, making it suitable for high-performance spindle motors that require significant energy.

This spindle amplifier has an immense power output and a variety of operational parameters. With a frequency range of 0.1 Hz to 800 Hz, it can run at speeds of up to 18,000 RPM. Because of this, you may use it with many spindle motors, including those employed in high-speed machining applications.

The model (A06B-6111-H030#H550) is made to function in a range of temperatures between 0 and 55 degrees Celsius and relative humidity levels between 20 and 90 percent (non-condensing). Furthermore, it can operate at altitudes up to 1000 meters above sea level.

The module is relatively compact and lightweight, with dimensions of 310 mm x 200 mm x 440 mm (12.2 in x 7.9 in x 17.3 in) and a weight of approximately 10.7kg. It makes it easy to install and integrate into various CNC machines.

Safety Features:

The FANUC A06B-6111-H030#H550 has a thermal overload protection feature that keeps track of the amplifier's temperature and turns it off if it rises to a dangerous level. The module also has a short circuit protection feature that restricts output current in the event of a short circuit.

This model includes an overvoltage protection function that limits the voltage output if the input voltage exceeds a certain threshold. It helps to protect the module and the connected spindle motor from damage due to voltage spikes or other electrical anomalies.

The module boasts a lifesaving emergency stop feature that lets the operator swiftly power down the spindle motor during a crisis. This function can forestall accidents and protect the machinery and the project.

The A06B-6111-H030#H550 spindle amplifier has a temperature sensor that constantly supervises the spindle motor's temperature.

If the temperature surpasses a pre-set limit, the module will instantly curtail the output voltage to safeguard the motor against harm. This attribute not only guarantees maximum performance but also safeguards longevity when the CNC system operates in high-temperature surroundings.

Installation Instructions:

Install the module in the appropriate spot on the device, ensuring it is firmly connected and correctly positioned. Follow the manufacturer's instructions for the specific machine model to ensure proper mounting.

Please ensure the signal lines and power cables are securely fastened and routed before connecting them to the module. Follow the manufacturer's instructions for the specific machine model to ensure proper cable routing.

Configure the spindle amplifier according to the specific requirements of the spindle motor and machine. It entails configuring necessary protection functions and selecting the proper feedback and control settings.

Fiber Optic Feedback:

One unique feature of the FANUC A06B-6111-H030#H550 spindle amplifier module is its support for feedback options. In addition to resolver and encoder feedback, commonly supported by other spindle amplifier modules, this module also supports fiber optic feedback.

Over conventional feedback methods, fiber optic feedback has several benefits. One benefit is that it allows transmitting signals over greater distances without sacrificing signal quality, which can be particularly helpful for larger machines or those with intricate layouts.

Electromagnetic interference, a serious issue in some manufacturing environments, is likewise immune to fiber optic feedback.
