TECHNICAL SPECIFICATIONS

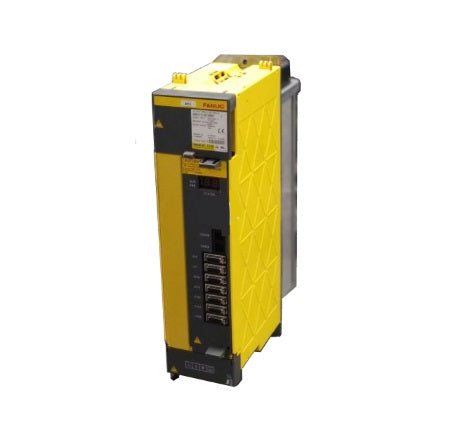

FANUC A06B-6112-H011#H550

The FANUC A06B-6112-H011#H550 spindle module is designed for maximum performance and efficiency. It offers the ability to optimize production processes with a top speed of 15,000 RPM. This high-precision technology provides rapid results while also reducing cycle times and driving up productivity.

Technical Specifications of FANUC A06B-6112-H011#H550:

The FANUC A06B-6112-H011#H550 has been built to withstand tough manufacturing applications with its 55 Nm (405 lb.-ft) maximum torque rating. It offers precision speed switching due to a low moment of inertia at 0.0118 kg m² (0.00108 lb.-ft). Despite being equipped with motor and encoder components inside, it only weighs 28kg - 61 lbs., which ensures its full productivity.

Ideal for high-speed machining, the A06B-6112-H011#H550 spindle module is an impressive and reliable tool. Boasting a maximum torque power rating of 25.5 kW (34.2 hp) of serving up peak performance, this versatile piece of machinery can effortlessly handle heavy cutting jobs while achieving precision in every project.

The A06B-6112 spindle module has an encoder that guarantees precision and accuracy. It offers a resolution of 2048 pulses per revolution, allowing you to monitor and control its rotation speed during machining operations precisely. High pulse output ensures top-quality performance every time.

The FANUC module is designed to create a reliable working environment in extreme conditions. IP67 housing offers protection and makes it suitable for use in heavy machinery. Its class F insulation system provides electrical defense while remaining strong up to 155°C (311°F). It ensures accurate control of this equipment.

The FANUC A06B-6112-H011#H550 spindle module is a powerful and reliable tool for industrial applications. It uses advanced control algorithms to generate a constant power output regardless of the changing speed of the spindle motor. It offers an impressive 44 Nm (325 lb.-ft) torque rating at 1000 RPM€”perfect for easily tackling heavy cutting tasks.

Operating and Installing Instructions:

To ensure optimal performance, the FANUC A06B-6112-H011#H550 Spindle Module must be operated within a temperature range of 0 to 55° Celsius (32° to 131° Fahrenheit) and relative humidity between 5% - 95%. Going beyond these limits can put the module at risk of malfunction or failure.

To maximize performance, it's important to maintain this FANUC unit in its ideal operating environment. Avoid direct sunlight and guard against excessive dust or moisture build-up. Inspect internal components for any potential problems before they become serious and ensure the external surface is clear of debris by conducting routine maintenance checks.

Safety Practices:

Ensure the FANUC A06B-6112 spindle module is properly installed and wired by the manufacturer's directions. Incorrect installation or use of inappropriate accessories can irreparably hinder performance, so be sure to follow instructions for optimal results.

To get the most out of this module (A06B-6112-H011#H550), investing in a reliable power supply is essential. Fluctuations can lead to sub-par performance or cause total system failure.

Wiring Instructions:

Securely attach the spindle encoder to the module exactly as specified by the manufacturer. When pairing up connections, ensure that you wire them correctly to avoid poor functionality or harm to both components.

Connect the power supply to FANUC A06B-6112-H011#H550, ensuring it matches the manufacturer's voltage and frequency criteria. Double-check all wiring for correct spindle motor terminal connections during motor installation to guarantee optimal performance and avoid damaging the equipment.
