TECHNICAL SPECIFICATIONS

FANUC A06B-6080-H301

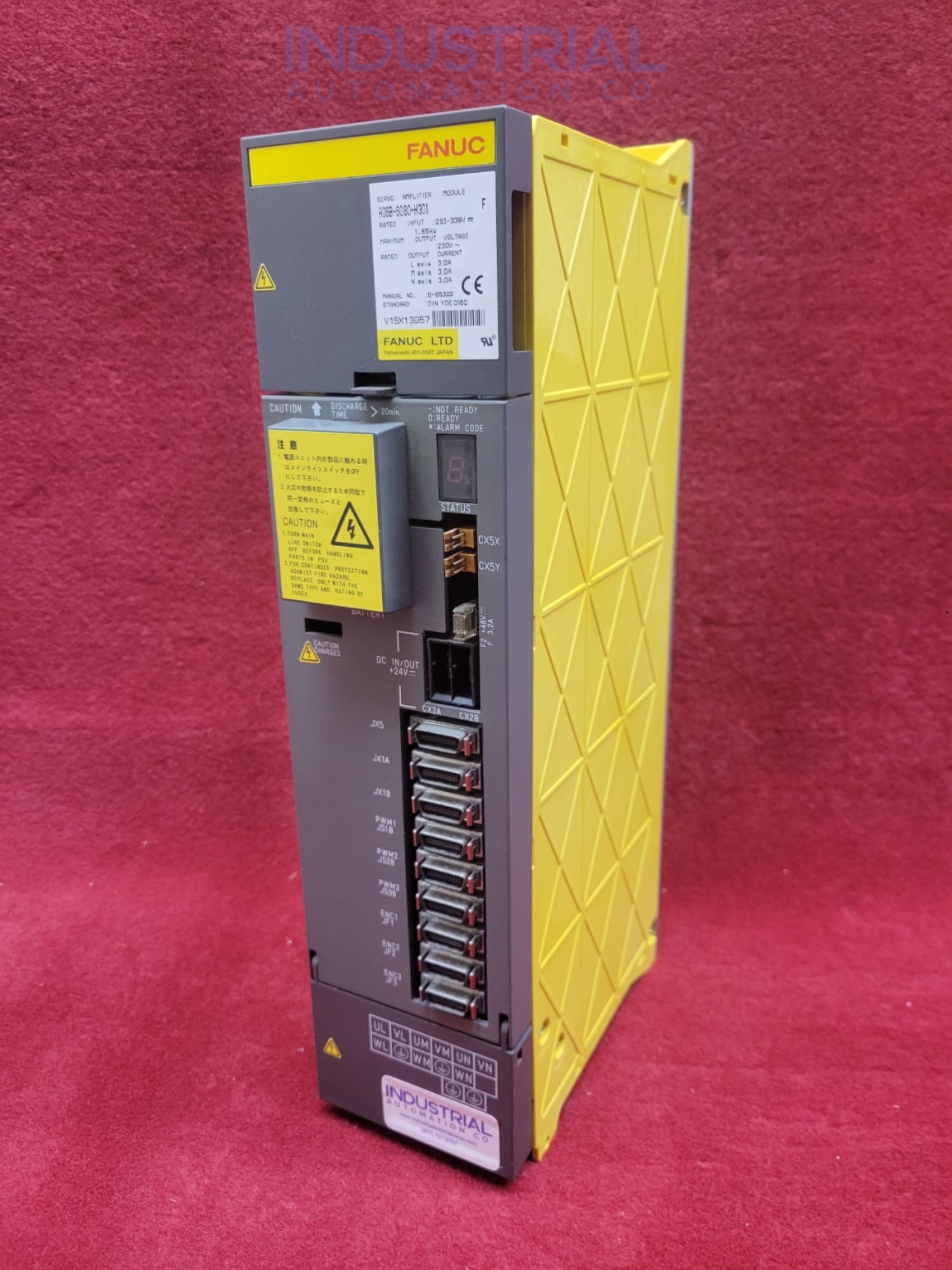

FANUC designed and manufactured this 3-axis alpha servo amplifier module A06B-6080-H301 for various applications, offering reliable performance wherever needed. The servo amplifier module has advanced control technology to provide highly responsive and stable control. This technology ensures fast and accurate servo control, even when dealing with highly dynamic loads.

Technical Description of A06B-6080-H301:

The alpha servo amplifier module A06B-6080-H301 is a high-performance module designed to meet industrial applications' demands. Various automation and motion control systems can benefit from their high accuracy, reliability, and performance.

One of the significant features of this module A06B-6080-H301 is its compact size, which makes it easy to integrate into existing systems. Despite its small size, it can handle high-speed and high-precision control, making it suitable for various applications, including robotics, CNC machines, and other industrial processes that require accurate and smooth servo control.

The impressive feature of this servo amplifier A06B-6080-H301 is its intelligent diagnostic capabilities. It has built-in sensors that detect any abnormality in the system's operation, such as overloads, overheating, or broken cables. This feature enables quick identification and resolution of issues, thus reducing downtime, enhancing productivity, and ensuring safety.

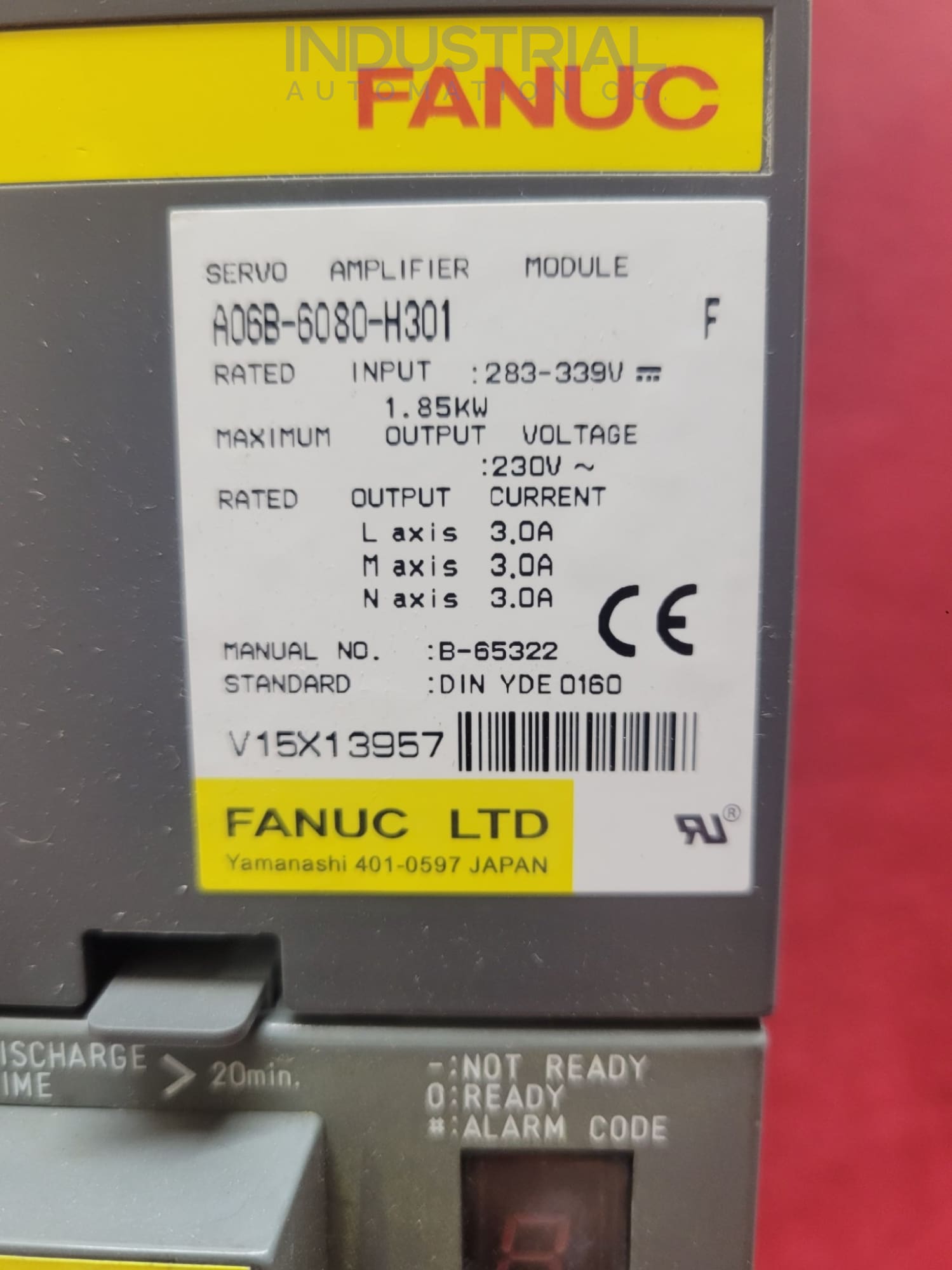

This A06B-6080-H301 model is designed to operate between an input voltage range of 283-325 V, providing a maximum output capability of up to 230V. The servo amplifier module works efficiently with a wide range of high-performance motors. This compatibility makes it versatile and adaptable to various industrial applications.

This A06B-6080-H301 servo amplifier packs a powerful punch, boasting an impressive 1.85 kW rating. The module has a wide range of input/output options, including analog inputs, digital inputs, and pulse inputs. It makes it possible to integrate it with a wide range of industrial control systems.

This model A06B-6080-H301 delivers a powerful performance, with an impressive rated output current of 3 Amps for each L-axis, N-axis, and M-axis. The module is easy to set up and use, making it an ideal choice for experienced and novice users. The user-friendly interface and software make configuring the module to match specific application requirements easy.

Standard Ambient Conditions:

For optimal performance, it's important to keep the model within the preferred operation temperatures of 0 - 55°C. Exceeding this range can increase strain and possible overheating; adjust output power accordingly. The model A06B-6080-H301 performs optimally in lofty heights of up to 1,000 meters with no extra safety considerations.

To keep the model functioning optimally, house it in a controlled indoor environment with temperatures between -20 °C and +60° C. Additionally, it is important to minimize direct sunlight exposure to prevent long-term degradation or harm.

To maintain the A06B-6080-H301 module's functionality, keeping its environment free from moisture and debris is essential. Neglecting this can lead to compromised performance due to damage caused by foreign elements.

Standard Wiring Precautions:

Before you begin working on the amplifier module A06B-6080-H301, make sure to turn off the power supply. It will minimize any possible electrical hazards and prevent damage to the system.

When selecting wires for the connections, use a wire gauge appropriate for the system's current and voltage. Using the wrong gauge wire can cause overheating and potentially damage the system.

Before making any connections, inspect the wires for damage, such as cuts, breaks, or frayed ends. Damaged wires can cause short circuits and other electrical issues.
