Mitsubishi HC-UFS43K

Mitsubishi Hc-Ufs43K

Mitsubishi HC-UFS43K

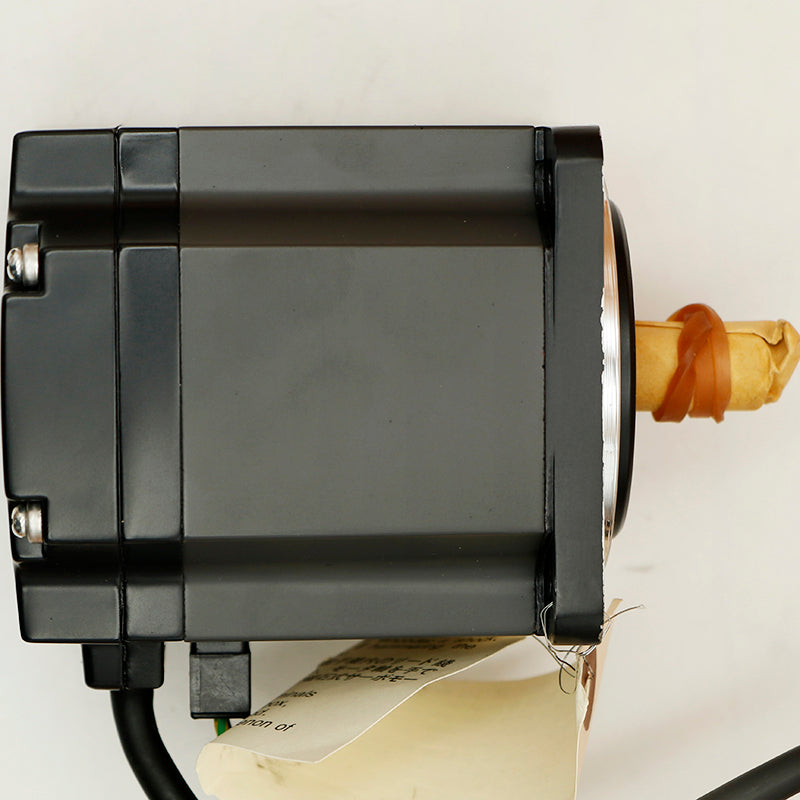

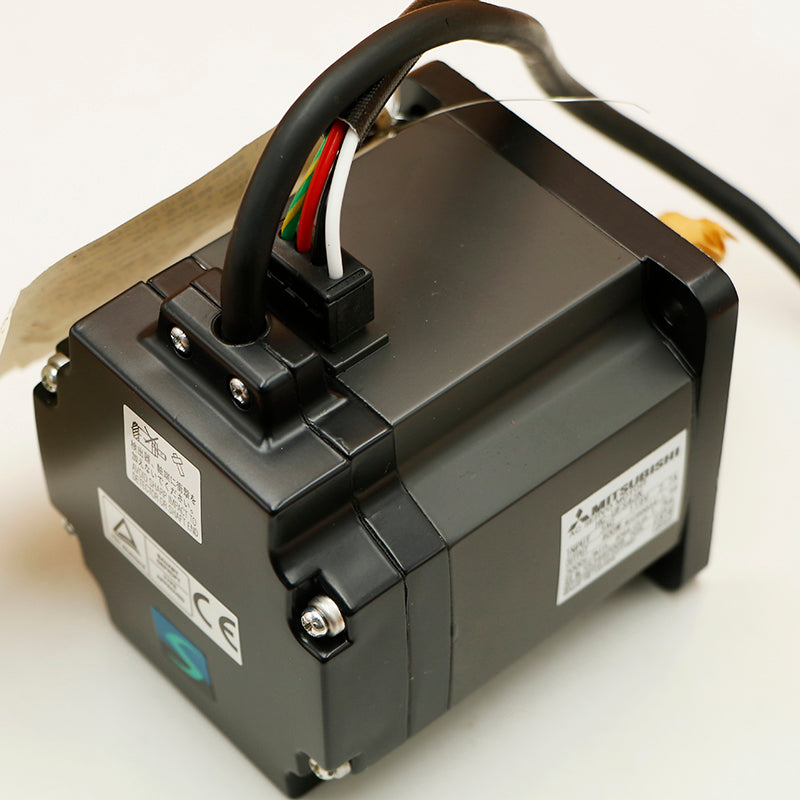

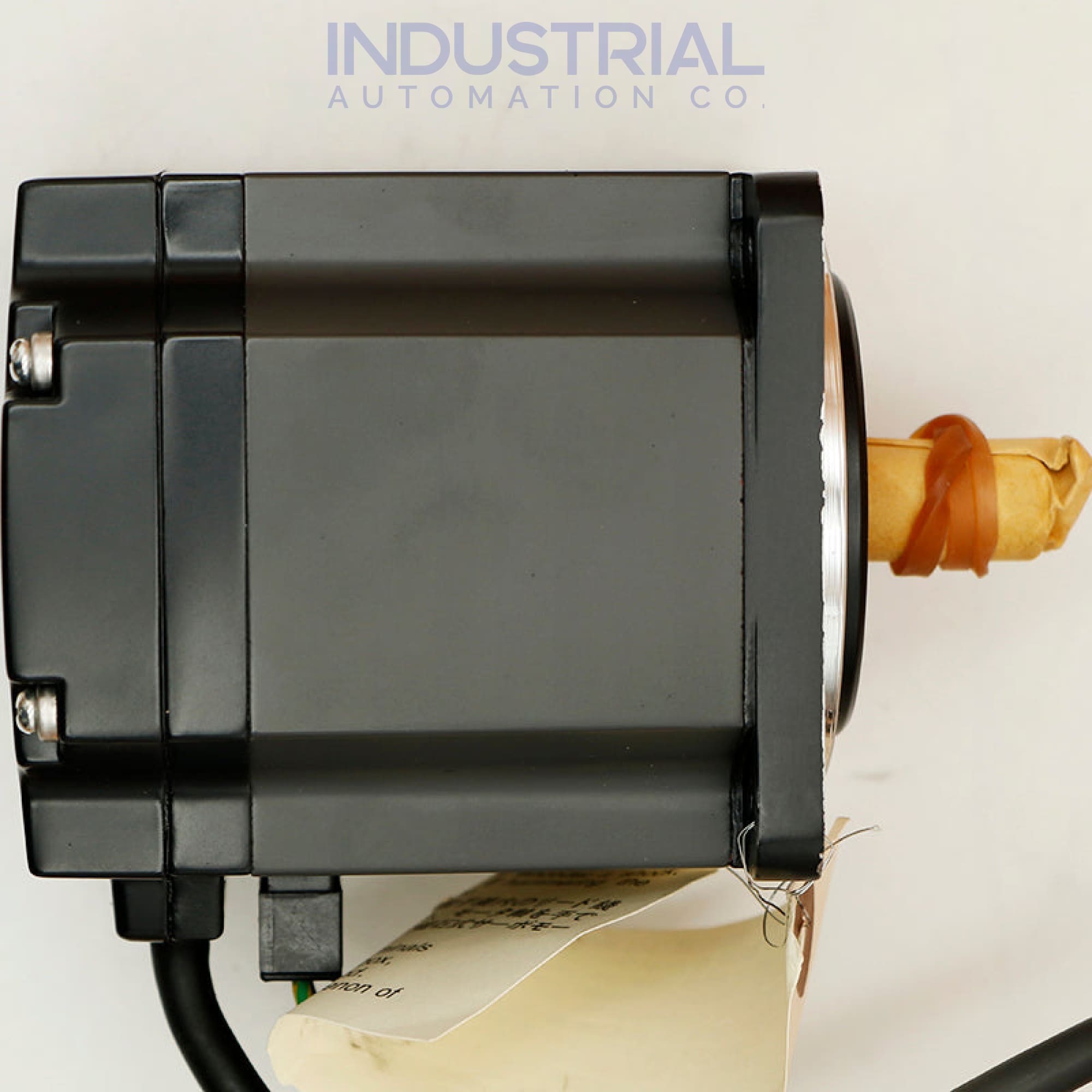

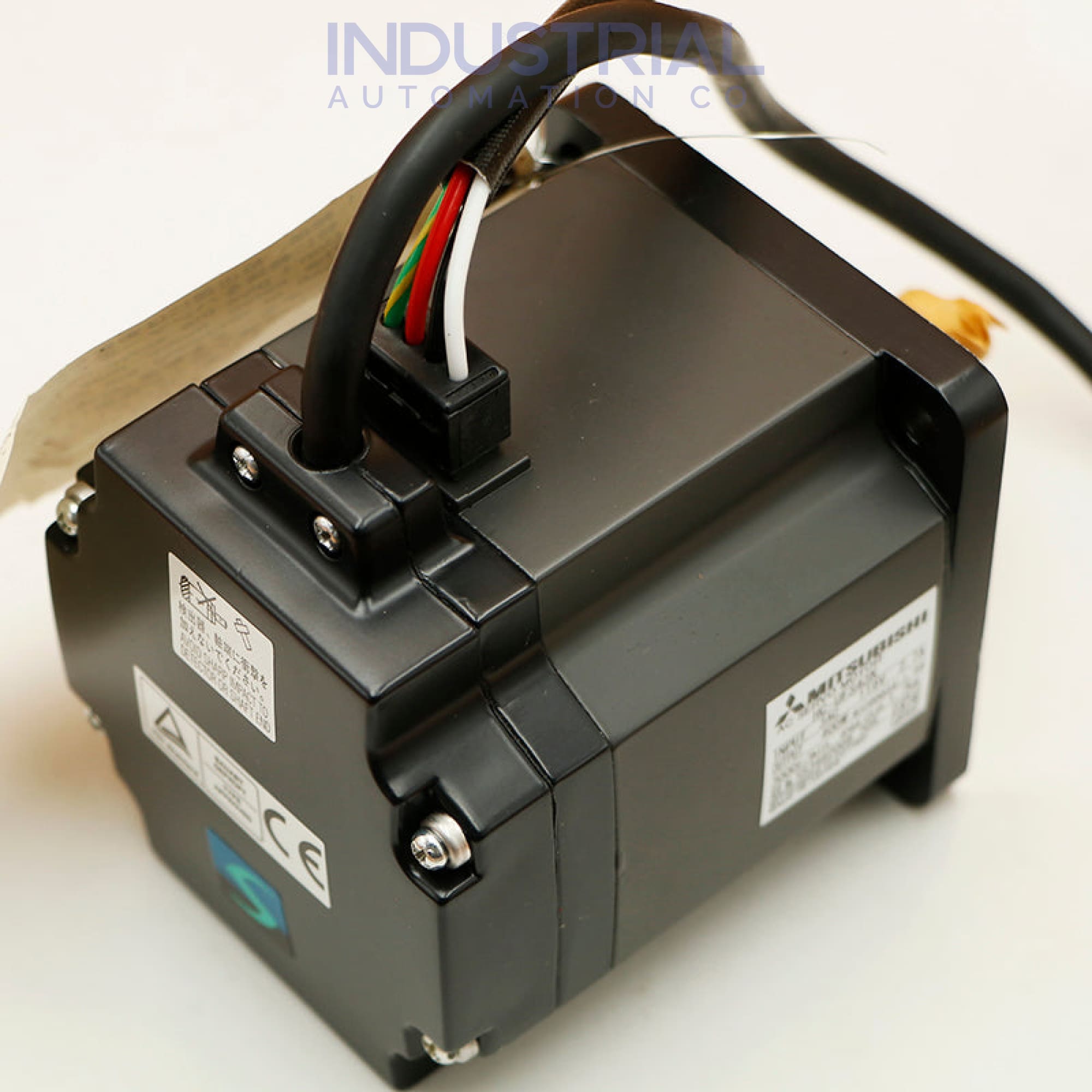

The Mitsubishi HC-UFS43K is a high-performance AC servo motor in the Mitsubishi HC series. This servo motor is engineered to provide reliable, efficient operation and precise control in rigorous industrial applications.

Technical Specifications:

The Mitsubishi HC-UFS43K servo motor's 17-bit encoder allows 131072 pulses per revolution for speed/position detection. This servo motor has a rated speed of 3000 and can instantly rotate at 4500 r/min or 5175 r/min.

Continuous rated torque results in a power rate of 24.2 kW. Continuous rated torque produces a power rate of 24.2 kW/s at 2.3 A and 6.9 A maximum. The recommended load/motor inertia moment ratio is less than 15 times the servomotor's, with a moment of inertia of 38.2 x 10?? kg·m². This motor produces 0.4 kW with a maximum torque of 3.8 N-m.

Its rated speed is 3000 r/min, with a maximum of 4500 and a maximum instantaneous speed of 5175. Power is 47.7 kW/s at continuous torque. The maximum current is 9.24 A, and the rated current is 2.8 A. The motor has class F insulation. The load inertia determines the motor's regenerative braking frequency, ensuring it can meet operational needs.

Ambient Conditions:

The motor may be operated from 0 to +40°C (32 to 104°F) and stored from -15 to 70°C (5 to 158°F). Operation requires 80% RH or below, whereas storage allows up to 90% RH. Improved motor efficiency comes from its vibration resistance. The X and Y axes can endure 24.5 m/s², while the Z axis can tolerate 49 m/s². This durable design minimises performance degradation even under the most rigorous operational situations.

Mounting Conditions:

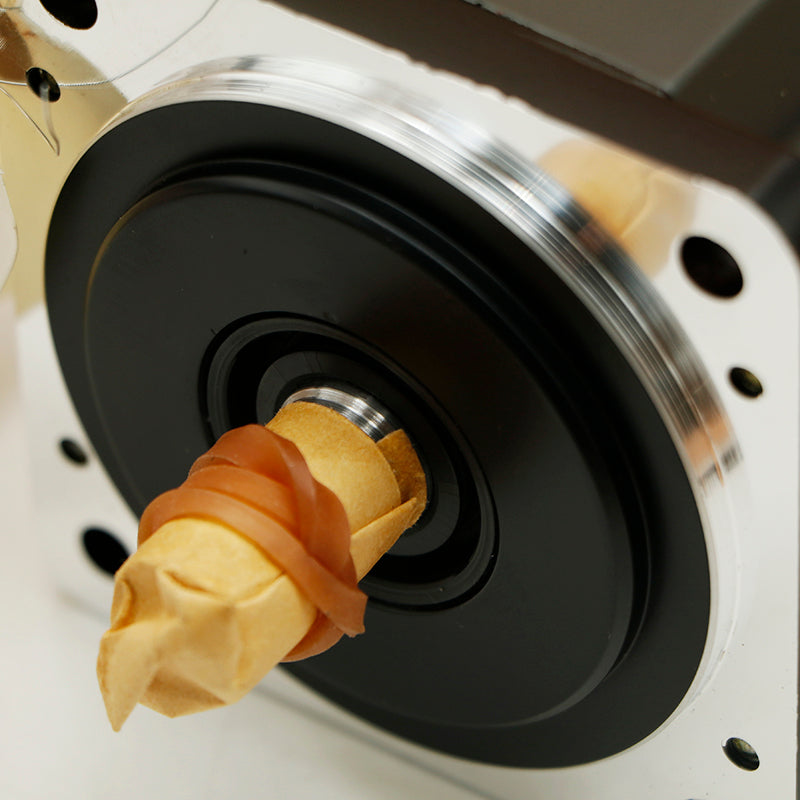

Flexible mounting options are available for the HC-UFS43K motor. Its IP55 protection and sealed, non-ventilated structure allow it to be placed anywhere. A keyway is standard on the shaft type, and a D-cut can be ordered. It is meant for indoor use in corrosive, flammable oil mist, dust, and grime-free settings. Even at 1,000 metres above sea level, it can be operated.

The Z axis can sustain up to 49 m/s² of vibration, but the X and Y axes can only withstand 24.5 m/s²,strong motor vibration resistance. Operating humidity should not exceed 80% RH (non-condensing), whereas storage humidity can reach 90% RH. The HC-UFS43K's design ensures performance and endurance in varied industrial applications. The IP65 motor is enclosed and self-cooled.

Frequently Asked Questions:

What is the encoder resolution of the Mitsubishi HC-UFS43K servo motor?

With its 17-bit encoder and 13,1072 pulses per revolution, the Mitsubishi HC-UFS43K servo motor can accurately detect position and speed.

How does the Mitsubishi HC-UFS43K regulate temperature fluctuations?

The HC-UFS43K is operational within an ambient temperature range of 0 to +40°C and can be stored at temperatures ranging from -15 to 70°C. It guarantees consistent performance in a variety of environmental conditions.

What are the protection features of the Mitsubishi HC-UFS43K?

The HC-UFS43K has an IP65-rated, fully enclosed, self-cooled structure impervious to low-pressure water jets and particulates. This improves its dependability and durability in challenging environments.

Product Specifications Table:

Attribute Specification
Rated Output 0.4 kW
Rated Torque 1.3 N·m (184.1 oz·in)
Maximum Torque 3.8 N·m (538.1 oz·in)
Rated Rotation Speed 3000 r/min
Maximum Rotation Speed 4500 r/min
Permissible Instantaneous Rotation Speed 5175 r/min
Rated Current 2.8 A
Maximum Current 9.24 A
Moment of Inertia (J) 38.2 x 10?? kg·m² (208.9 oz·in²)
Power Rate at Continuous Rated Torque 47.7 kW/s

Mitsubishi HC-UFS43K

Regular price
$1,429.00
Sale price
$1,429.00
We currently have 1 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Mitsubishi HC-UFS43K

The Mitsubishi HC-UFS43K is a high-performance AC servo motor in the Mitsubishi HC series. This servo motor is engineered to provide reliable, efficient operation and precise control in rigorous industrial applications.

Technical Specifications:

The Mitsubishi HC-UFS43K servo motor's 17-bit encoder allows 131072 pulses per revolution for speed/position detection. This servo motor has a rated speed of 3000 and can instantly rotate at 4500 r/min or 5175 r/min.

Continuous rated torque results in a power rate of 24.2 kW. Continuous rated torque produces a power rate of 24.2 kW/s at 2.3 A and 6.9 A maximum. The recommended load/motor inertia moment ratio is less than 15 times the servomotor's, with a moment of inertia of 38.2 x 10?? kg·m². This motor produces 0.4 kW with a maximum torque of 3.8 N-m.

Its rated speed is 3000 r/min, with a maximum of 4500 and a maximum instantaneous speed of 5175. Power is 47.7 kW/s at continuous torque. The maximum current is 9.24 A, and the rated current is 2.8 A. The motor has class F insulation. The load inertia determines the motor's regenerative braking frequency, ensuring it can meet operational needs.

Ambient Conditions:

The motor may be operated from 0 to +40°C (32 to 104°F) and stored from -15 to 70°C (5 to 158°F). Operation requires 80% RH or below, whereas storage allows up to 90% RH. Improved motor efficiency comes from its vibration resistance. The X and Y axes can endure 24.5 m/s², while the Z axis can tolerate 49 m/s². This durable design minimises performance degradation even under the most rigorous operational situations.

Mounting Conditions:

Flexible mounting options are available for the HC-UFS43K motor. Its IP55 protection and sealed, non-ventilated structure allow it to be placed anywhere. A keyway is standard on the shaft type, and a D-cut can be ordered. It is meant for indoor use in corrosive, flammable oil mist, dust, and grime-free settings. Even at 1,000 metres above sea level, it can be operated.

The Z axis can sustain up to 49 m/s² of vibration, but the X and Y axes can only withstand 24.5 m/s²,strong motor vibration resistance. Operating humidity should not exceed 80% RH (non-condensing), whereas storage humidity can reach 90% RH. The HC-UFS43K's design ensures performance and endurance in varied industrial applications. The IP65 motor is enclosed and self-cooled.

Frequently Asked Questions:

What is the encoder resolution of the Mitsubishi HC-UFS43K servo motor?

With its 17-bit encoder and 13,1072 pulses per revolution, the Mitsubishi HC-UFS43K servo motor can accurately detect position and speed.

How does the Mitsubishi HC-UFS43K regulate temperature fluctuations?

The HC-UFS43K is operational within an ambient temperature range of 0 to +40°C and can be stored at temperatures ranging from -15 to 70°C. It guarantees consistent performance in a variety of environmental conditions.

What are the protection features of the Mitsubishi HC-UFS43K?

The HC-UFS43K has an IP65-rated, fully enclosed, self-cooled structure impervious to low-pressure water jets and particulates. This improves its dependability and durability in challenging environments.

Product Specifications Table:

Attribute Specification
Rated Output 0.4 kW
Rated Torque 1.3 N·m (184.1 oz·in)
Maximum Torque 3.8 N·m (538.1 oz·in)
Rated Rotation Speed 3000 r/min
Maximum Rotation Speed 4500 r/min
Permissible Instantaneous Rotation Speed 5175 r/min
Rated Current 2.8 A
Maximum Current 9.24 A
Moment of Inertia (J) 38.2 x 10?? kg·m² (208.9 oz·in²)
Power Rate at Continuous Rated Torque 47.7 kW/s
