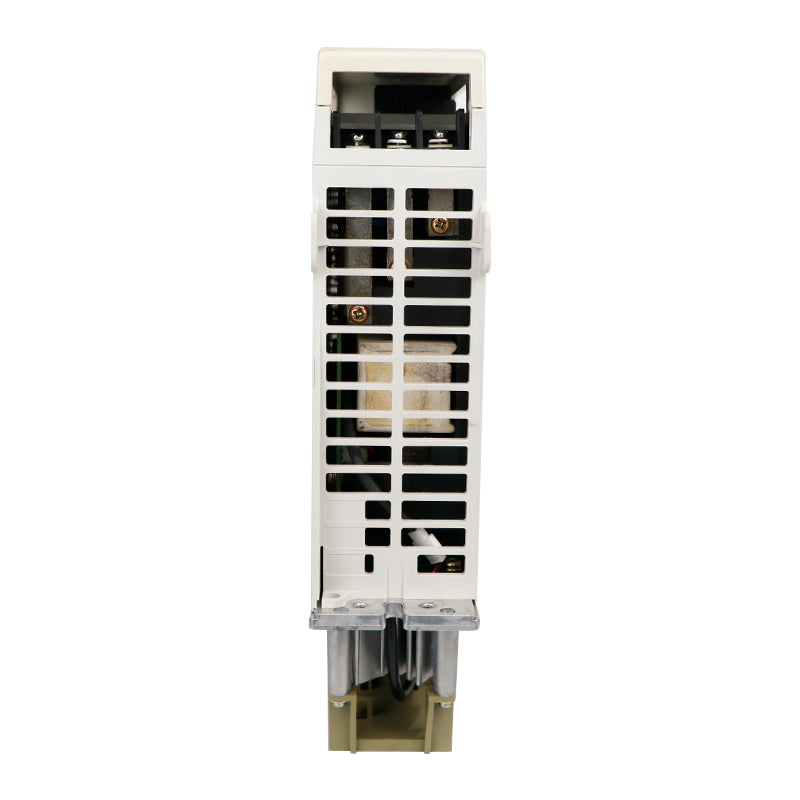

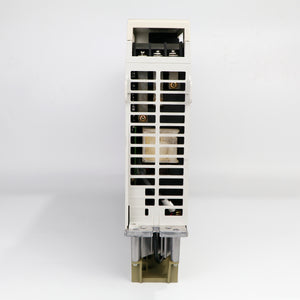

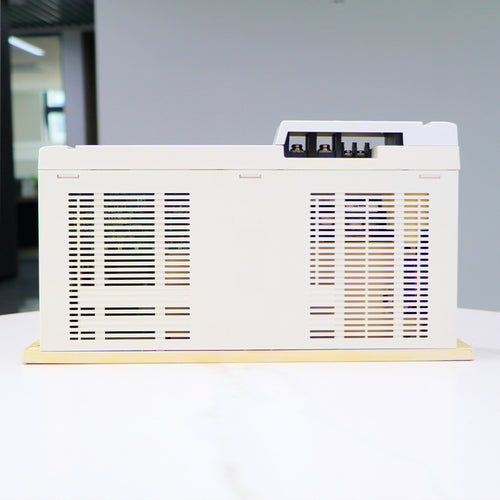

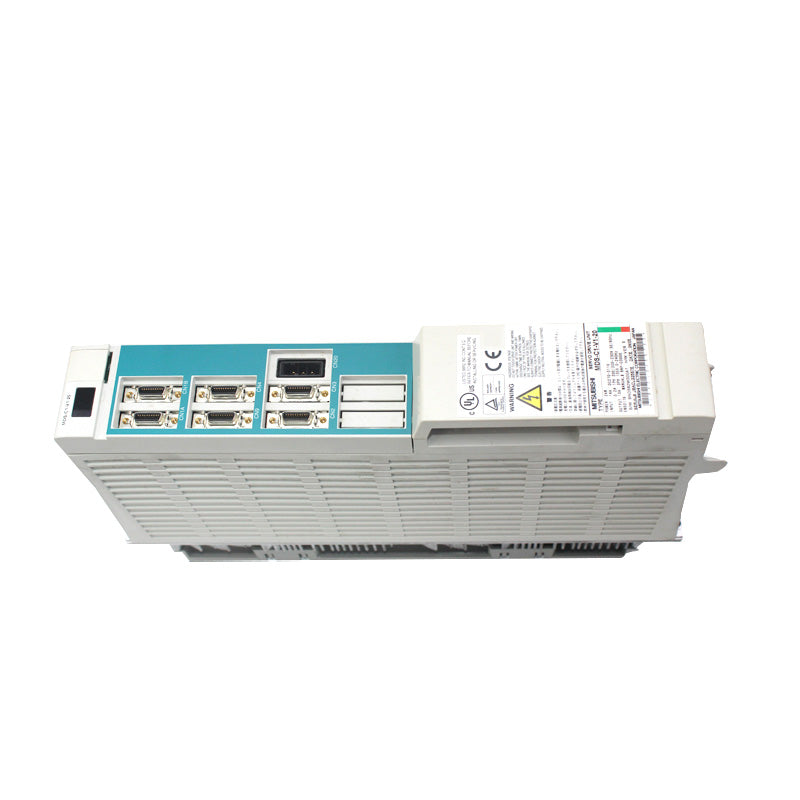

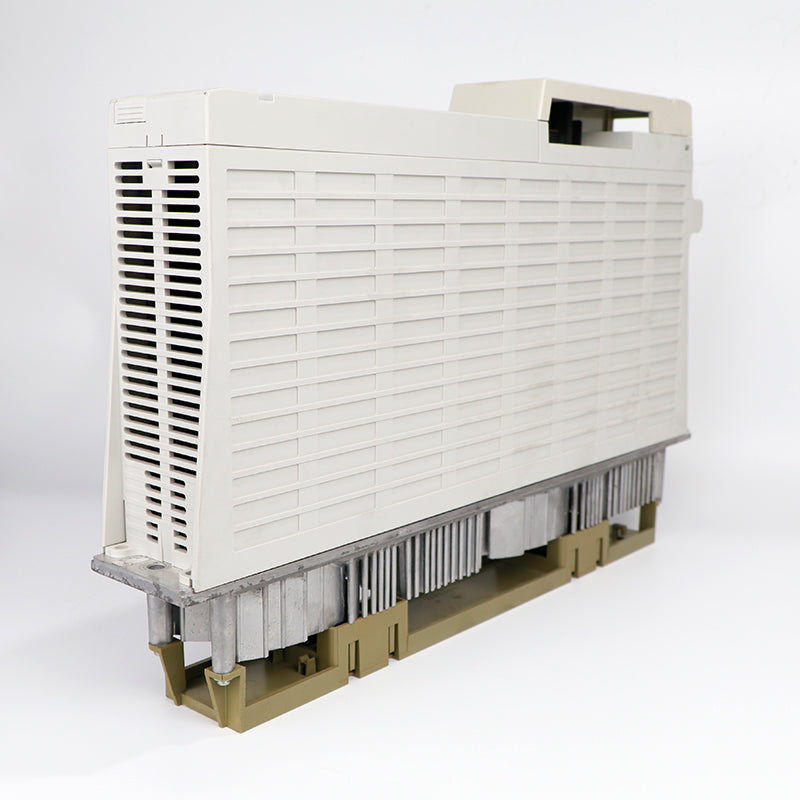

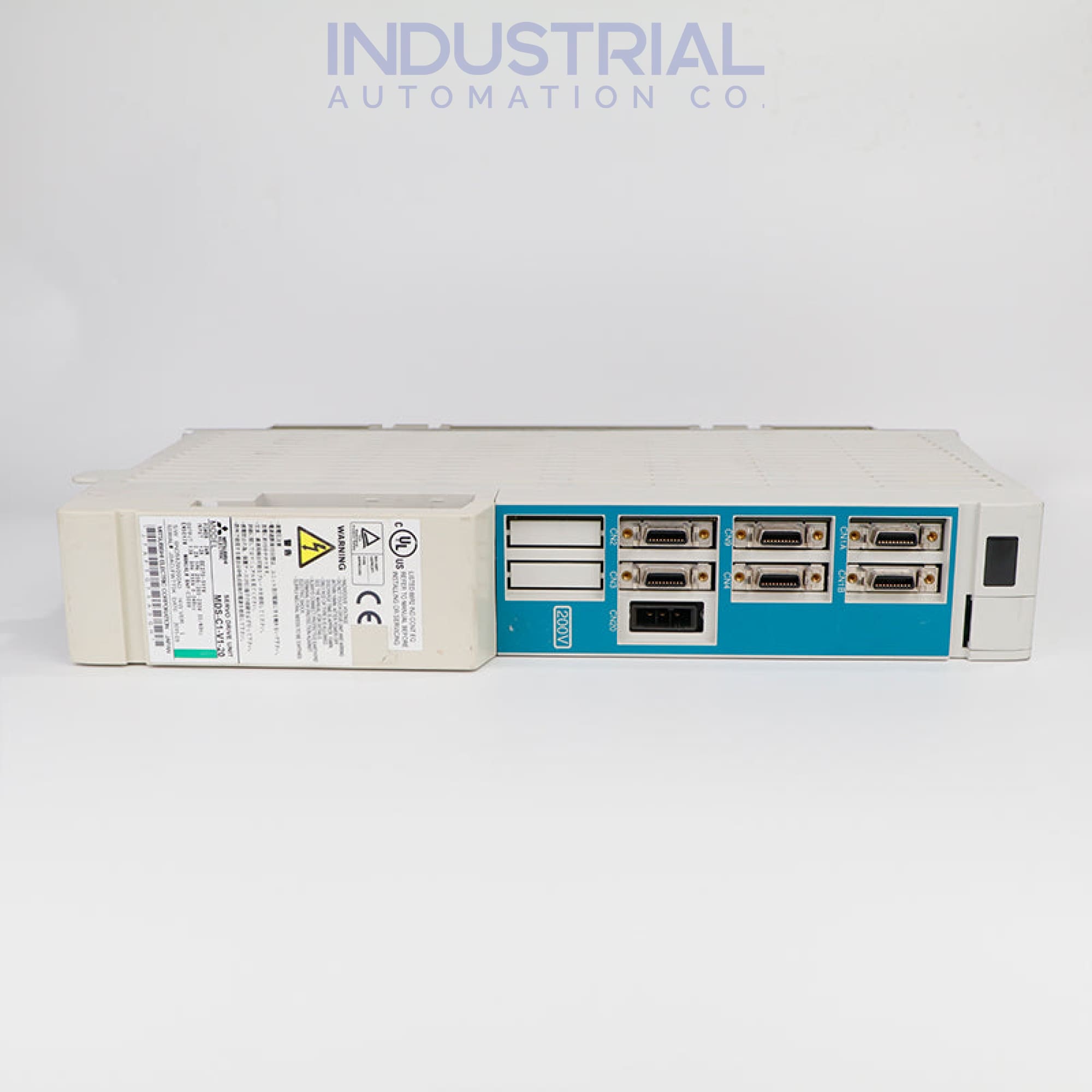

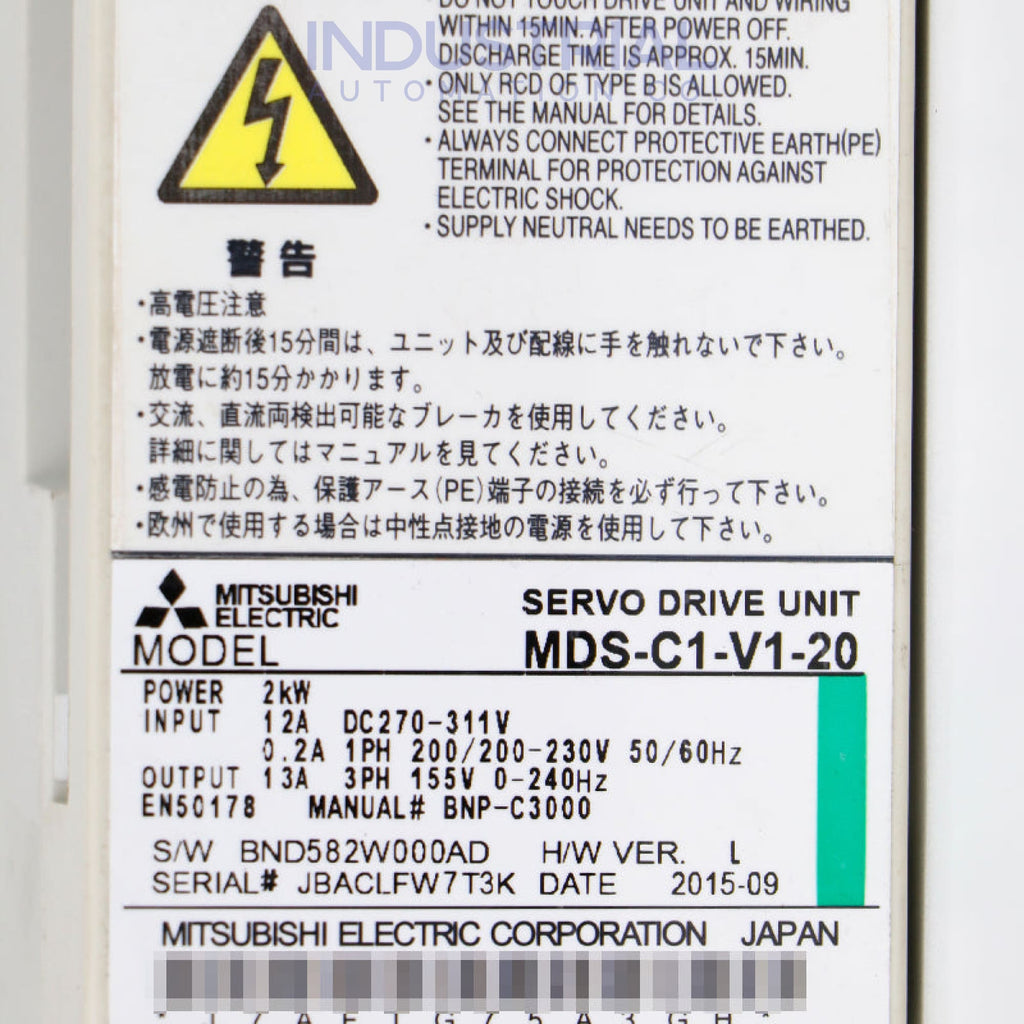

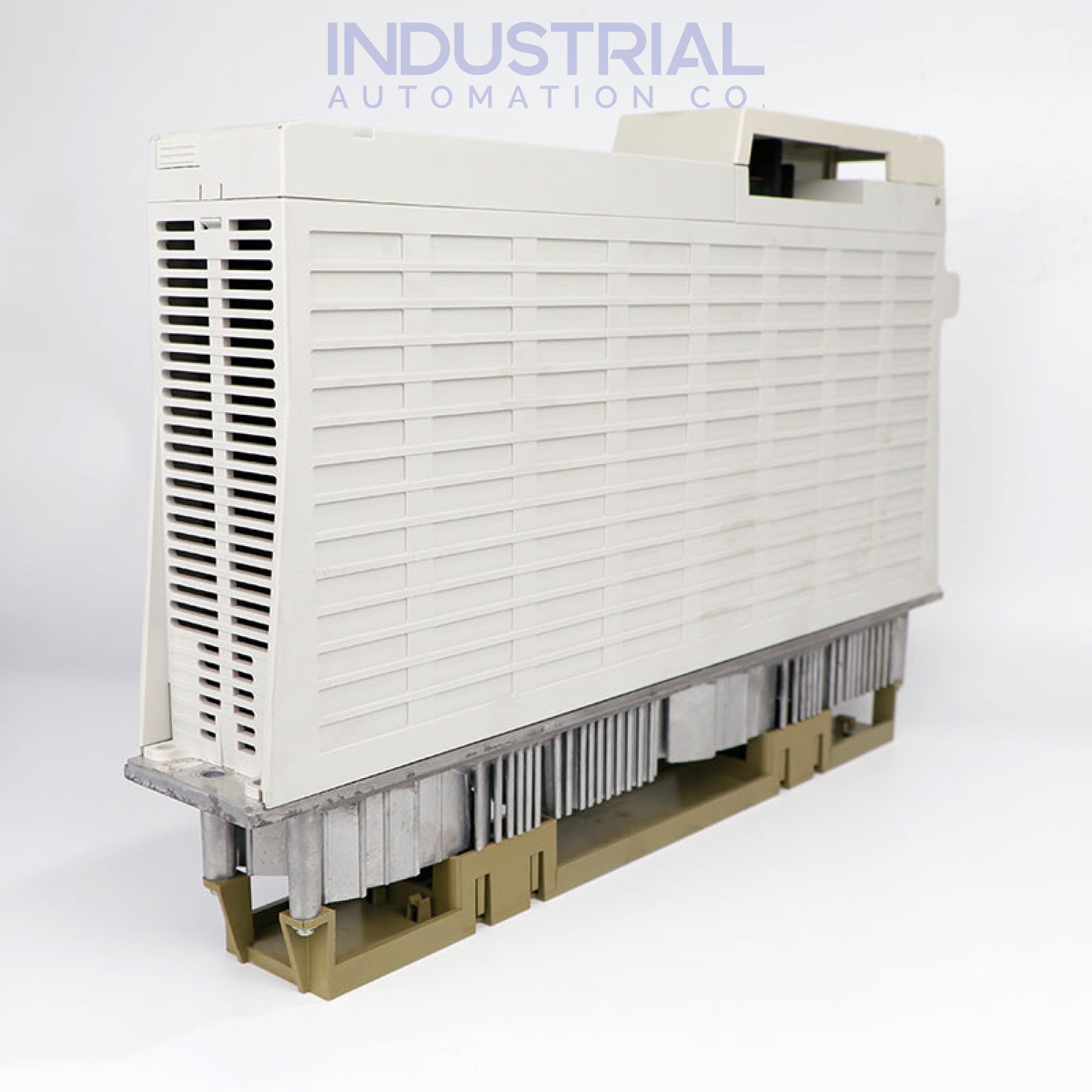

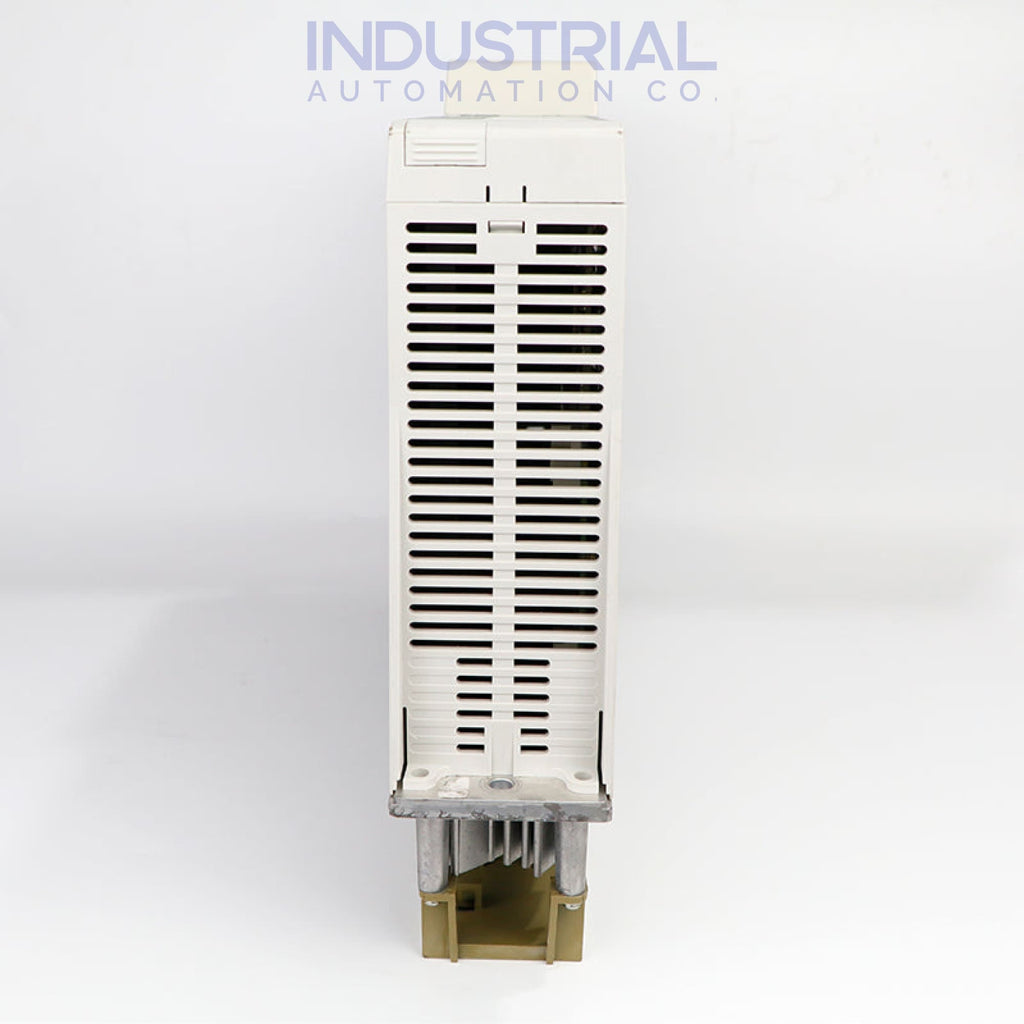

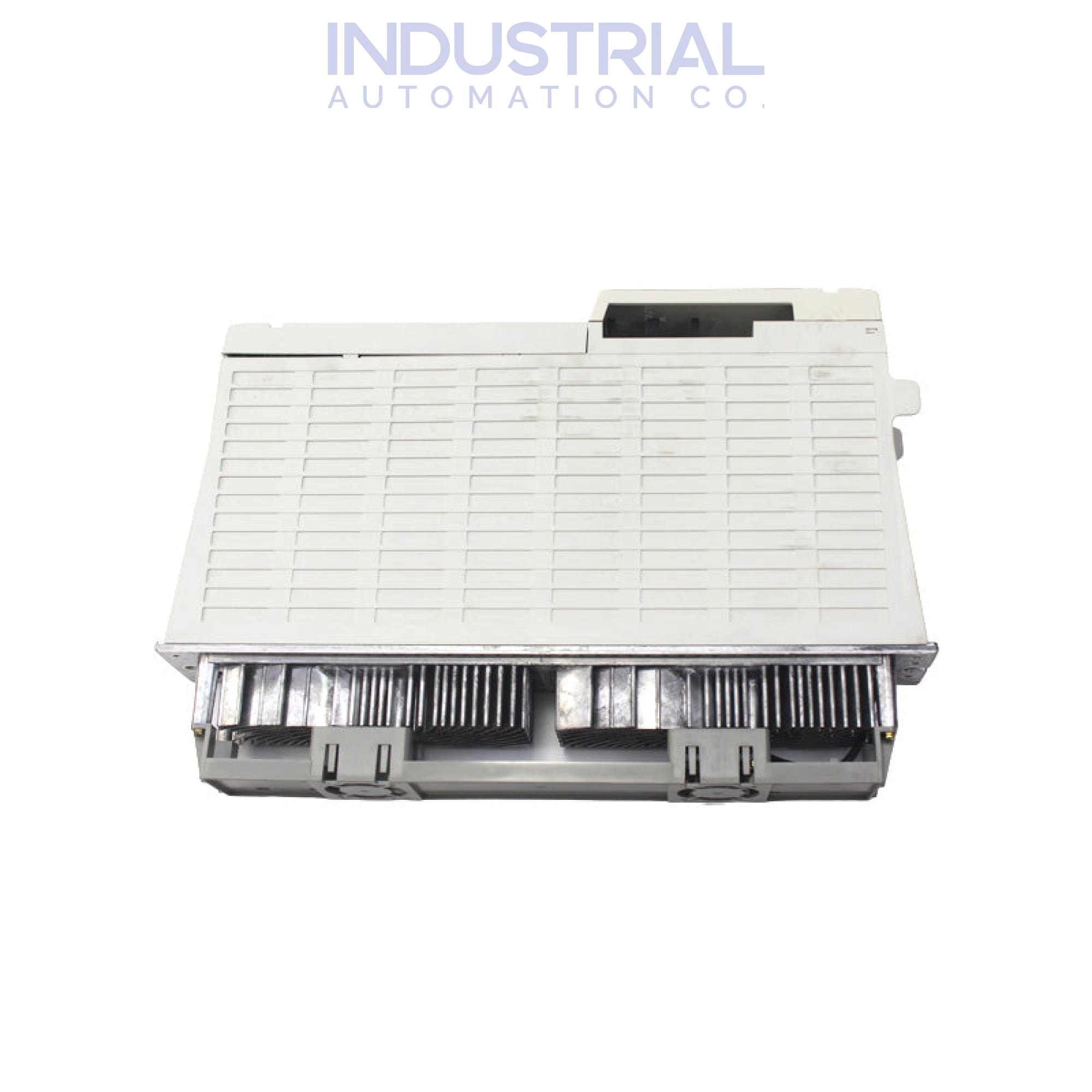

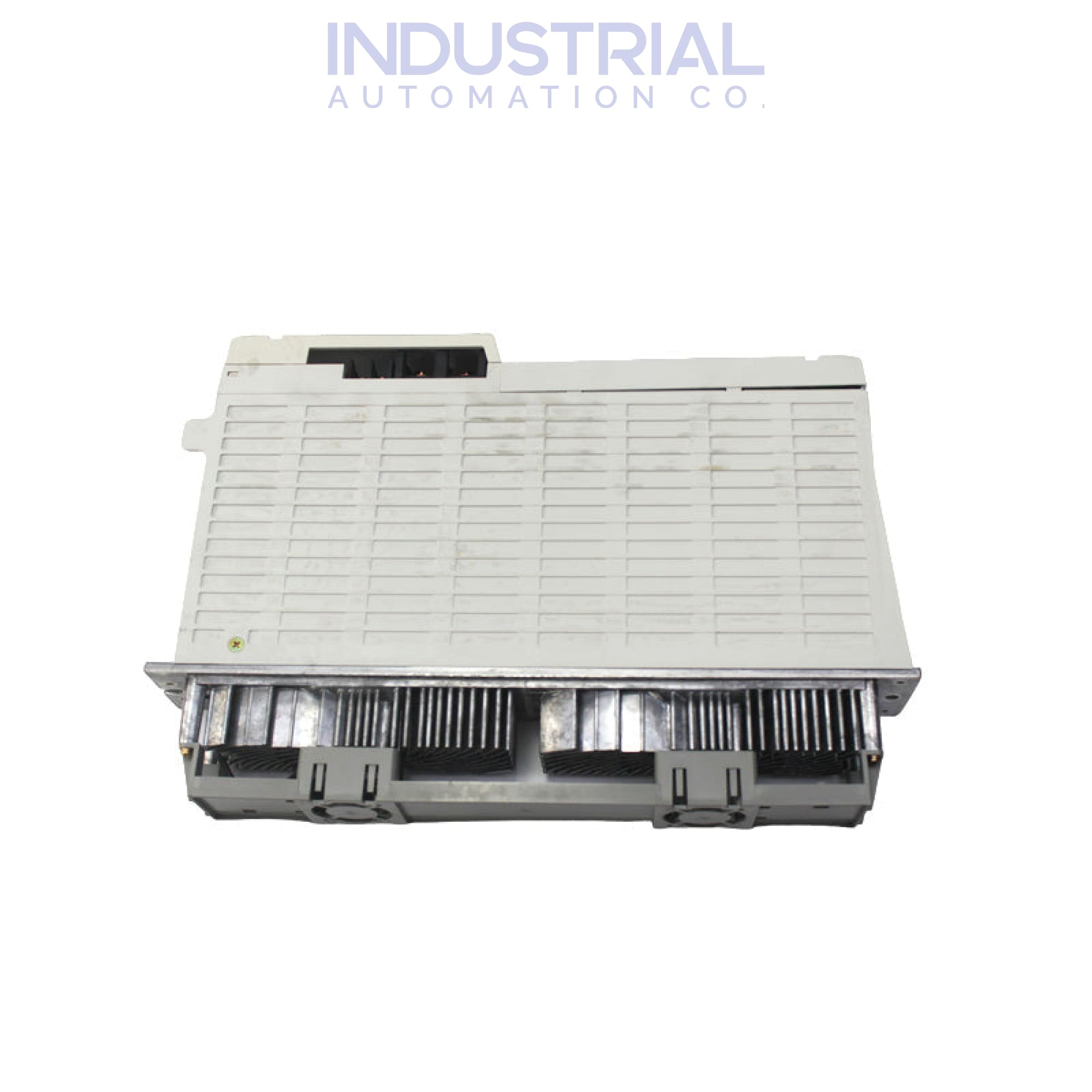

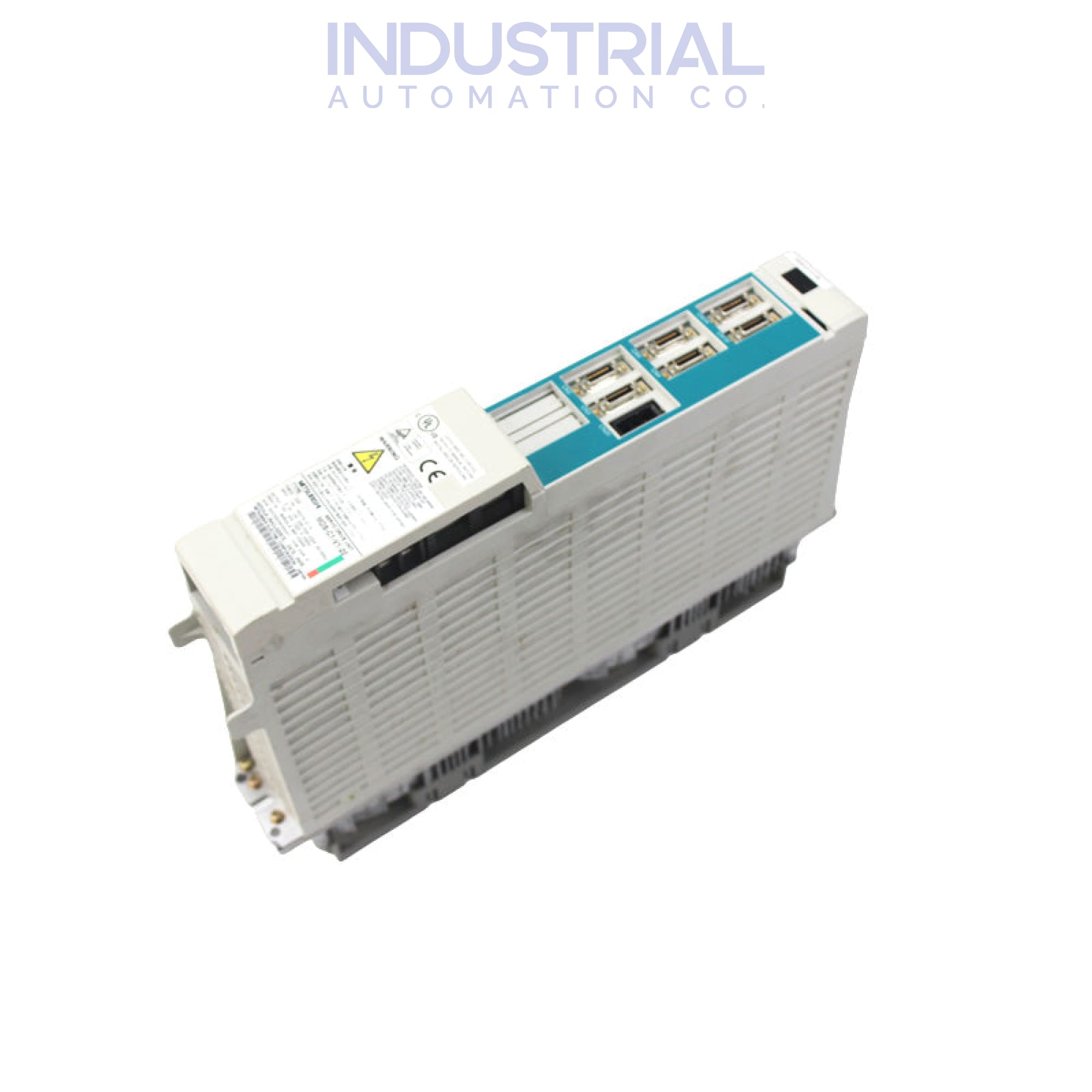

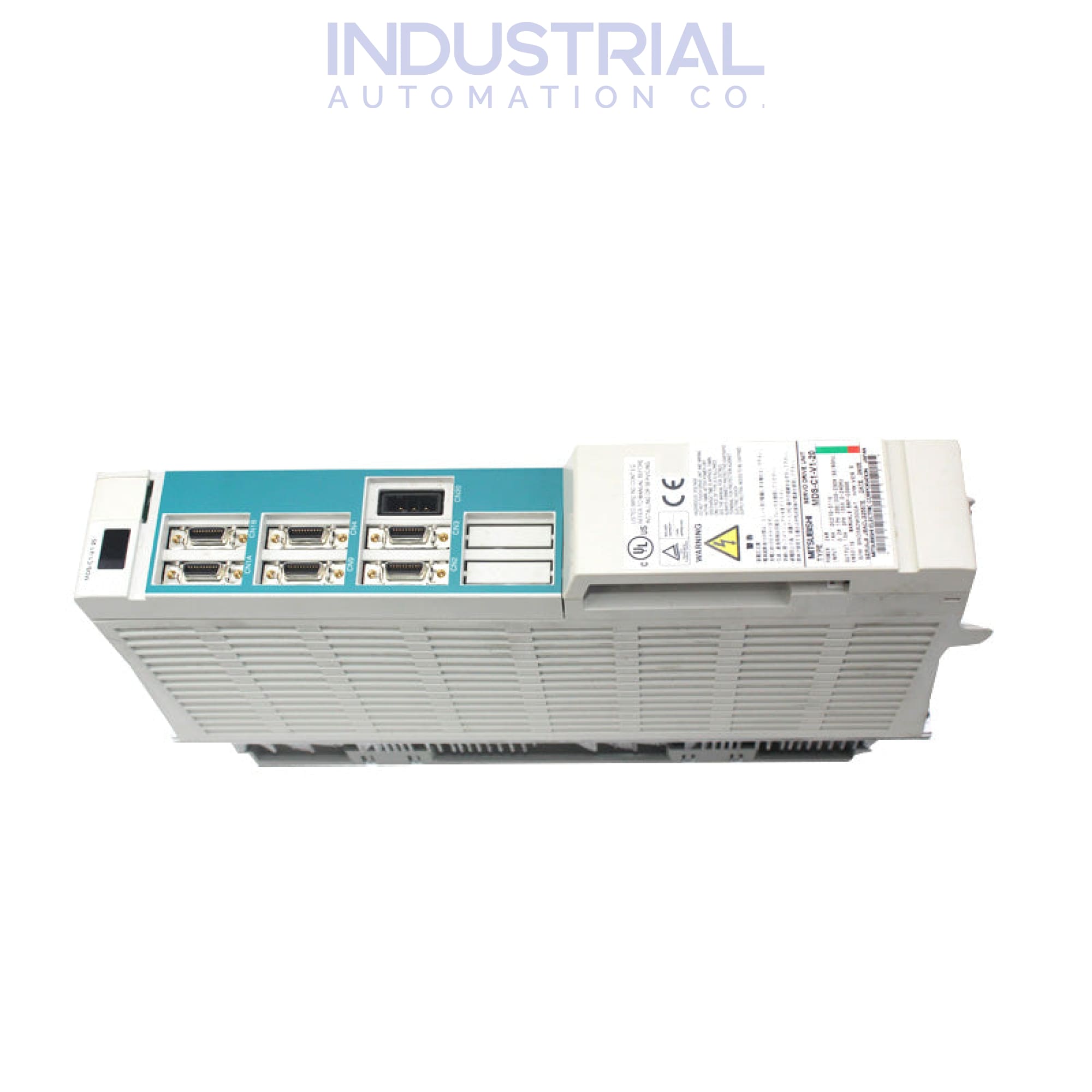

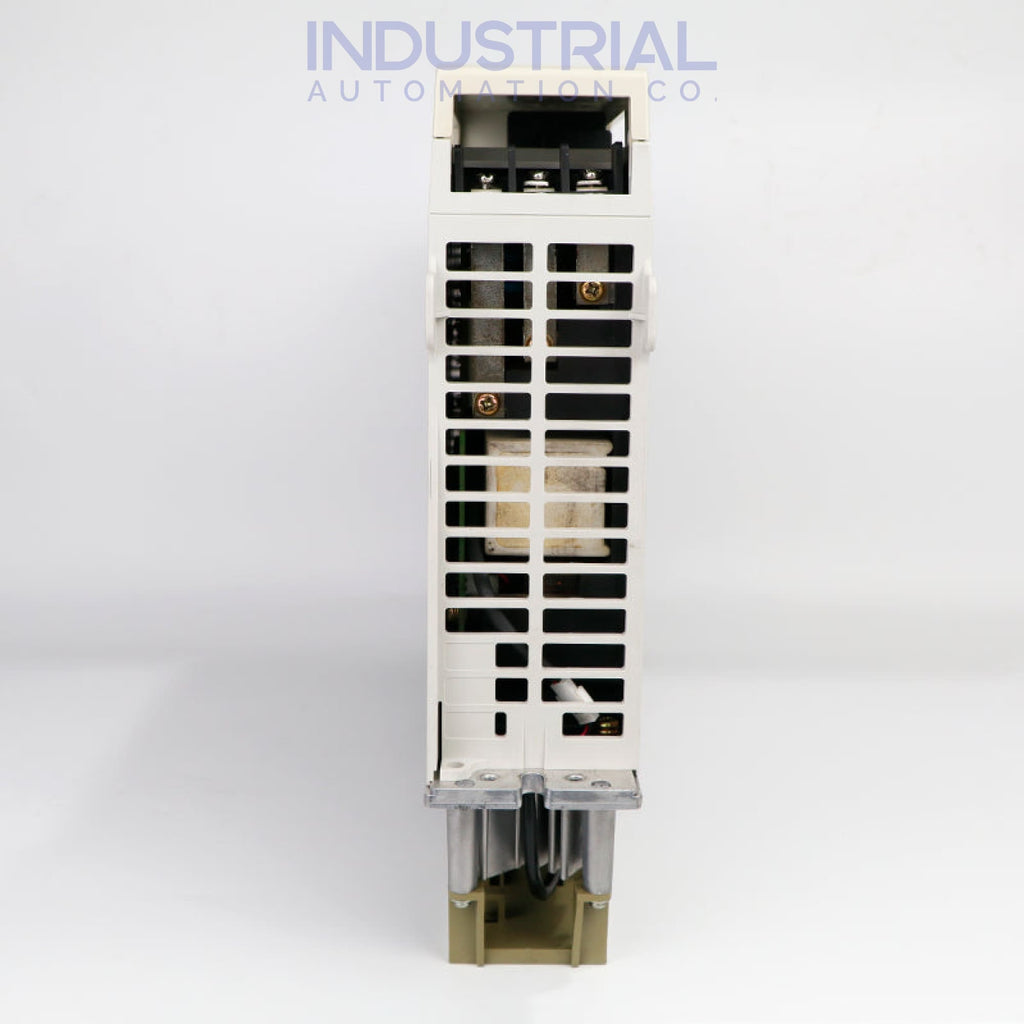

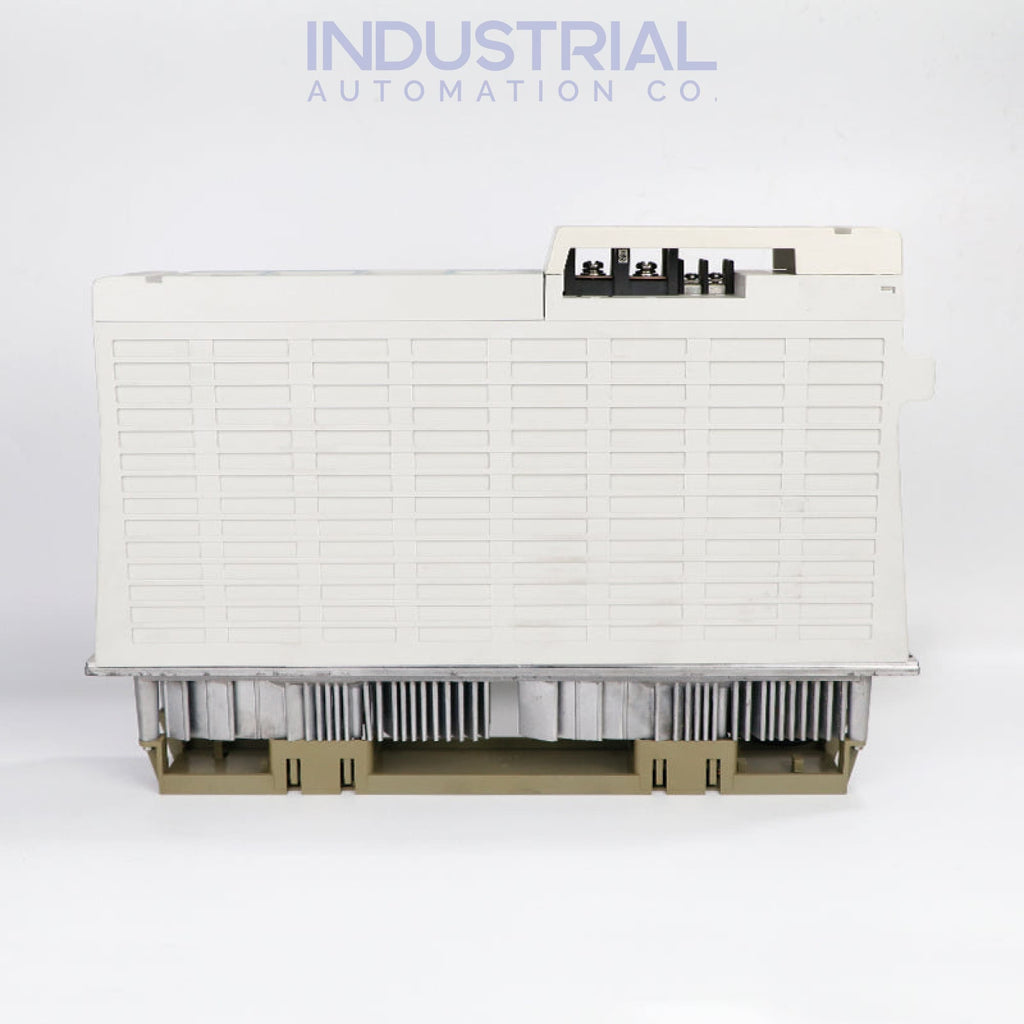

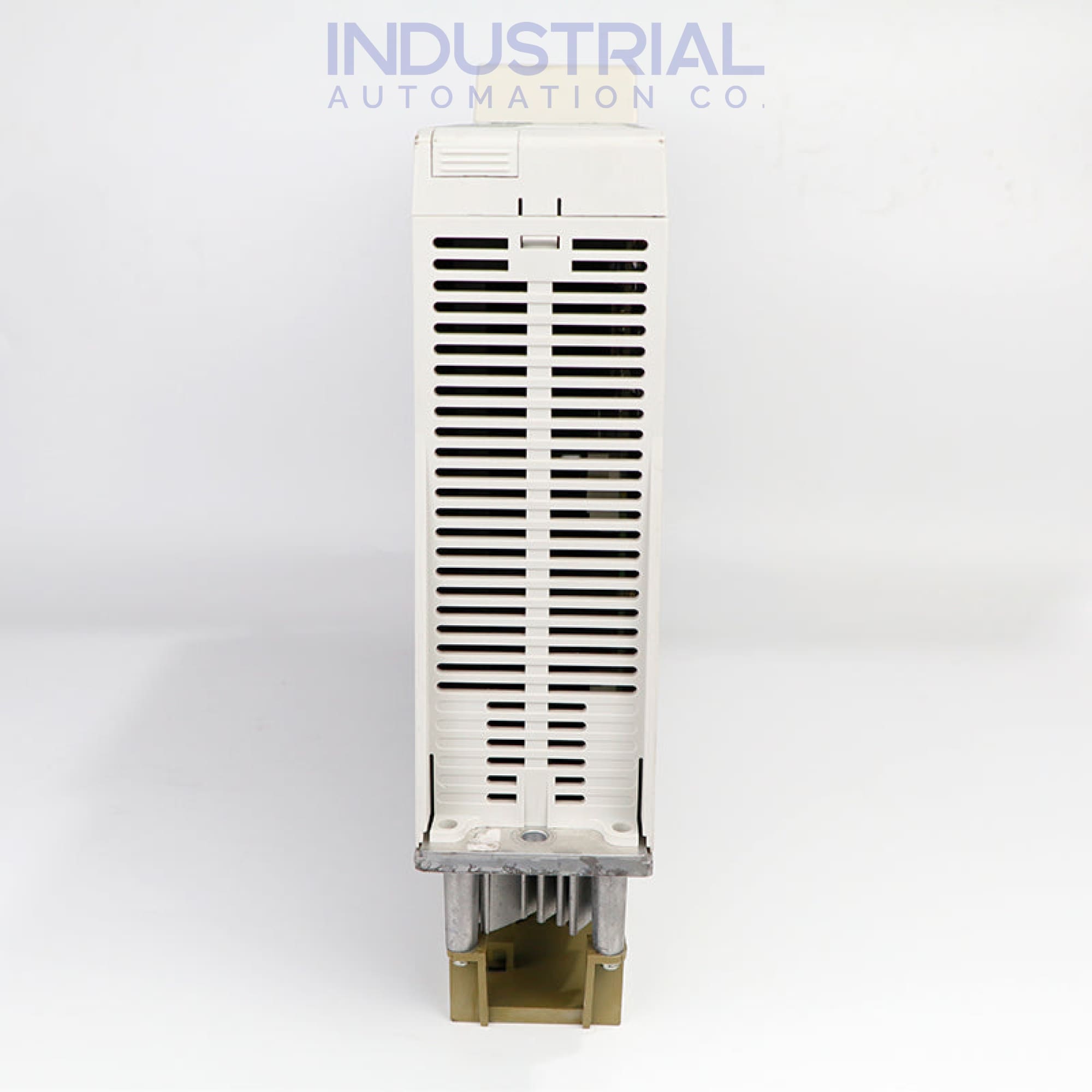

Mitsubishi MDS-C1-V1-20

The Mitsubishi MDS-C1-V1-20 is a sophisticated servo drive unit designed to deliver exceptional performance for various industrial applications. Part of the MDS-C1 series, this model is specifically engineered to provide reliable, efficient, and precise control for servo and spindle motors. It is renowned for its robust construction, ease of integration, and compatibility with a wide range of machinery, making it a preferred choice for manufacturers aiming for high productivity and precision.

Input and Output Ratings:

The MDS-C1-V1-20 operates with a three-phase AC power supply, with an input voltage range of 3-phase 200 to 230VAC, 50/60Hz power supply suitable for various industrial environments. It is designed to handle high current loads efficiently, ensuring stable and continuous operation. The output ratings are optimized for delivering precise control to servo and spindle motors, making it ideal for applications requiring high accuracy and responsiveness.

Control Modes:

This model supports multiple control modes, including position, speed, and torque control. These modes allow for flexible application across different types of machinery, from CNC machines to automated production lines. The advanced control algorithms implemented in the MDS-C1-V1-20 ensure minimal deviation and high fidelity in motion control tasks.

Protection and Safety Features:

Safety is a critical aspect of the MDS-C1-V1-20, with built-in protective functions to prevent damage under abnormal conditions. It includes electronic thermal protection for both the servo motor and drive unit, overload detection Alarm 50 and Alarm 51, which is detected if 95% or more of the maximum current is commanded for more than 1s due to a machine collision. It also includes excessive error detection to safeguard against mechanical collisions or system faults. These features ensure longevity and reliability even in demanding industrial settings

The drive unit is designed to withstand harsh industrial environments. It has a robust construction that protects internal components from dust, oil, and other contaminants. The cooling system efficiently manages heat dissipation, maintaining optimal operating temperatures and preventing overheating. The unit complies with relevant international standards, ensuring safe and reliable operation globally.

Maintenance, Troubleshooting and Applications:

The MDS-C1-V1-20 is designed with user-friendly maintenance features. It includes diagnostic LEDs and alarms for quick identification of issues. The modular design allows for easy replacement of components, such as the unit fan and connectors, minimizing downtime. Detailed manuals provide step-by-step instructions for troubleshooting and maintenance tasks

The Mitsubishi MDS-C1-V1-20 is widely used in various industries. For precise control of assembly robots and machining tools in automotive manufacturing, the Mitsubishi MDS-C1-V1-20 is a perfect option. In the aerospace industry, it ensures high accuracy in component fabrication. This servo unit comes shandy in tasks requiring high precision and reliability, such as CNC machining and automated assembly lines.

The Mitsubishi MDS-C1-V1-20 servo drive unit exemplifies advanced engineering and reliability, making it an indispensable component in modern industrial automation. Its flexible control modes ensure optimal performance across a wide range of applications.

Frequently Asked Questions:

How can the MDS-C1-V1-20 be integrated into existing CNC systems?

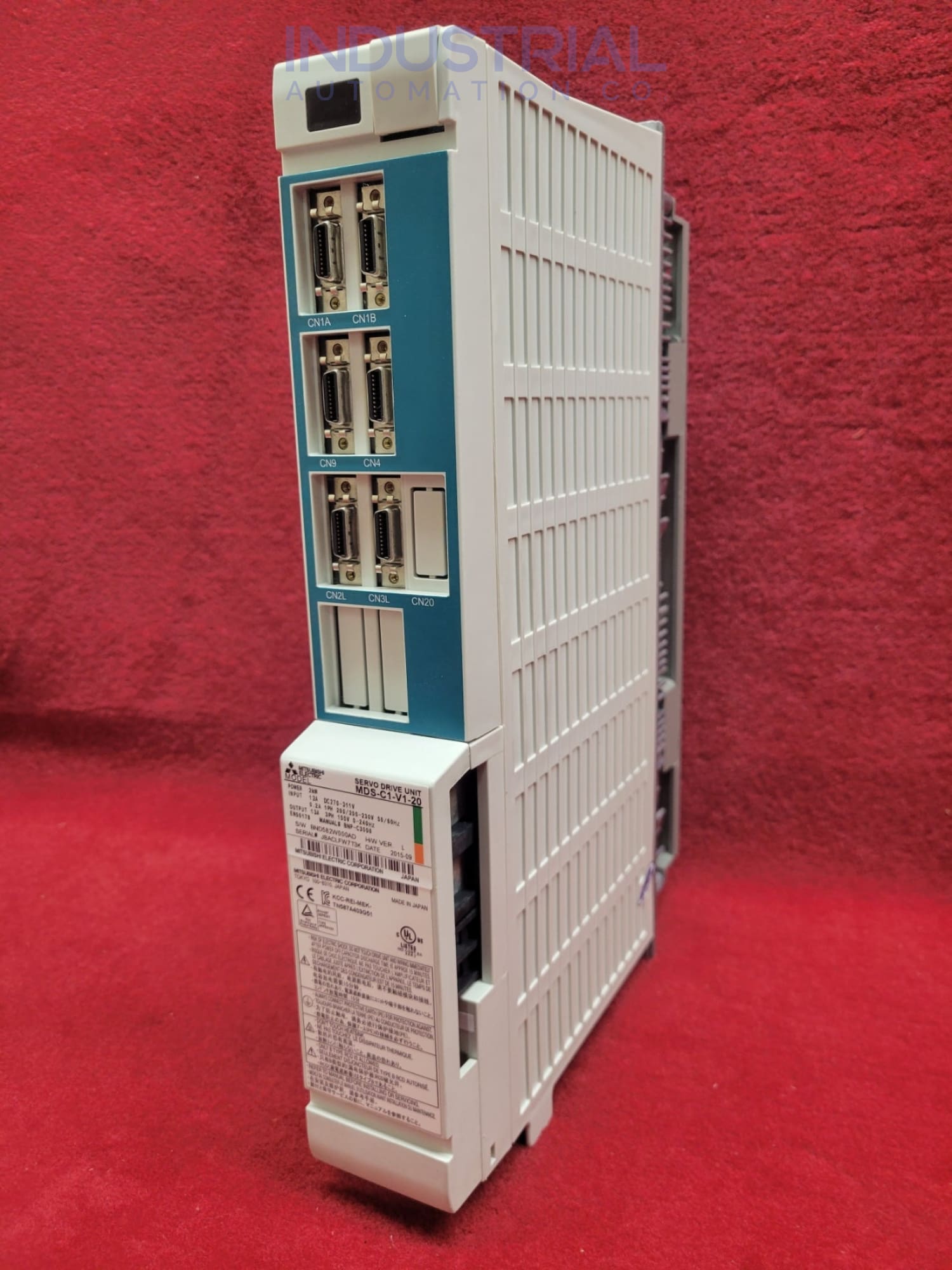

The MDS-C1-V1-20 is designed to integrate industrial automation setups easily. It includes multiple connectors, such as CN1A and CN1B for main circuit connections and CN4 for communication between power supply units.

What maintenance features are included in the MDS-C1-V1-20 to minimize downtime?

The MDS-C1-V1-20 is designed with user-friendly maintenance features to ensure minimal downtime. It includes diagnostic LEDs and alarms for quick identification of issues

What are ambient environmental conditions for the smooth operation of the MDS-C1-V1-20?

The ambient environmental conditions for the smooth operation of the MDS-C1-V1-20 drive unit require a temperature range of 0°C to +55°C. Additionally, the ambient humidity should be 90% RH or less to maintain optimal functionality.

Product Specifications Table:

Attribute	Specifications
Input Voltage	Three-phase AC, 200-230V
Input Frequency	50/60 Hz
Control Modes	Position, Speed, Torque
Overload Protection	Built-in electronic thermal protection
Connectivity	CN1A, CN1B, CN4, CN9 connectors
Operating Temperature	0°C to 55°C
Storage Temperature	-15°C to 70°C
Ambient Humidity	90% RH or less (non-condensing)
Cooling Method	Forced air cooling
Diagnostic Features	LED indicators, alarm codes
