TECHNICAL SPECIFICATIONS

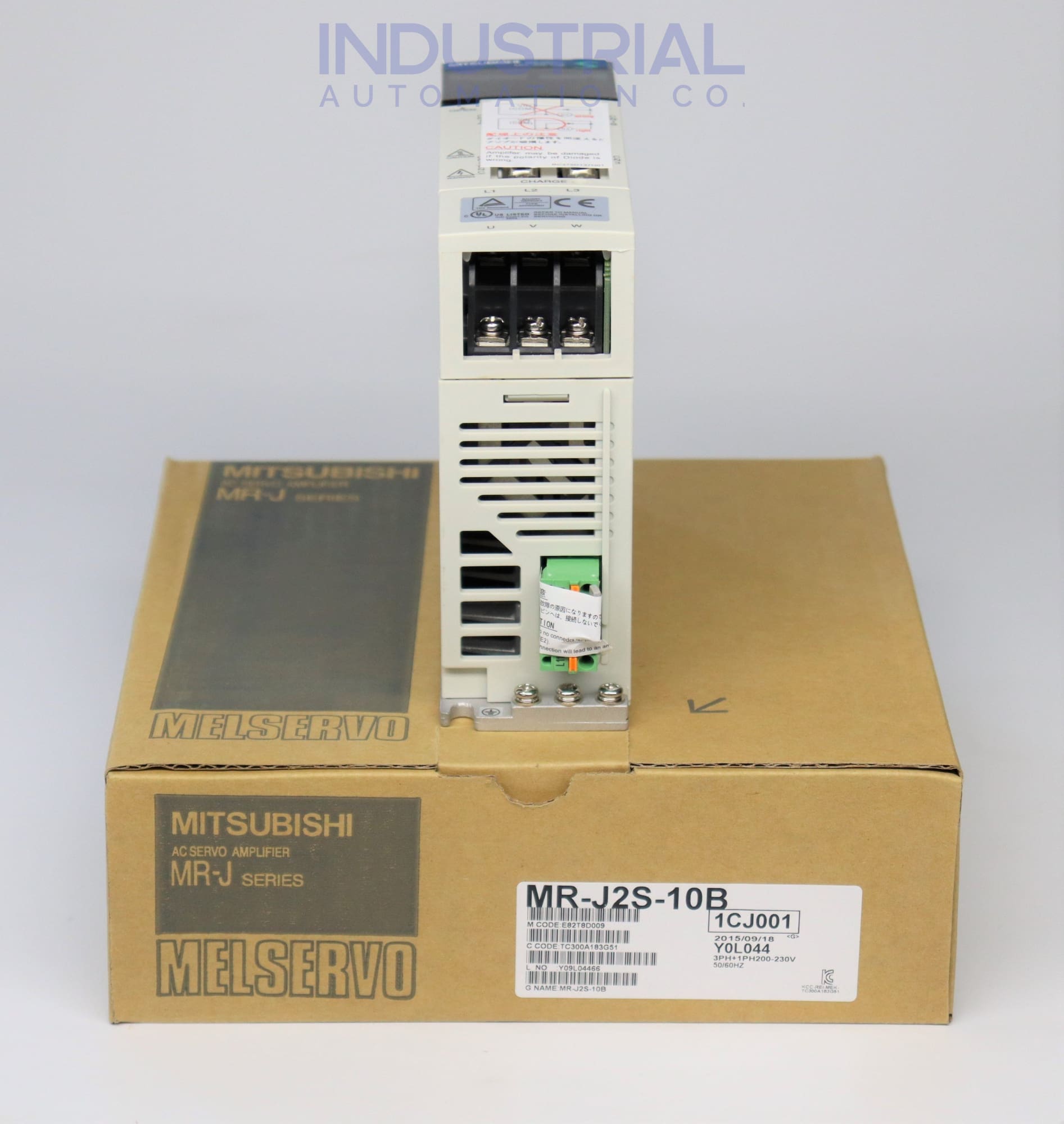

MR-J2S-10B

The MR-J2S-10B model is a servo drive from Mitsubishi with various features to boost performance. A high-resolution encoder tracks up to 131072 pulses per rotation and can synchronize servo motors effortlessly. This drive enhances the responsiveness of its system by creating a high-frequency resonance which is then dampened by the inbuilt low pass filter - making it one of the most efficient models.

Technical Specifications of MR-J2S-10B:

The MR-J2S-10B model offers high precision control through its dynamic brake and current control system, quickly adapting to changes in the environment. It boasts an advanced gain search algorithm capable of intelligent alterations without overshooting, coupled with the powerful MR Configurator software. This sophisticated machinery contains a vibration suppression feature that actively monitors mechanical movement and efficiently dampens any noise output when necessary.

Featuring a range of 200-230V AC for its three-phase power supply and 230V AC for single-phase power, the MR-J2S-10B model is always prepared to provide support in high-energy efficient environments. Utilizing an integrated regenerative resistor can effectively manage excess electrical current – however, the regeneration option assists the amplifier by adding reinforcement with ease.

The MR-J2S-10B model boasts an innovative auto-tuning feature that can optimize its gain in response to fluctuations in mechanical load on the motor shaft. Connectivity with the advanced MR configurator allows for a comprehensive analysis of system frequency, utilizing the "automated analyzer" function—all within only 0.7 kilograms.

Moreover, applied users can rest assured knowing this competent device is equipped to effectively manage potential emergencies such as overcurrent and regenerative overvoltage during overload, encoder errors, and power loss occurrence, not forgetting Overspeed protection too.

Ambiance Conditions (operating and Installation):

The MR-J2S-10B servo amplifier is usable in a variety of settings, from 0 to 1000 meters above sea level and temperatures ranging from -20°C to +65°C. When used indoors with proper environmental protection against dirt, dust, and combustible gases, the model operates within an accepted temperature range of 0°C up to 55 ° C for optimal performance when paired with its designated servo motor.

The model MR-J2S-10B must be installed in a control cabinet with an IP54 rating and a 10.16-inch fan above the servo amplifier to maintain proper cooling. This device should only be operated and installed by knowledgeable personnel who can get optimal results to maximize performance, reduce vibrations, and avoid any potential mishaps. By installing it vertically as well, you further guarantee the successful operation of your system for years to come.

Statutory Safety Guidelines:

Before using the servo amplifier MR-J2S-10B, it is essential to double-check check all parameters are correctly configured. Interfering components such as a power capacitor or noise filter must not be connected in series with the motor and its related amplifier model. We strongly encourage users to read through the complete user manual carefully before beginning operation; this will ensure proper safety measures have been taken into consideration.

Ensure the safety of your area by identifying and removing any potential hazards that could interfere with servo amplifier maintenance. Install both the motor and amplifier before connecting cables for optimal performance. To help protect against power leakage, all cable terminals must be crimped securely in insulating tubes before connection to the servo amplifier (MR-J2S-10B) terminal block.
