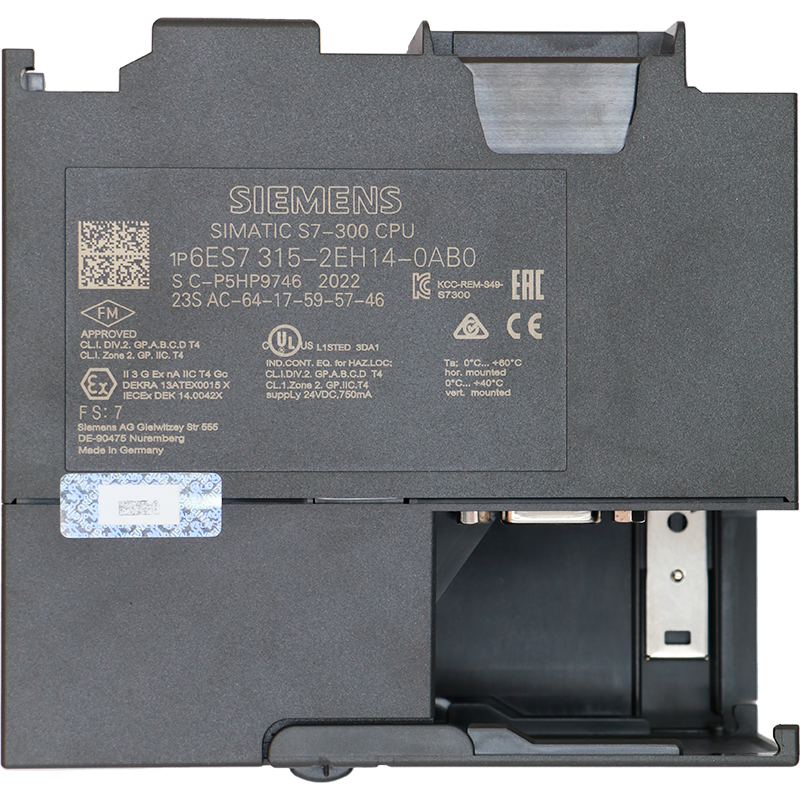

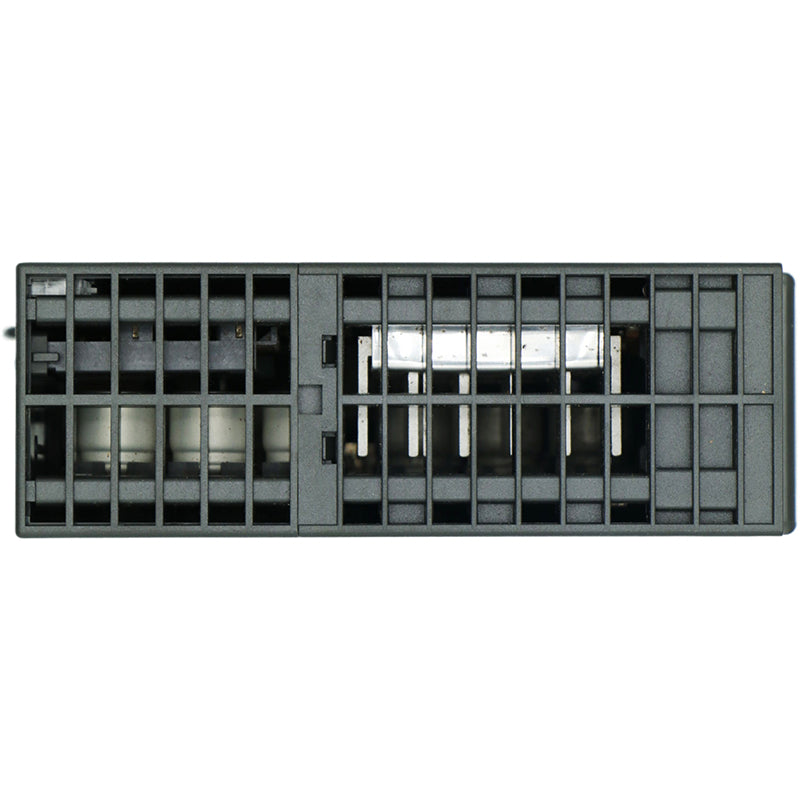

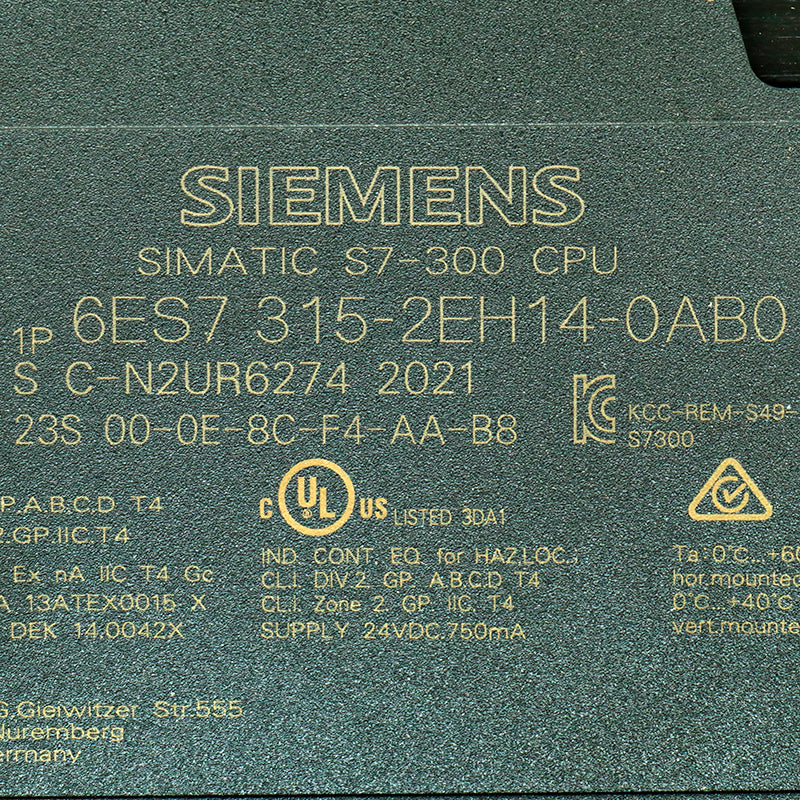

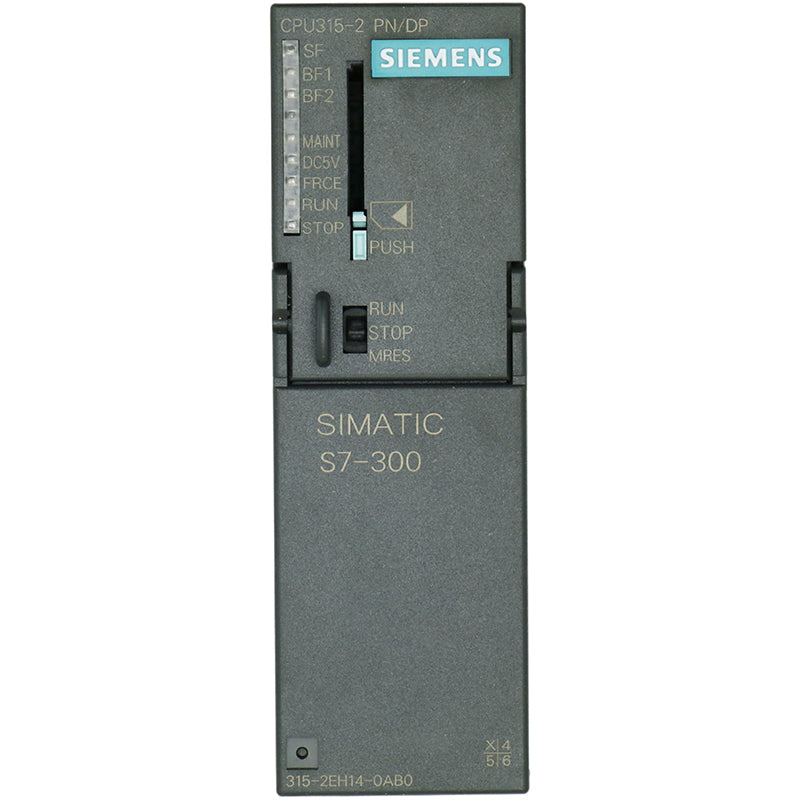

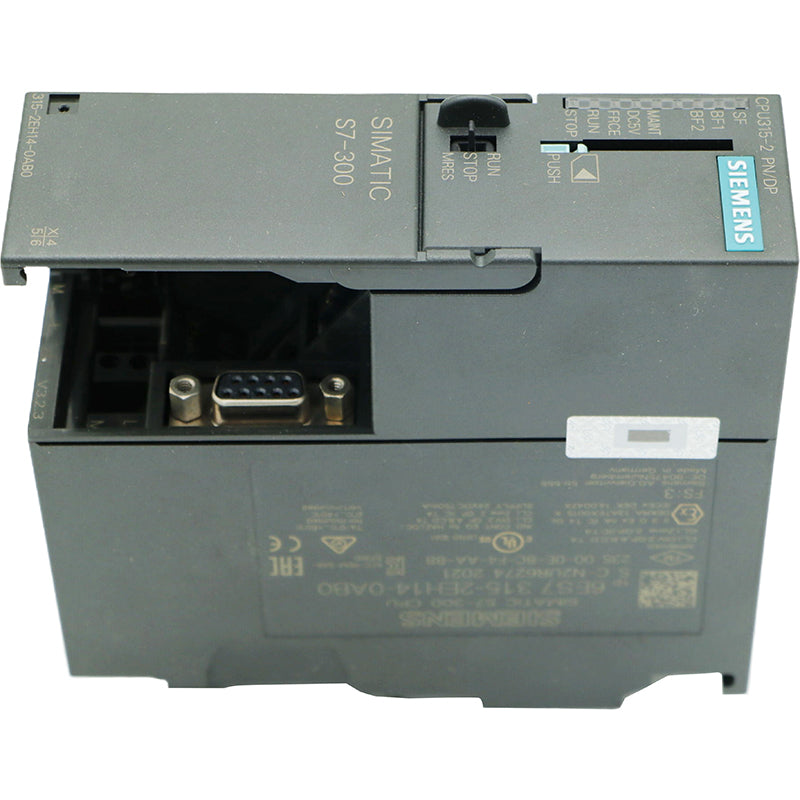

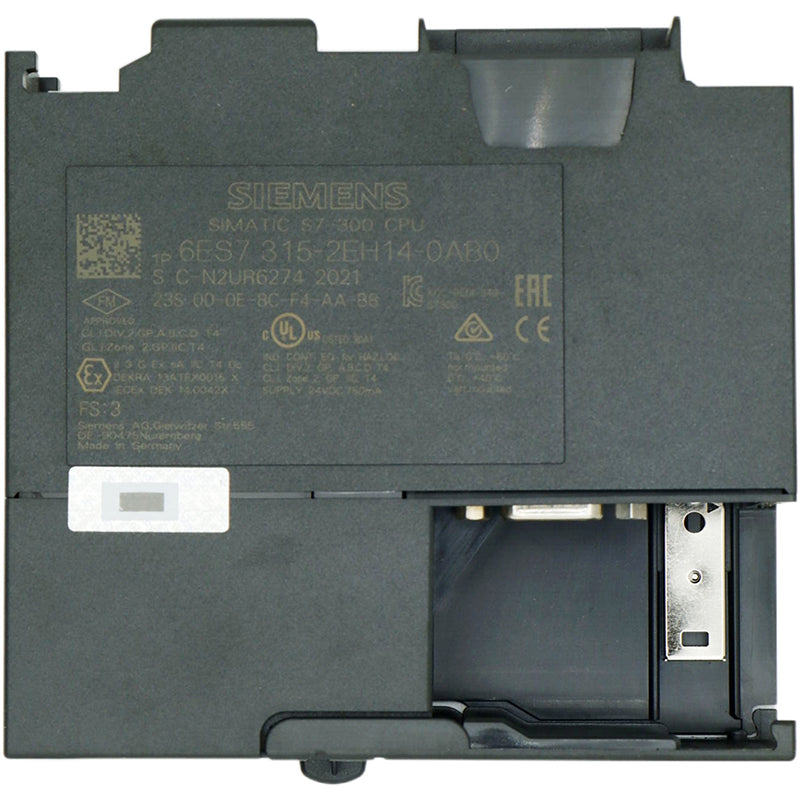

Siemens 6ES7315-2EH14-0AB0

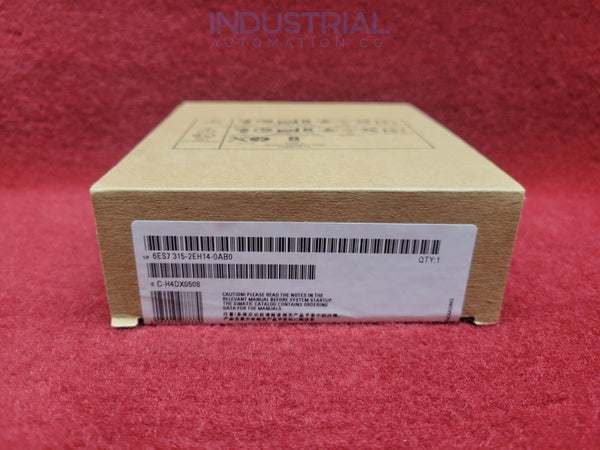

Siemens 6Es7315-2Eh14-0Ab0

Siemens 6ES7315-2EH14-0AB0

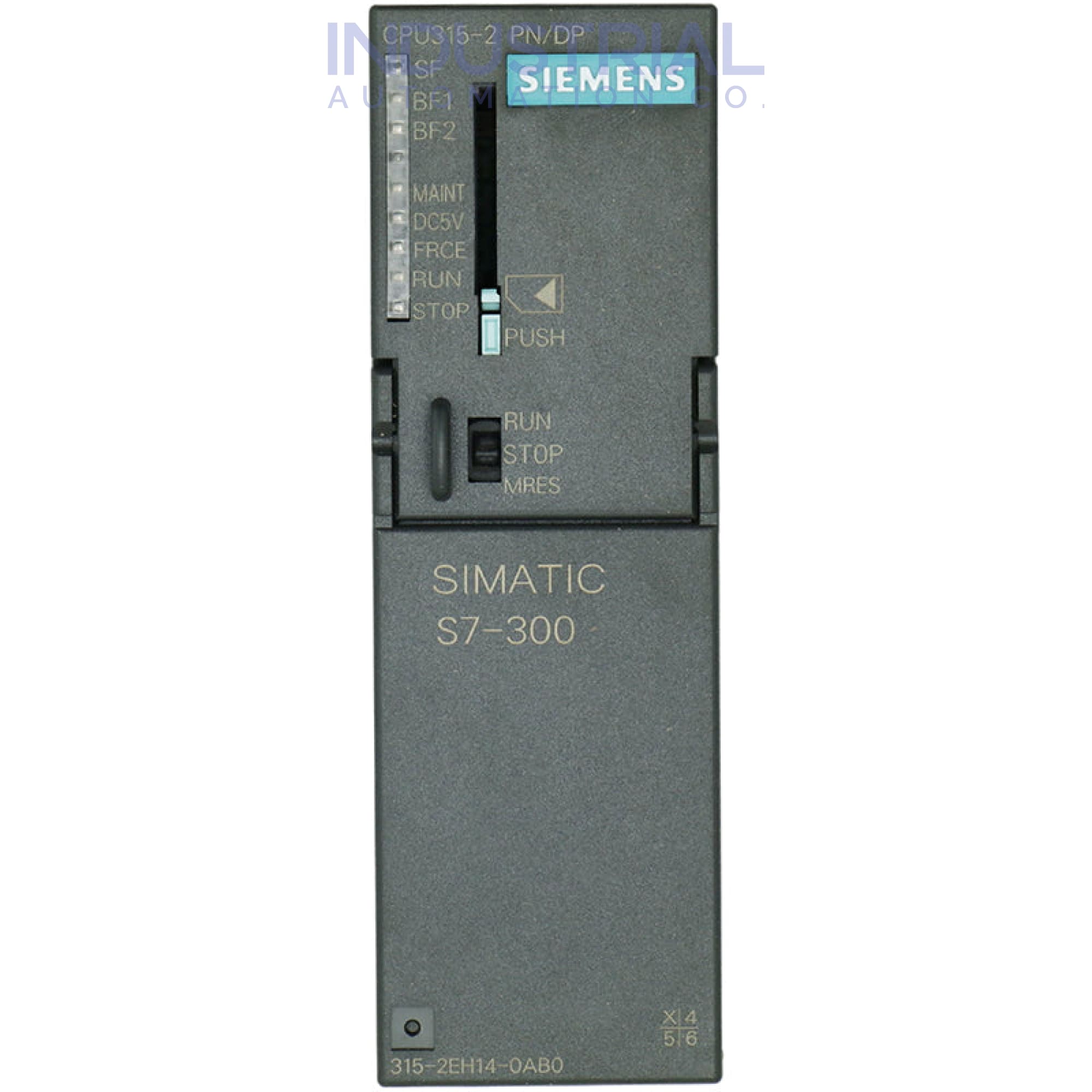

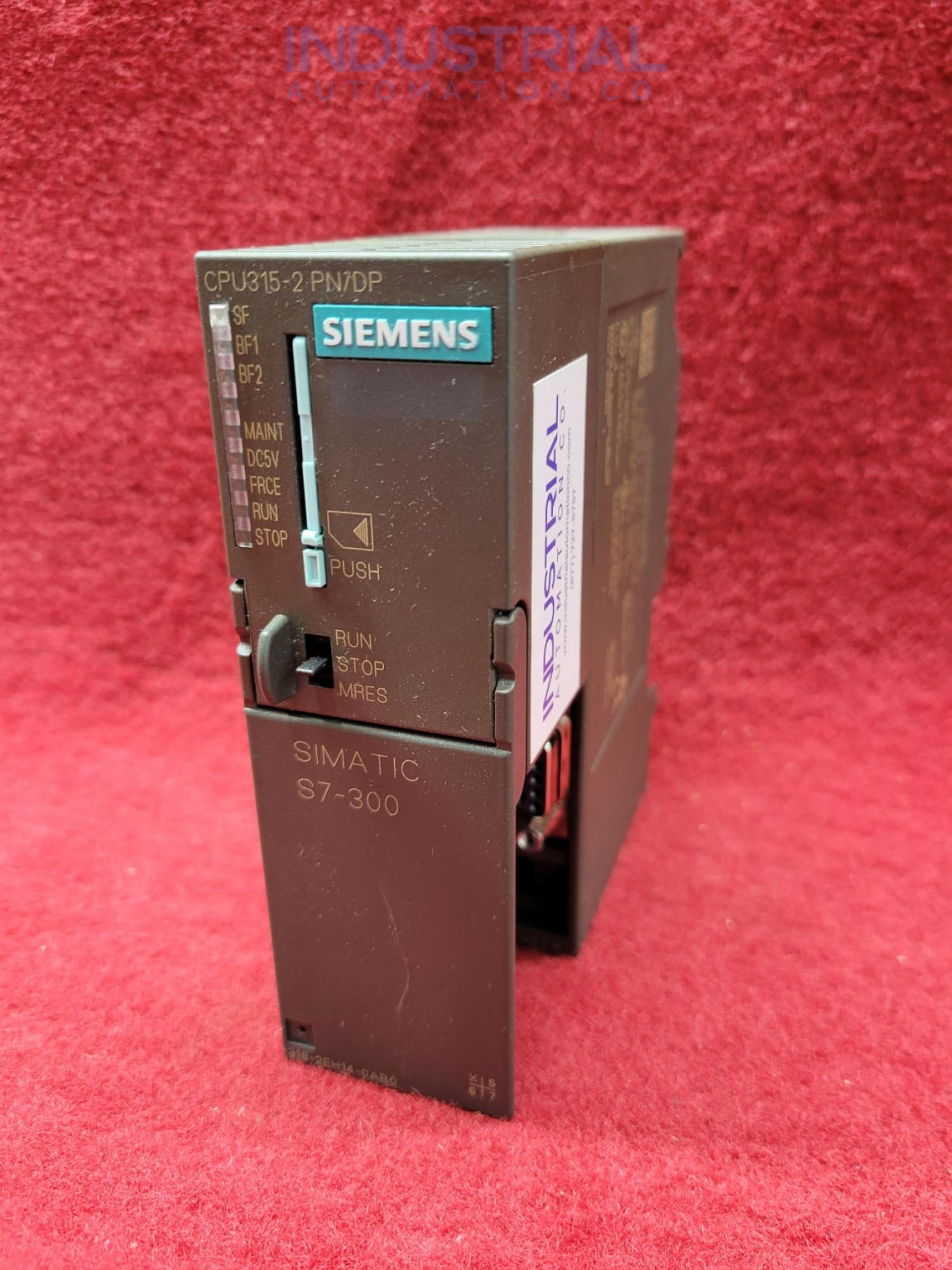

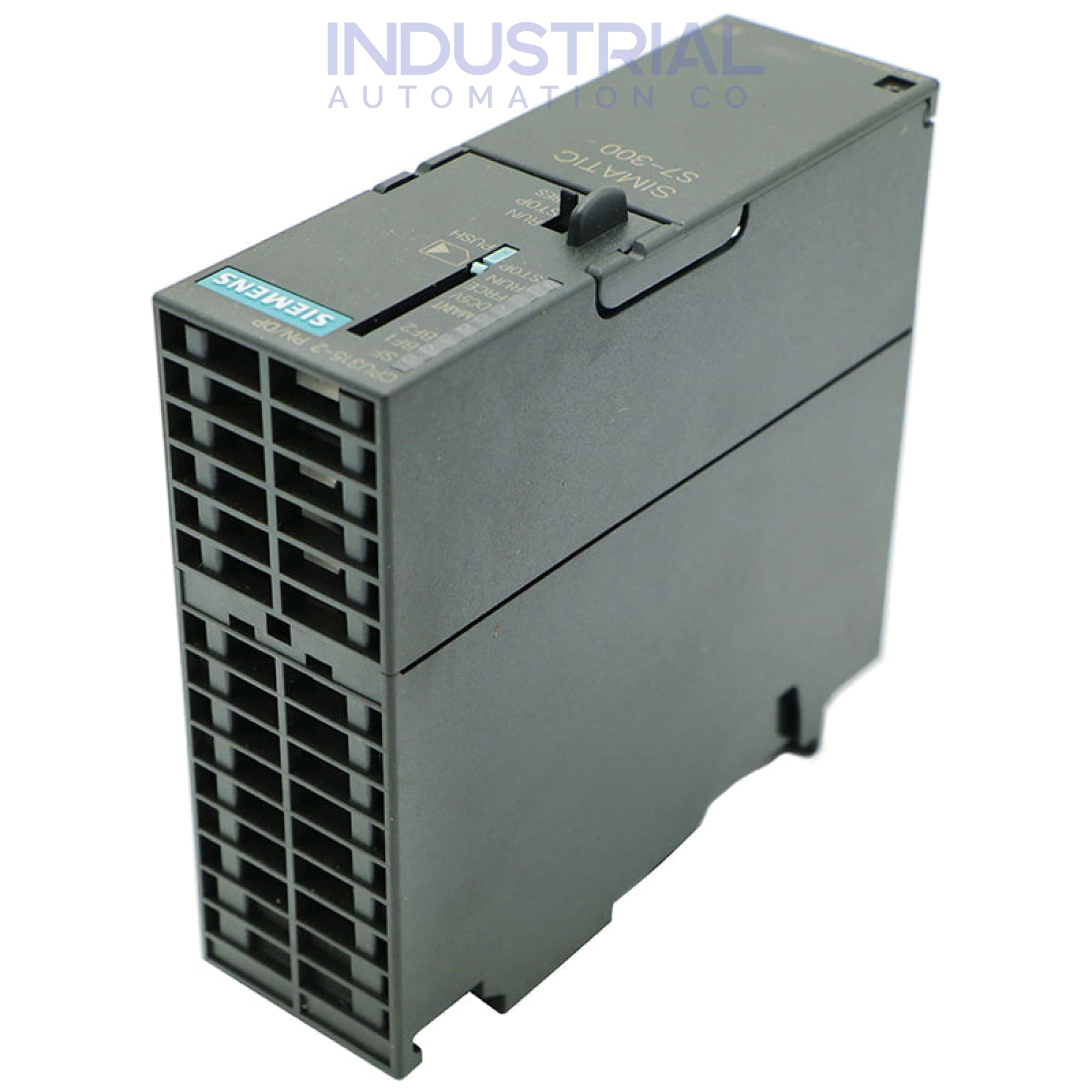

The Siemens 6ES7315-2EH14-0AB0 is a CPU module. It belongs to the SIMATIC S7-300 series and has a work memory of 384 KB. It has advanced processing capabilities with integrated communication interfaces for demanding industrial applications.

Technical Specifications:

The Siemens 6ES7315-2EH14-0AB0 processor is integrated with 1.2MB RAM and can be extended as the slot is available. The CPU has a high processing speed with a typical cycle time of 0.05 µs (typical for bit operations. Both analogue and digital signals can be processed efficiently in the unit through multiple input channels.

The CPU unit has a rated voltage of 24V and a permissible range of 20.4V to 28.8V. The rated current for the system is 750mA and consumes 150mA while performing no operation. The CPU with 1024 blocks (DBs, FCs, FBs and OBs their size up to 64KB) may be reduced by the MMC.

The CPU processing time for bit operation is 0.05 µs, for word operations is 0.09 µs, fixed point arithmetic operation is 0.12 µs and for floating-point arithmetic is 0.45 µs. The unit has 16 nesting depths per priority class and additional within an OB error of 4.

The Siemens 6ES7315-2EH14-0AB0 CPU has 16,328 Digital Input and output channels. The analogue input and output provide 1024 channels. LAD, FBD, STL, SCL, CFC, Graph, and HI Graph are supported programming languages.

The unit has know-how protection (password protection and Block encryption). Its operating temperature is 0 to 60 degrees Celsius. The unit's total weight is only 340g, and its dimensions are a width of 40 mm, a Height of 125mm, and a Depth of 130mm.

Interfaces:

The Siemens 6ES7315-2EH14-0AB0 CPU unit uses three interface types: PROFINET interfaces, Ethernet interfaces, and RS 485, with an output current of 200mA maximum. RS 485 (output current = 200mA) supported protocols are MPI, PROFIBUS DP master, and DP slave with the transmission rate of 12 Mbits/s.

The PROFINET interface has a transmission rate of 100Mbits/s. Protocols this interface supports are PROFINET IO Controller, PROFINET IO Device, PROFINET CBA, and Open IE communication. There are 16 connections, of which 15 are usable for PG communication. 14 supports S7 basic communication. The maximum number of instances is 32.

Applications:

The Siemens 6ES7315-2EH14-0AB0 CPU unit has versatile applications in different industries due to its robust design and compatibility with various systems. In industrial automation, machinery is controlled and monitored, providing real-time data processing for smooth operation.

In process industries (beverages, chemicals, and pharmaceutical) and energy management (industrial plants), 6ES7315-2EH14-0AB0 is widely used for managing assembly lines and complex energy distributions. The integrated PROFINET and the PROFIBUS interfaces facilitate seamless communication with other devices and systems.

Frequently Asked Questions:

What are the programming languages supported by Siemens 6ES7315-2EH14-0AB0?

The Siemens 6ES7315-2EH14-0AB0 supports Programming languages LAD, FBD, STL, SCL, CFC, and Graph. These languages are widely used in industry for automation purposes.

What is the total weight of Siemens 6ES7315-2EH14-0AB0?

The Siemens 6ES7315-2EH14-0AB0 is designed to be lightweight at 340 grams and under 40mmx125mmx130mm dimension to fit in tight spaces.

How many digital channel Siemens 6ES7315-2EH14-0AB0 has?

The Siemens 6ES7315-2EH14-0AB0 CPU has 16,328 Digital Input and output channels. The analogue input and output provide 1024 channels.

Product Specifications Table

Attribute Specifications
Voltage input 24V
Current Consumption 750mA
Inrush Current 4A
384Kbyte
Power loss 4.65W
I/O Address area Inputs 2048 byte
Digital Channel Inputs 16328
Analogue Channel Inputs 1024
S7 Counter Number 256
Interface RS 485, PROFINET, Industrial Ethernet
