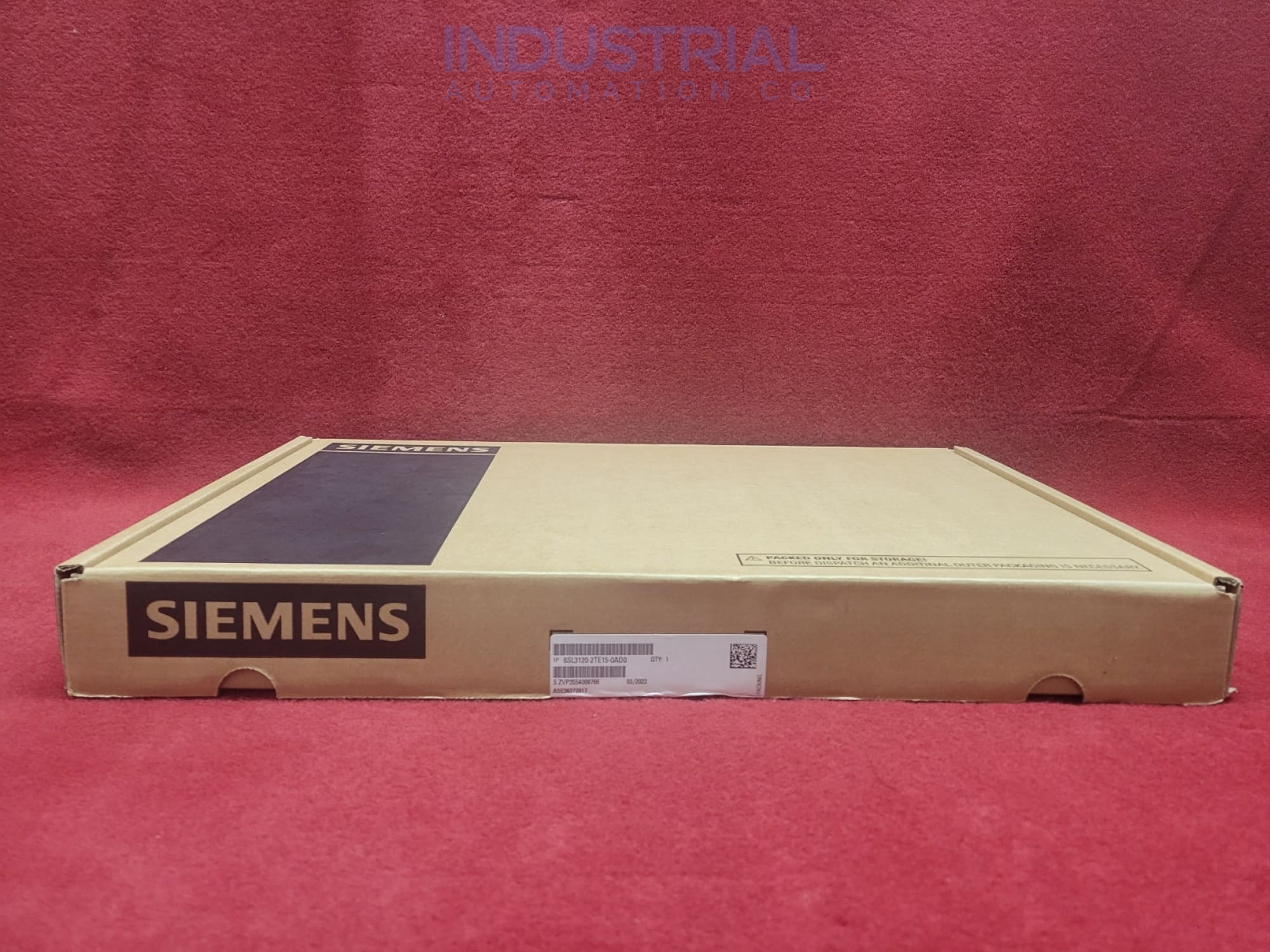

Siemens 6SL3120-2TE15-0AD0
SKU: 6SL3120-2TE15-0AD0-FS
We have 2 in stock
Estimated delivery: September 14th - September 16th
Order for next-day shipment.
- Regular price
-
$1,397.00
- Sale price
- $1,397.00
New
$1,397
2 in stock
Ships today
Description
The Siemens 6SL3120-2TE15-0AD0 is a SINAMICS S120 double motor module in booksize format. It converts the 600 V DC link of an S120 drive lineup into a variable-frequency three-phase output to operate two motor axes, and is used in multi-axis servo and motion control systems such as machine tools, packaging machinery, printing and converting lines, and general production machinery.
The module connects to the drive lineup through the integrated DC busbar system and communicates with the SINAMICS S120 control unit over DRIVE-CLiQ; a DRIVE-CLiQ cable is included. It supports optimized pulse patterns and the extended Safety Integrated functions.
Technical Specifications
| Manufacturer | Siemens |
| Series | SINAMICS S120 |
| Product type | Double Motor Module |
| Input voltage | 600 V DC (DC link) |
| Output voltage | 3 AC 400 V |
| Rated output current | 5 A / 5 A |
| Rated power | 2.7 kW per axis |
| Format | Booksize, compact (D-type) |
| Cooling | Internal air cooling |
| Communication | DRIVE-CLiQ (cable included) |
| Safety | Extended Safety Integrated functions supported |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $210/yr+3 yrs → 5 total $186/yr+5 yrs → 7 total $140/yrBEST VALUE+8 yrs → 10 total $105/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SL3120-2TE15-0AD0 is a SINAMICS S120 double motor module in booksize format. It converts the 600 V DC link of an S120 drive lineup into a variable-frequency three-phase output to operate two motor axes, and is used in multi-axis servo and motion control systems such as machine tools, packaging machinery, printing and converting lines, and general production machinery.
The module connects to the drive lineup through the integrated DC busbar system and communicates with the SINAMICS S120 control unit over DRIVE-CLiQ; a DRIVE-CLiQ cable is included. It supports optimized pulse patterns and the extended Safety Integrated functions.
Technical Specifications
Manufacturer Siemens Series SINAMICS S120 Product type Double Motor Module Input voltage 600 V DC (DC link) Output voltage 3 AC 400 V Rated output current 5 A / 5 A Rated power 2.7 kW per axis Format Booksize, compact (D-type) Cooling Internal air cooling Communication DRIVE-CLiQ (cable included) Safety Extended Safety Integrated functions supported -
Specifications
Key Features
- Model 6SL31202TE150AD0
- Double Motor Module
- Output: 5A
- Voltage: 400V
- Internal air cooling
- Includes Drive-CLIQ cable
Additional Details
The Siemens 6SL31202TE150AD0 Motor Module is part of the SINAMICS S120 series, which is known for its advanced technology and performance. It has a 600 VDC input and a 400 VAC output, with a 15 A output and a 0.08/0.13 kW power rating. The module is designed with an IP20/open enclosure, which allows for easy access and maintenance. It can operate in temperatures ranging from 32 to 104 degrees Fahrenheit, making it suitable for a wide range of environments and applications. The module measures 14.96 inches in height, 1.97 inches in width, and 10.63 inches in depth.
Manufacturer
Siemens is a leading global technology company that is known for its innovative solutions and advanced technology. They have a reputation for producing high-quality products
Specifications
Specification Value Primary brand Siemens Main function Inverter unit Product series / family name SINAMICS S120 series Network frequency (output; servo control mode) 0-650 Hz
(input) 47-63 HzFunctions Double mot. module in booksize format Design forced cooling AF (1 fan)
D typeSupply voltage (DC) 510Vdc-720Vdc (575Vdc / 600Vdc nom.) Frequency (output; V/f control mode) 0-600
(output; vector control mode) 0-300Type of network DC input Rated current 5A x 2 (Irated)
4.3A x 2 (based-load current IH)Rated active power (kW) 2 x 2.7kW (Irated)
2 x 2.3kW (IH)Rated power (HP) 2 x 3HP (Irated)
2 x 2.5HP (IH)Rated voltage (AC) 380Vac-480Vac Connection type Plug connector (motor connection)
M5 screw (PE connection)Dimensions Frame size Booksize
W50mm x H380mm x D270mmDegree of protection IP20
-
Part Number Breakdown
Part number reference — 6SL3120-2TE15-0AD0
SINAMICS S120 DOUBLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 5A/5A FRAME SIZE: BOOKSIZE D-TYPE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE
Official Siemens catalog description.
Product family SINAMICS S120 Single Motor Module (Booksize) Series SINAMICS S120 Type power module Fault codes (937)
Troubleshooting reference for the SINAMICS S120 / S150 Drive System:
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 (N) — CU: Control module overtemperature
- Fault A01013 — CU: Fan operating time reached or exceeded
- Fault A01016 (F) — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01032 (F) — ACX: all parameters must be saved
- Fault A01035 (F) — ACX: Parameter back-up file corrupted
- Fault A01045 — CU: Configuring data invalid
- Fault A01049 — CU: It is not possible to write to file
- Fault A01064 — CU: Internal error (CRC)
See all 937 fault codes for this series →
