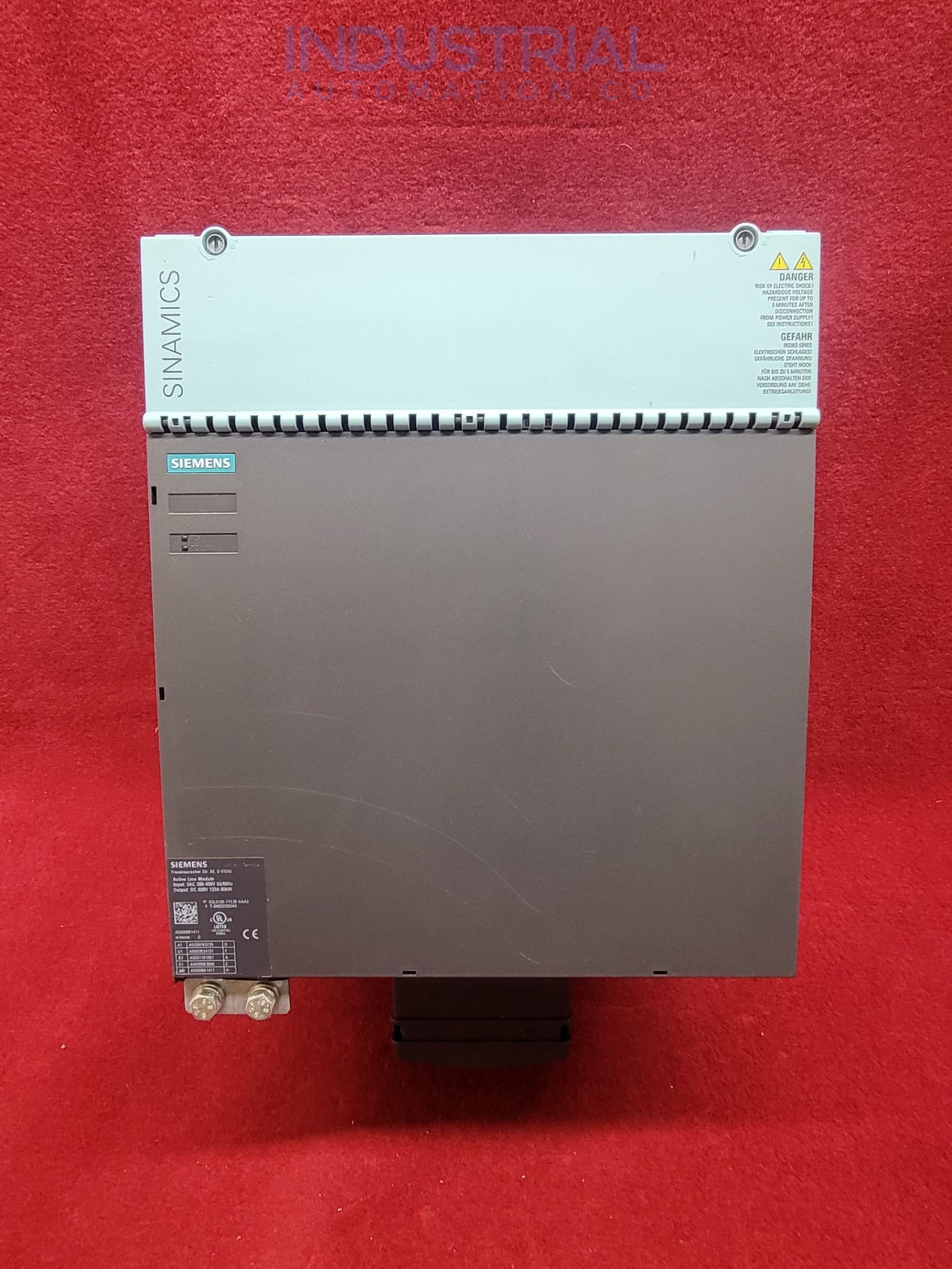

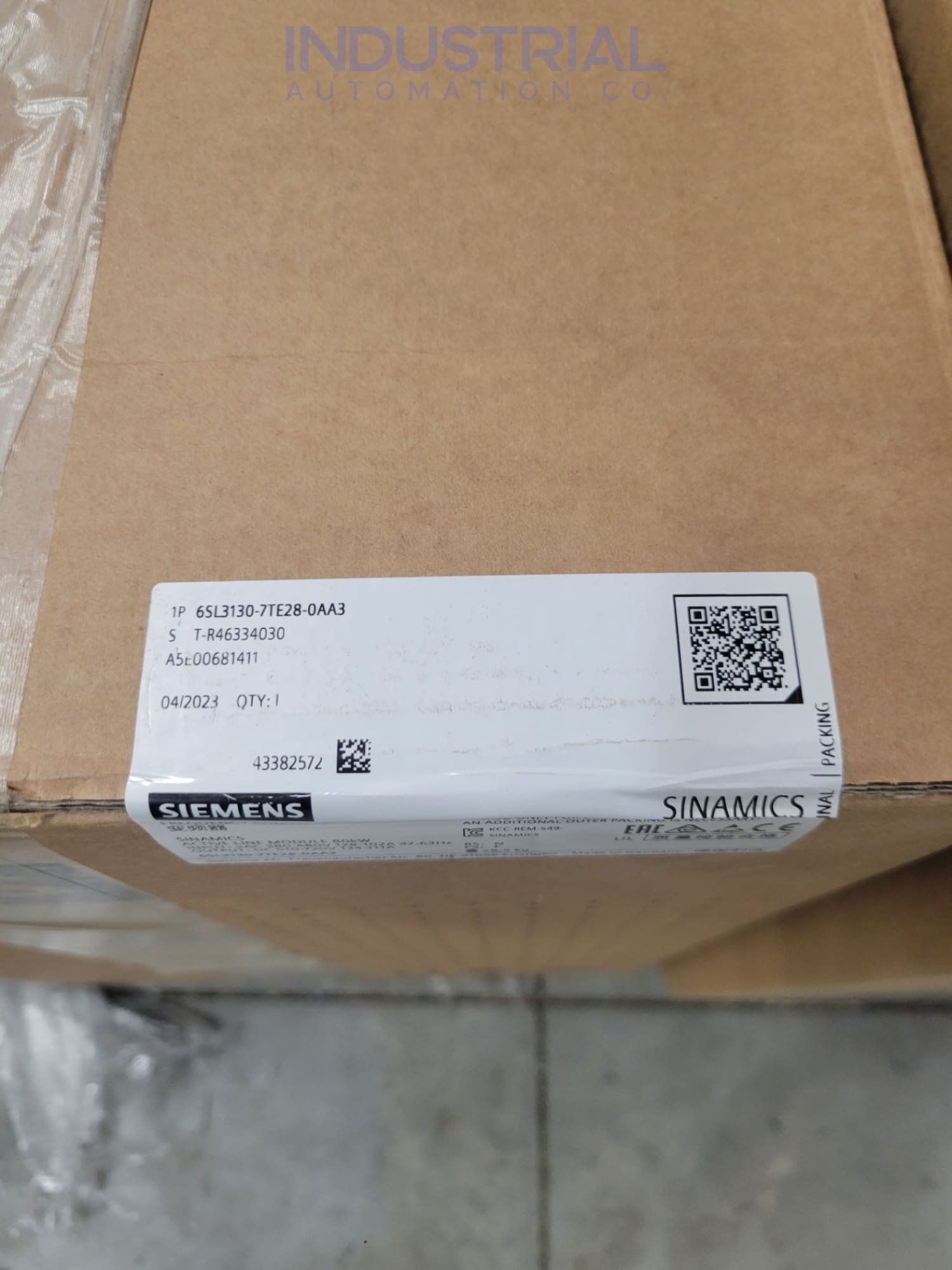

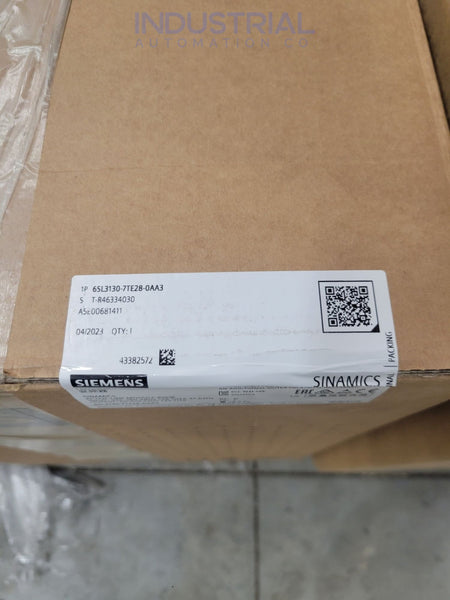

Siemens 6SL3130-7TE28-0AA3
SKU: 6SL3130-7TE28-0AA3-FS
We have 1 in stock
Estimated delivery: September 5th - September 7th
Order for next-day shipment.
- Regular price
-
$8,263.00
- Sale price
- $8,263.00
New
$8,263
1 in stock
Ships today

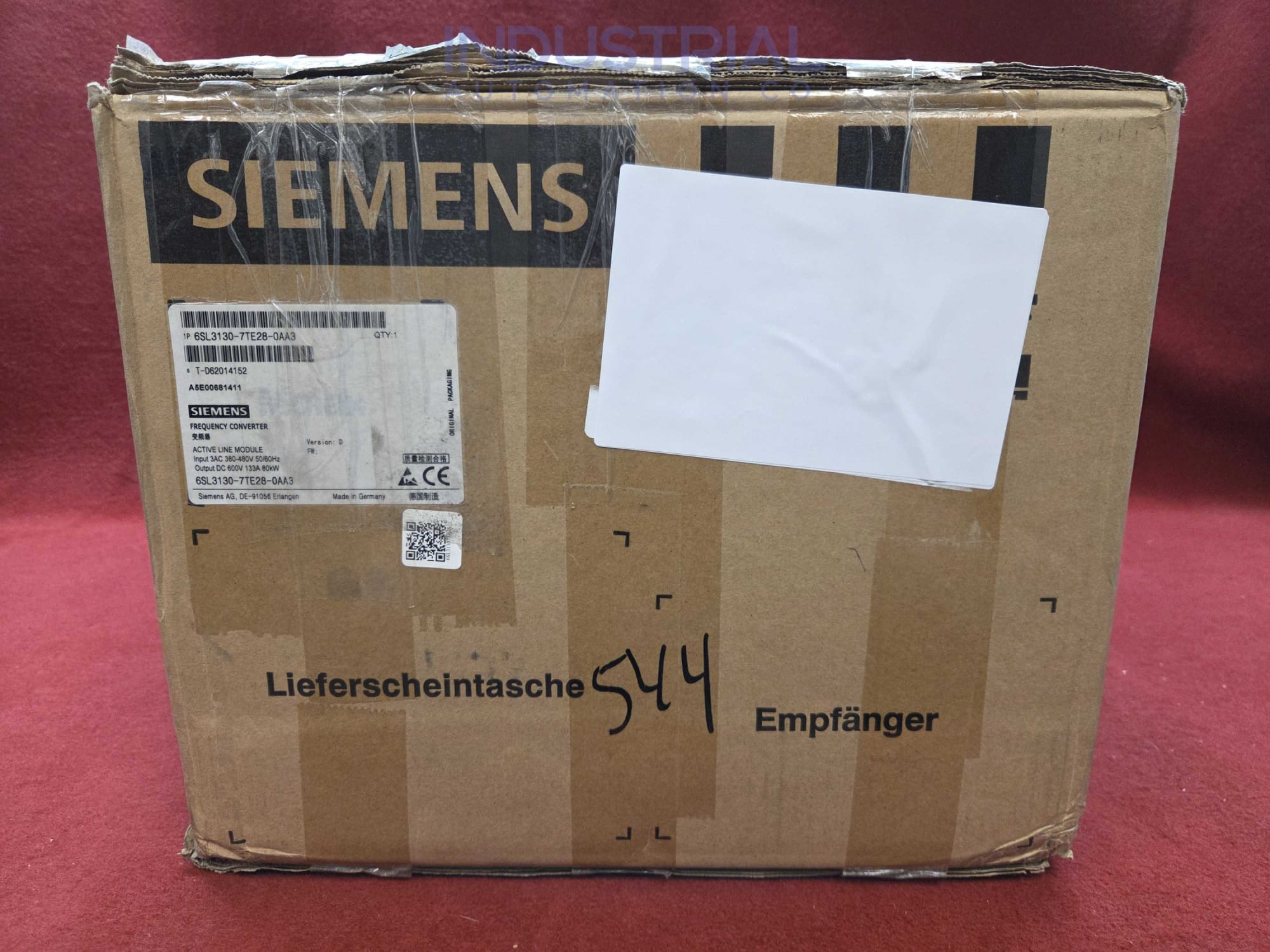

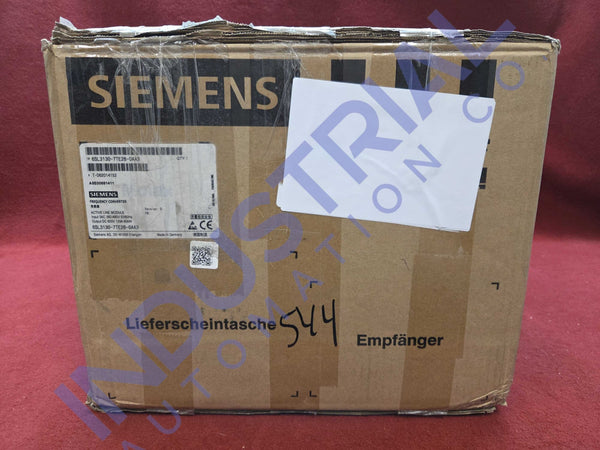

New Open Box
$6,781
2 in stock
Ships today

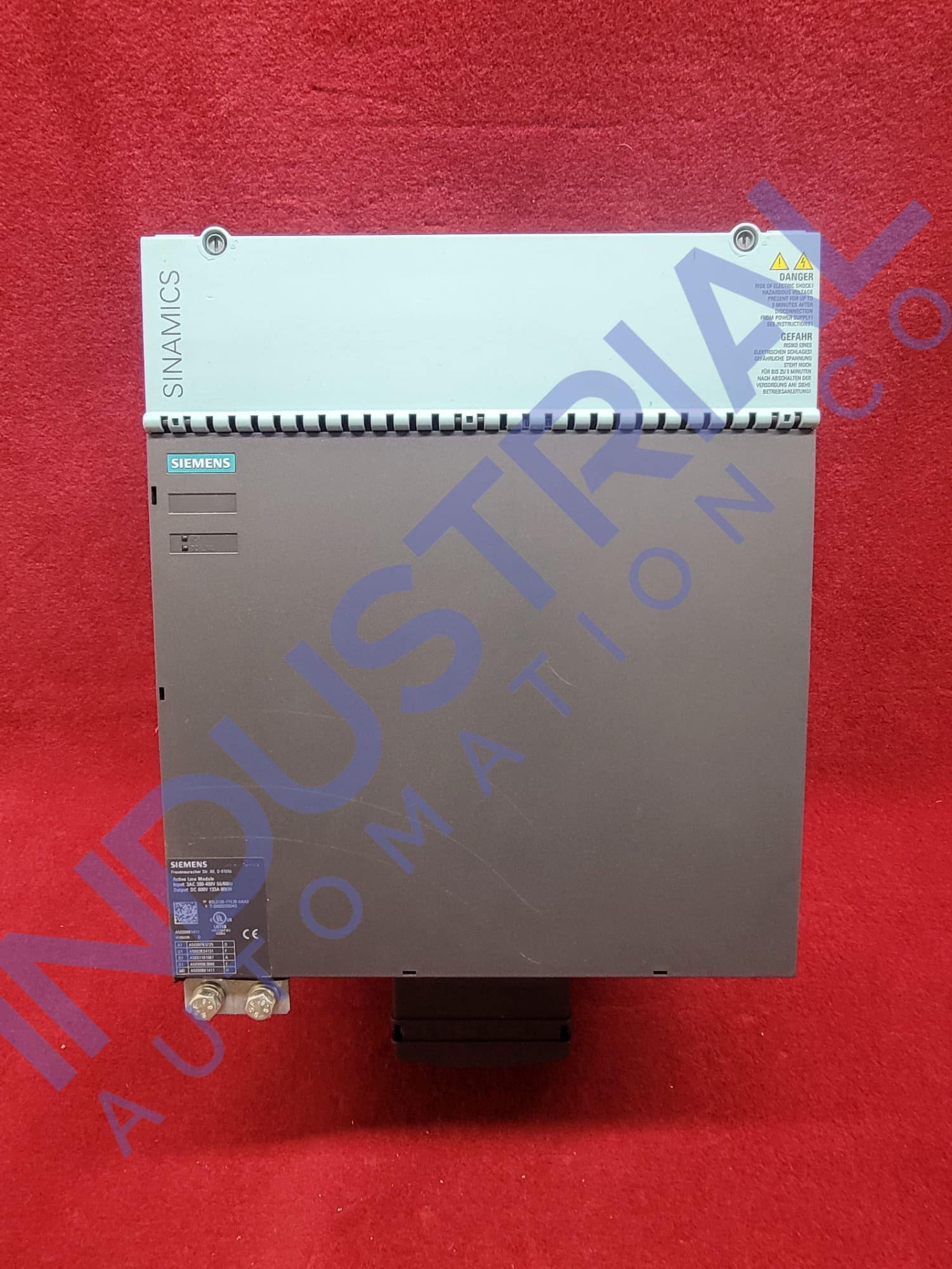

IAC Certified Refurbished
$4,490
2 in stock
Ships today
Description
The Siemens 6SL3130-7TE28-0AA3 is a SINAMICS S120 Active Line Module in booksize format. It provides a regulated, stabilized 600 V DC link for the connected motor modules, supports full energy regeneration back into the supply, and draws a near-sinusoidal line current. It forms the line-side infeed of a multi-axis SINAMICS S120 drive lineup in applications such as machine tools, packaging machinery, and production lines.
The module mounts alongside the S120 motor modules on the shared DC busbar and is coordinated by the drive control unit. Active Line Modules of this frame require the matching Active Interface Module on the line side.
Technical Specifications
| Manufacturer | Siemens |
| Series | SINAMICS S120 |
| Product type | Active Line Module |
| Input voltage | 3 AC 380-480 V |
| Line frequency | 50/60 Hz |
| Output voltage | 600 V DC |
| Rated output current | 133 A |
| Rated power | 80 kW |
| Format | Booksize |
| Cooling | Internal air cooling |
| Included | DRIVE-CLiQ cable included |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $1239/yr+3 yrs → 5 total $1102/yr+5 yrs → 7 total $826/yrBEST VALUE+8 yrs → 10 total $620/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SL3130-7TE28-0AA3 is a SINAMICS S120 Active Line Module in booksize format. It provides a regulated, stabilized 600 V DC link for the connected motor modules, supports full energy regeneration back into the supply, and draws a near-sinusoidal line current. It forms the line-side infeed of a multi-axis SINAMICS S120 drive lineup in applications such as machine tools, packaging machinery, and production lines.
The module mounts alongside the S120 motor modules on the shared DC busbar and is coordinated by the drive control unit. Active Line Modules of this frame require the matching Active Interface Module on the line side.
Technical Specifications
Manufacturer Siemens Series SINAMICS S120 Product type Active Line Module Input voltage 3 AC 380-480 V Line frequency 50/60 Hz Output voltage 600 V DC Rated output current 133 A Rated power 80 kW Format Booksize Cooling Internal air cooling Included DRIVE-CLiQ cable included -
Part Number Breakdown
Part number reference — 6SL3130-7TE28-0AA3
SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 133A, 80KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE
Official Siemens catalog description.
Product family SINAMICS S120 Basic Line Module (Booksize) Series SINAMICS S120 Type line module Fault codes (937)
Troubleshooting reference for the SINAMICS S120 / S150 Drive System:
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 (N) — CU: Control module overtemperature
- Fault A01013 — CU: Fan operating time reached or exceeded
- Fault A01016 (F) — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01032 (F) — ACX: all parameters must be saved
- Fault A01035 (F) — ACX: Parameter back-up file corrupted
- Fault A01045 — CU: Configuring data invalid
- Fault A01049 — CU: It is not possible to write to file
- Fault A01064 — CU: Internal error (CRC)
See all 937 fault codes for this series →
