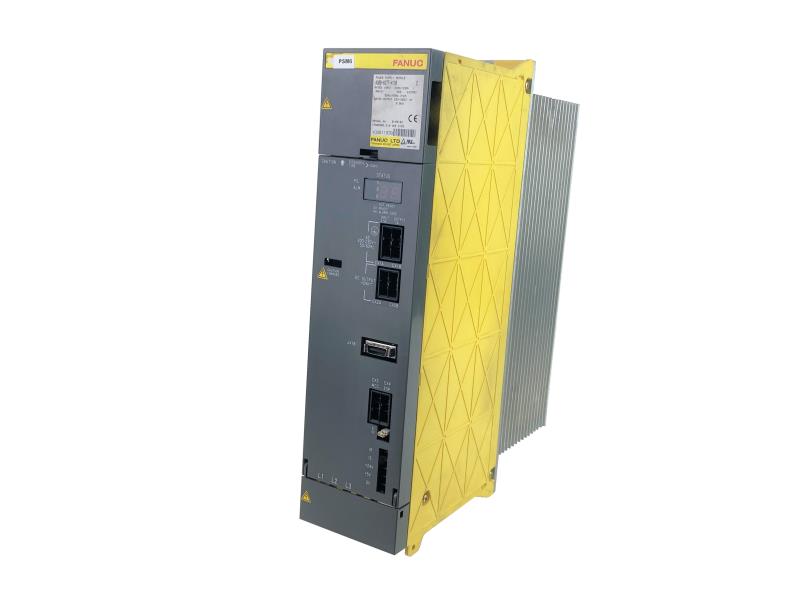

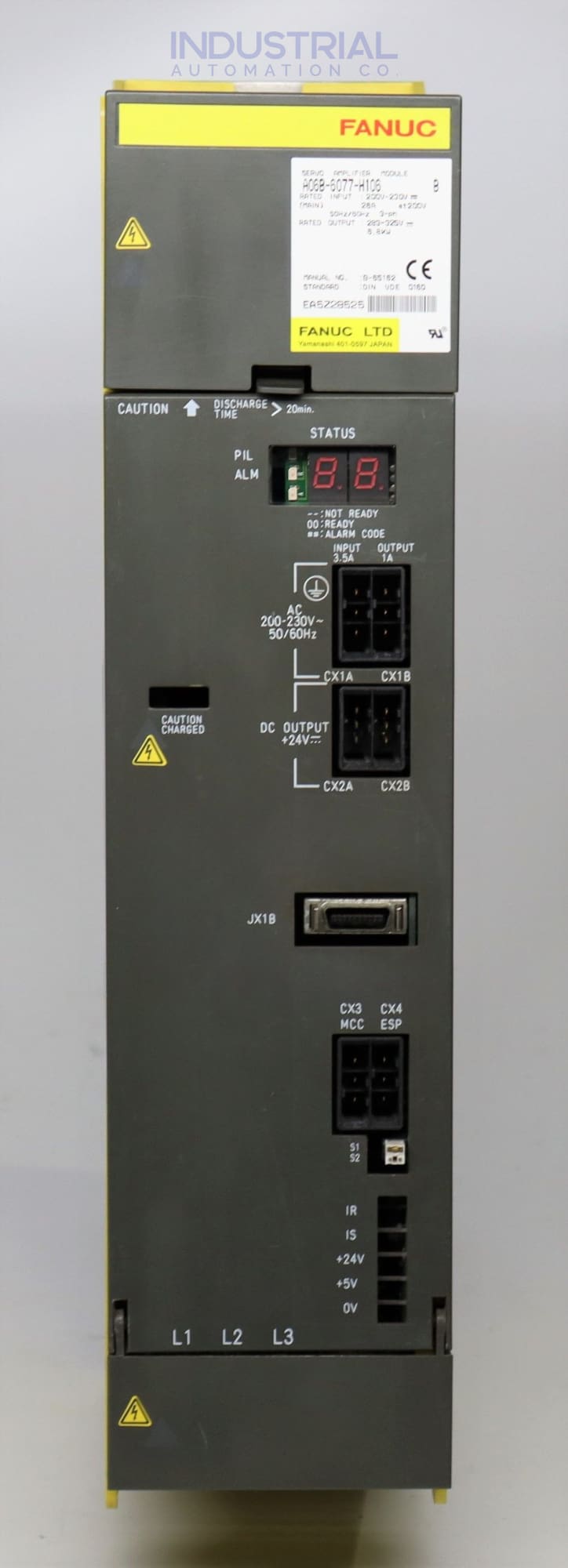

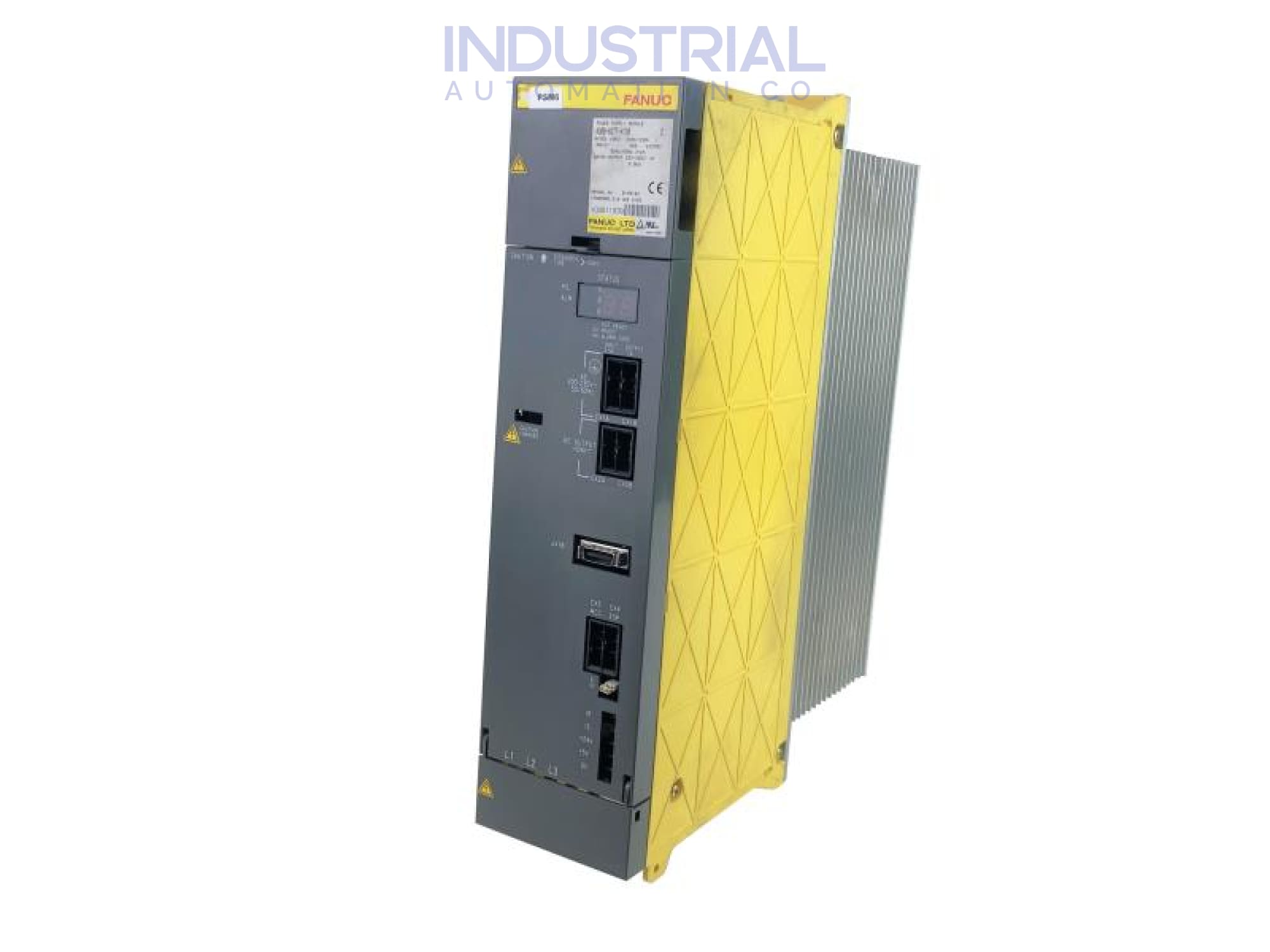

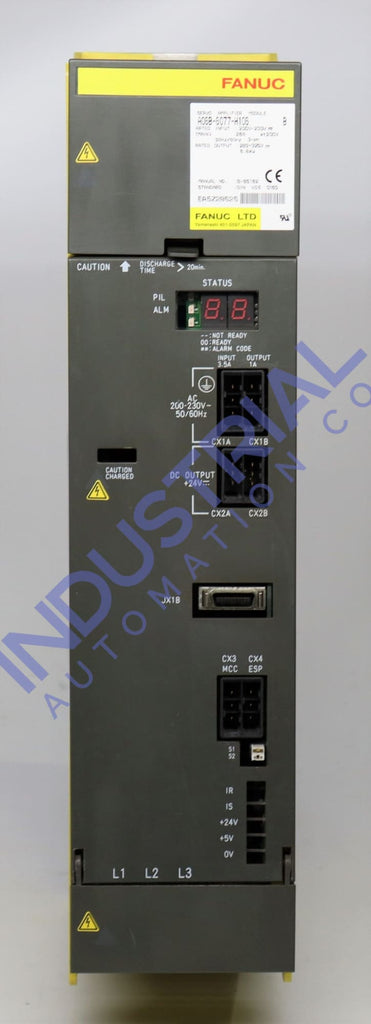

FANUC A06B-6077-H106

This power supply module A06B-6077-H106 can be used with various modules, allowing optimal flexibility. The module delivers a primary voltage of 200 V/230 V, utilizing regenerative energy, which capitalizes on the motor deceleration process and recycles it right back into its source.

Technical Description of A06B-6077-H106:

This versatile power supply module A06B-6077-H106 can provide the necessary vigor for servo and spindle motors. The output capacity should not be surpassed for maximum performance, as engineers designed it as a single component.

The main circuit of the A06B-6077-H106 model is operable within a range of 200 - 230 V with an alternating frequency between 50 and 60 Hz. Voltage tolerance for this device has been set to 10%, while minimal levels of variance from its targeted operating frequency are allowable up to 1 Hz.

The A06B-6077-H106 model boasts a power output capacity of up to 11 kW, offering enough energy to tackle even the most challenging tasks. A regenerative control system ensures optimal performance and power efficiency.

With a control power range of 200 - 230 volts and a frequency of 50/60 Hz, the model A06B-6077-H106 provides an impressive accuracy tolerance for both main circuit voltages and frequencies with 10% precision along with 1 Hz variance.

The A06B-6077-H106 model boasts a robust power capability of 9 KVA for the main circuit and 0.7 kVA for control; however, should it be utilized in an area with input voltage outside 200-230 VAC, then supplementing its capabilities through transformer technology is essential.

Ambient Conditions:

You can mount the model A06B-6077-H106 at up to 1,000 m above sea level without requiring specific measures. If at a higher altitude with every 100 m climb, temperature decreases by one-degree Celsius; then no extra precautions are required when using the motor.

To ensure optimal model performance, the model A06B-6077-H106 must be kept indoors in a dry environment where temperatures don't exceed 60°C or drop below -20°. Avoid direct sunlight and dust, as well as small particles.

To ensure the safe operation of the model, always operate within a temperature range between 0 and 55°C. If you are in hotter conditions than recommended, adjust output power accordingly so that the temperature never surpasses its maximum value.

General Usage Instructions:

Ensure maximum protection of the power magnetics cabinet by installing a magnetic contactor, AC reactor, and circuit breakers. Additionally, mitigate surge currents due to lightning strikes with strategically placed surge absorbers between lines and ground inlets at the unit's power input points.

To ensure optimal performance, select a power supply module with an output capacity greater than the 30-minute rated spindle motor output when connecting only one spindle amplifier. When installing the model, employ qualified technicians for optimal performance.

By exploiting this single power supply module A06B-6077-H106, users can easily connect numerous servo amplifiers and spindle modules for their application. To ensure adequate system performance, we must meet all output capacity requirements.

To ensure optimal system performance, secure connection of power and signal lines is critical. Insufficiently tightened screws or faulty connections can lead to overheating and ground faults - so use cables with appropriate diameters & temperature ratings for a successful setup.
