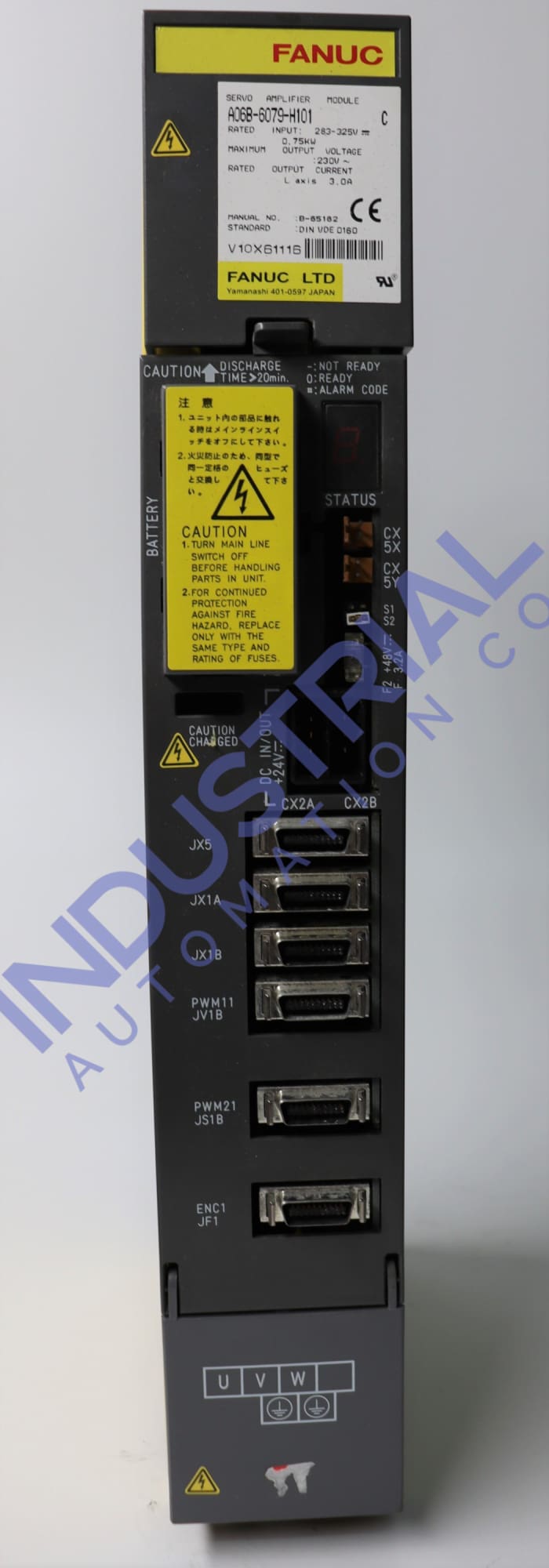

FANUC A06B-6079-H101

The servo amplifier module A06B-6079-H101 provides reliability and adaptability, designed to work with various modules. This module empowers users to control a 200€“V series servo motor and harness its power.

Technical Description of A06B-6079-H101:

The module A06B-6079-H101 invigorates control systems, converting signals into amplified power for motors. Upscaling the energy output from a motor or actuator enables increased speed and improved motion accuracy in any application.

The servo amplifier A06B-6079-H101 induces motor movement through the utilization of a transistor PWM inverter, resulting in high-frequency leakage current traveling over ground drift capacitance along its winding circuit and power cable.

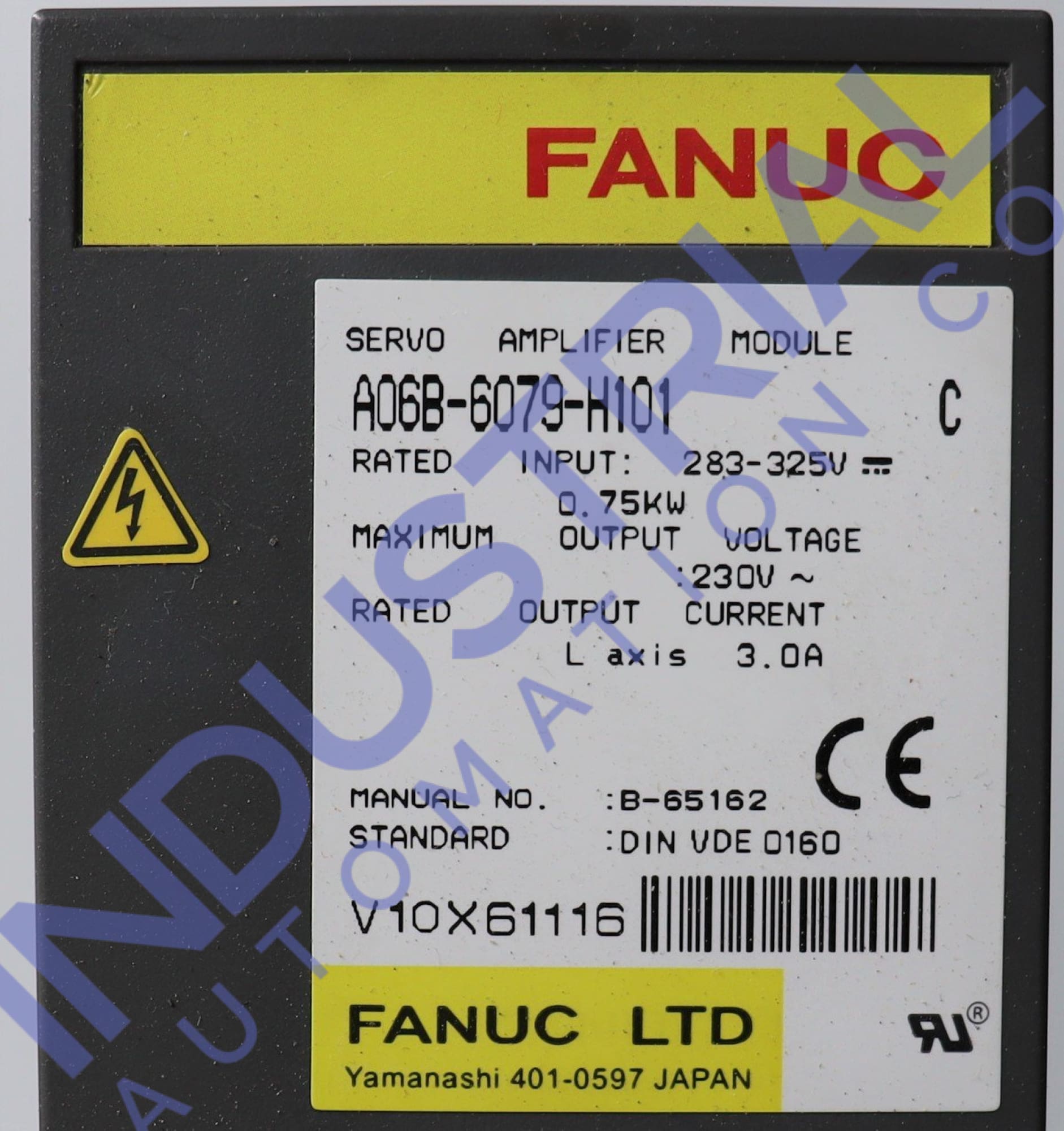

The A06B-6079-H101 model features an impressive input voltage range from 283 to 325 V and a rated power of 0.75 kW, with a maximum output voltage capability of 230 V. The latest Sine-wave PWM control technology with an IGBT bridge manages the model, which has a 3 A-rated current.

The servo amplifier A06B-6079-H101 equips motion control applications such as industrial automation systems with higher current levels, optimizing system performance and enabling greater accuracy.

This model has advanced security features, including a current limit feature for preventing overloads, voltage protection against power surges, and temperature control to prevent overheating.

Ambient Conditions:

Engineers have designed the A06B-6079-H101 model to excel even at heights exceeding 1,000 meters above sea level. Its performance remains maintained at higher altitudes as long as the temperature drops one degree Celsius for every 100-meter increase in elevation from 1000 m.

When utilizing the A06B-6079-H101 model, temperatures should remain at 0 - 55°C. Should it rise higher than this threshold, output power must be decreased to stabilize its temperature and prevent damage.

To ensure the optimal performance of the model A06B-6079-H101, take care to store it indoors in a dry region with no direct sunlight and within an acceptable temperature range (-20°C to +60 °C).

General Wiring Precautions:

To ensure safety, make sure to securely connect the ground cable of your motor power cable to a dedicated terminal on the module's block. Link its complementing terminal to the frame ground and join it with metal framing using additional wiring for protection. Once all connections are complete, close off access by closing the amplifier cover - failure to do so can present an electric shock hazard.

To ensure the reliable operation of the A06B-6079-H101 amplifier, be sure that all peripheral equipment is securely attached and linked. Examine that any magnetic contactors, circuit breakers, or other external devices are effectively hooked up to each other and connected firmly with the amp.

To ensure optimal performance, mount the A06B-6079-H101 amplifier in an accessible spot that you can check regularly and maintain daily. Before removing it, turn off the power and double-check that the DC link charging LED is not on. Take care when maneuvering around so as not to pinch your fingers.

Securely mount the amplifier to its power magnetics cabinet and ensure no gaps between it and the supporting surface for optimum performance. Please do so to avoid dust accumulation which could impede the normal operation of this equipment. Only certified Technicians are authorized for maintenance to ensure the device is installed and managed with precise expertise.
