TECHNICAL SPECIFICATIONS

FANUC A06B-6079-H102

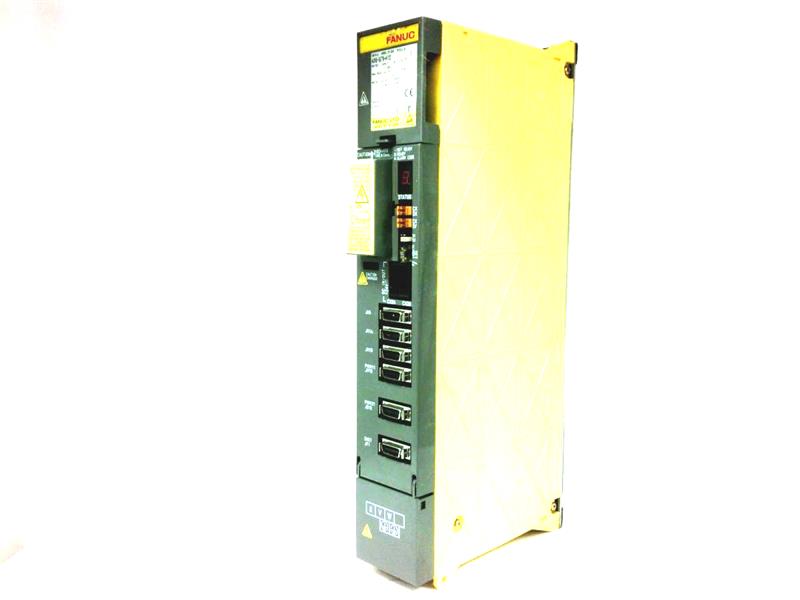

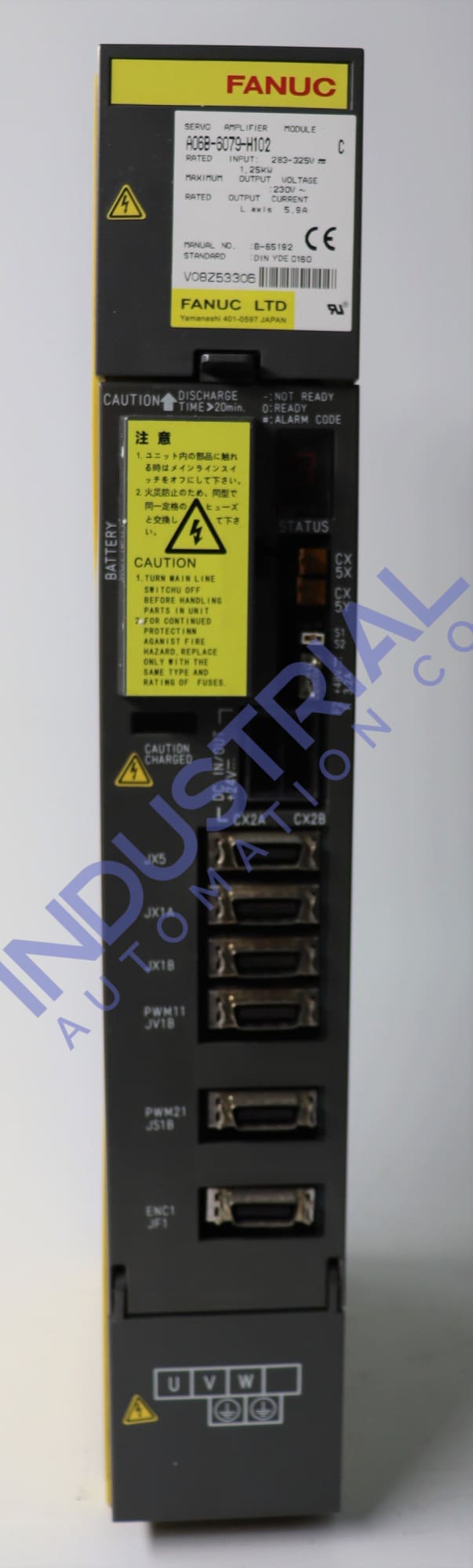

The servo amplifier module A06B-6079-H102 is essential for various modules, providing precise control and high reliability.

This 200€“V motor servo module boosts the control system's signal to give motors and actuators more power for brightening their performance. It provides enhanced speed, greater accuracy, and increased reliability in operation compared to traditional setups.

Technical Description of A06B-6079-H102:

The servo amplifier A06B-6079-H102 is a great addition to motion control applications such as industrial automation systems. This model offers increased current levels, improving system accuracy and overall performance.

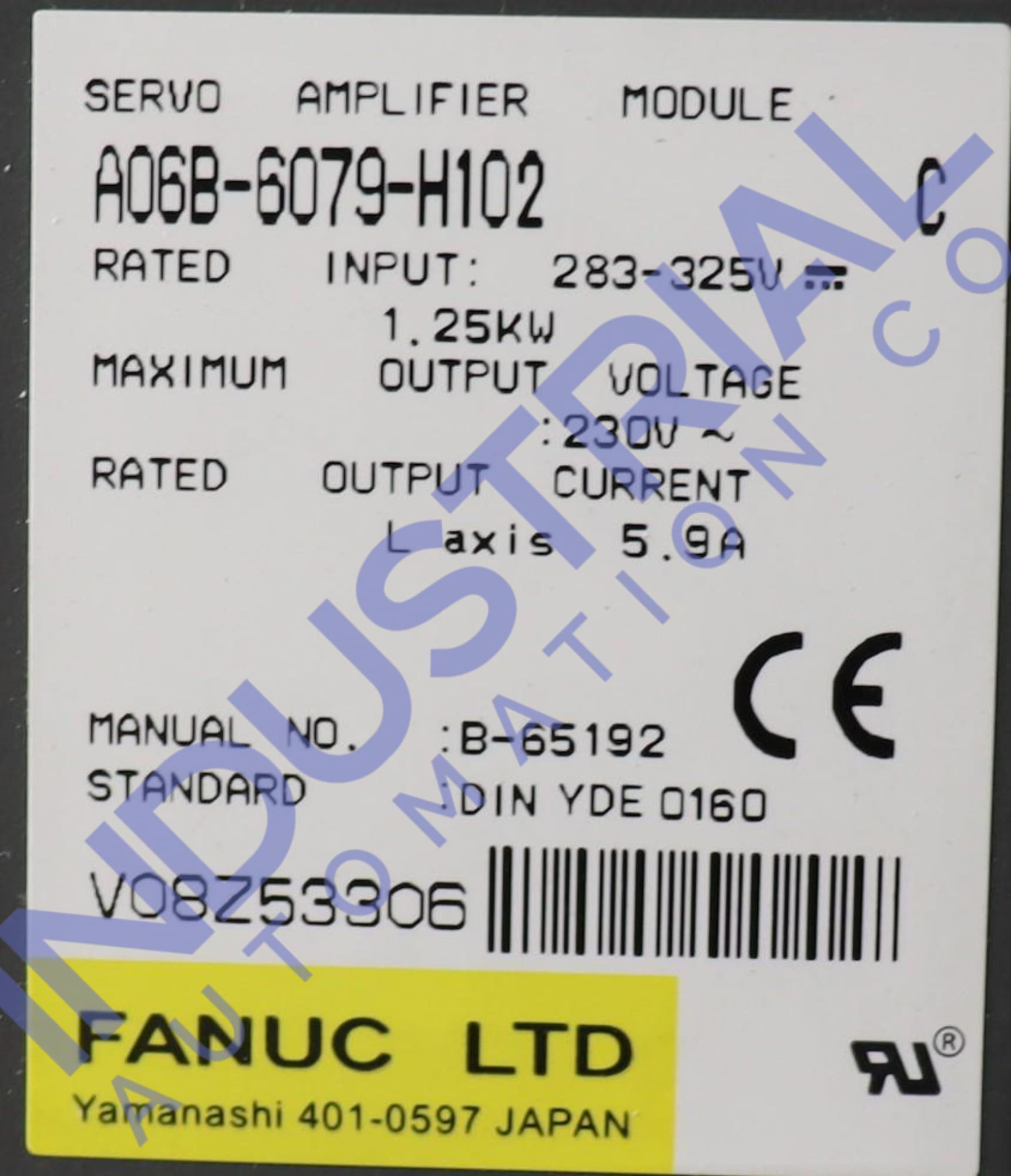

The A06B-6079-H102 model offers a full input voltage range from an efficient 283 V to a mighty 325 V, with rated power of 1.25 kW and a maximum output of up to 230 V for powering your business needs.

The A06B-6079-H102 servo amplifier utilizes the transistor PWM inverter method to power the motor, resulting in high-frequency leakage current flowing through ground drift capacitance of the winding, cable, and amp.

The model goes the extra mile with technically advanced features like current limiting, voltage protection, and temperature control. This advanced model features a 5.9A rated output current and utilizes sophisticated sine-wave PWM control with an IGBT bridge to efficiently regulate the main circuit's performance.

Environmental Conditions:

The model A06B-6079-H102 can reach all heights up to 1,000 m above sea level, and with the ambient temperature decreasing proportionally for every 100 meters going upwards from this point onward, You won't need to add any attention or maintenance.

To ensure optimal performance, the model A06B-6079-H102 should be operated within a 0 - 55 °C temperature range. When temperatures exceed this limit, the reduced output power is necessary to avoid exceeding the set constant value.

Store the model A06B-6079-H102 carefully in an indoor, dry environment free from direct sunlight and maintain temperatures between -20 °C to +60 °C. It ensures the model will remain undamaged and protected against dust and small particles.

General Wiring and Usage Precautions:

To ensure optimal performance, securely connect the amplifier and all peripheral equipment. Additionally, inspect the mounted magnetic contactor and circuit breaker firmly attached and the amplifier itself.

Ensure a safe environment €“ connect the motor power cable to its ground terminal in the module's terminal block. Connect an additional grounding contact on this block, as well as that of any stationary metal frames present, directly to the frame ground. Further, reinforce safety by ensuring the amplifier cover is securely shut at all times - leaving it open increases the risk of accidental electric shock.

Periodically inspect and regularly maintain your amplifier by mounting it in an easily accessible area. Always switch off the power and ensure no DC link charging LED indicators are on before removing them. Remember to exercise caution to avoid entrapping your digits between its power magnetics cabinet and body when performing any action with this device.

Double-check that you have securely lodged your amplifier in its power magnetics cabinet to ensure smooth functioning. Ensure there are no spaces or gaps between the cabinet and the mounting surface- any dust residue left here could impede efficient operation. Certified technicians with precise expertise should maintain the device for installation and management.
