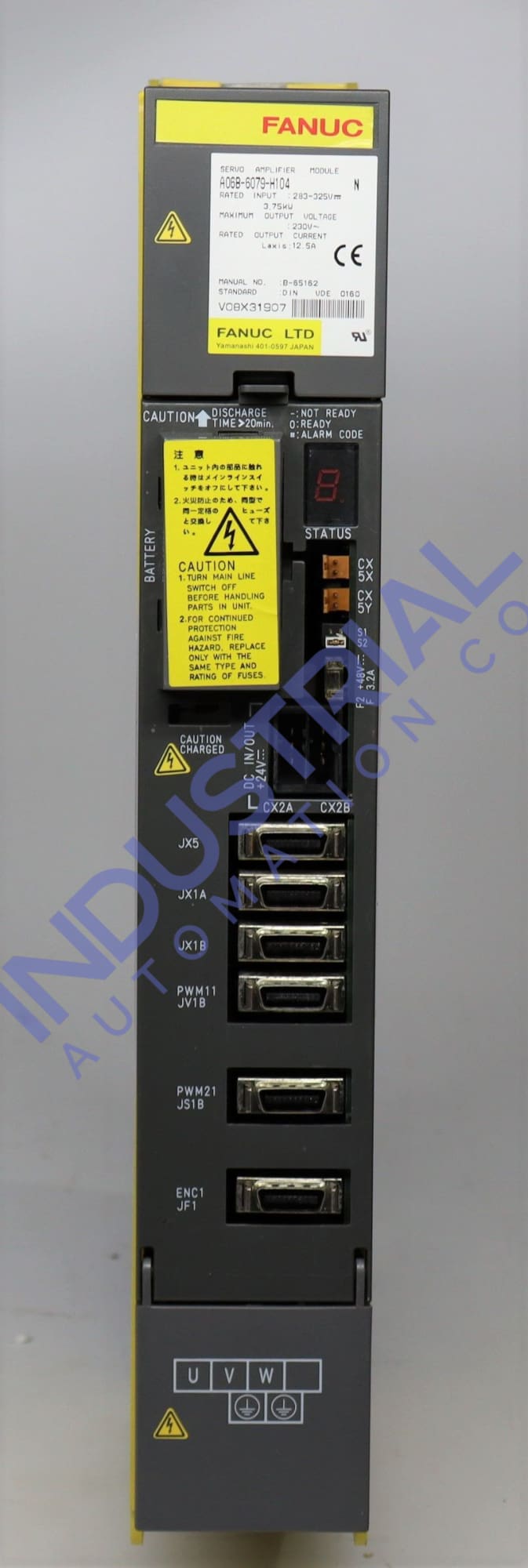

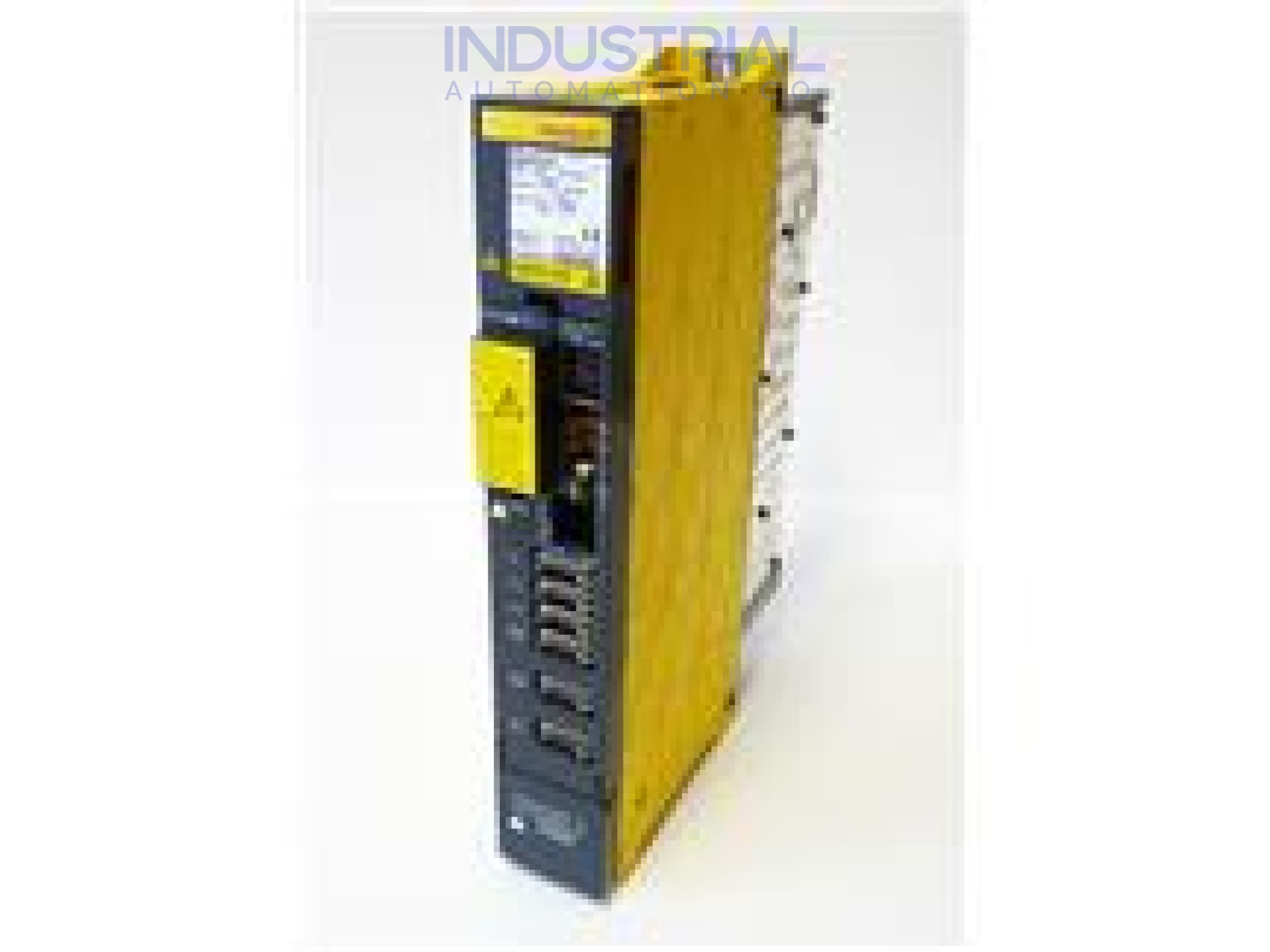

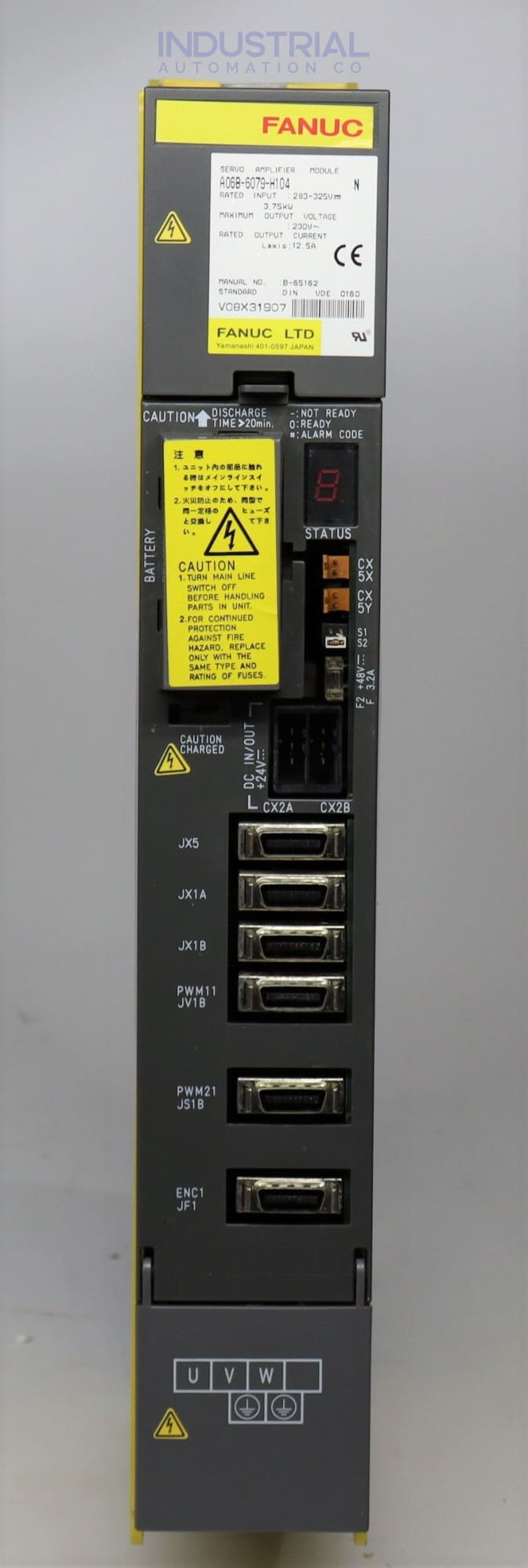

FANUC A06B-6079-H104

The servo amplifier module A06B-6079-H104 offers compatibility with an extensive range of modules and provides the versatility desired for various applications. The model has protective features to keep your system safe, including current limiting, voltage regulation, and temperature control.

Technical Description of A06B-6079-H104:

The A06B-6079-H104 servo amplifier significantly upgrades any motion control system in industrial automation applications. Its superior current capacity enables higher levels of precision and accuracy for a wide range of processes, ensuring optimal performance.

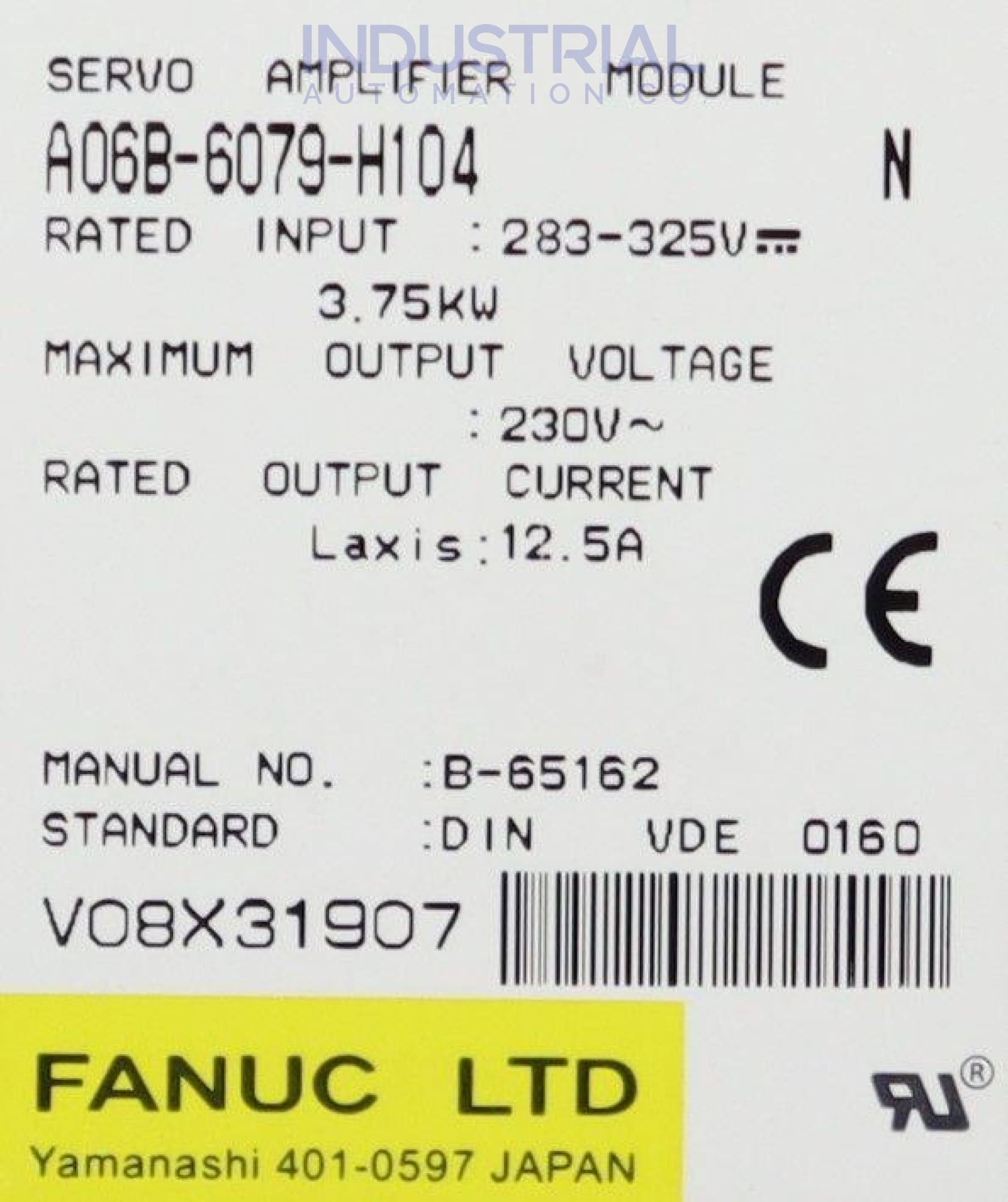

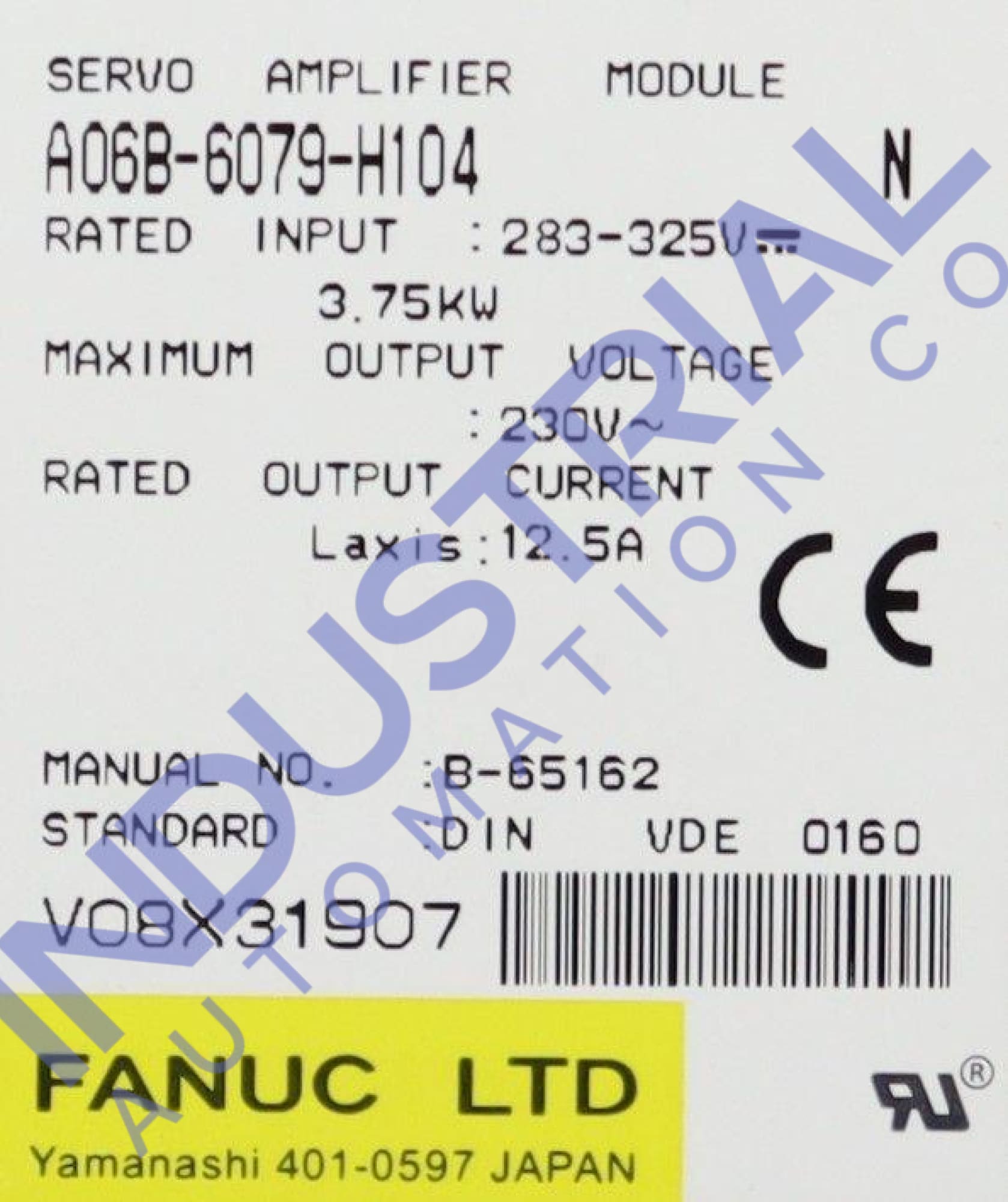

This A06B-6079-H104 model offers a versatile voltage range from 283 V to 325 V, offering an impressive operating power of 3.75 kW and outputting up to 230 V. The model utilizes a Sine€“wave PWM control method with an IGBT bridge to produce up to 12.5 A of output current, ensuring reliable and consistent performance.

This 200-V input series module utilizes signal amplification to optimize speed and precision with the power output of a servo motor. It is integral in regulating motion control systems, allowing them to achieve detailed movement at an accelerated rate.

A PWM inverter modulates input voltage and current by powering the motor using the servo amplifier. In such an arrangement, high-frequency leakage currents flow through ground drift capacitance within the winding of the motor and its power cable and amplifier connection points.

Environmental Conditions:

The model A06B-6079-H104 can operate up to 1,000 meters above sea level without additional precaution. However, if you ascend beyond this point, you must regulate the temperature by reducing it by one degree every 100 meters to ensure optimal functionality.

Exceeding temperatures of 0 - 55°C puts the A06B-6079-H104 model under increased strain and can cause overheating; therefore, adjusting the output power accordingly for optimal performance is important.

To ensure proper maintenance of the model A06B-6079-H104, store it indoors in a dry environment with temperatures that range from -20 °C to +60 °C. Furthermore, avoid exposing it to direct sunlight as it can degrade and damage it over time.

General Wiring and Usage Precautions:

Ensure maximum safety when working with module A06B-6079-H104. Connect its motor power cable's ground cable to one of the terminal block's ground terminals, then secure it by connecting the other terminal to the frame ground and fastening down the frame earth. Shutting the amplifier cover after wiring is essential; leaving an open lid could lead to damage or a shock hazard.

To ensure peak performance, make sure all amplifier accessories and peripherals are connected. Please ensure you have securely linked the amplifier to the magnetic contactor, circuit breaker, and exterior elements.

Firmly affix the amplifier A06B-6079-H104 in its power magnetics housing to prevent dust accumulation and potential performance issues caused by gaps between the device and its mounting surface.

To make regular maintenance and inspections easy, install the amplifier in an area that is easily accessible. Before removing the device, always remember to turn off the power supply and ensure that DC charging LED is not displaying any light signals. When manipulating your amplifier's location or parts near it, take caution, as there may be a pinch hazard between its cabinet and frame.
