TECHNICAL SPECIFICATIONS

FANUC A06B-6079-H105

The servo amplifier module A06B-6079-H105 is the ideal solution for many applications due to its impressive compatibility with multiple modules and unparalleled versatility.

The A06B-6079-H105 module incorporates a cutting-edge Sine€“wave PWM control method that allows for precise and efficient output current control. This advanced technology ensures consistent and reliable performance even in demanding industrial environments.

Technical Description of A06B-6079-H105:

The safety systems incorporated in model A06B-6079-H105 are designed to protect your system, including current limiting for electrical overloads, voltage regulation to provide consistent power output regardless of fluctuating input levels, and temperature control that moderates device heat.

This high-voltage signal amplifier module A06B-6079-H105 gives servo motors the power to maximize speed, accuracy, and control. It ensures smooth operation in motion control systems, allowing for quick yet precise movement.

Leveraging state-of-the-art IGBT bridge technology, the A06B-6079-H105 module can high-speed switching and efficient power conversion, resulting in decreased energy losses for increased system efficiency.

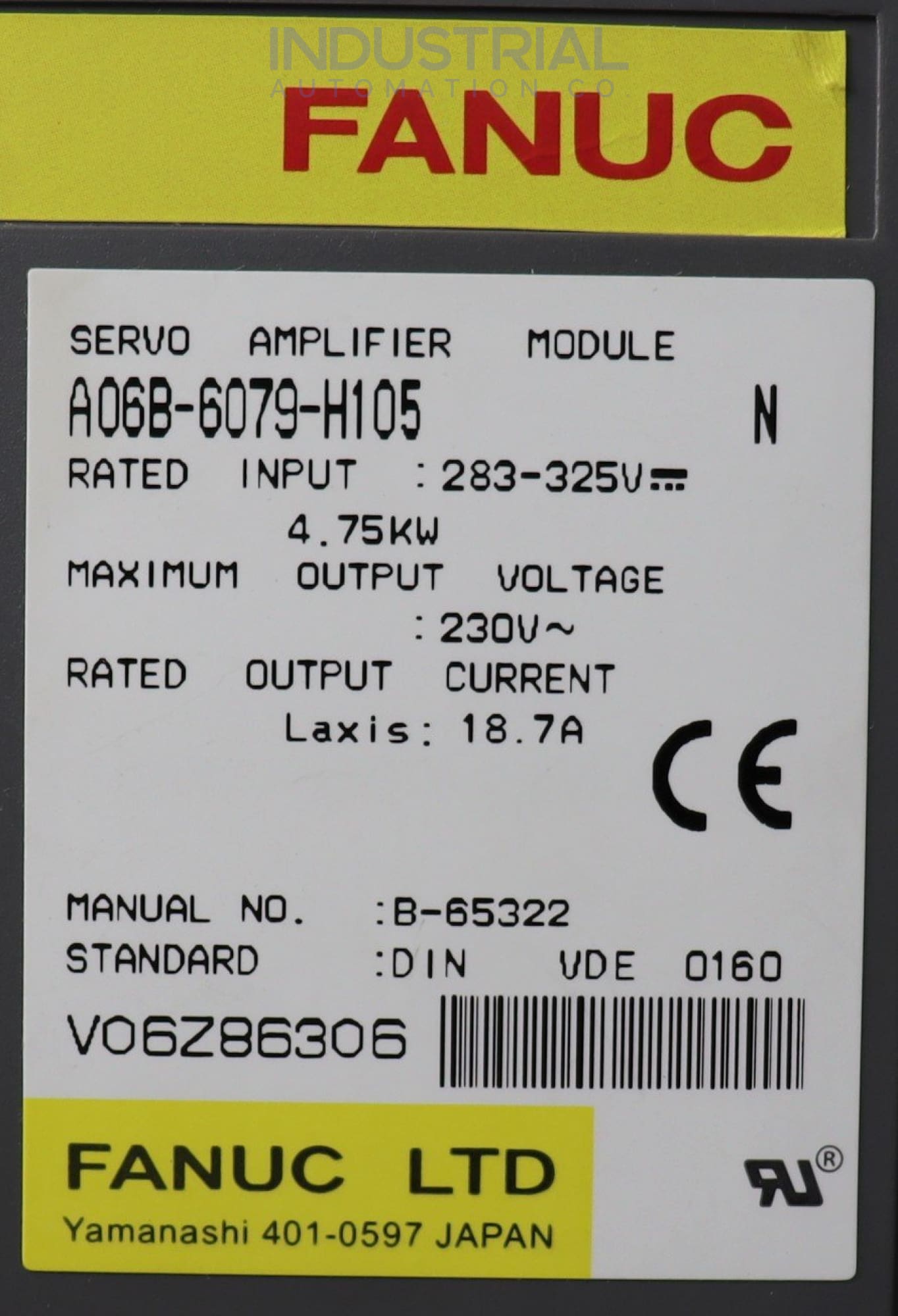

This A06B-6079-H105 model offers a wide range of voltage, from 283 V to 325V. It packs a powerful punch - with an impressive 4.75 kW and the ability to produce up to 230 V output, it's perfect for fulfilling all your technical needs.

The A06B-6079-H105 servo amplifier can boost the proficiency and accuracy of motion control applications, particularly in industrial automation settings. With the capability of handling higher current loads, this amplifier unlocks enhanced precision for many processes.

Regarding output current, the servo amplifier module can produce up to 18.7 A, making it suitable for various applications. The robust design incorporates high-quality components and careful attention to detail to achieve a high output current.

The A06B-6079-H105 servo amplifier module has a compact, rugged design that can withstand harsh operating conditions. It also features advanced software capabilities that enable the system to be easily configured and monitored.

Environmental Conditions:

To ensure optimum performance and longevity, keep your model A06B-6079-H105 in a dry environment out of direct sunlight. For the best results, store at temperatures between -20°C and +60°C.

The model's capabilities extend to 1,000 meters above sea level without special considerations. Beyond these threshold altitudes, however, temperatures must be monitored and lowered by one degree for every 100-meter increase to guarantee optimal performance.

Operating the model A06B-6079-H105 at temperatures beyond 0 - 55°C can significantly put it under stress and overheat, which could damage its performance. When you exceed this threshold, you should carefully consider making adjustments.

Standard Usage Precautions:

Adequate grounding is a prerequisite for the safe and efficient operation of the A06B-6079-H105 module. Incorrect grounding could result in electrical shock or damage to the device. Always ensure that grounding is achieved adequately before powering up.

Before servicing, it is essential to disconnect the power to the device to avoid electrical shock. Though the device has built-in discharge circuits to reduce the risk of electrical shock, it is still advisable to disconnect the power.

Proper installation prevents accidents such as the device falling, overheating, or electrical failure. Improper installation can result in injury or equipment damage. Always adhere to the installation guidelines prescribed in the user manual.

Any alteration to the device could affect the safe and efficient operation, leading to accidents or damage. Avoid any modifications to the device by referring to authorized technicians with the expertise and right equipment to handle such modifications safely.
