FANUC A06B-6079-H106

Fanuc A60B-6079-H106

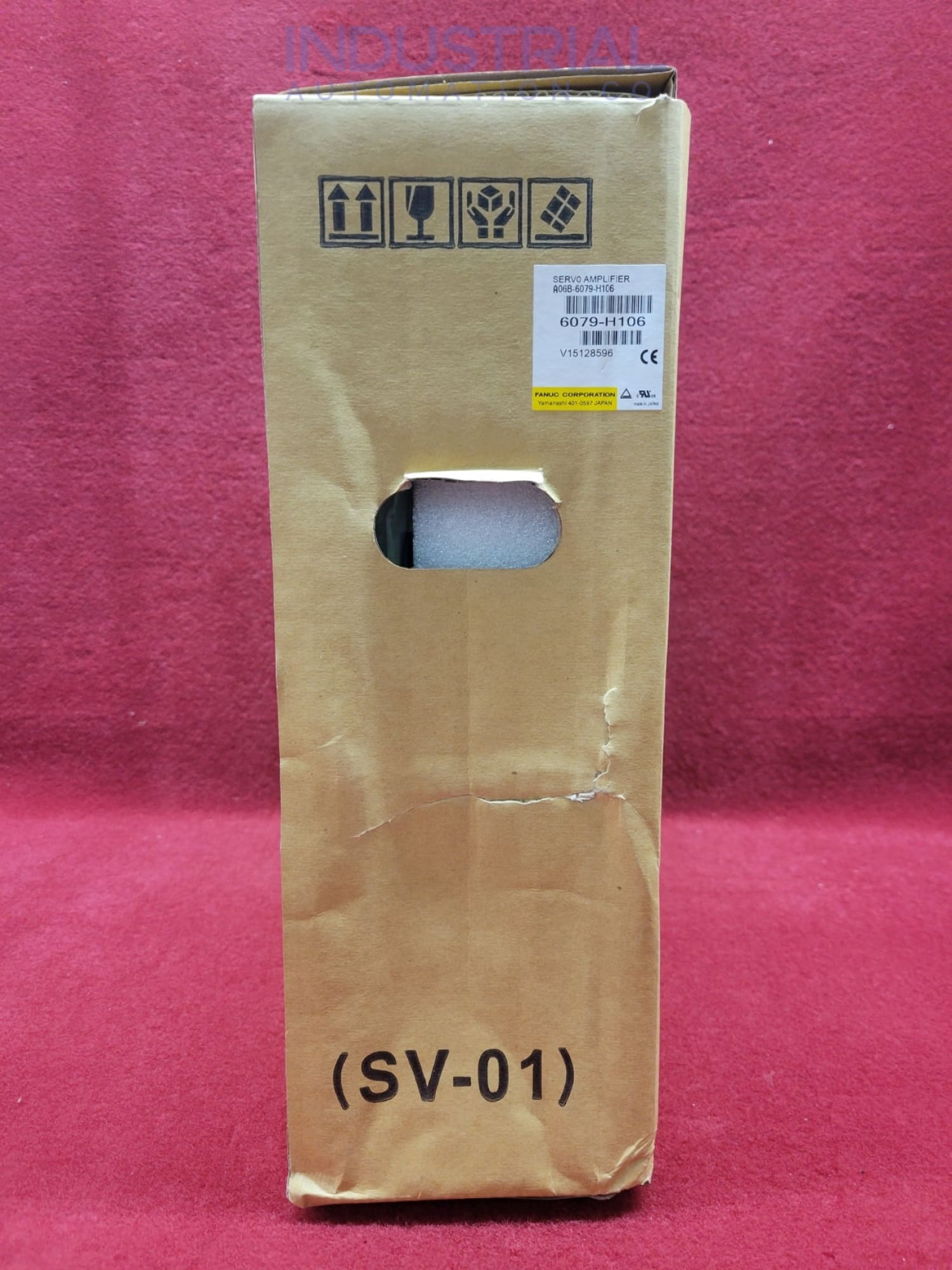

Fanuc A06B-6079-H106 Factory Sealed

FANUC A06B-6079-H106

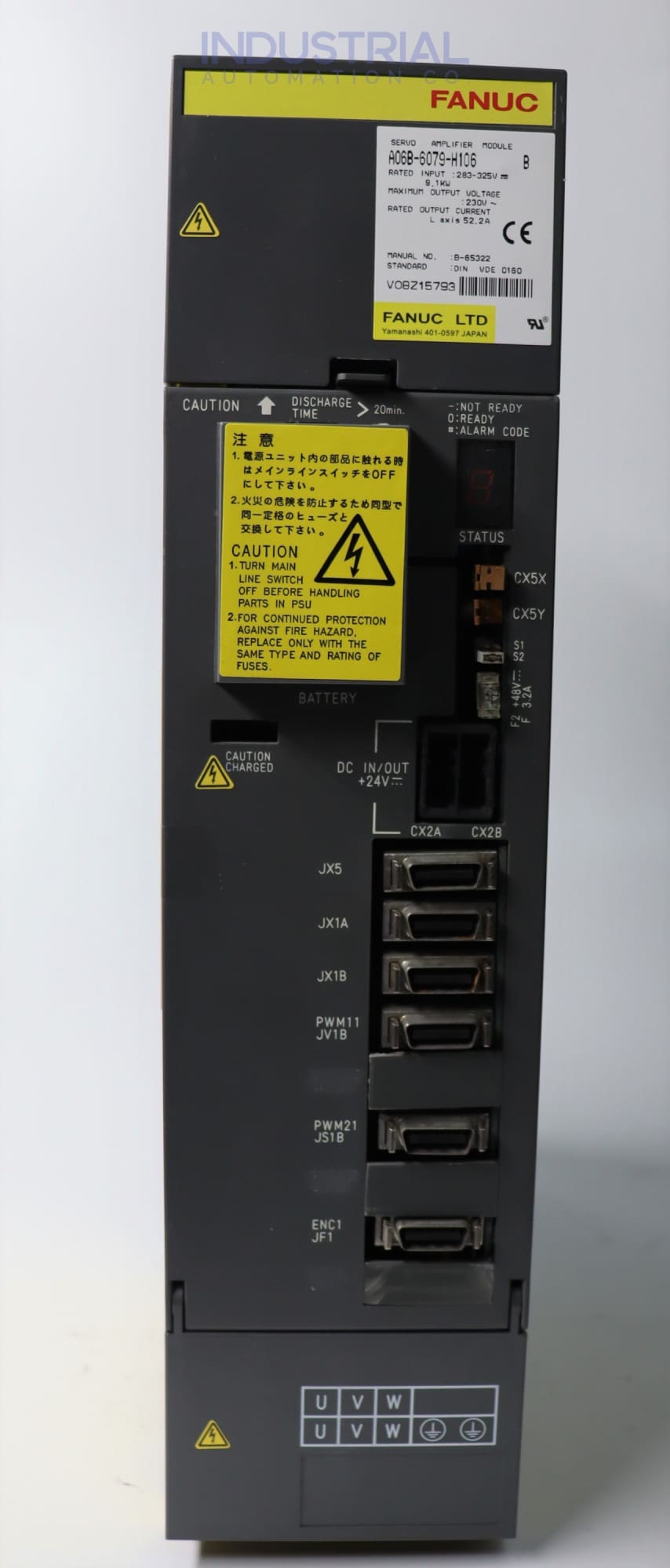

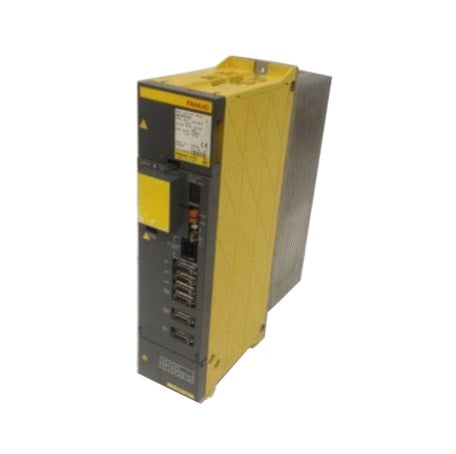

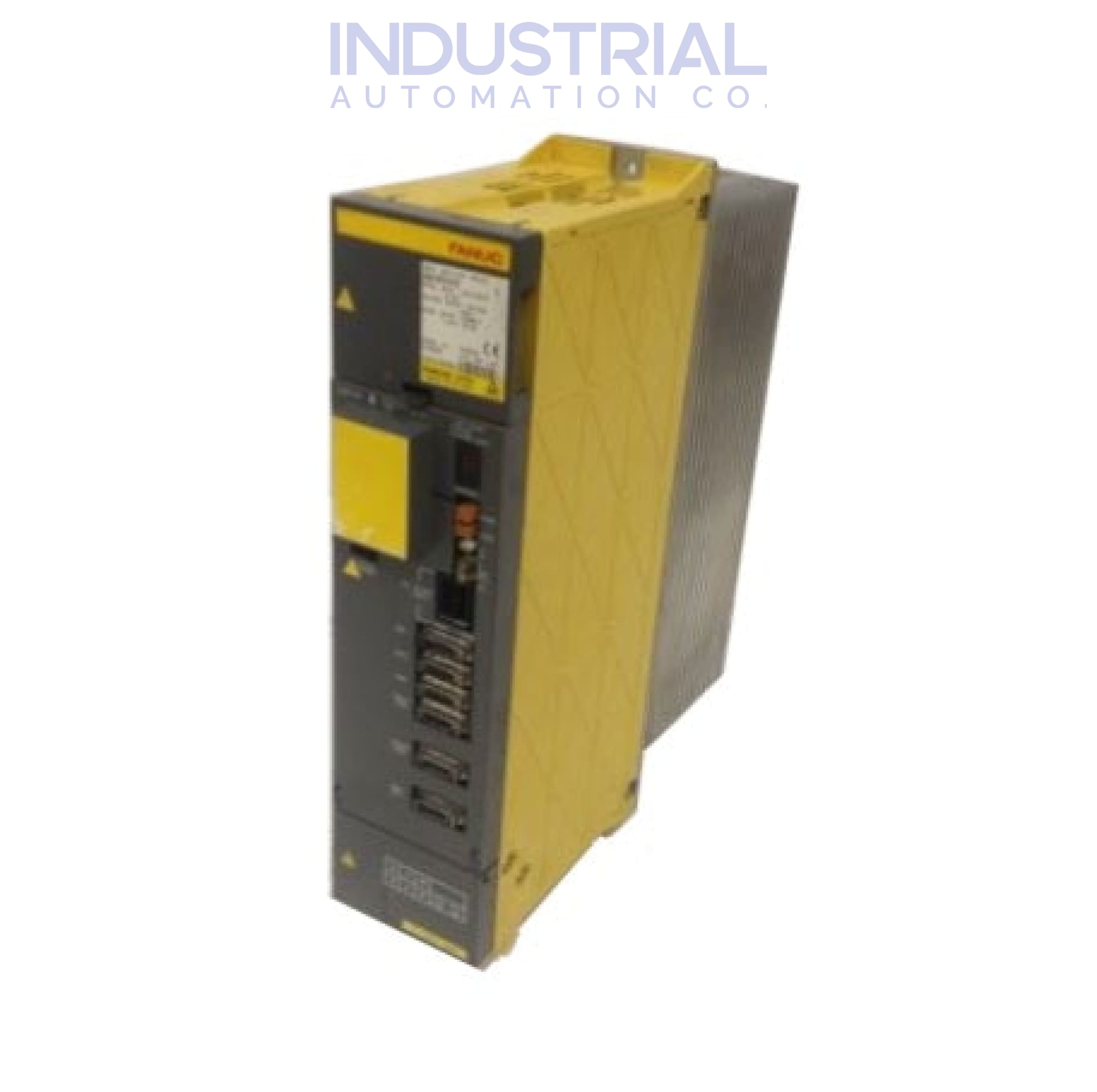

The FANUC A06B-6079-H106 is a Servo Amplifier Module belonging to the A06B-6079 series of Alpha Servo Drives. It is designed to deliver high performance and reliability. This servo amplifier is made to meet the configurations of medium standard Alpha PSU and Alpha spindle drive systems.

Technical Specifications:

The FANUC A06B-6079-H106 Servo Amplifier Module model number is SVM1-13. The wiring board used in the amplifier is A16B–2202–0510 with PCB A16B–2001–0822 from alpha Series. The amplifier uses advanced servo control algorithms and high-resolution feedback systems.

The FANUC A06B-6079-H106 Servo Amplifier Module delivers an output power of 9.1kW, meeting industrial demands. The amplifier can work on a voltage range of 283-325V DC and an output of 230V AC. This output shows the module's efficient energy utilization.

This servo amplifier module is a single-axis amplifier that can precisely control the motion and position of machines. The amplifier output current is 52.2A to tackle the high demands in the industry. The total weight of the servo amplifier module is 4.9kg.

The forced cooling method maintains the module's temperature. Built-in fans effectively manage heat dissipation and prolong the amplifier's life. The unit can be easily installed in small spaces without any significant changes due to its compact design.

The single-axis servo amplifier uses advanced current and speed control loops for stable operation. The amplifier has control modes and parameters that can be adjusted to meet specific application requirements.

Applications:

The FANUC A06B-6079-H106 is widely used in different industries due to its performance and robust design. It is used in CNC machines (automotive components such as body panels, pistons, and sleeves) for positioning and control, and the aerospace industry relies on servo amplifiers while manufacturing components.

The single-axis servo amplifier has applications in the electronics field in producing parts (semiconductors, electro-mechanical systems MEMs) that require malicious accuracy. This servo amplifier is also used in automotive and general manufacturing processes.

The amplifier is mostly used in the industry due to its high performance, compatibility with FANUC servo motors, advanced cooling system, compact design, and energy efficiency.

Safety and Maintenance:

The A06B-6079-H106 follows international safety standards with features such as overload protection. Protection will be activated when the load exceeds 130% of the rate. The overheat protection system monitors the temperature and shuts down the amplifier if abnormal temperatures are noticed. Short-circuit protection protects the circuit damage caused by short circuits.

Regular maintenance involves inspecting and cleaning the cooling system, checking electrical connections, and applying firmware updates as FANUC recommends. Comprehensive support services, including technical assistance and access to genuine replacement parts, are available to ensure the long-term reliability of the unit.

Frequently Asked Questions:

What is the maximum output of the FANUC A06B-6079-H106 amplifier?

The FANUC A06B-6079-H106 AC amplifier maximum output of 9.1kW, allowing for efficient and rapid movement in various industrial applications.

What is the peak current output of the FANUC A06B-6079-H106?

The FANUC A06B-6079-H106 provides a maximum output current of 52.2A, ensuring robust performance under high load conditions.

What feedback does the FANUC A06B-6079-H106 offer?

The FANUC A06B-6079-H106 amplifier uses advanced servo control algorithms and high-resolution feedback systems. The feedback is very fast and precise in this single axis-amplifier.

Product Specifications Table

Attribute Specifications
Power output 9.1kW
Overload Protection 130%
Maximum output Voltage 230V AC
Feedback System servo control algorithm
Insulation Class Class H
Voltage Range 283-325V DC
Weight 4.9kg
Operating Temperature -10°C to 40°C
Series Alpha series
Manufacturer FANUC

FANUC A06B-6079-H106

Regular price
$1,016.00
Sale price
$1,016.00
We currently have 1 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

FANUC A06B-6079-H106

The FANUC A06B-6079-H106 is a Servo Amplifier Module belonging to the A06B-6079 series of Alpha Servo Drives. It is designed to deliver high performance and reliability. This servo amplifier is made to meet the configurations of medium standard Alpha PSU and Alpha spindle drive systems.

Technical Specifications:

The FANUC A06B-6079-H106 Servo Amplifier Module model number is SVM1-13. The wiring board used in the amplifier is A16B–2202–0510 with PCB A16B–2001–0822 from alpha Series. The amplifier uses advanced servo control algorithms and high-resolution feedback systems.

The FANUC A06B-6079-H106 Servo Amplifier Module delivers an output power of 9.1kW, meeting industrial demands. The amplifier can work on a voltage range of 283-325V DC and an output of 230V AC. This output shows the module's efficient energy utilization.

This servo amplifier module is a single-axis amplifier that can precisely control the motion and position of machines. The amplifier output current is 52.2A to tackle the high demands in the industry. The total weight of the servo amplifier module is 4.9kg.

The forced cooling method maintains the module's temperature. Built-in fans effectively manage heat dissipation and prolong the amplifier's life. The unit can be easily installed in small spaces without any significant changes due to its compact design.

The single-axis servo amplifier uses advanced current and speed control loops for stable operation. The amplifier has control modes and parameters that can be adjusted to meet specific application requirements.

Applications:

The FANUC A06B-6079-H106 is widely used in different industries due to its performance and robust design. It is used in CNC machines (automotive components such as body panels, pistons, and sleeves) for positioning and control, and the aerospace industry relies on servo amplifiers while manufacturing components.

The single-axis servo amplifier has applications in the electronics field in producing parts (semiconductors, electro-mechanical systems MEMs) that require malicious accuracy. This servo amplifier is also used in automotive and general manufacturing processes.

The amplifier is mostly used in the industry due to its high performance, compatibility with FANUC servo motors, advanced cooling system, compact design, and energy efficiency.

Safety and Maintenance:

The A06B-6079-H106 follows international safety standards with features such as overload protection. Protection will be activated when the load exceeds 130% of the rate. The overheat protection system monitors the temperature and shuts down the amplifier if abnormal temperatures are noticed. Short-circuit protection protects the circuit damage caused by short circuits.

Regular maintenance involves inspecting and cleaning the cooling system, checking electrical connections, and applying firmware updates as FANUC recommends. Comprehensive support services, including technical assistance and access to genuine replacement parts, are available to ensure the long-term reliability of the unit.

Frequently Asked Questions:

What is the maximum output of the FANUC A06B-6079-H106 amplifier?

The FANUC A06B-6079-H106 AC amplifier maximum output of 9.1kW, allowing for efficient and rapid movement in various industrial applications.

What is the peak current output of the FANUC A06B-6079-H106?

The FANUC A06B-6079-H106 provides a maximum output current of 52.2A, ensuring robust performance under high load conditions.

What feedback does the FANUC A06B-6079-H106 offer?

The FANUC A06B-6079-H106 amplifier uses advanced servo control algorithms and high-resolution feedback systems. The feedback is very fast and precise in this single axis-amplifier.

Product Specifications Table

Attribute Specifications
Power output 9.1kW
Overload Protection 130%
Maximum output Voltage 230V AC
Feedback System servo control algorithm
Insulation Class Class H
Voltage Range 283-325V DC
Weight 4.9kg
Operating Temperature -10°C to 40°C
Series Alpha series
Manufacturer FANUC

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
IAC Certified Refurbished A06B-6079-H106-R $1,016.00 USD 2 Year Extended Warranty 1 In Stock in US!
New A06B-6079-H106-FS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

FANUC A06B-6079-H106



The servo amplifier module A06B-6079-H106 is an essential tool for engineers, with its compatibility across several modules and adaptability to different applications.



This innovative, 200-V input series module A06B-6079-H106 can empower motion control systems with increased speed and accuracy. Utilizing signal amplification technology on servo motors allows for enhanced performance that won't compromise precision when setting desired movement parameters.

Technical Description of A06B-6079-H106:

The A06B-6079-H106 module combines Sine€“wave PWM control technology with superior precision to maintain consistently reliable performance in challenging industrial settings. This cutting-edge approach ensures top efficiency and stability of the output current allowing for maximum productivity.

The advanced servo amplifier A06B-6079-H106 provides precise and reliable motion control with superior current capacity, ensuring higher accuracy. This cutting-edge technology is ideal for optimizing system performance for industrial automation applications.

The model A06B-6079-H106 offers current limiting for protection against overloads and voltage regulation to maintain consistent performance and temperature. With its impressive 9.1 kW of operating power and a voltage range between 283 V €“ 325 V, this model provides an efficient output of up to 230 V in any circumstance.

The servo amplifier module A06B-6079-H106 boasts an impressive 52.2A of output current, enabling it to tackle various challenging tasks easily. Its state-of-the-art design includes advanced components and meticulous engineering for maximum performance potential.

The IGBT bridge allows the module to switch quickly and powerfully, minimizing power losses for improved system efficiency. The servo amplifier module offers reliable operation in any environment. This powerhouse will make sure your operations continue running smoothly through all conditions.

Environmental Conditions:

To maximize the operating efficiency of this A06B-6079-H106 model, the temperature should remain below 55°C; exceeding that range can cause strain and ultimately impede performance. We recommend adjusting output power to minimize risk. The A06B-6079-H106 model performs flawlessly even at heights up to one kilometer, but if you venture into higher elevated terrain, you must adjust temperature control accordingly. For every 100-meter ascent above 1 km, you should remove an extra degree from the regulating setting for optimum results.

To maintain the A06B-6079-H106 model in pristine condition, storing it indoors is a must. Ideal temperature ranges range from frosty -20 °C to balmy +60°C, and direct sunlight should be avoided at all costs as this can lead to irreversible model degradation over time.

Standard Usage Precautions:

To ensure safety and optimal operation, following the installation guidelines provided in user manuals is essential. In doing so, you can avoid accidents from occurring due to device falling, overheating or electrical failure - potentially saving you pain and costly damage down the road.

Understandably, proper grounding is essential to remain safe and efficient for module operation. It is important to establish all grounds carefully before powering up the device. We recommend consulting certified experts trained to properly handle and modify the A06B-6079-H106 device without compromising its efficiency, as changing it could lead to dangerous accidents or destruction.

To ensure a safe service experience, disconnecting any device's power is paramount. Even with built-in discharge protection, taking extra precautions by unplugging can significantly reduce the chances of electrical shock and provide maximum safety while servicing.
