TECHNICAL SPECIFICATIONS

FANUC A06B-6079-H205

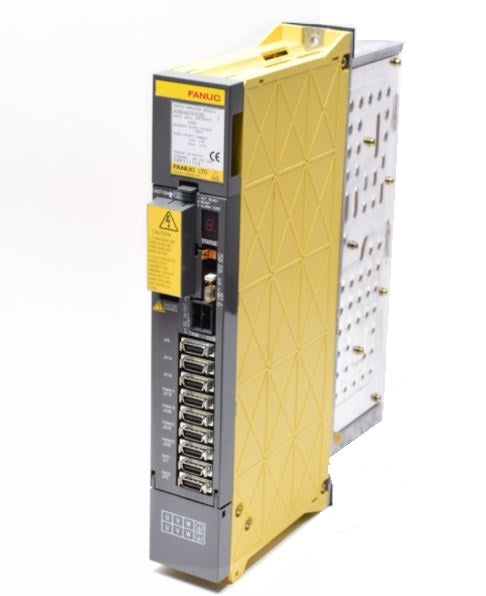

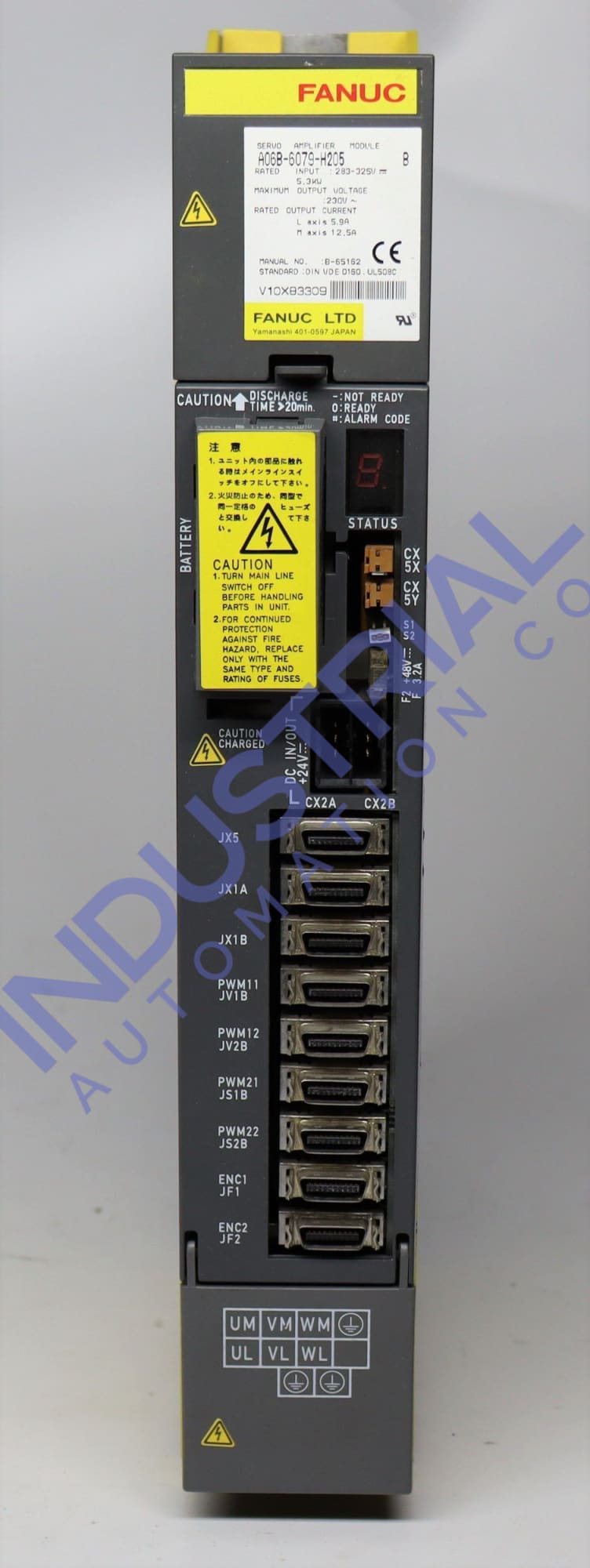

The servo amplifier module A06B-6079-H205 offers unprecedented versatility to meet the demands of complex applications with its immense compatibility and range.

This A06B-6079-H205 module boasts rapid switching and power-saving capabilities with an IGBT bridge at its core. Reduced energy losses lead to exceptional system efficiency, delivering optimized performance in any environment.

Technical Description of A06B-6079-H205:

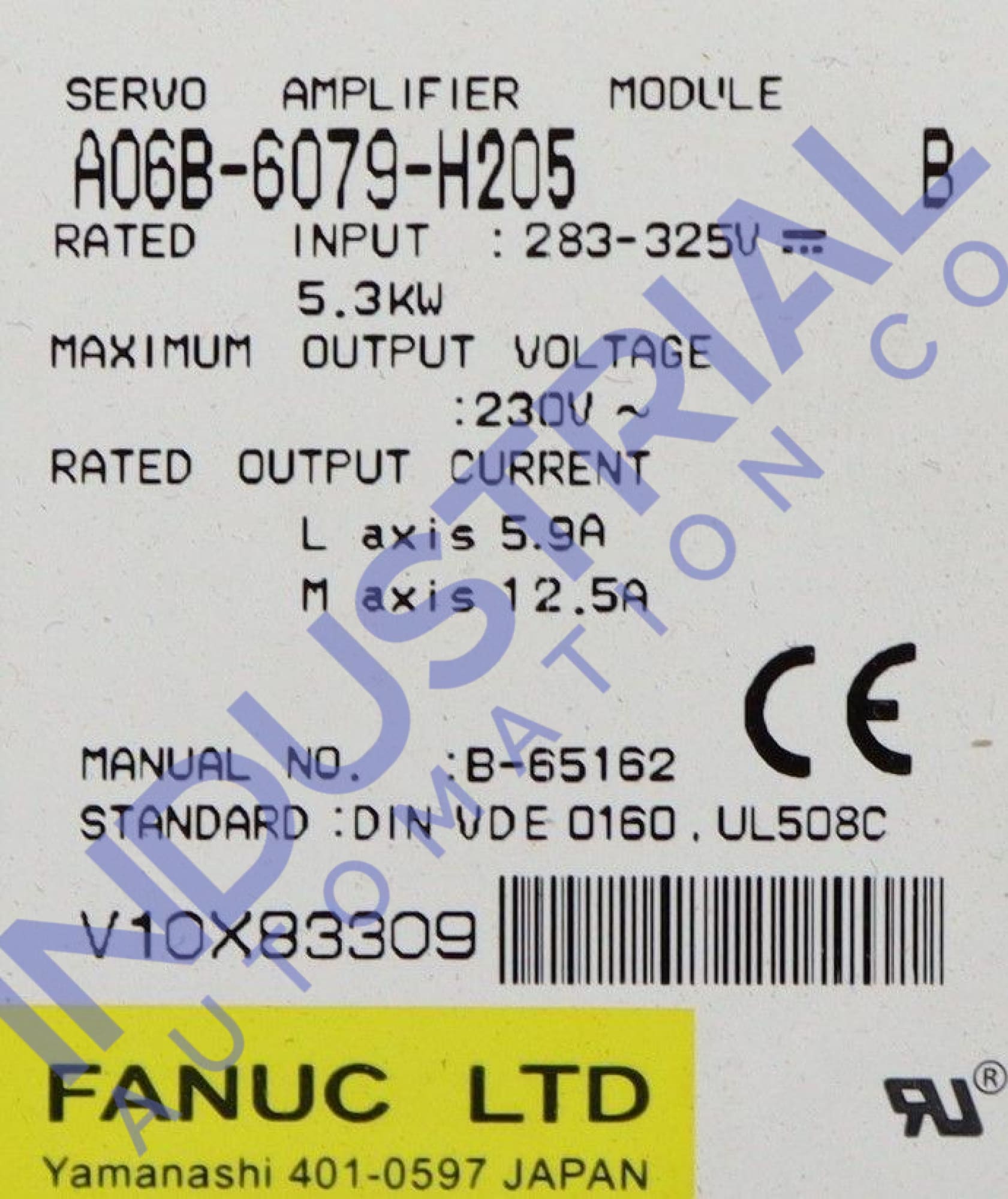

The servo amplifier module A06B-6079-H205 is the ideal choice for any project, with its exceptional output current of 5.9 A (L-axis) and 12.5 A (M-axis). This remarkable reliability and strength power your applications with a robust design.

The A06B-6079-H205 servo amplifier offers many advantages to motion control applications such as industrial automation. Increased current capacity leads to greater accuracy and precision, unlocking higher performance levels than ever before.

This module, powered by 200-V input and signal amplification technology, delivers powerful performance to speed up servo motors for precise operation in motion control systems. You can achieve detailed movement quickly and accurately with it.

Utilizing a cutting-edge sine€“wave PWM control method, this A06B-6079-H205 module gives users precise and efficient output current management. The advanced technology guarantees consistent performance in the most demanding industrial settings.

This model A06B-6079-H205 offers users a wide operating range of 283 V to 325 V, with an impressive 3.9 kW power capability to generate 230 V output voltage. It is sure to satisfy any requirements for high performance and versatility.

The high-performance servo amplifier module A06B-6079-H205 is ready for the toughest environments, and its advanced software features make configuration and system monitoring a breeze. The model ensures system safety through various protective functions; current limitation, voltage regulation, and temperature control, to name a few.

Standard Ambient Conditions:

To protect the A06B-6079-H205 model's longevity and keep it in optimal condition, store it indoors in a dry environment with temperatures between -20 °C and +60 „ƒ. Furthermore, we should avoid exposing the components to direct sunlight as it can cause long-term degradation over time.

Regulate output energy prudently to maximize operational efficiency and performance of the A06B-6079-H205 model when operating at temperatures above 0 - 55°C, as running it at such temperatures puts extra pressure on it. Boasting a top-tier performance of up to 1,000 meters above sea level with no special precautions required, this model is exemplary for its strength and resilience.

General Usage Instructions:

Disconnecting the power to an electrical device before servicing is crucial for safety. Even with built-in discharge circuits, there's still a risk of electric shock €“ so always make sure you disconnect before working on it.

Unauthorized modifications to the device can lead to serious safety issues and property damage. Ensure your equipment remains in optimal condition by entrusting all alterations only with professionally qualified personnel with appropriate knowledge and tools for such operations.

To keep users safe and the device running smoothly, always remember that proper grounding is essential. Neglecting to ground properly can lead to electric shocks or damage €“ so double-check before powering up.

Adhering to the A06B servo amplifier user manual's installation guidelines is essential in preventing accidents caused by device instability, overheating, or electrical failure. Neglecting these instructions can lead to hazardous situations such as equipment damage and even personal injury.
