TECHNICAL SPECIFICATIONS

FANUC A06B-6088-H226#H500

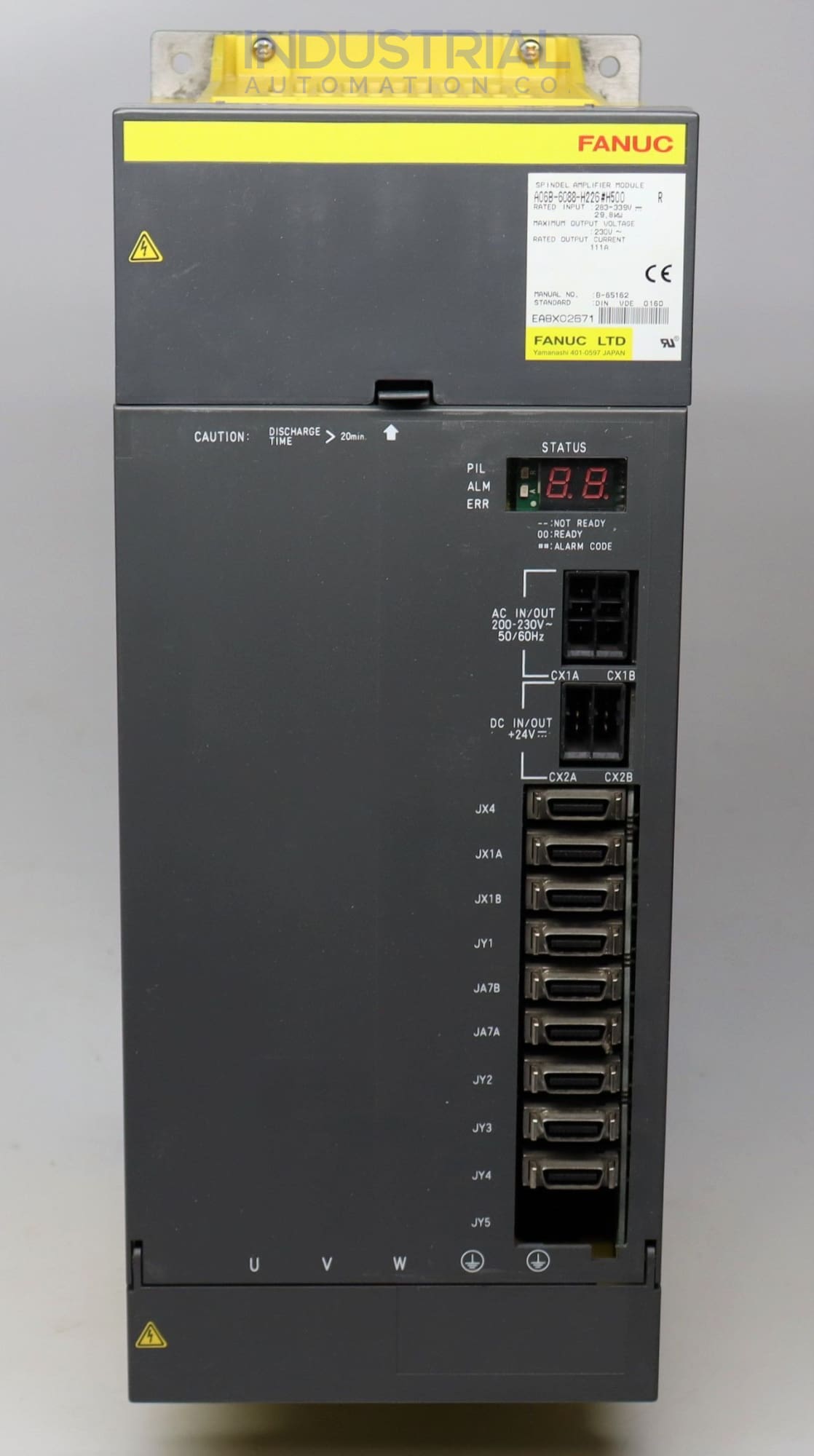

FANUC Corporation produces the servo amplifier module, the FANUC A06B-6088-H226#H500. When used with FANUC servo motors, this servo amplifier module offers fine control over the motor's speed and position. The "H226" portion of the model number states that this amplifier belongs to the FANUC Alpha I Series, a family of high-performance servo amplifiers.

Technical Specifications of FANUC A06B-6088-H226#H500:

The voltage rating of the amplifier is indicated by the "H500" at the end of the model number, which in this case is 500V. The system requires a 500-volt power supply to function. It works on a 200€“240 volt AC input voltage, uses PWM control to control the motor precisely, and has a 20A output current.

A digital servo feedback system on the FANUC A06B-6088-H226#H500 offers precise motor position and speed feedback. It also incorporates protection features such as overvoltage, overcurrent, undervoltage, and overheat protection to protect the module and motor from damage.

Installing and operating the module is simple, and you can use either the FANUC CNC control or another parameter setting device to configure the motor parameters. The digital servo feedback system allows for motor performance monitoring of the module.

The servo amplifier is small in size, having dimensions of 255mm x 40mm x 285mm and a weight of 3 kg. It is easy to set up and suited for many industrial applications. Because of its adjustable settings, it's the perfect option for any application because users may customize its functioning to their unique needs.

Operations and Maintenance:

The servo amplifier module for the FANUC A06B-6088-H226#H500 is intended to be simple. The instructions stated ahead should be appropriately followed:

Check the supplied voltage between the ranges (AC 200-240V). Attach the FANUC servo motor to the amplifier module using the proper wires.

To switch on the module, turn on the power source of 500V. Configure the motor parameters using a different parameter setting device or the FANUC CNC control. Utilize the digital servo feedback system to track the performance of the motor.

Configure the servo amplifier before turning on the CNC machine, and test both the servo motor and amplifier to confirm they're correct operation. Use the gain adjuster knob on the front panel to calibrate the output of the servo amplifier, ensuring that it precisely meets the requirements of your CNC machine.

Attach the servo motor to finish the setup after the servo amplifier is operational. Before modifying settings on the amplifier, make sure all connections are solid to ensure a customized experience that meets your unique requirements.

Interchangeable parts simplify fixing and maintaining the FANUC A06B-6088-H226#H500. You should regularly check the module for indications of wear or damage and change any worn or damaged parts as soon as feasible. Keep the module spotless and clear of debris, and store it in a dry, cool, and clean environment when not in use.

The machine will function at its peak, supplying high-quality components because the servo amplifier can work continually without overheating or malfunctioning. FANUC designed the A06B-6120-H045 amplifier with safety in mind, as it is a crucial consideration for CNC equipment.
