TECHNICAL SPECIFICATIONS

FANUC A06B-6096-H102

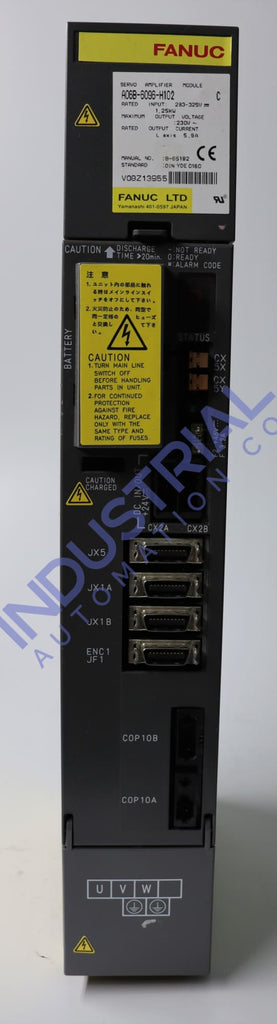

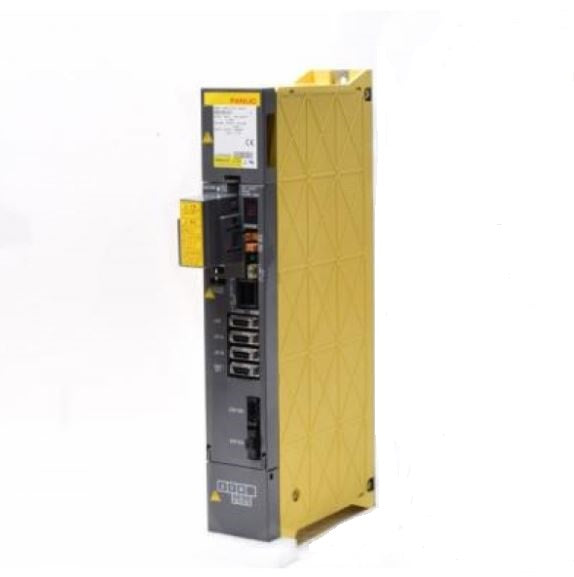

The FANUC A06B-6096-H102 is a high-power servo amplifier module designed and manufactured by FANUC. It is designed especially for industrial automation applications requiring precise, dependable, and efficient servo motor control.

Technical Specifications:

The servo amplifier module is designed to operate on a three-phase AC power supply with a voltage rating of 230V and a frequency of 50Hz to 60Hz, making it ideal for standard industrial energy supplies in most countries around the globe.

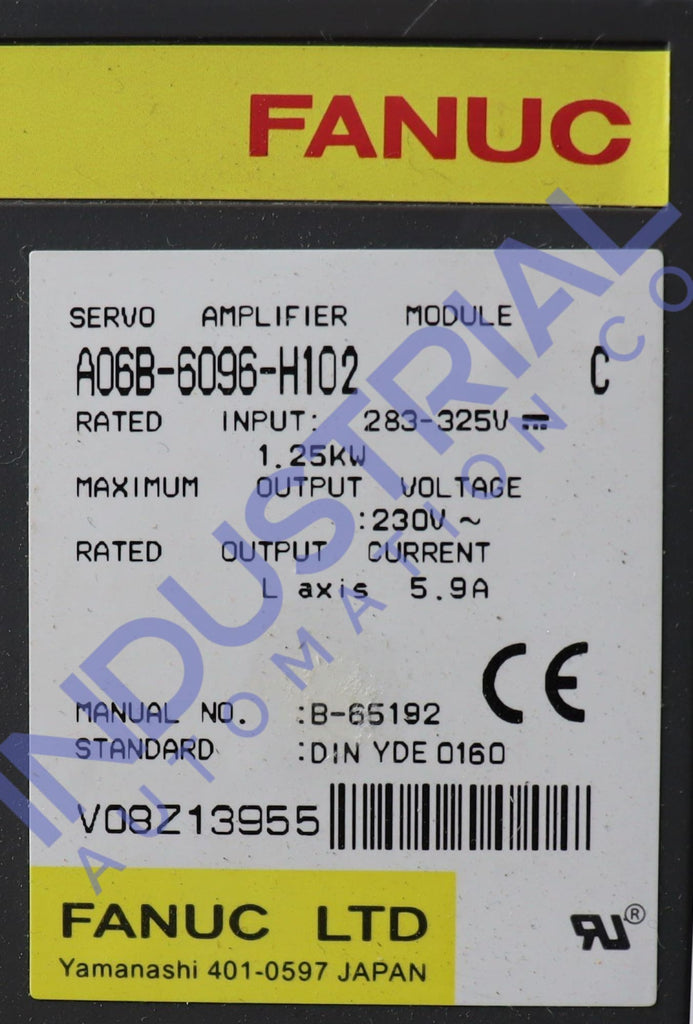

The rated input of FANUC A06B-6096-H102 is approximately 1.25kW and rated output current is 5.9A. The maximum output current it can draw is 60A, capable of driving motors of up to 15kW. It makes it suitable for driving medium to large-sized servo motors.

The Servo Amplifier Module often utilizes Model 2 Alpha Servo Motors. Industrial automation professionals trust and use it in CNC machines, robots, or other automation systems.

Installation and Communication Interface:

You can install the servo amplifier module easily by mounting it on common DIN rails or inside control cabinets with clear labeling. It weighs about 3.5 kg and measures approximately 220mm in length, 80mm in width, and 310mm in height.

The exterior characteristics of FANUC A06B-6096-H102 are designed in such a way that it has a compact design, making it easy to integrate into different types of industrial systems. The highest quality materials make it extremely durable, enabling it to withstand the challenging operating conditions frequently found in industrial settings.

The module has a communication interface allows it to communicate with other devices in an automated production line system. It can be integrated into various automation frameworks and works with several communication protocols, including FANUC's proprietary digital servo interface (serial communication).

The servo amplifier module receives control signals from the CNC system through a fiber optic interface, which allows for high-speed and reliable communication between the CNC system and the servo amplifier.

The servo amplifier module also receives feedback signals from the servo motor, which provide information about the motor's position, speed, and torque. It allows for the movement, performance, and overall control to be near to precise and efficient.

Maintenance:

The servo amplifier module has various protection features to ensure safe and reliable operation. These include over-temperature protection, over-voltage protection, and short-circuit protection.

It contains built-in diagnostic and monitoring capabilities that allow the user to monitor the module's status and detect any faults or errors in a real-time scenario. Your servo amplifier must receive routine maintenance if you want to guarantee peak performance. Replace any broken or worn-out parts with a FANUC-authorized replacement for optimal results. The FANUC servo amplifier module only recommends using company-approved products. Ensure that an electrically qualified professional carries out the repair or maintenance.

The digital twin or similar technology can provide real-time feedback on various parameters, such as the motor's change in vibration, temperature, voltage, and output current. It can generate alarms or warnings in abnormal conditions to ensure timely maintenance and troubleshooting of the FANUC A06B-6096-H102 servo amplifier. Such maintenance strategy helps identify and resolve issues quickly, minimizing downtime in industrial processes.
