TECHNICAL SPECIFICATIONS

FANUC A06B-6096-H205

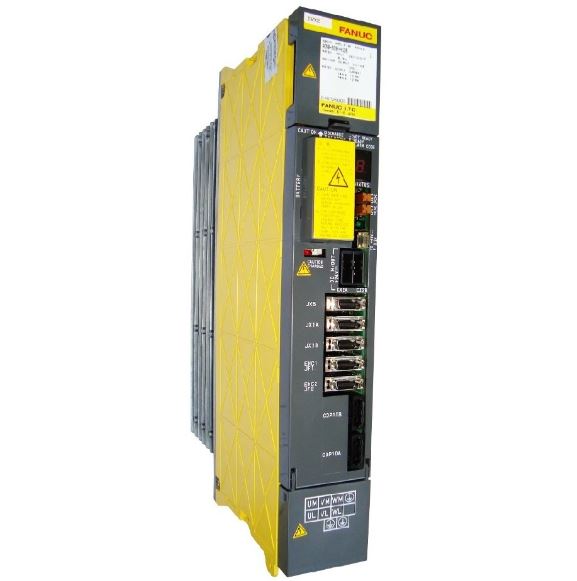

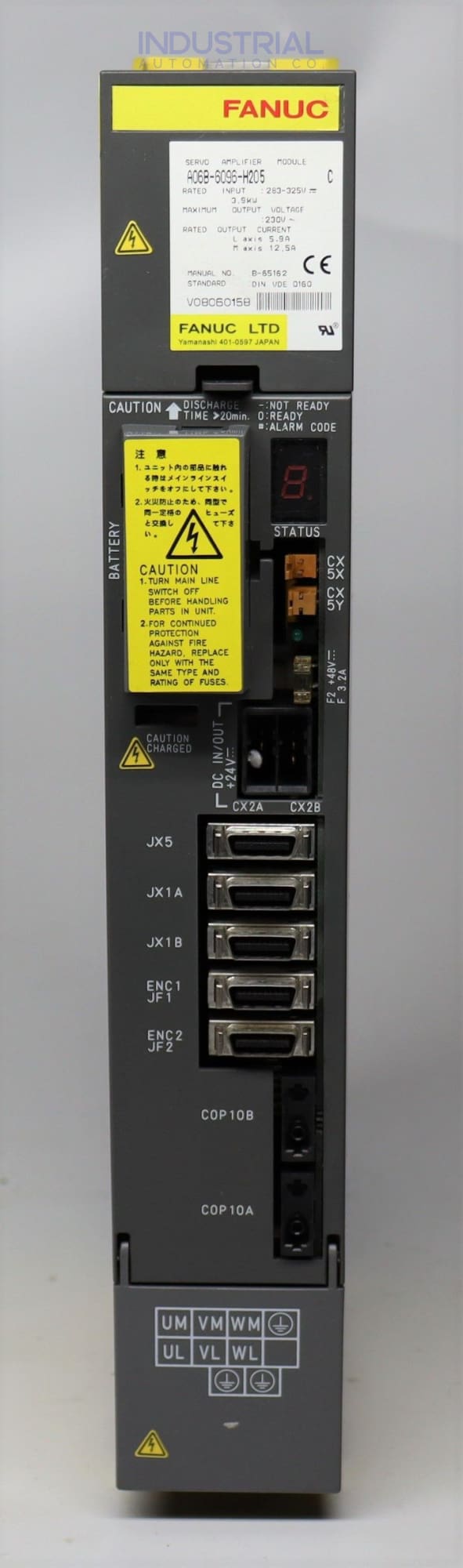

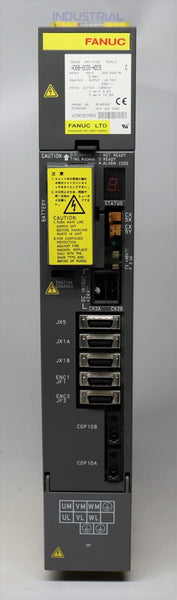

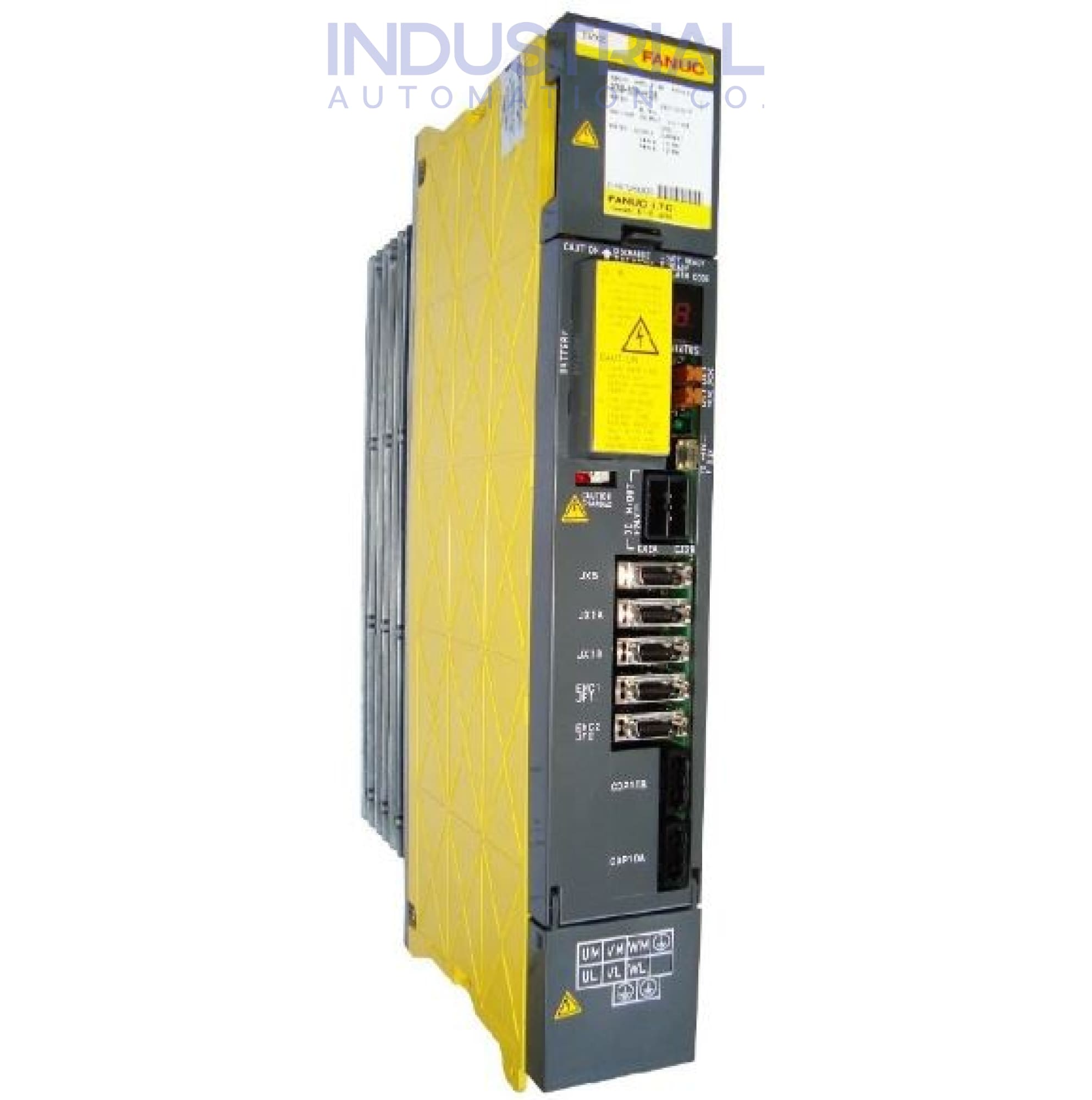

The A06B-6096-H205 is a servo amplifier module manufactured by FANUC, a leading industrial automation, and robotics solutions provider. The module controls the speed and position of servo motors in various industrial applications, including CNC machines, robots, and other automated equipment.

The module is part of FANUC's Alpha I Series of servo amplifiers known for their high performance and reliability. The module is compatible with various FANUC servo motors and provides advanced features such as high-speed communication, real-time feedback, and digital signal processing.

Technical Specifications of A06B-6096-H205:

The A06B-6096-H205 servo amplifier module can deliver a maximum output power of 5.5 kW, making it suitable for high-power servo motor applications. The module can also handle a maximum input voltage of 400VAC and a maximum output current of 14A, enabling it to drive a wide range of FANUC servo motors.

One of the key features of the servo amplifier module is its ability to support multiple communication protocols, including Ethernet/IP, DeviceNet, analog I/O, and pulse coder feedback. This flexibility allows the module to integrate various industrial automation systems and communicate with other devices and systems.

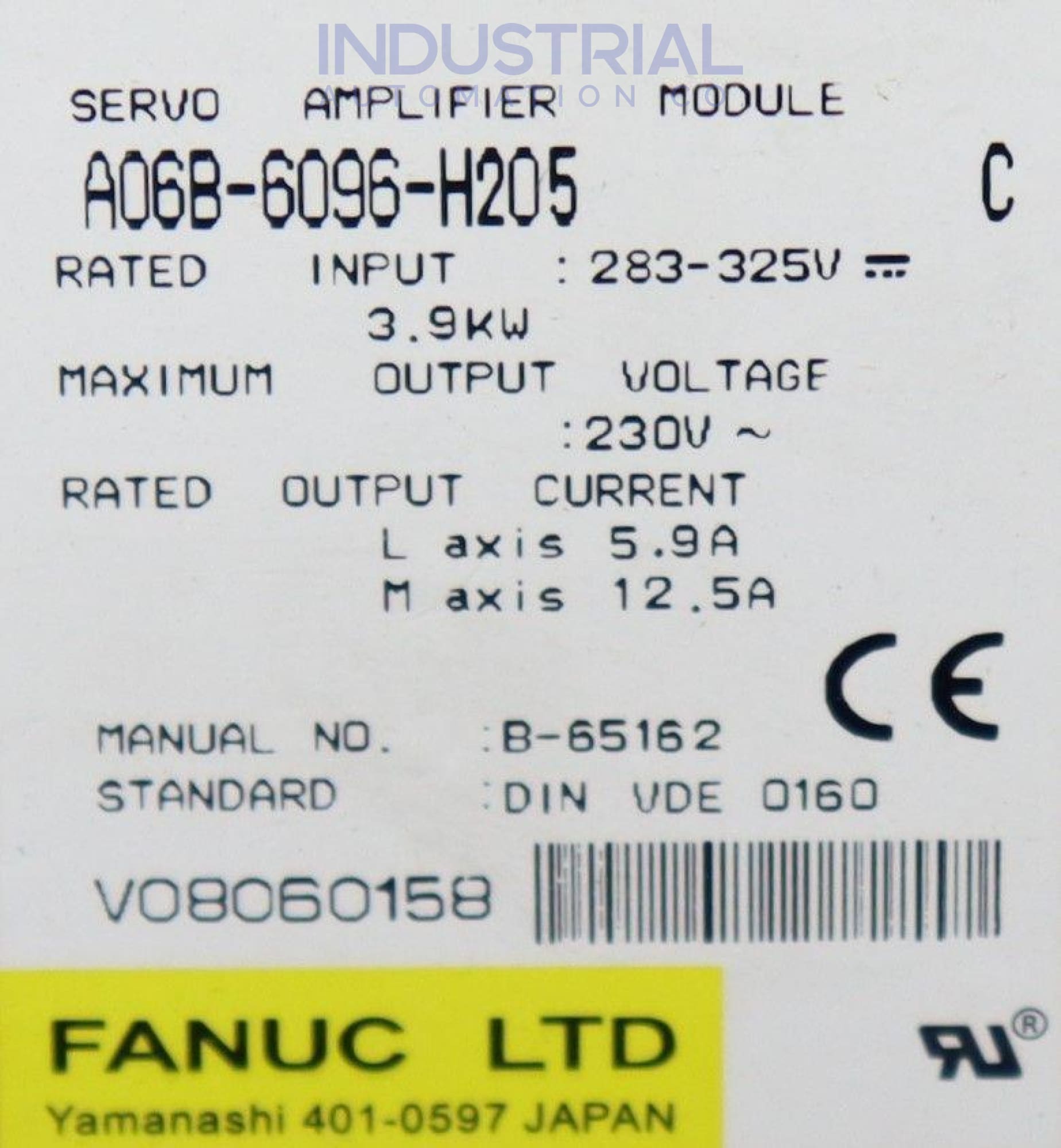

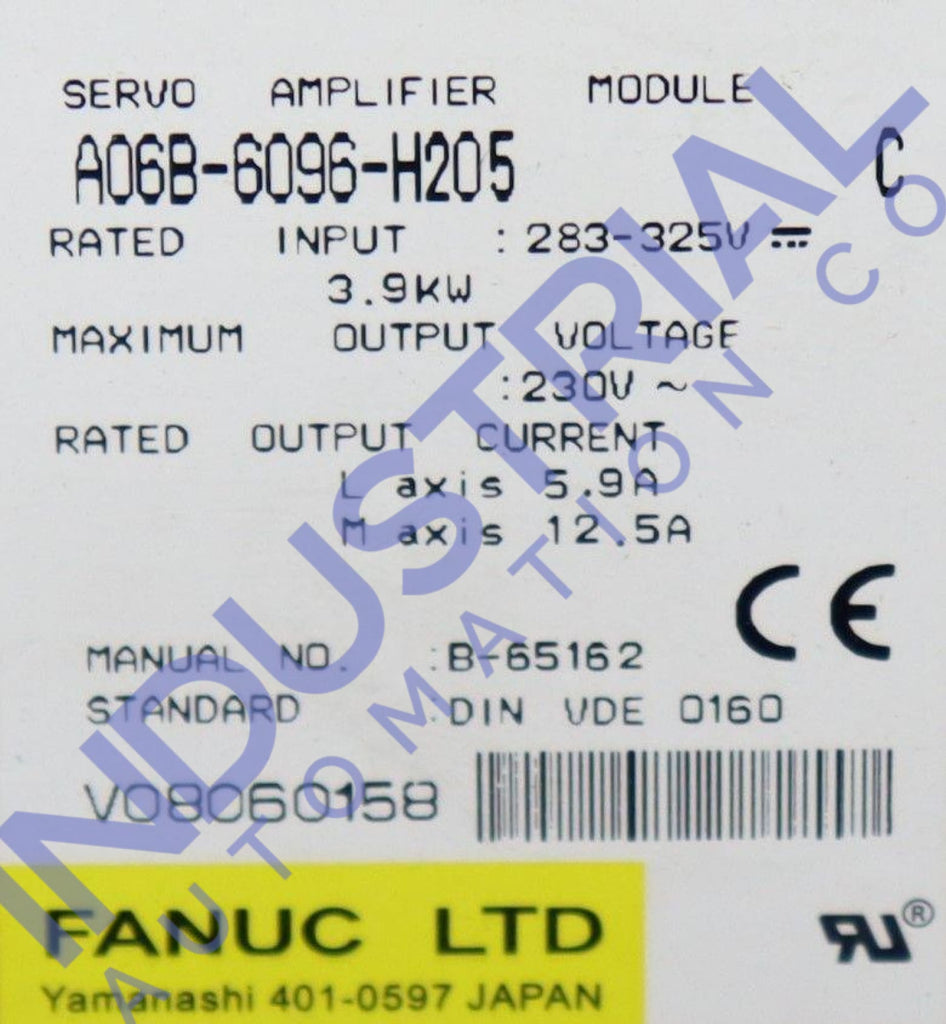

The module has 283 to 325 V supply voltage, and the Power rating is 3.9 kW. The Voltage rating of this module is 230 V (Output). Moreover, the Control function of this servo amplifier module is in Axis Control.

The servo amplifier module is a powerful and versatile device that can enhance the performance and efficiency of various industrial applications. Its high output power, multiple communication interfaces, and advanced control methods make it a reliable and effective solution for controlling servo motors in demanding industrial environments.

Operating and Installation Instructions:

In the context of the A06B-6096-H205 servo amplifier module, the Operating and Installation Instructions provide detailed guidance on properly installing the module and connecting it to a power source and servo motor, configuring its settings, and operating it safely and efficiently.

The standard operating conditions for the servo amplifier module are a set of parameters that define the environment and power requirements necessary to operate safely and effectively. These conditions include a power supply voltage of 50/60Hz, an ambient temperature range of 0-55°C (32-131°F), a humidity range of 10-90% (non-condensing), an altitude of up to 1000m (3280ft) above sea level, a vibration level of 4.9m/s² (0.5G) or less, and a shock level of 98m/s² (10G) or less

General Cautions:

The module operates at high voltage and current levels. Qualified personnel with knowledge of electrical safety procedures must install and maintain the module. It may include proper module grounding and protective gear such as gloves, eye protection, and insulating mats.

It must be installed and maintained by the manufacturer's instructions, using proper tools and techniques. It may include following torque specifications, using the correct cable routing, and ensuring proper alignment. The module may have specific requirements for serviceability, such as access to certain components or the need for periodic maintenance. To ensure safe and efficient servicing, follow these requirements.

Safety Precautions for Wiring:

To wire the A06B-6096-H205 module, turn off the power source and disconnect the module from the power supply. It helps to prevent electrical shocks or damage to the module.

Use only proper tools for wiring, such as wire strippers, crimpers, and pliers. It helps to ensure that the wiring is correctly connected and secured. Verify the wiring connections before applying power to the module. It helps to prevent incorrect wiring, which can cause damage to the module or lead to electrical hazards.
