TECHNICAL SPECIFICATIONS

FANUC A06B-6096-H206

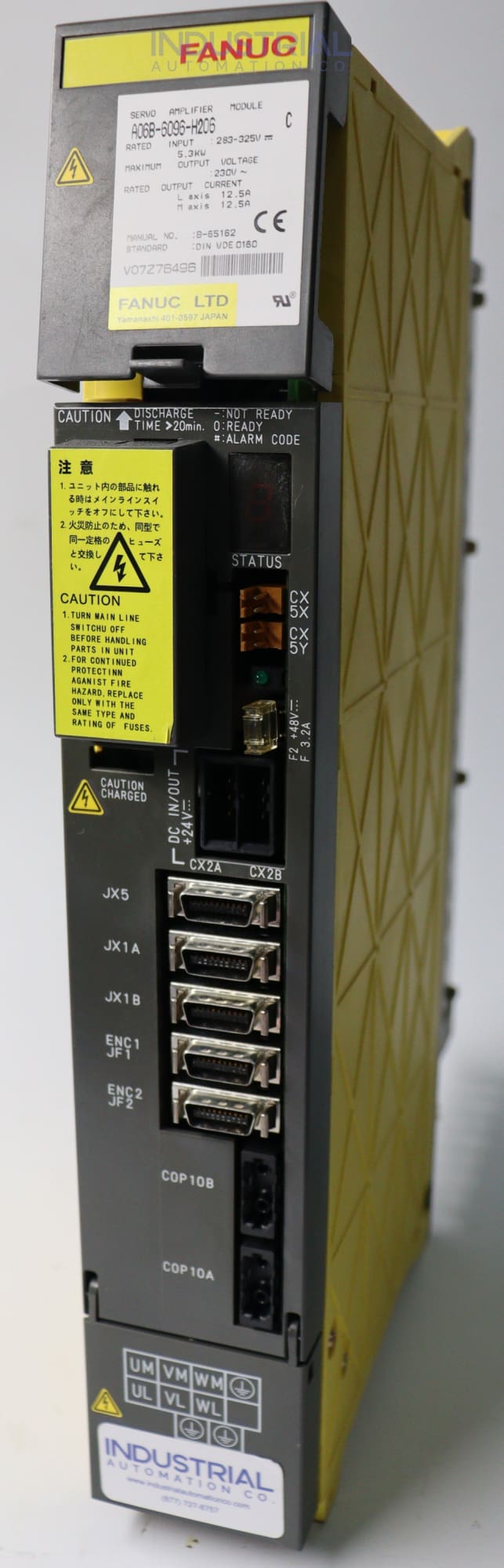

The A06B-6096-H206 is a model number for a servo amplifier module manufactured by FANUC, a Japanese company specializing in manufacturing industrial automation products. The A06B-6096-H206 is part of the FANUC Alpha I series of servo amplifiers designed for various industrial applications, including CNC machines, robotics, and automated manufacturing systems.

The servo amplifier module has advanced features and technologies to ensure reliable and precise performance. These include an intelligent servo feedback system that uses a high-resolution encoder to provide accurate motor position and speed feedback.

Technical Specifications of A06B-6096-H206:

The A06B-6096-H206 servo amplifier module is a powerful and versatile device that provides high-precision control of AC servo motors in various industrial applications. With a rated output of 16 kW and a DC voltage of 400 volts, this servo amplifier module can control up to 2 axes simultaneously using PWM control.

Operating and Installation Instructions:

The module can operate in ambient temperatures ranging from 0 to 55 degrees Celsius and in humidity conditions of up to 95% (non-condensing). It is cooled using natural air cooling, which helps to ensure consistent performance and reliability. At 275 x 750 x 510 mm, the module is relatively large and weighs 85 kg. Its size and weight make it suitable for use in larger industrial applications where precise control of AC servo motors is required.

The operating and installation instructions for the A06B-6096-H206 servo amplifier module provide detailed guidance on how to install, configure, and operate the device safely and efficiently. These instructions are for trained personnel with a good understanding of industrial control systems and safety procedures. Don't forget to order the FANUC A06B-6096-H206 user manual in your native language.

General Cautions:

Proper grounding is a critical aspect of ensuring the safe operation of the module. Connect the grounding wire to the grounding terminal of the module and the power supply. The grounding resistance should be less than 100 ohms to ensure that any electrical faults are quickly directed to the ground, preventing electrical shock or damage to the module.

Regular maintenance is also necessary to prevent potential issues and keep the module in good condition. It includes cleaning the module regularly to prevent the buildup of dust and debris, which can interfere with the module's operation. Regularly check and clean the internal cooling fans to ensure proper cooling, which prevents overheating and damage to the module.

Safety Precautions for Wiring:

Safety precautions for wiring the A06B-6096-H206 servo amplifier module are important to ensure that the device operates safely and to minimize the risk of electrical shock or other hazards. Observe the following safety precautions when wiring the module.

It is also essential to use proper wire size when connecting the module to the power supply and other devices. Choose the wire size based on the amperage and voltage of the electrical circuit. Using wires that are too small can cause overheating and potential damage to the module. The module has built-in safety features to protect itself and the connected equipment from damage due to overcurrent, overvoltage, and overheating conditions. These protection functions help to ensure reliable performance and prevent equipment failure.
