TECHNICAL SPECIFICATIONS

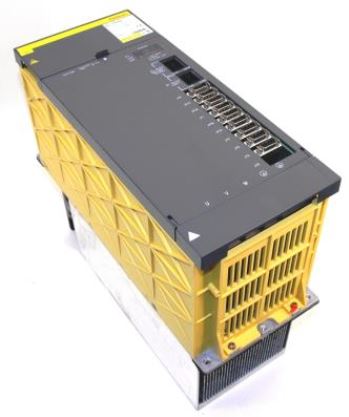

FANUC A06B-6102-H230#H520

The A06B-6102-H230#H520 is an Alpha Series Spindle Amplifier Module from FANUC that provides high-precision CNC control and outstanding performance in the most demanding environments.

Featuring advanced algorithms, this module is designed to deliver accuracy and stability when controlling spindle speed and torque, ensuring remarkable results even during intense machining operations.

From controlling speed and torque to boasting a compact design, the A06B-6102-H230#H520 spindle amplifier module is ideal for various machining operations.

Technical Specifications of A06B-6102-H230#H520:

The A06B-6102-H230#H520 spindle amplifier module is a powerful and precise solution for controlling the CNC machine's spindle motor.

It offers an impressive 35kW power output, with a maximum AC voltage of 230V and 133A current capability - perfect for demanding performance requirements. Thanks to its 283€“325V DC input rating, this reliable module ensures accurate control over the machine's functions.

This Alpha Series solution offers reliable performance with dimensions of 150mm x 380mm x 307 mm and two cooling fans: the external fan being an A90L-00010335/B model. At the same time, the A90L-00010422 model equips the internal €” ensuring optimal operation day in and day out.

An efficient cooling system safeguards the reliable performance of the A06B-6102-H230#H520 spindle amplifier module for CNC machines. Together, these fans work to maintain optimal temperatures during extended periods of use and maximize long-term dependability.

Ambient Conditions for A06B-6102-H230#H520:

The A06B-6102-H230#H520 spindle amplifier module can withstand temperatures ranging from 0°C to 55°C outside the cabinet and up to 45°C inside it. Humidity must remain below 90% RH, with no condensation allowed, as well as minimal vibration during operation (0.5 G). Corrosive or conductive mist/water should stay away from its electronic circuits for optimal performance.

Primary Components:

The spindle amplifier module, crafted with precision and optimized for top-notch performance, boasts an impressive array of components that make it stand out.

Two noteworthy wiring boards - the A20B-1006-0489 and A20B-2902-0390 - work with the A16B2203-0502 printed circuit board, a vital control component, to deliver unparalleled results. This innovative module is a testament to the cutting-edge technology and exceptional craftsmanship that went into its design.

The key to successful performance is an optimal balance of efficiency and reliability. One way to achieve this balance is by utilizing cutting-edge technology, such as the ROM (9D20) series A06B-6102-H520. This innovative system offers storage capabilities and enables the installation of specialized operating software, ensuring that your operations run smoothly and seamlessly. By incorporating this advanced technology, the users can rest easy knowing that their business has the tools to thrive in today's fast-paced world.

Applications of A06B-6102-H230#H520

The A06B-6102-H230#H520 spindle amplifier unit offers versatile performance and widespread use across different industrial sectors.

It's vital for controlling the motors used to generate electricity within thermal, nuclear, or hydroelectric power plants; plus, it has a starring role with elevator systems, too - governing movement speeds of lifts worldwide.

This module contributes significantly to car manufacturing and auto ancillaries in the automotive sector. It bolsters production efficiency while ensuring quality control of critical components in vehicles.

This specialized module A06B-6102-H230#H520 drives the production of various materials, from animal feed to metal alloys. It controls mixers and grinders in the feed industry, while aluminum smelting relies on its ability to coordinate melting furnaces and casting machines.

Steel-makers also rely heavily on A06B-6102-H230#H520 for controlling motors that power blast furnaces, rolling mills, and other processing equipment - ensuring an efficient manufacturing process across industries.
