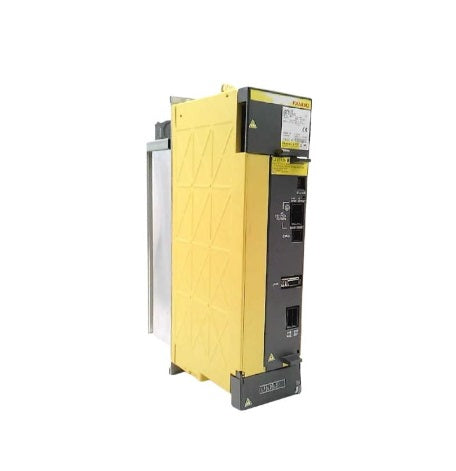

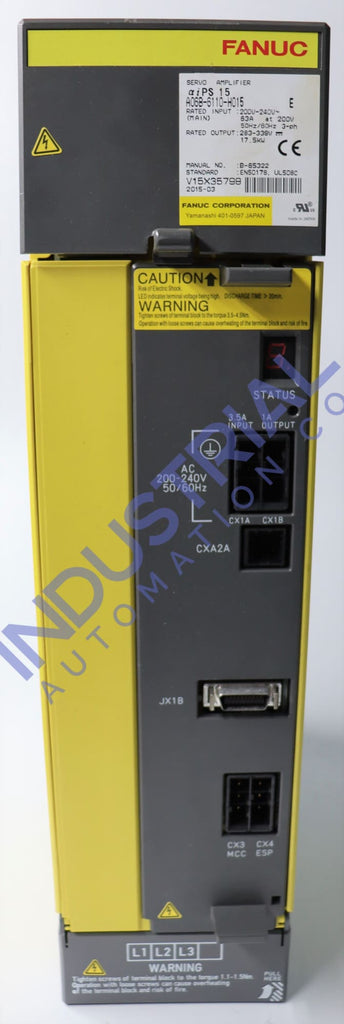

The FANUC A06B-6110-H015 is a Power Supply Module PSM-15i typically equipped with medium-sized FANUC servo and spindle amplifiers. This FANUC Alpha series module offers dependable and adequate power to operate motors, actuators, and other industrial machinery.

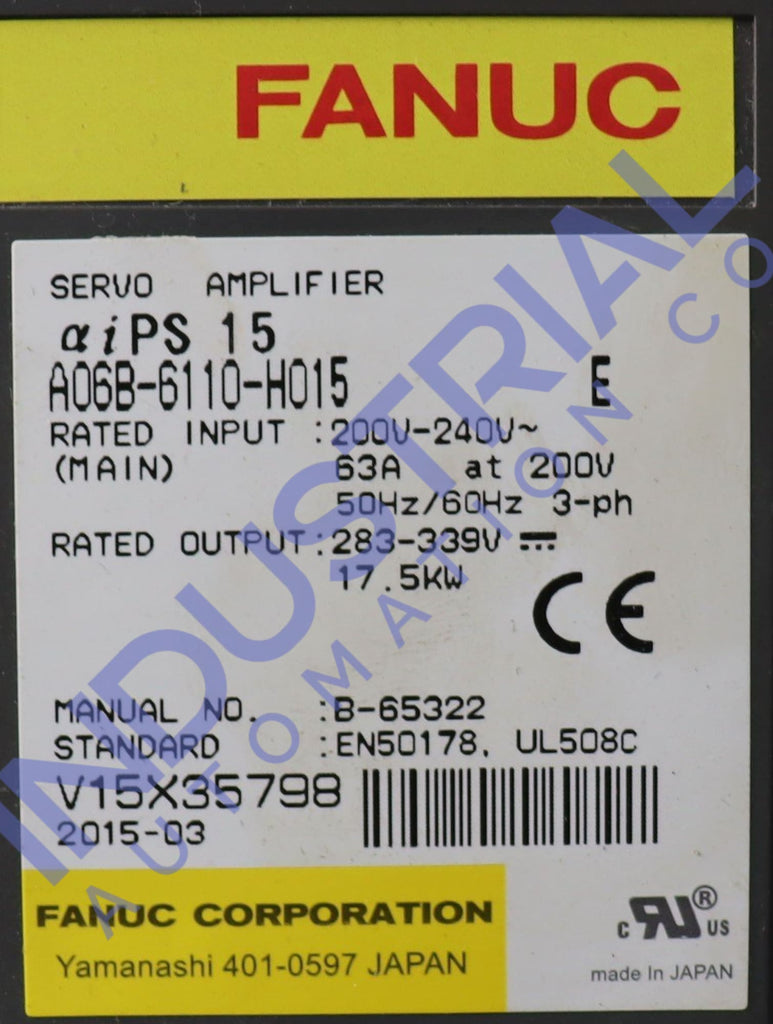

The FANUC A06B-6110-H015 power supply module has an input voltage range of 200-240 VAC and delivers a DC output voltage of 283-325 VDC at 30A.

The rated output capability of PSM 15i is 15kW, with a maximum output capability of 28kW. The peak output capability recorded for this power supply module equals 46kW.

It has a built-in cooling fan for effective heat dissipation and runs at 50/60 Hz. The device has overvoltage protection, ensuring secure operation and avoiding equipment damage if voltage surges or spikes occur.

The module measures 200 x 300 x 280 mm and weighs 6.4 kg, making it compact and easy to install. When choosing and installing the FANUC A06B-6110-H015 power supply module in CNC machines or other industrial automation systems, it's crucial to consider these technical requirements.

The FANUC A06B-6110-H015 power supply module has several characteristics in addition to its technical specs that make it a popular option for industrial automation systems.

You can install the power supply module on a DIN rail or the back panel of a control cabinet, providing flexibility in system design and layout.

The device has built-in safety against overvoltage, overcurrent, and over-temperature circumstances and is also made for high reliability and longevity. In complicated industrial settings where uptime and reliability are crucial, this guarantees that the power supply module can work safely and effectively.

The power supply module additionally boasts a high-efficiency design that minimizes power loss and lowers energy usage. As a result, industrial automation systems have less influence on the environment and operational expenses.

This power supply module's operational temperature range is 0 to 55 °C. Ensuring the temperature around the power supply module stays within this range is crucial. Place the unit in a well-ventilated area to dissipate heat effectively.

This power supply module can be stored between -20 and 85 °C. The power supply module should be kept in a cold, dry area when not in use.

This FANUC A06B-6110-H015 can withstand relative humidity levels between 5% and 95% (non-condensing). It's crucial to make sure the appliance doesn't receive an excessive amount of moisture because this could cause corrosion or other sorts of damage.

The FANUC A06B-6110-H015 power supply module excels in high-performance motion control and offers flexible usage in various industrial automation applications.

In robotics, it is also employed to power the servo amplifiers and other control systems necessary for precise and practical motion control.

To produce electronic components and finished goods, the electronics sector also needs precise and effective control of servo motors and spindle drives. This power supply module can give CNC machines the necessary power and control.

The power supply module finds use in various manufacturing and processing applications, packaging and labeling systems, automotive assembly, and semiconductor fabrication. It offers the required high-quality DC power to control industrial processes accurately in these applications.
