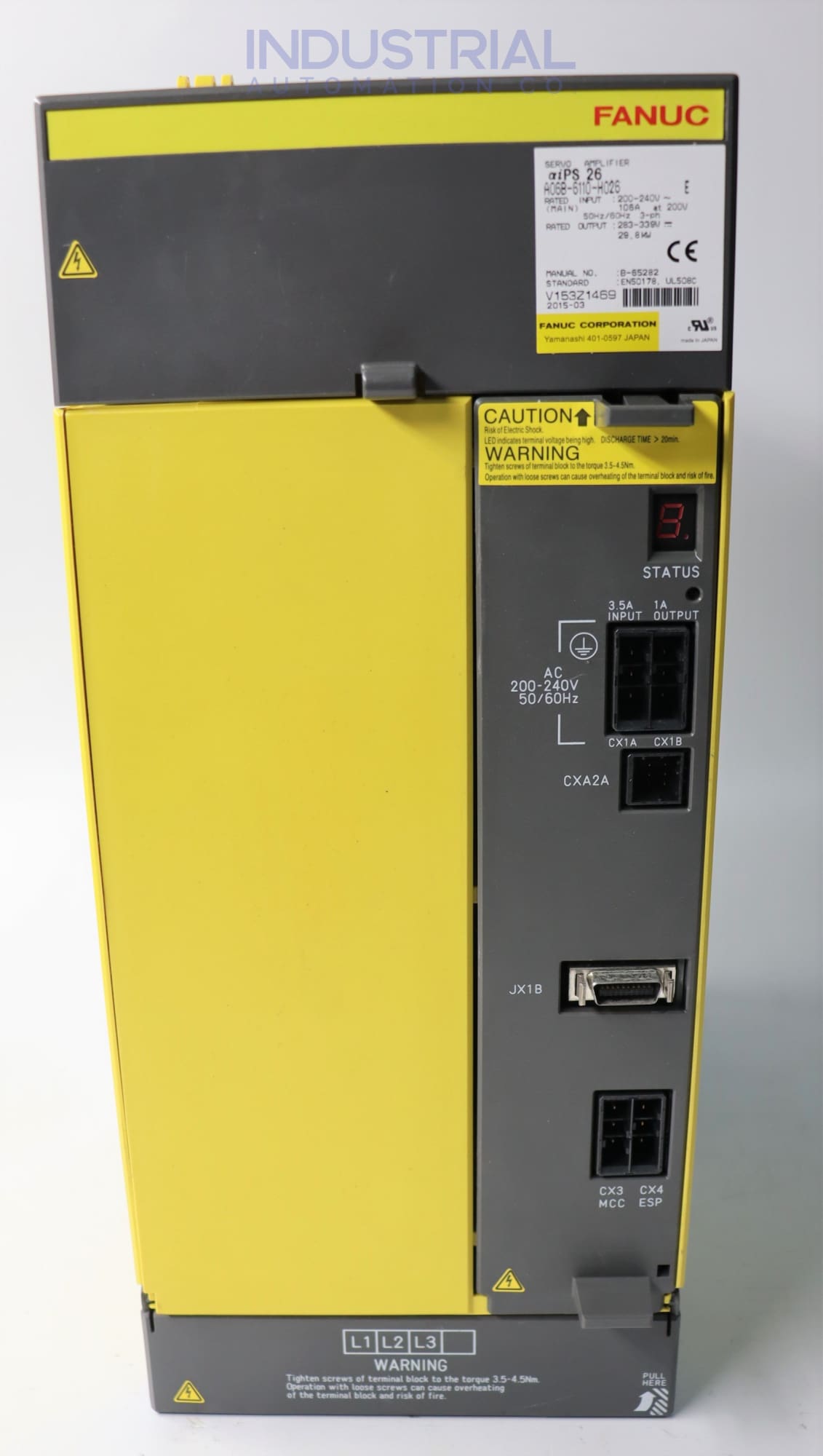

FANUC A06B-6110-H026

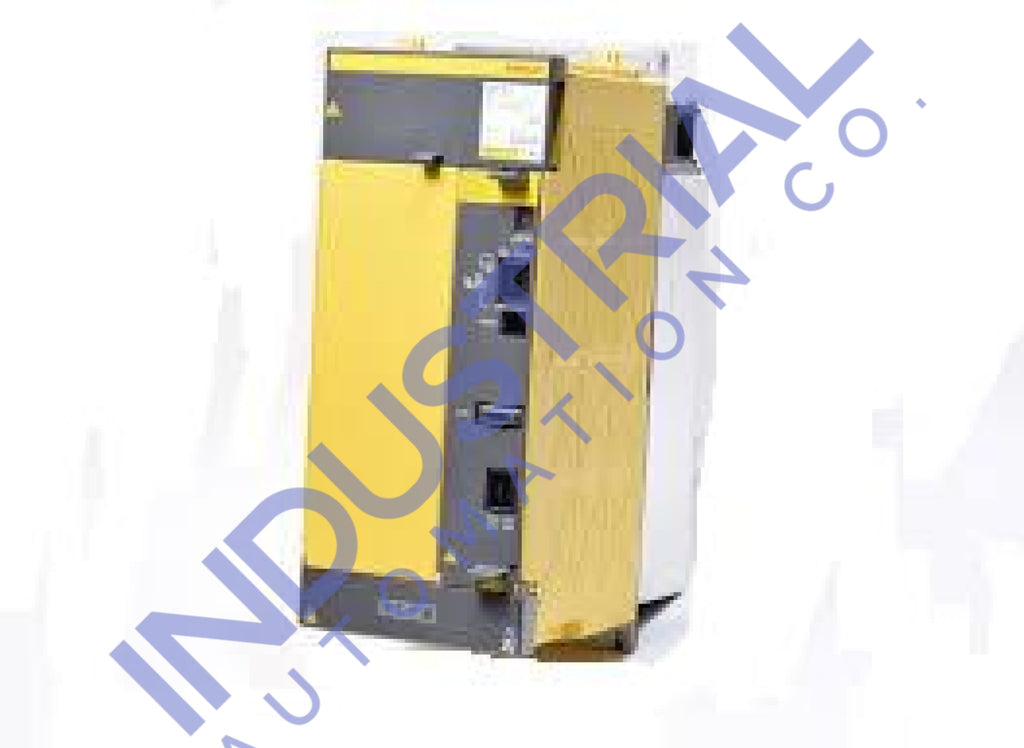

FANUC A06B-6110-H026 is a power supply module that provides DC power to FANUC CNC machines and robots. It is commonly used in FANUC CNC systems and is known for its reliability and durability.

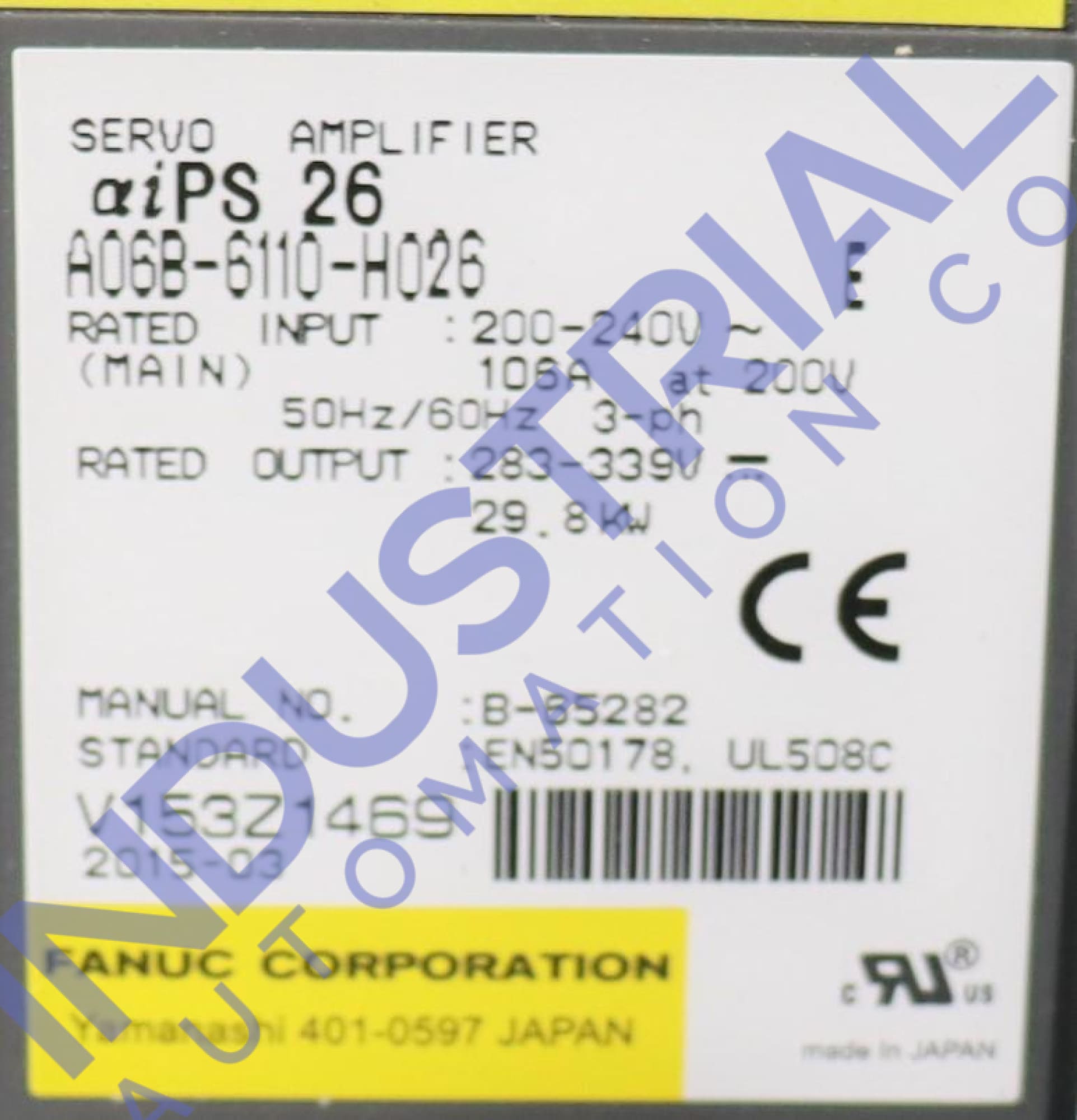

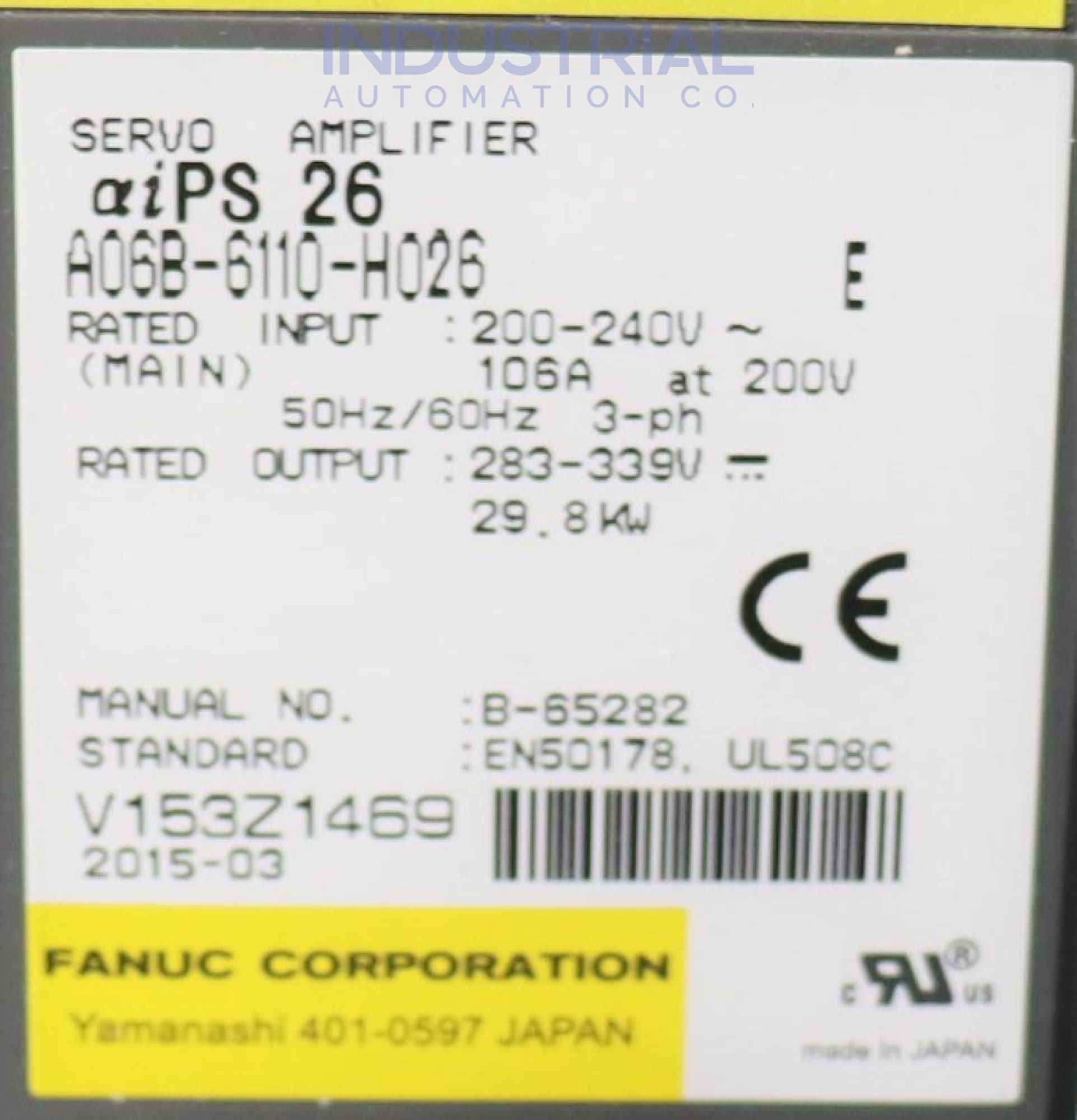

Technical Specifications of FANUC A06B-6110-H026:

This PSM 26i operates on a 200-240 VAC voltage with a maximum output of 26 Amps. The input frequency is 50-60 Hz.

The module contains built-in cooling and overcurrent, overvoltage, and over-temperature safety. The power supply has a 92% efficiency rating and a power factor correction of more than 0.98.

The module weighs about 10.7 kg and measures 190 mm x 290 mm x 170 mm (7.5 in x 11.4 in x 6.7 in).

With a rated output of 26 Amps at a voltage of 240 VAC, the FANUC A06B-6110-H026 power supply module can provide up to 6.24 kW of power to the connected load. It is crucial to ensure that the load connected to the power supply module does not exceed this rating, which indicates the continuous output capability of the module.

The power supply module has a maximum output capacity of 31 Amps and the rated output. It indicates that the module may temporarily provide up to 7.44 kW of power to the load before the overcurrent protection kicks in.

The FANUC A06B-6110-H026 power supply module uses an IGBT inverter PWM control for motor control, one of its distinguishing features.

IGBT stands for Insulated Gate Bipolar Transistor (IGBT), a semiconductor device used in power electronics. With the aid of this technology, the current to the motor may be switched on and off at rapid speeds, enabling more accurate and effective control of the motor's speed and location.

Operating and Environmental Conditions:

The module can operate in temperatures between 0 and 55 degrees Celsius and non-condensing humidity levels between 10 and 90 percent.

It has a maximum operating vibration of 4.9 m/s2 and a total operating shock of 147 m/s2 and is intended to function at altitudes up to 1000 meters (3281 feet).

Keep the power supply module in a space with a temperature range of -25 to 70°C (-13 to 158°F) and a humidity range of 5 to 95 percent (non-condensing) when it is not in use. Store it in a setting that allows for a maximum storage vibration of 9.8 m/s2 and a maximum storage shock of 294 m/s2.

For a power supply module to perform reliably and safely, it is crucial to ensure it is installed and used under these circumstances. Failure to do so could create a safety issue and damage the module or the linked load.

Safety Features:

The FANUC A06B-6110-H026 power supply module has several safety features to protect the module and the connected load.

The power supply module has overcurrent protection to keep it from being damaged by high current or the attached load. The protective circuitry will turn off the output if the current exceeds a predetermined limit.

Additionally, the module incorporates overvoltage protection to guard against harm to the associated load. The protection circuitry will cut off the output if the output voltage goes over a preset limit.

To prevent overheating, the power supply module (A06B-6110-H026) incorporates over-temperature protection. The protective circuitry will turn on and shut off the output if the internal temperature of the module rises above a predetermined threshold.

In the event of a low input voltage, the module incorporates input under-voltage protection to guard against harm to the module or the attached load. The power supply module also has input over-voltage protection to prevent damage to the PSM 26i or the associated load whenever there is a high input voltage.
