TECHNICAL SPECIFICATIONS

FANUC A06B-6110-H030

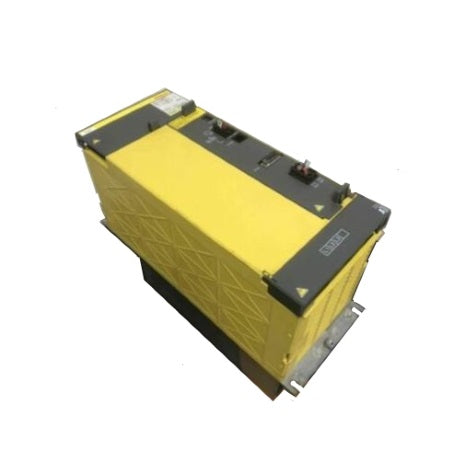

Industrial automation applications frequently utilize power supply modules such as the FANUC A06B-6110-H030. This module gives various FANUC CNC machines, robots, and other machinery required and stable power. PSM 26i can withstand humidity, dust, and other damaging elements in tough production conditions.

Technical Details and Special Features of FANUC A06B-6110-H030:

It may be used with a variety of power sources typically seen in industrial settings due to its input voltage range of 200-240 VAC.

With a rated output current of 30 Amps and a maximum output current of 35 Amps, the module offers a DC output voltage of 320€“370 VDC. As a result, it can run various devices, from little CNC machines to giant robots and automation systems.

The FANUC A06B-6110-H030 power supply module has an efficiency rating of 91%, indicating that it is very effective at turning input power into output power.

The module also offers a power factor correction of more than 0.98, contributing to better power quality and lowering the possibility of harmonic distortion. It can lessen the chance of equipment failure or downtime due to power-related problems while enhancing the performance and lifetime of linked equipment.

The FANUC A06B-6110-H030 power supply module is intended to function in various temperatures and relative humidity levels.

The module can work in situations with significant temperature swings or those needing temperature management because its ambient operating temperature range is 0 to 55 °C (32 to 131 °F). The module can function in situations with high amounts of moisture or humidity because its humidity range is 10€“90% in a non€“condensing environment.

The PSM 26i has passed rigorous safety tests and meets strict safety standards such as UL, CSA, and CE. Adhering to these standards reduces the risk of accidents and ensures the safety of both workers and connected equipment.

Installation Guidelines and General Precautions:

The first step in installing the FANUC A06B-6110-H030 power supply module is to ensure that it is compatible with the equipment planned to use it. Verify that the voltage and current specifications of the kit fit the needs of the power supply module. To prevent harm to the equipment or power supply module, perform this task.

Next, select an appropriate location for the power supply module. Place the item in an area with plenty of ventilation and enough space.

Do not install the module in areas with dust, humidity, or corrosive materials. The power supply module must be mounted on a solid surface to avoid movement or vibration.

Connect the power supply module to the input power source using wiring and connectors. Securely fasten all connections to prevent electrical arcing or other problems. If the power supply module is improperly grounded, there may be a risk of shock or equipment damage.

When everything is connected, turn on the power supply module to check that the voltage and current levels are within the equipment's requirements. Ensure the device receives the appropriate power supply by making any necessary modifications.

Industrial Applications:

Powerful machines and robots are commonly used in automotive manufacturing for stamping, welding, and assembly. With the FANUC A06B-6110-H030 power supply module, these operations can be controlled and powered efficiently and reliably.

Aircraft and spacecraft components demand high-precision manufacturing, and CNC machines and robotic systems play a crucial role. Power and control are paramount for these systems, and this power supply module guarantees both.
