TECHNICAL SPECIFICATIONS

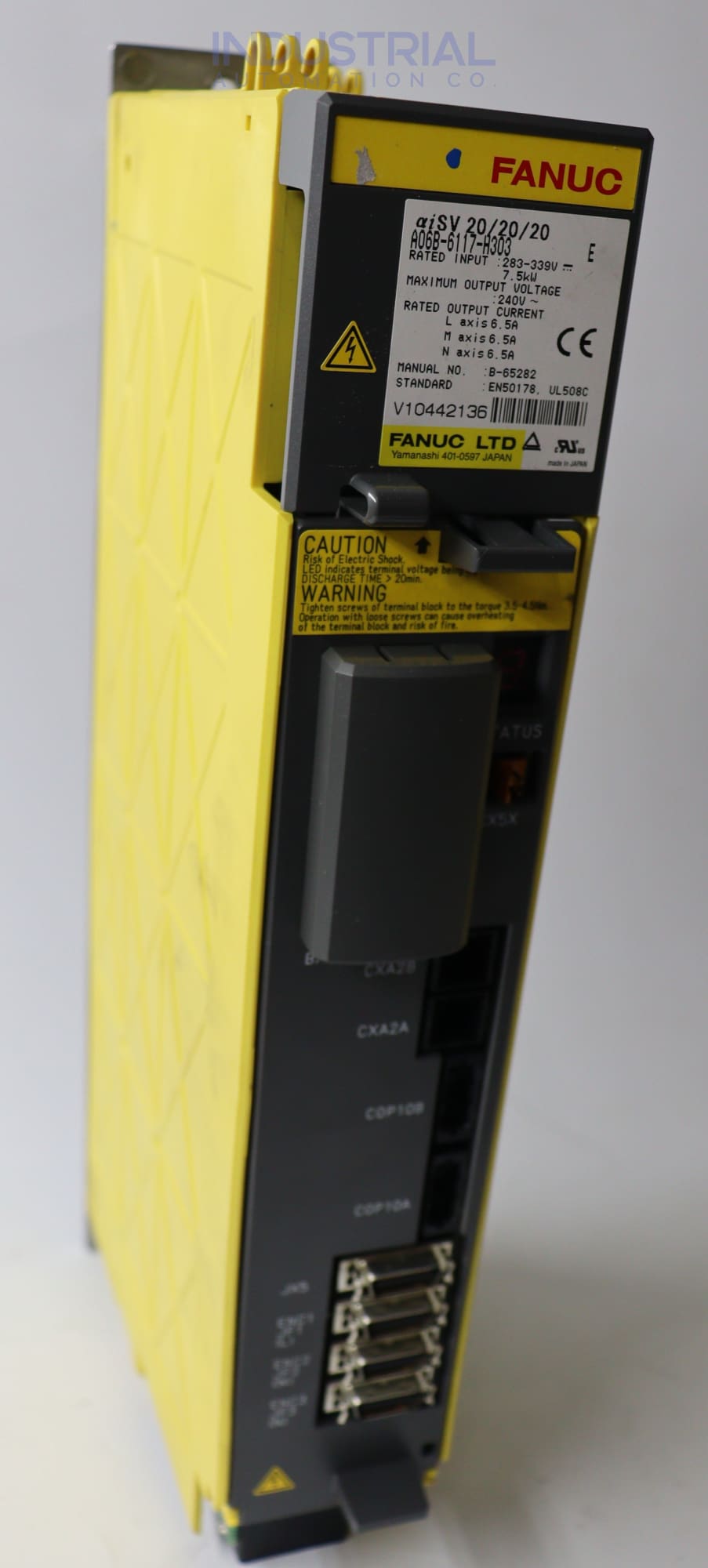

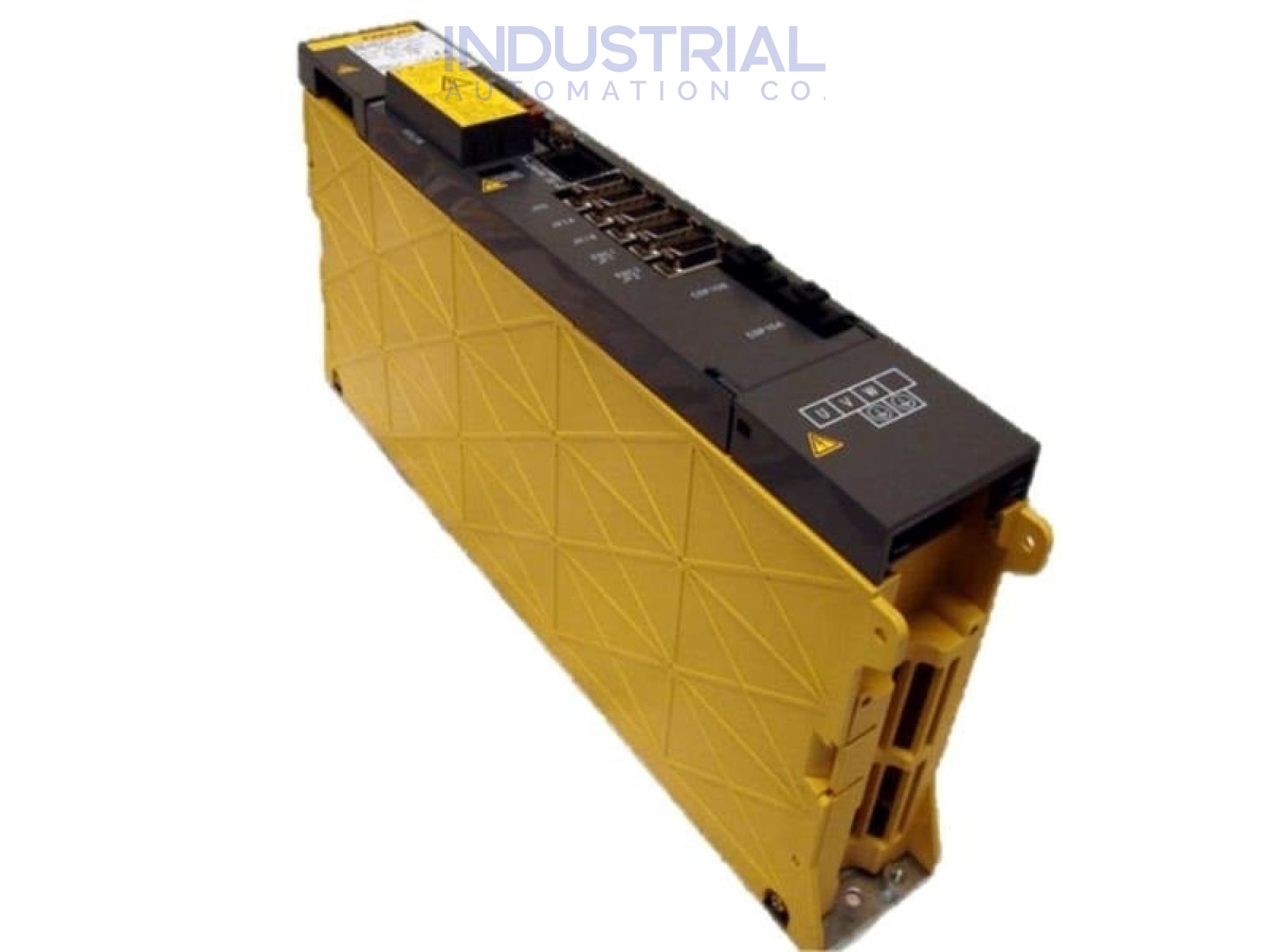

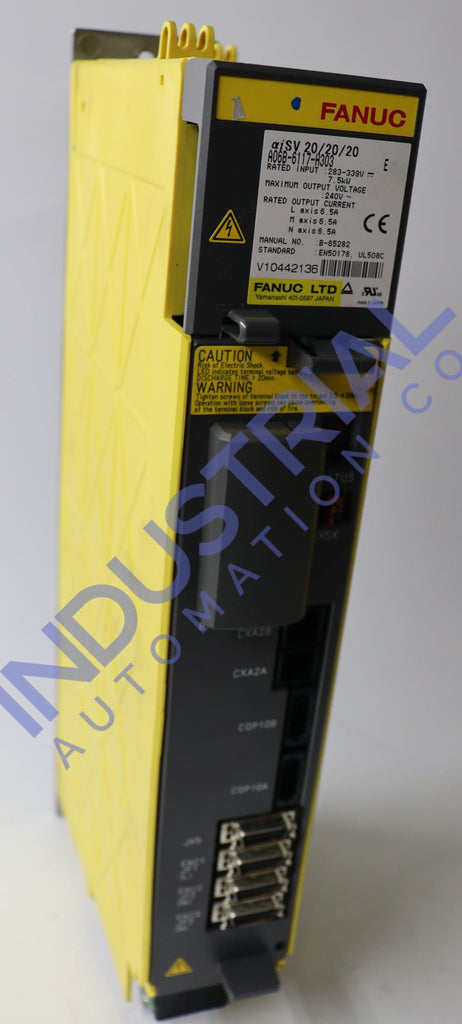

FANUC A06B-6117-H303

 FANUC's ALPHA-i series delivers exceptional functionality with its powerful, dependable 3-axis amplifier. This unit also boasts an array of monitoring and diagnostic options to identify potential issues in no time!

Technical Specifications

The A06B-6117-H303 is a compact and robust servo amplifier that is ideal for use in industrial environments. Through advanced digital signal processing techniques, it provides high-precision control over servo motors.

The maximum output current of this servo amplifier is 6.5A across all axes L, M, and N. The control voltage is 200-240VAC. The amplifier works with a variety of servo motors, including the I and I series.

The Servo amplifier has an input voltage range of 283-339V and a power output of 7.5KW, and 20A is the nominal peak value of I SV 20/20/20. The MT builder CNC machines typically use this 2.6kg servo amplifier. It dissipates a total of 24W of heat.

Operating Conditions

The FANUC A06B-6117-H303 is built to last in various industrial environments. For optimal performance, use the servo amplifier within a temperature range of 0°C to 55°C (32°F to 131°F). It can also work in temperatures ranging from -10°C to 60°C (14°F to 140°F) with a small reduction in output current.

The A06B-6117-H303 module's suggested humidity range is 5 percent to 95 percent, with no condensation. The amplifier must be put in a region free of excessive moisture and corrosive gases to ensure proper performance.

The servo amplifier is designed to handle vibration and shock, with a maximum shock resistance of 147 m/s2 and an acceptable vibration range of 5.9 m/s2.

This servo amplifier's recommended altitude range is 0 to 1000 meters (3281 feet). When using the amplifier at altitudes above 1000 meters, reduce its maximum output current by 1% for every 100 meters (328 feet) above that altitude.

Installation and Transportation

The A06B-6117-H303 unit must be installed and transported correctly to ensure reliable operation and lifespan. It is critical to ensure that the installation area is clear of excessive moisture, dust, and corrosive gases before installing this servo amplifier.

The amplifier should be positioned on a firm, vibration-free surface to avoid damage to the internal components. To prevent electrical or mechanical failures, ensure that all connections to the amplifier, including power and signal cords, are correctly secured and tightened.

Handle the amplifier carefully and keep it upright to avoid damaging the internal components. Please keep the ambient temperature between -20°C and 60°C (-4°F and 140°F) during transportation. Ascertain that it is correctly labeled to indicate its fragility and to prevent mistreatment or damage.

Safety Precautions

Follow the instructions in the A06B-6117-H303 manual to ground the amplifier and protect yourself from potential shocks correctly. Use shielded tools whenever you make any adjustments or connections to the amplifier.

Ensure the item is unplugged and discharge any residual electrical charge. Trained individuals familiar with the procedures outlined in the manual should be the only ones to perform any necessary work on the amplifier.

The A06B-6117-H303 has built-in overcurrent and heat protection to shield the amplifier and other connected devices from damage.
