TECHNICAL SPECIFICATIONS

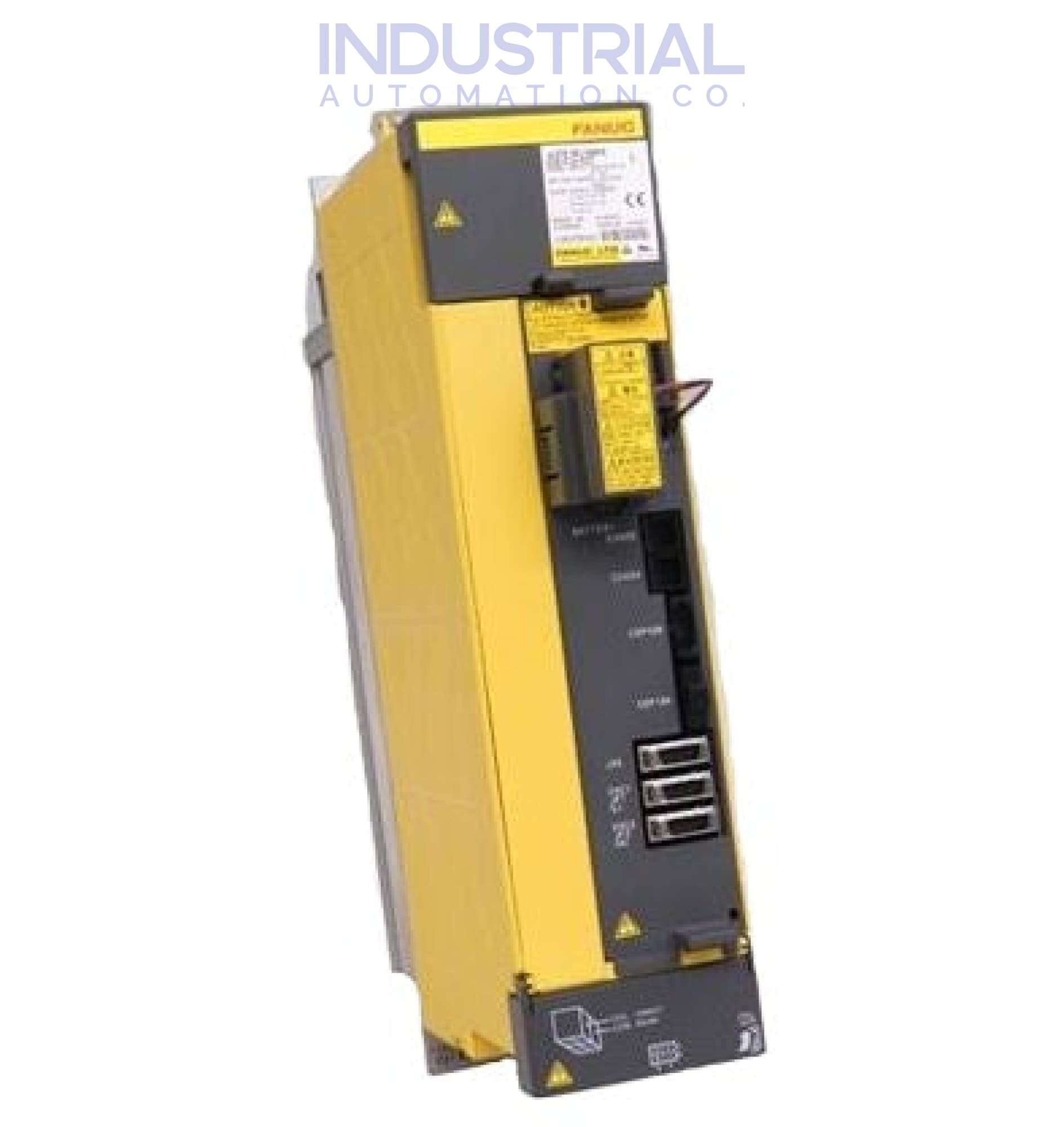

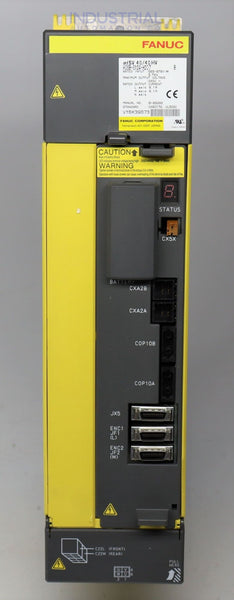

FANUC A06B-6124-H207

The A06B-6124-H207 model is a powerful FANUC servo module designed for industrial and commercial applications. It's part of the highly dependable Alpha I series, renowned for its reliable performance and control over high-powered motors with a maximum output voltage of up to 230V AC. It is ideal for CNC machines and robotics projects across manufacturing fields.

Technical parameters of FANUC A06B-6124-H207:

The A06B-6124-H207 servo module perfectly balances power and portability. This lightweight yet powerful component can deliver up to 40 Nm of torque, making it suitable for heavy loads across many industries, such as robotics or AGVs.

The FANUC A06B-6124-H207 requires only 200 - 240 VAC input voltage. The motor controls smooth motion while consuming low energy€”up to 4.4 kVA maximum rated power.

This servo amplifier module is a powerful and precise choice for demanding tasks requiring accurate motor position and speed feedback. Boasting an impressive 20-bit Encoder resolution. It can adjust up to 16384 pulses per revolution when using the 40HVi model €“ making it easy to find the right balance required for peak efficiency.

The module is a dust and water-resistant powerhouse with an IP65 rating suitable for the harshest working conditions. The class F insulation rating makes it well-equipped to handle high temperatures or demanding electrical environments and is ideal for deploying on manufacturing floors or outdoors.

With the FANUC A06B-6124 servo amplifier module, you will get unbeatable power despite speed changes. Its constant power output makes it suitable for applications that demand high levels of control and torque. Its maximum torque reaches 12 Nm with the SVM2-40 model to provide excellent performance, ideal for robotic arms and industrial machines.

The module is compatible with a wide variety of network protocols, including Ethernet/IP, FSSB, and SSCNET, and the device has a serial interface that enables communication with other devices..

Operational and Installation Guideline:

The FANUC A06B-6124-H207 servo amplifier is designed for optimal performance across a wide spectrum of temperatures and humidity levels, from 0°C to 55°C (32°F to 131°F) and 20% - 80%, without derating. It makes the unit flexible enough for various environments, including cold industrial facilities or hot outdoor conditions with varying moisture intensity. Always install it in a protection cabinet of the appropriate protection category.

Stay clear of the active module; its rotating shaft and other moving parts are off-limits! Modified misalignments can lead to damaged machinery, so ensure it's securely mounted and properly positioned. Always disconnect power before beginning maintenance or repair jobs on the module.

General Precautions:

The A06B-6124-H207 unit must be properly grounded before installation. Only those specifically trained and authorized should handle its components to ensure proper installation and operation of the module. When dealing with electric current, you should use PPE.

To ensure safety and longevity, keep it out of direct sunlight, away from corrosive gases or dusty environments. Choose an area with sufficient ventilation to avoid the risk of overheating. Observe manufacturer guidelines when determining optimal temperature and humidity ranges. Also, don't forget to provide enough space at the sides of the A06B module.
