TECHNICAL SPECIFICATIONS

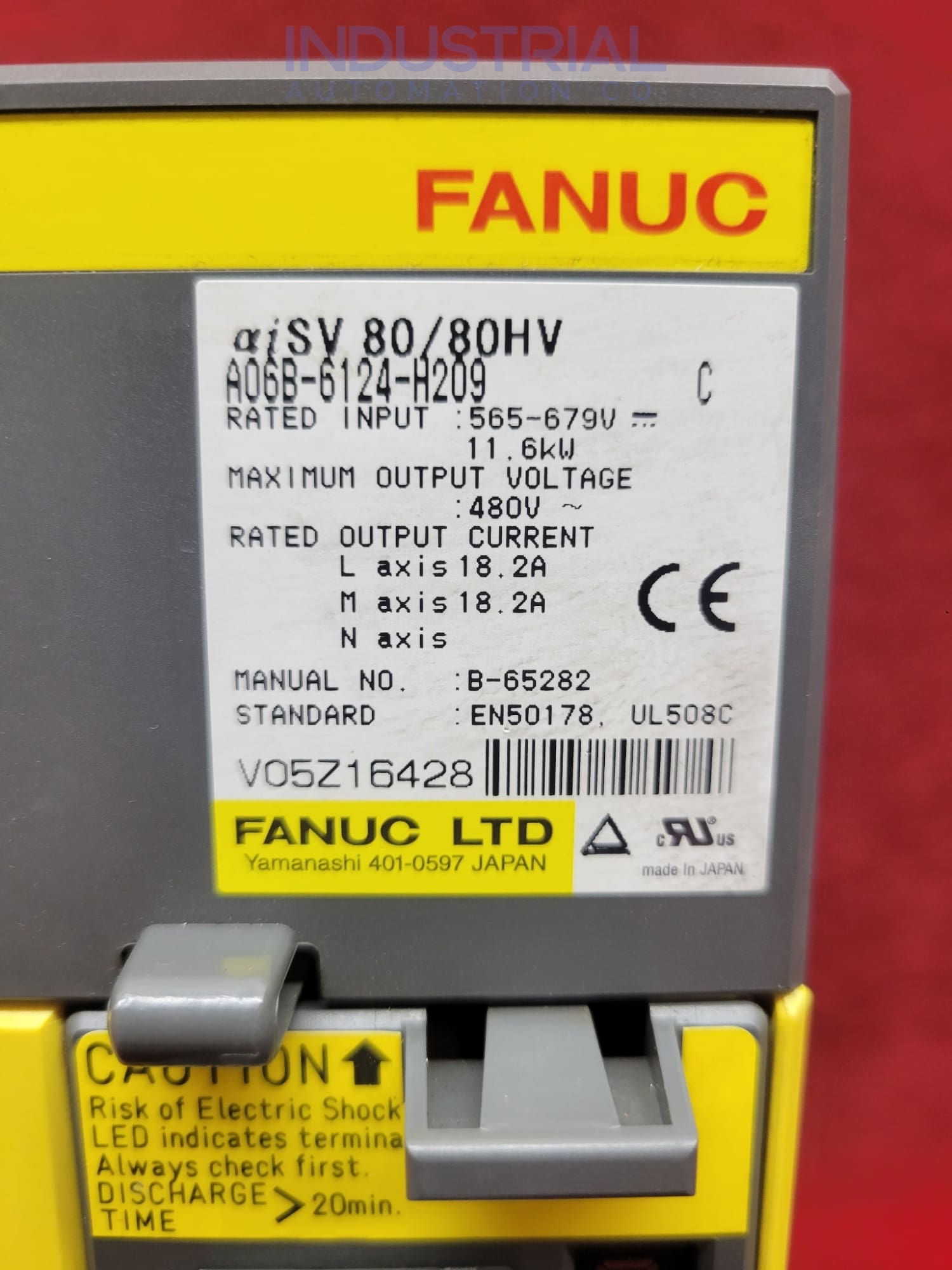

FANUC A06B-6124-H209

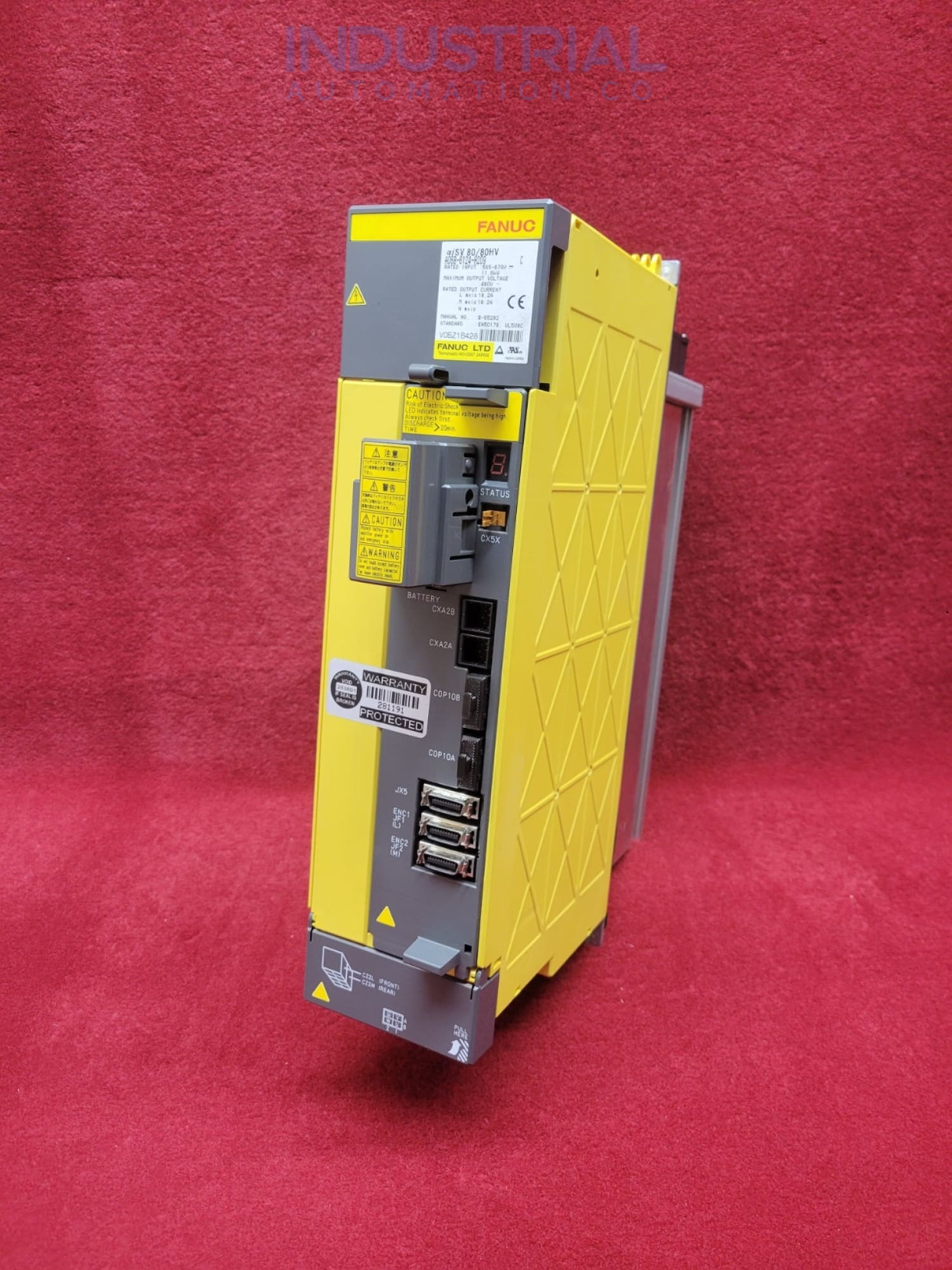

The FANUC A06B-6124-H209 is a 2 Axis Alpha I Servo Module MDL SVM2-80/80Hvi, designed to enhance efficiency and precision. We have fully equipped this essential component with highly tested and refurbished parts. The production line can confidently meet and exceed any automation job standard with this servo module.

Technical Information:

This compact and lightweight FANUC A06B-6124-H209 packs a punch with precise control and impressive accuracy. It is a force boasting a torque of 8.9 Nm and operating smoothly with its power source ranging from 283VAC to 325VAC.

With a peak performance of 3.8 kW, this A06B-6124-H209 can easily handle heavy loads while maintaining accuracy and precision. It operates at a maximum speed of 4500 revolutions per minute, allowing quick and precise movement control.

The servo module boasts a 20-bit encoder which delivers an impressive 131,072 pulses per revolution, ensuring accurate position and speed control. While handling loads up to three times greater than its shaft inertia moment, making it versatile and efficient.

The A06B-6124-H209 servo module is a tough and dependable technology that can handle harsh and dusty industrial settings. Its IP67-certified housing rating guarantees that it can withstand environmental factors and continue to perform well. This servo motor can resist electrical interference with good insulation, keeping it safe and reliable.

The impressive FANUC A06B-6124-H209 is designed with super-advanced technology, less than 0.02 mm of radial shaking, and less than 0.3 N of thrusting. It churns out perfectly delicate and accurate movements. And it doesn't stop there! The module's cooling power with maxing out at a whopping 700 W, ensuring it won't break a sweat even under intense, high-heat situations.

Operating and Set Up Guidelines:

The FANUC Servo Module with a temperature range of 0-55 degrees Celsius and the ability to withstand a humidity level of up to 95%.

To maximize performance and prolong the lifespan of the A06B-6124-H209 Servo Module, ensure the temperature stays within the 0-55 degree Celsius range and the humidity doesn't exceed 95% to get the most out of the module and prevent any potential damage or reduced functionality.

For flawless industrial automation. Ensure that FANUC A06B-6124-H209 has adequate ventilation and cooling to prevent any meltdown scenarios. Install the module in a well-ventilated area with proper cooling to give it enough breathing room.

When working with the FANUC A06B-6124-H209, double-check that the power source is properly grounded and that all electrical connections are secure before powering on. Remember to wear the right personal protective equipment, including safety glasses, gloves, and protective clothing.

Before attempting any repairs or modifications to the FANUC A06B-6124-H209 module, it's important to note that only certified technicians and engineers should do so. Trying to fix it may lead to injury or damage to the equipment. Failing to keep the area clear of clutter may cause tripping hazards. Press the emergency stop button to shut down the equipment immediately.

Instructions for Wiring:

To power up the A06B-6124-H209 servo unit, a reliable 200-230VAC three-phase power source with a frequency of 50/60Hz is required. The module has several signal input and output ports, like pulse coder feedback and communicative interfaces. Proper wiring is key to ensuring a trustworthy, secure, and optimal operation of the servo module.
