TECHNICAL SPECIFICATIONS

FANUC A06B-0752-B200

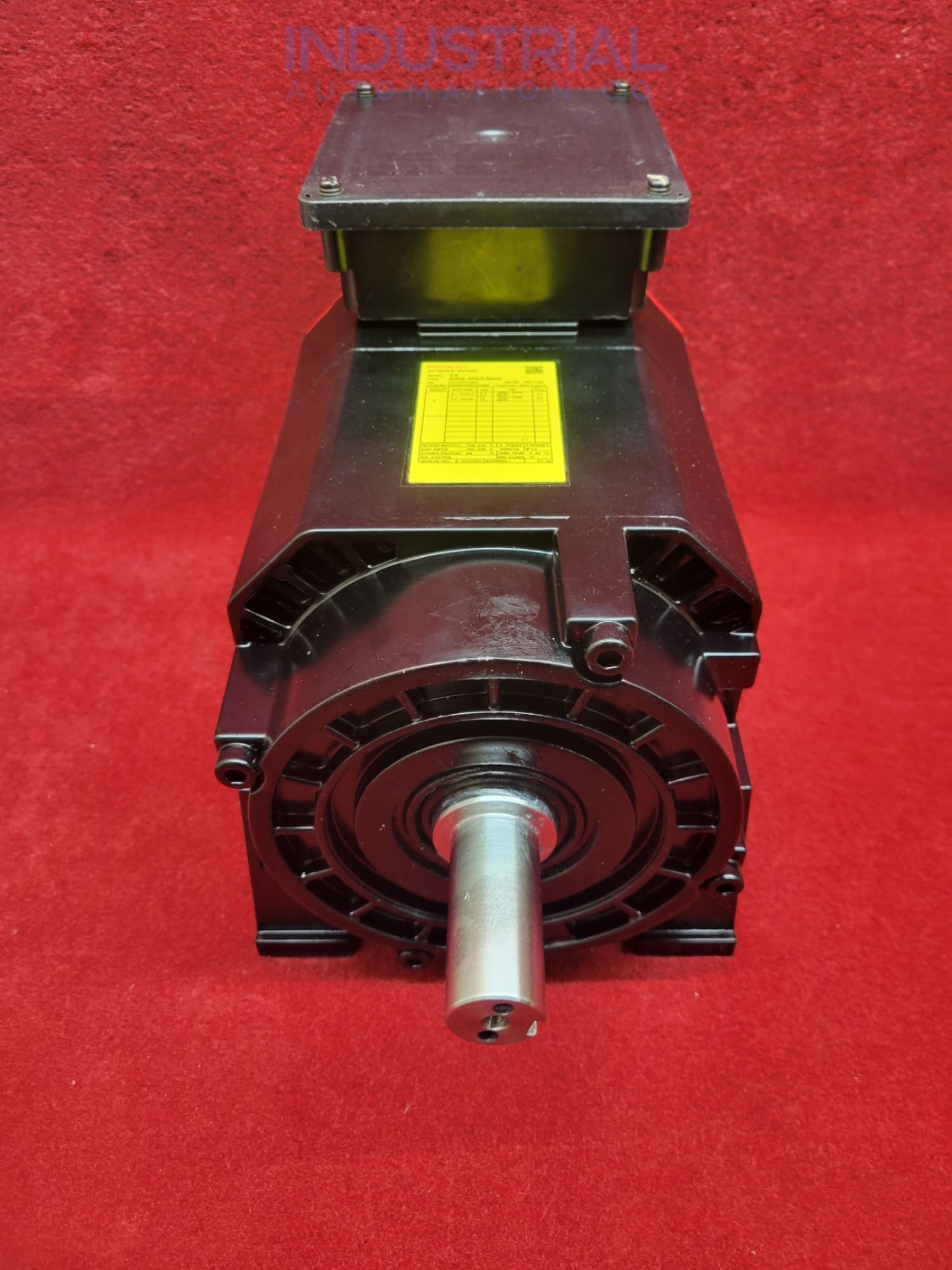

This AC Spindle Motor A06B-0752-B200, developed to power the most sophisticated CNC machines, offers optimal dependability and top-tier performance for variable speed operations.

This compact spindle motor A06B-0752-B200 has been revolutionized with a new stator cooling system. It provides an efficient direct-cooling method to its electromagnetic steel sheet and enables higher power outputs at increased speeds.

Technical Description of A06B-0752-B200:

This small, lightweight motor packs an impressive punch - it generates 2.2 kW of power and can rotate at up to 1500 revolutions per minute! Additionally, adding digital control means taking your performance even further for optimal results.

The impressive AC spindle motor A06B-0752-B200 rotates at a maximum of 8000 rpm, delivering an incredible 14 Nm torque output. Its lightweight rotor is specifically designed to enable rapid acceleration/deceleration and ensures greater efficiency.

This model, A06B-0752-B200, optimizes synchronous spindle feed, 2-axis machining, and rigid tapping with its essential position coder. It features a moment of inertia of 0.008 kgm2 and an F-rated insulation class.

The A06B-0752-B200 model was designed with an advanced lubricated bearing for smooth operation and a pulse generator to increase accuracy. Additionally, machining improvements in the motor housing have enhanced overall product precision.

To ensure optimal function and protection from environmental conditions, this A06B-0752-B200 model is equipped with a powerful 20 W cooling fan to dissipate excess heat from the housing. Furthermore, the engineers have enhanced the reliability by reinforcing the seals on the housing and improving the motor cooling fans.

Ambient Conditions (Operating and Installation):

The motor A06B-0752-B200 can be installed above sea level to an impressive maximum of 1,000 meters. For operations at higher altitudes, a decrease in the surrounding temperature for each additional 100 m ensures optimal functioning with no extra precautions necessary.

To keep the motor running smoothly, it's important to maintain an ambient temperature between 0 - 40°C. Lowering output power can prevent overheating and ensure optimal performance if operating at a higher temp.

To ensure optimum operation, the motor A06B-0752-B200 must be stored indoors and maintained within a temperature range from -20°C to +60°C. It will protect it from dust or small particle contaminants that could lead to poor performance.

Safety Instructions for Wiring and Handling:

The motor is a powerful source of electricity, and when connected to electric wires, it must be isolated from other sources. For safety reasons, be sure to ground the frame before starting - this will provide a path for any excessive electrical energy away from you to prevent potential shocks.

Connecting the grounding terminal in the box correctly with those on the machine should guarantee protection against hazardous currents and help ensure the successful operation of the system.

Attaching power wires to the terminal block requires precise torque and secure connection€”failure to do so can be catastrophic. Without a tight fit, motors may overheat, leading to fire hazards or causing dangerous electric shocks from ground faults or short circuits due to wire disconnection.

When handling the A06B-0752-B200 motor, it's important to exercise caution and wear the appropriate safety gear, such as shoes or gloves. Touching a motor with wet hands is incredibly dangerous due to the high risk of electric shocks - failure to observe this warning could have potentially dire consequences.
