TECHNICAL SPECIFICATIONS

FANUC A06B-6047-H003

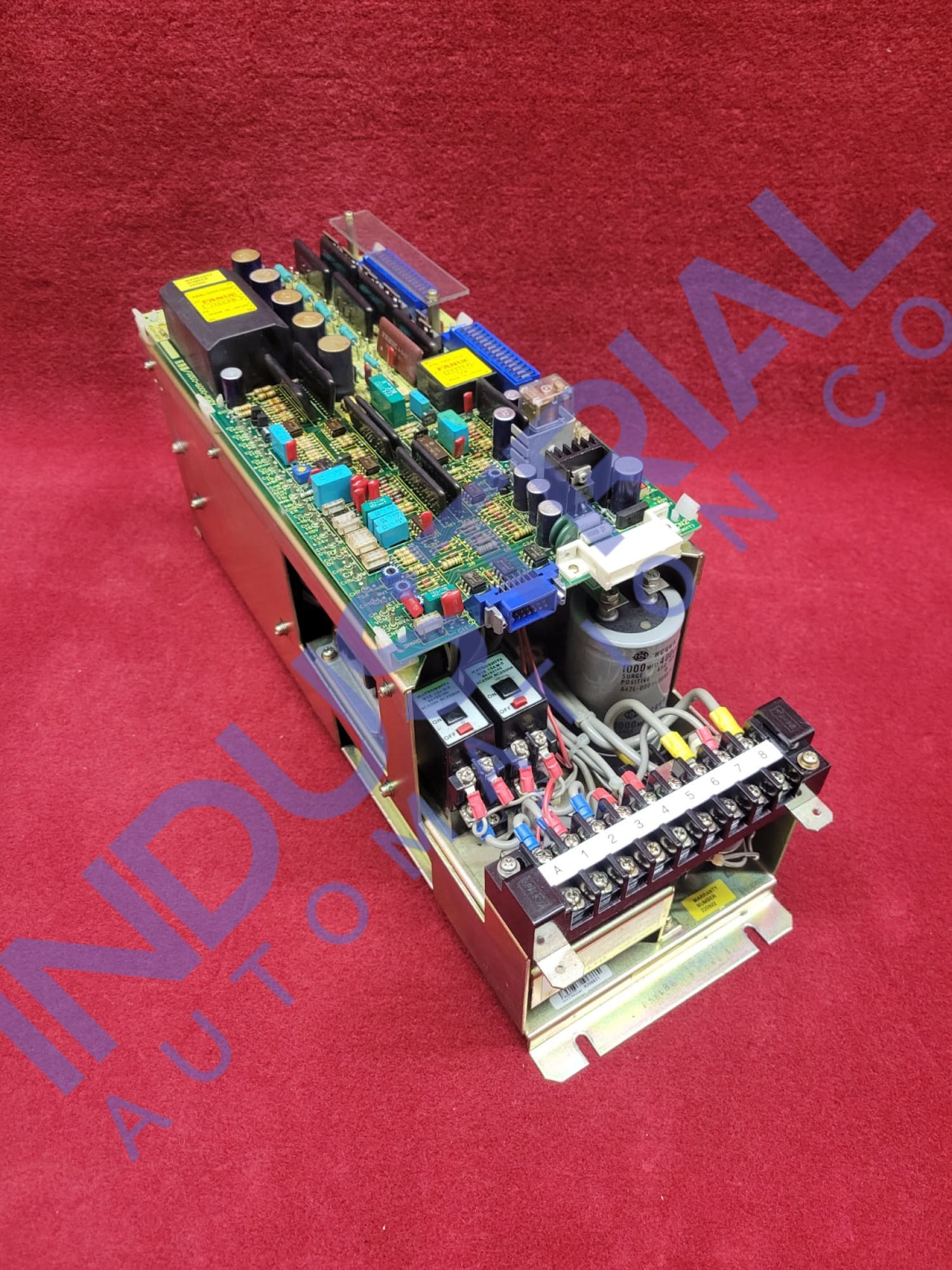

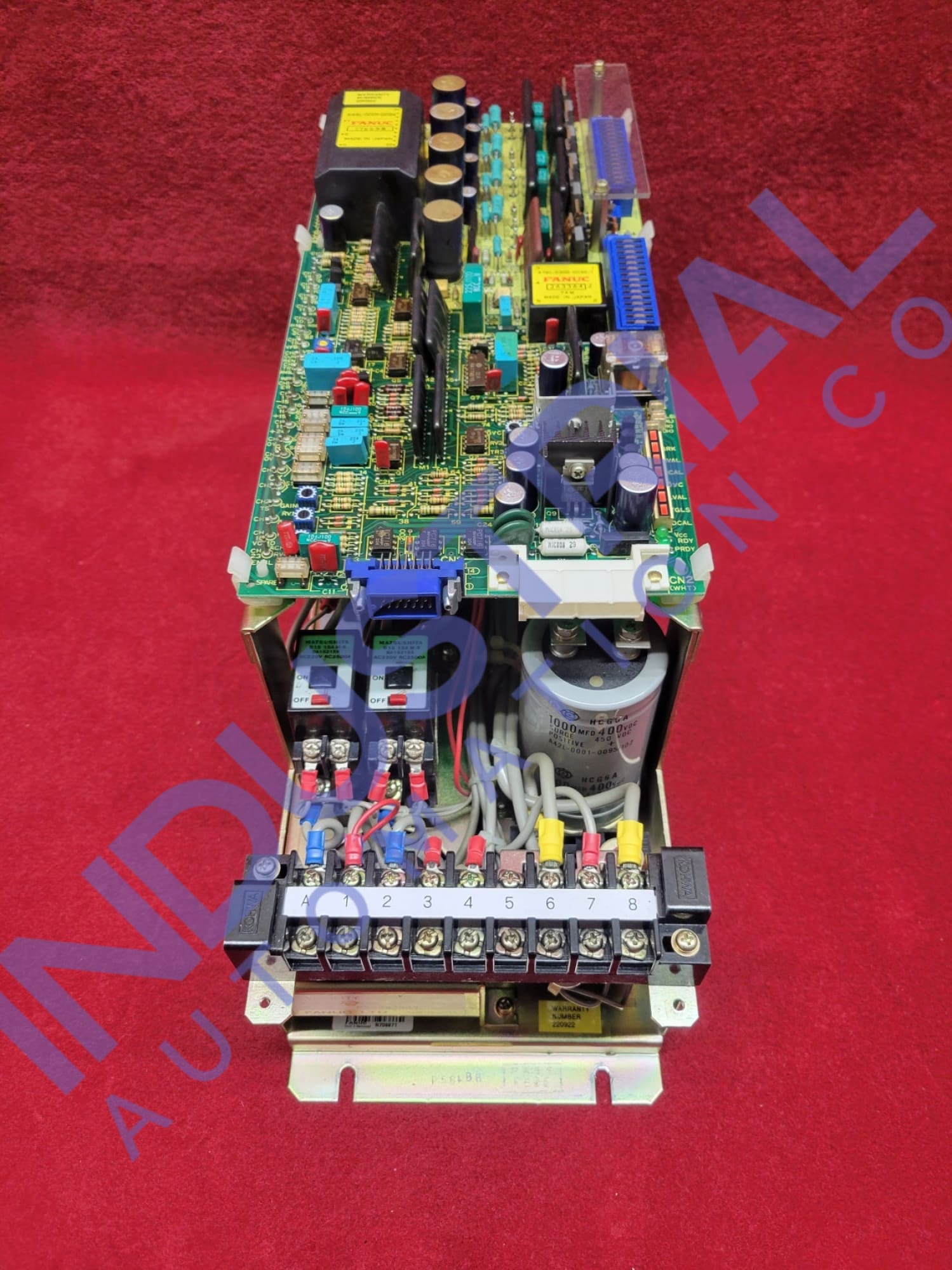

The model is a FANUC A06B-6047-H003 velocity control unit DC servo drive used in automated applications. The model suits small machines and control systems where precise velocity control is crucial.

Technical Description of A06B-6047-H003:

The Velocity Control Unit is an advanced DC Servo Amplifier Drive model designed to efficiently and reliably operate 10/20 M motors. It is a single-axis drive unit that is an integral part of the DC Servo Drives family.

One of the key features of the model A06B-6047-H003 is its advanced motor control capabilities. The high-performance processor enables precise and accurate motor speed, acceleration, and deceleration control. This results in smooth operation and increased productivity in various industrial applications.

Another notable feature of the control unit is its compact and robust design. It is also designed with a wide voltage input range, making it suitable for various power supplies.

The A06B-6047-H003 DC servo drive has various protective features that ensure safe and reliable operation. It includes overvoltage and undervoltage protection, overcurrent protection, and short-circuit protection. Additionally, the unit has a diagnostic function allows users to monitor its performance and detect any potential issues before they become critical.

Its advanced motor control capabilities, compact design, and protective features make it a reliable and efficient solution for various industrial applications.

Ambient Conditions (Operating, Storage, and Installation):

Ensure the A06B-6047-H003 model's long-term efficiency and performance by storing it in a controlled environment between -20 °C to +60°C, away from direct sunlight. Keep the model indoors to avoid any potential dust or small particles entering its system.

Impressive as it is that the A06B-6047-H003 model can operate up to 1,000 meters above sea level, one can further extend its power by decreasing one degree Celsius for every 100 meters higher than that. You don't need to take special care if you consider these measures when deploying it at ground levels higher than its initial threshold.

Operate the model at an ambient temperature between 0 to 40°C for optimal efficiency. It is wise to reduce output power if temperatures exceed their maximum recommended value for sustained performance.

General Usage Precautions:

As with all electrical equipment, the model requires certain usage precautions to ensure optimal performance and prevent electrical hazards.

The A06B-6047-H003 VCU is a complex electrical device that requires knowledge of electrical safety practices and proper handling procedures. Before using the VCU, ensure the operator has received proper training and is familiar with the equipment's operation.

Ensure you properly install the VCU and ground all wiring. Any loose connections or improperly installed components could result in electrical hazards, malfunctions, or damage to the VCU.

Keep the model A06B-6047-H003 clean and free from exposure to liquids, dust, and other contaminants. Moisture or other liquids can cause short circuits, which could lead to electrical hazards or damage to the model.

Do not exceed the maximum output current rating of the A06B-6047-H003 control unit. Attempting to draw more current than the VCU can provide could damage the model and other connected equipment.

Regular maintenance is important for the longevity and performance of the servo drive. Follow the manufacturer's recommended maintenance procedures and immediately address any issues.
