TECHNICAL SPECIFICATIONS

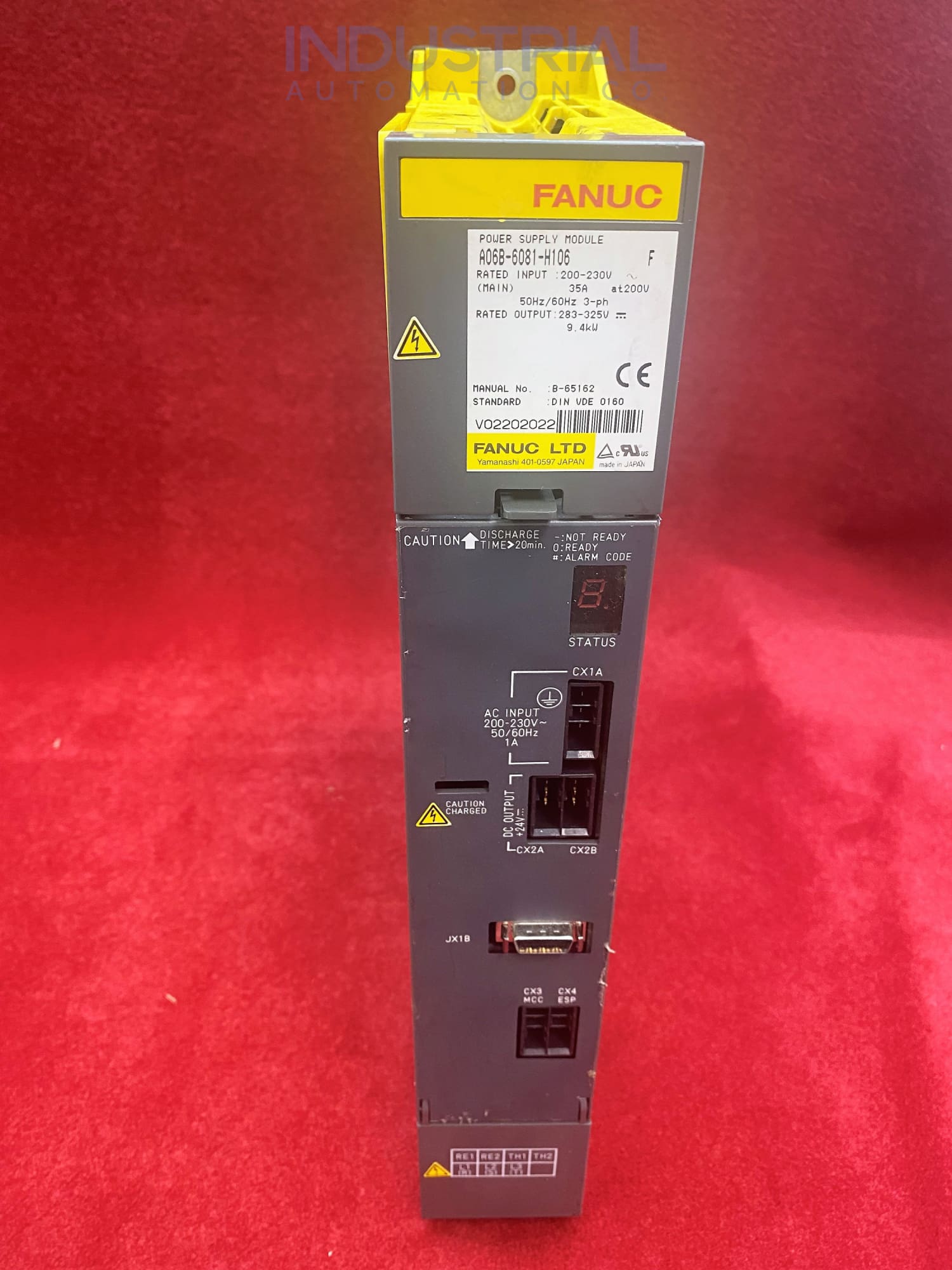

FANUC A06B-6081-H106

This innovative power supply module A06B-6081-H106 is designed to provide reliable and efficient energy in various contexts. The power supply module also boasts a high level of reliability thanks to its robust construction and cutting-edge design. The module operates safely and reliably thanks to its advanced protection circuitry, which makes it immune to voltage fluctuations.

Technical Description of A06B-6081-H106:

This model A06B-6081-H106 operates at an optimal voltage between 200 - 230 V, with a 50 - 60 Hz frequency. The module has a high-speed response, allowing fast, precise output voltage control. This feature is useful for achieving accurate and consistent performance during rapid, high-speed machining operations.

The power supply module A06B-6081-H106 provides an impressive amount of energy in a lightweight, space-saving design. Supporting up to 9.4 kW maximum output makes for the optimal choice when dimensions and weight are at a premium.

This A06B-6081-H106 model boasts an impressive output voltage range of 283 to 325 V. Another key feature of the Alpha Power Supply Module is its high efficiency. This module can operate with up to a 96% efficiency rating. It means that it minimizes energy loss and helps to reduce overall operating costs.

The module A06B-6081-H106 also features active power factor correction (PFC) technology. It helps compensate for input voltage and frequency fluctuations, making the module highly stable and reliable. Additionally, this PFC technology helps to reduce harmonic interference and other electrical noise, which can be detrimental to other electronic components.

One more noteworthy feature of the model A06B-6081-H106 is its advanced thermal management capabilities. The module detects and manages heat output with the help of various sensors and monitoring systems. It ensures that the module operates at optimal temperatures, reducing the risk of component failure and maximizing its service life.

Standard Ambient Conditions:

Operating the model A06B-6081-H106 outside its ideal temperature range between 0 - 55°C puts extra stress on parts, reducing performance and potentially leading to overheating. Power levels adjust when temperatures exceed these limits.

To ensure the longevity of the model, keep it in an internal and climate-controlled environment with temperatures between -20°C to +60°C. Prolonged exposure to direct sunlight can have a damaging effect on the unit over time.

To ensure module A06B-6081-H106's durability and reliability, protect it from moisture and dirt. Even minor exposure can cause deterioration in its performance. Keep your module clean and dry at all times for optimal results.

Standard Wiring Precautions:

The module A06B-6081-H106 is designed to operate at a specific voltage range. When wiring the module, ensure the power supply voltage is within the specified range. Exceeding the recommended voltage can damage the unit and pose a safety hazard.

Proper grounding is essential for the safe and reliable operation of the power supply module. Securely fasten the grounding connection to the grounding terminal of the module. It will help to prevent electrical shock and reduce the risk of damage to the unit.

The wire size used in the wiring of module A06B-6081-H106 is critical. It is important to use wires appropriate for the voltage and current rating of the power supply module. Using too small wires can cause overheating and potentially result in a fire hazard.
