Description

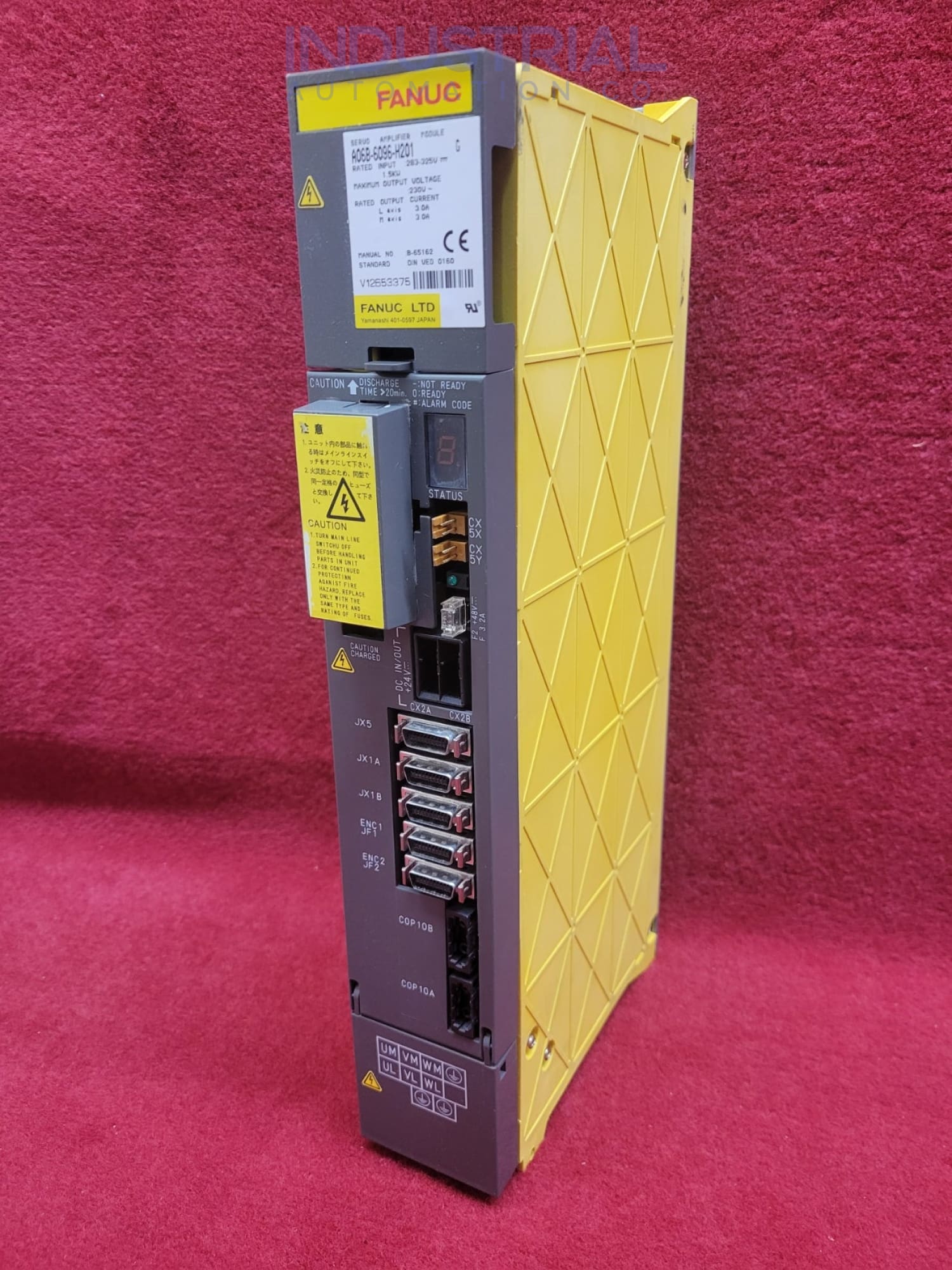

FANUC A06B-6096-H201

Among the well-known FANUC Alpha series, the A06B-6096-H201 stands out as an exceptionally efficient servo amplifier unit. This servo amplifier, renowned for its dependable performance, can improve the accuracy and productivity of your industrial automation systems. Its exceptional features and space-saving design can benefit many applications necessitating precise and rapid motion control.

Technical Details:

Thanks to its 3.0 A-rated output current, the linked servomotors will receive steady power from the FANUC A06B-6096-H201 servo amplifier. This unit is for you if your application calls for synchronized motion along two axes. It offers a 2-axis arrangement. The FANUC Serial Servo Bus (FSSB) interface improves system performance by establishing a smooth communication link with the CNC control system.

The A06B-6096-H201's greatest output voltage is 230 V, and its power capacity is 1.5 kW. This feature allows it to power a variety of servo motors, which is essential for demanding industrial applications. The unit can also function successfully in a wide range of power situations because of its rated input voltage, which is 283-325 V.

The FANUC A06B-6096-H201 is a little machine, measuring about 38 cm (14.9 inches) in height, 6 cm (2.3 inches) in width, and 17.2 cm (6.62 inches) in length. Because of its small size, this device may be easily integrated into various control cabinets and systems. Plus, at only under 5 kg, the unit is easy to handle during setup and upkeep.

Installation:

Every detail must be studied for the FANUC A06B-6096-H201 installation to go well and yield the greatest results. Start in an airy, shaded area of the control cabinet to avoid overheating. Ground the object to prevent electrical interference and static discharge, then mount it securely with hardware.

Connect power supply wires to terminals in the 283-325 V range. Then, secure the servomotor cable-output terminal connections. Connect the FSSB interface to the CNC control system for simplified communication and control. Finally, check connections and switch on the system. Next, perform a series of preliminary tests to identify setup issues.

Safety:

Operate the FANUC A06B-6096-H201 safely. The unit has several alerts and safety systems to ensure reliability and safety. The internal fan stoppage alarm alerts operators if the cooling fan fails, preventing overheating and damage.

The low control power voltage alert, low DC link voltage alarm, and other safety alarms advise operators of voltage irregularities to keep the machine working smoothly. It also has an over-regenerative discharge alarm to reduce energy damage and a regenerative discharge control failure alarm to ensure regenerative braking system operation.

Over-current and dynamic brake circuit failure warnings protect the equipment in emergency stops. These safety features prolong the lifespan and reliability of the FANUC A06B-6096-H201, making it a great choice for many industrial applications.

Frequently Asked Questions:

What is the FANUC A06B-6096-H201's interface and the number of axes it supports?

With its FSSB interface, the FANUC A06B-6096-H201 can accommodate a 2-axis setup. This allows for smooth interaction with CNC systems and coordinated movement control.

What are the dimensions and weight of the FANUC A06B-6096-H201?

The FANUC A06B-6096-H201 weighs approximately 5 kilograms and measures 38 centimeters in height, 6 centimeters in width, and 17.2 centimeters in length. Thanks to its small size and reasonable weight, integrating and maintaining it is a breeze.

What safety alarms are integrated into the FANUC A06B-6096-H201?

In the event of an internal fan stoppage, low control power voltage, low DC link voltage, or over-regenerative discharge, the FANUC A06B-6096-H201 will sound an alert. These features notify operators of potential issues, ensuring safe and reliable operation.

Product Specifications Table:

Attribute	Specification
Rated Output Current	3.0 A
Axis Configuration	2-Axis
Interface	FSSB
Maximum Output Voltage	230 V
Power Capacity	1.5 kW
Rated Input Voltage Range	283-325 V
Weight	5 kg
Height	38 cm (14.9 inches)
Width	6 cm (2.3 inches)
Length	17.2 cm (6.62 inches)
