TECHNICAL SPECIFICATIONS

FANUC A06B-6114-H105

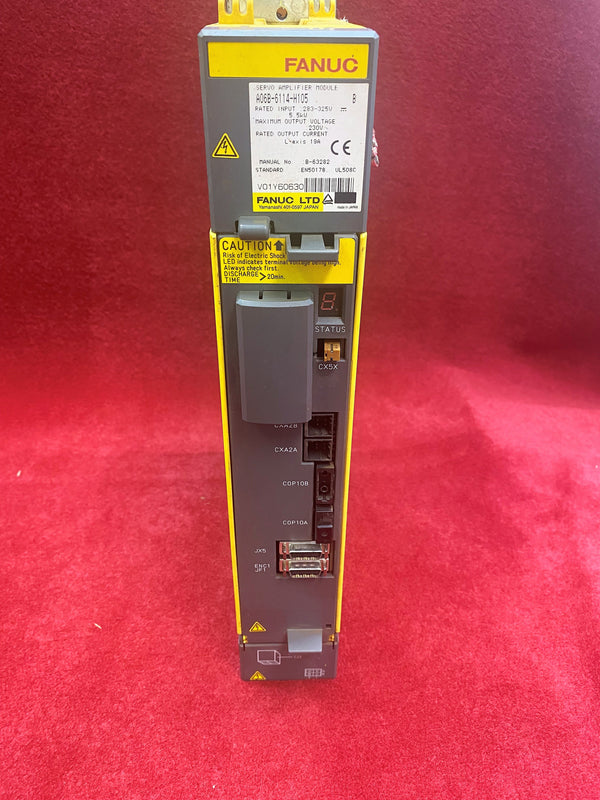

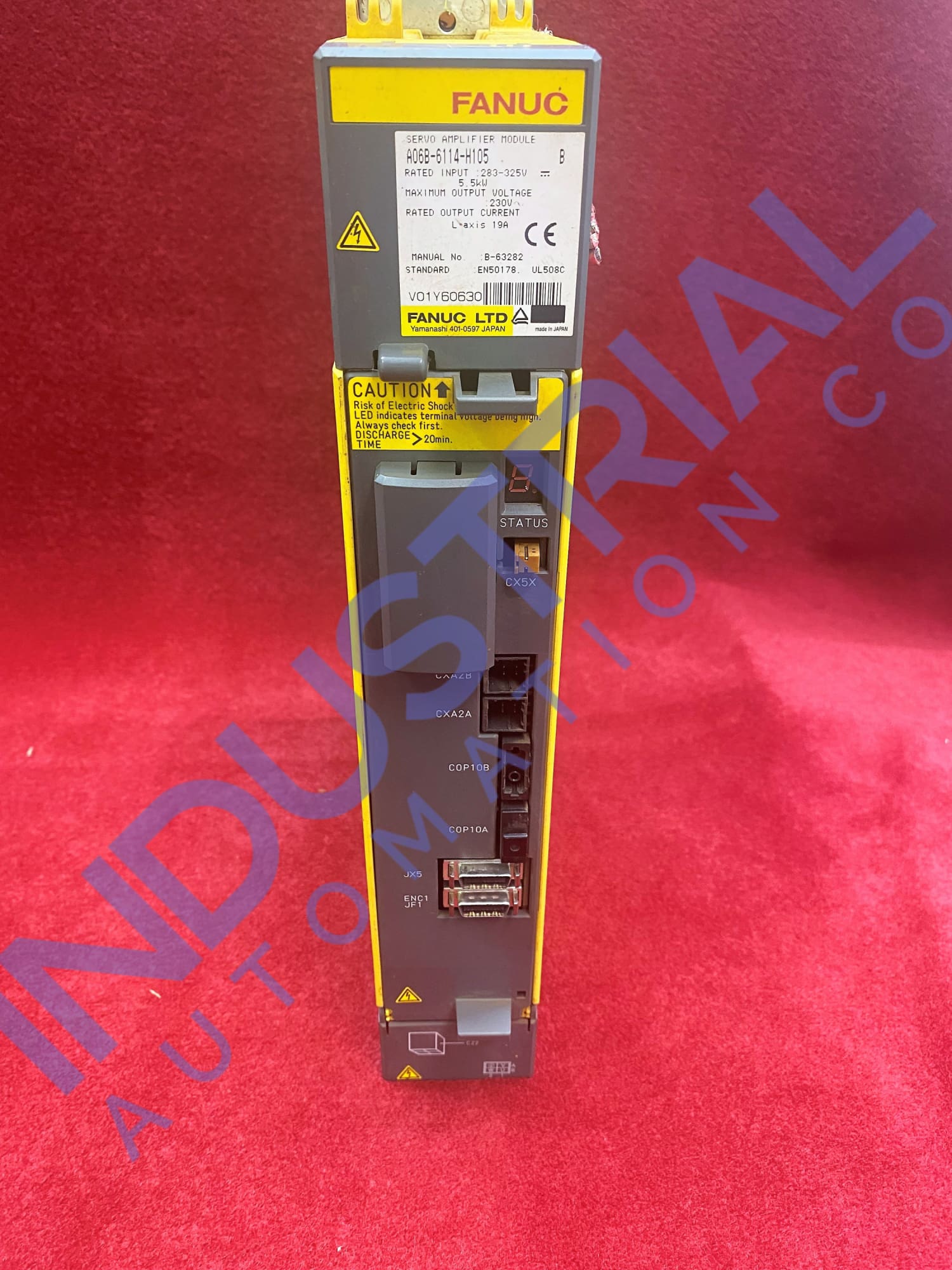

FANUC Corporation's A06B-6114-H105 servo amplifier module, also known as SVM1-80i, brings innovation to industrial automation and robotics. This product empowers industries with precise control over servo motors, revolutionizing efficiency and performance.

Technical Specifications

This industrial automation solution perfectly controls servo motors with exceptional accuracy and precision. A06B-6114-H105 servo amplifier enhances application performance, enabling users always to experience unparalleled results.

The servo amplifier operates on a 3-phase 200-230V AC power supply, and its control power supply is 24V DC. The amplifier's maximum output is 5.5 kW, and its rated output is 5.0 kW.

The servo amplifier has a rated output current of 19A, and the nominal current limit is 80A. The servo amplifier also can handle a maximum regenerative power of 3.5 kW and a continuous regenerative power of 2.5 kW. The servo amplifier has a total heat dissipation of 13W.

The servo amplifier is compact, with a width of 130mm, a height of 310mm, and a depth of 300mm. It has a lightweight body of just 9.0 kg, making it easy to install and integrate into various industrial automation systems.

Standard Operating Conditions

The A06B-6114-H105 servo amplifier must be installed with a 3-phase 200 - 230V AC 50/60 Hz power supply unit. The ambient temperature should be between 0°C and 55°C, with a relative humidity of 10% to 95%. This machine can also work 1000 meters above sea level with no problems.

Ensure that everything is securely connected checking the correct installation and connection of both feedback devices' cables and verifying proper grounding to prevent noise interference.

Installation and Transportation

To properly install the A06B-6114-H105 servo amplifier, ensure the surface is clean and dry and enough space around it for cooling. Mount the amplifier horizontally and avoid subjecting it to excessive shock or vibration.

Transport the Servo amplifier in its original packaging and maintain an ambient temperature of -20 to 60°C or a suitable alternative to prevent damage during transit. Avoid dropping, hitting, or subjecting the amplifier to excessive force or vibration when handling it.

When transporting the amplifier over a long distance or extended period, use appropriate shock-absorbing materials and packaging to prevent any damage or shifting during transit.

Safety Precautions

Ensure only trained professionals handle the servo amplifier to keep the equipment running smoothly and safely. For maximum protection against electric shock, ensure all personnel wears appropriate safety gear like goggles, gloves, and protective clothing before performing any maintenance or repairs.

Power off the amplifier first! Then wait five minutes to allow electricity within its circuits to discharge so you don't have any unwanted surprises while working with live electrical components. Avoid touching the device that could contact moving parts or interfere with its proper operation.

Read and comprehend the instruction manual before using the equipment. Before using the A06B-6114-H105, ensure that the equipment is properly grounded and that all electrical connections are secure. Electrical shock, fires, and other hazardous conditions can occur if the equipment is not properly grounded or electrical connections are not properly secured.
