TECHNICAL SPECIFICATIONS

FANUC A06B-6114-H211

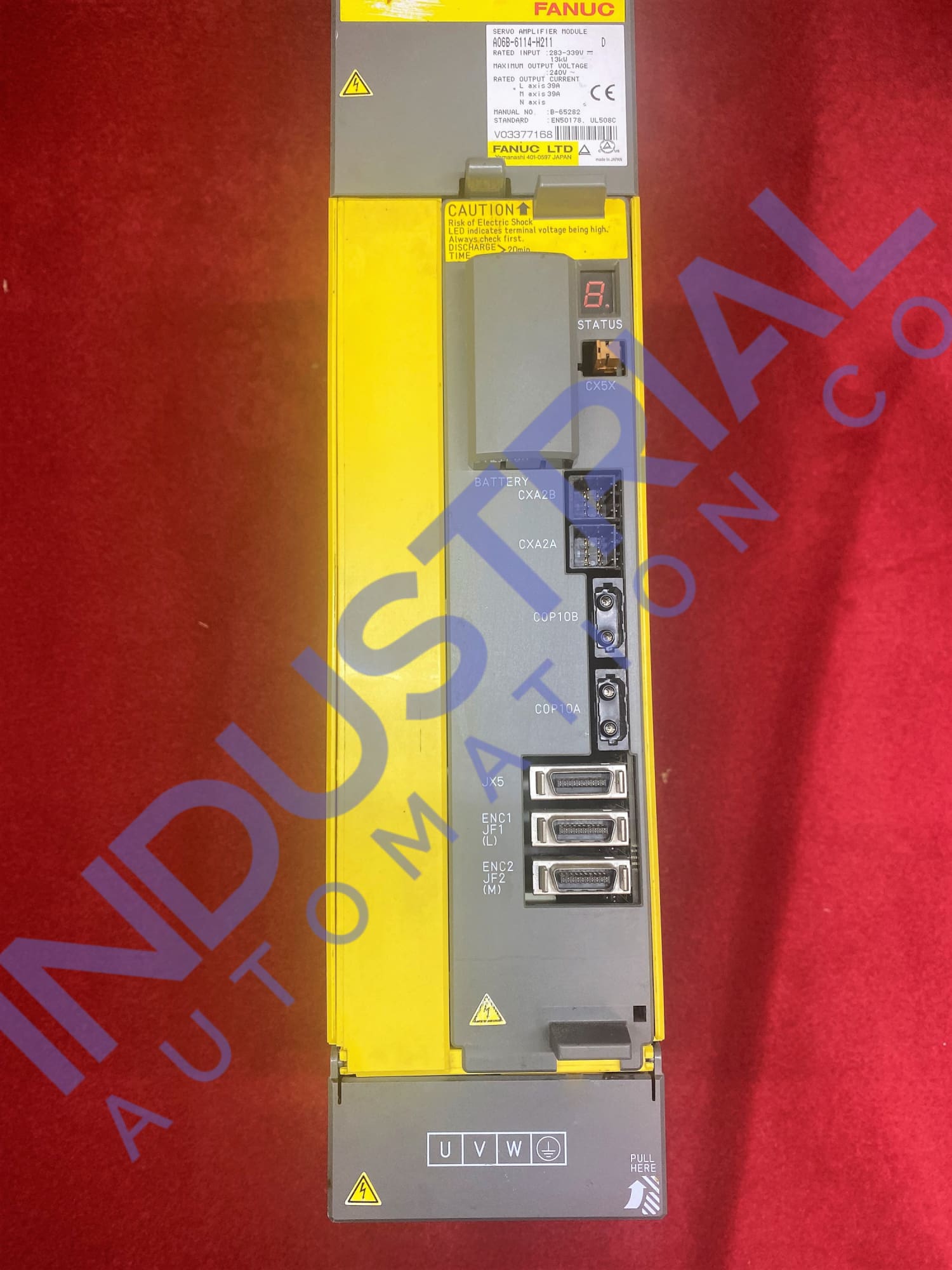

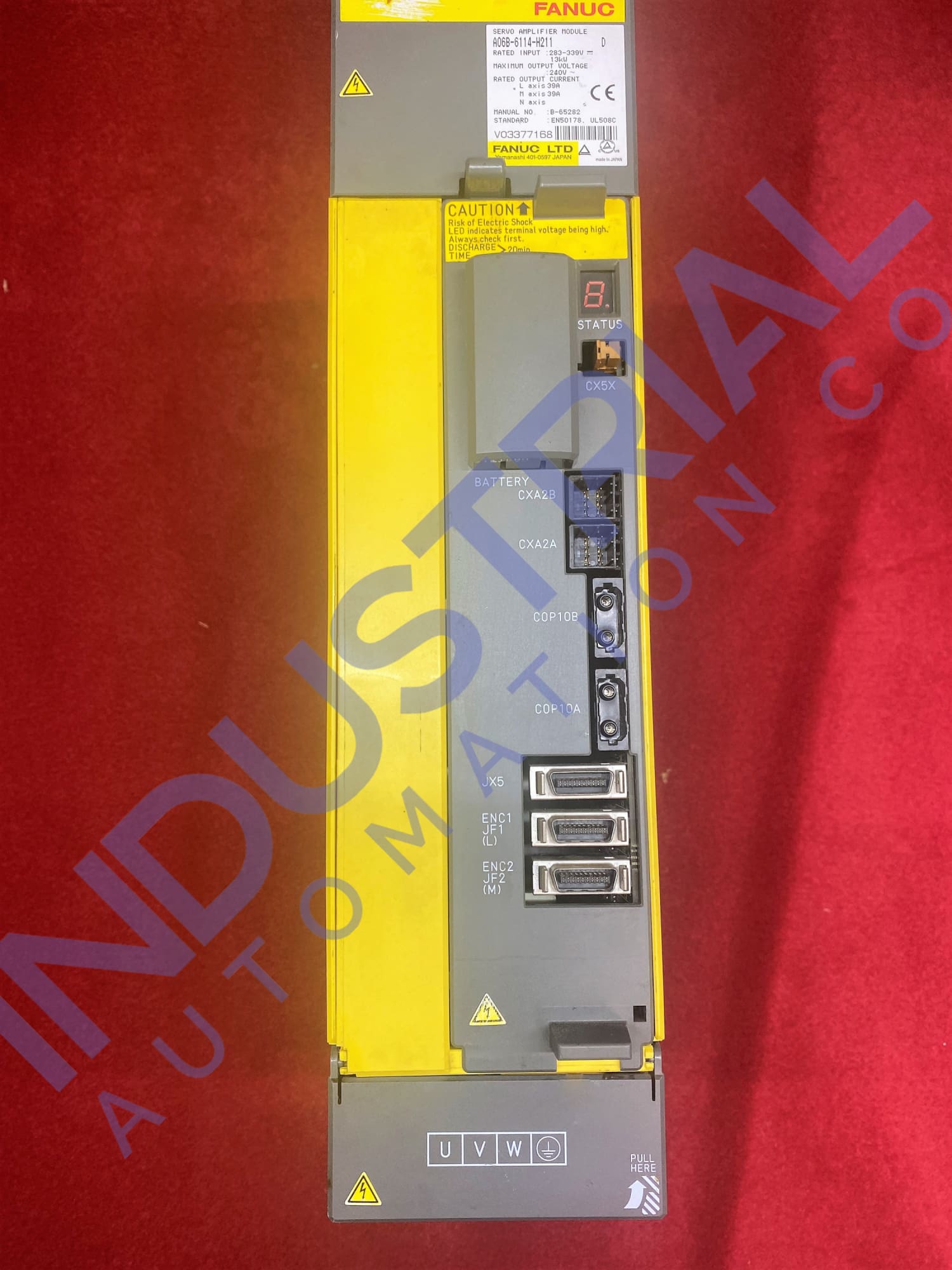

The FANUC A06B-6114-H211 servo amplifier is a powerful component - it grants precision control over the movement of Alpha I and Beta I servo motors, allowing CNC machines to execute intricate maneuvers with absolute accuracy. This impressive piece of engineering helps create complex products that would have been impossible without its reliable operation!

Technical Specifications

The A06B-6114-H211 has a simple interface that allows users to adjust settings and monitor performance in real time. It is capable of providing precise and stable control over servo motor movements.

The servo amplifier is powered by a DC input voltage that ranges from 170VDC to 230VDC. With a rated output of 11 kW, the servo amplifier is suitable for a wide range of CNC applications.

The A06B-6114-H211 servo amplifier has a rated current of 39A. The amplifier's dimensions are 200mm x 105mm x 300mm (height x width x depth), making it a space-saving option for CNC systems.

The servo amplifier's nominal current limit in the L and M axes is 160A. The amplifier has a total heat dissipation of 19W on both axes, but the amplifier's power dissipation depends on the servo motor's load and operating conditions.

Operating Conditions

The A06B-6114-H211 servo amplifier model performs reliably in various operational environments, making it suitable for use in various CNC applications. For the amplifier to function properly, the temperature must be between 0 and 55 degrees Celsius with a maximum allowable temperature of 60°C, and the relative humidity must be between 10 and 90 percent.

Without derating, the amplifier can operate at altitudes up to 1000 meters above sea level. Derate the amplifier by 1% for every 100 meters of altitude above 1000 meters. The maximum allowable vibration is 0.5G (4.9m/s2).

The amplifier is designed to function in conditions free of excessive dust, dirt, and other contaminants that may cause damage to the internal components. These conditions should be dry and clean. Avoid exposing the amplifier to direct sunlight or other heat sources, as this may cause the temperature to cross the recommended range.

Installation and Transportation

Mount the amplifier on a flat, stable surface and follow the recommended torque specifications for the mounting screws to ensure a secure fit. To avoid electrical problems, make sure the amplifier is grounded correctly.

The temperature should be between -20°C and +60°C during transportation. Handle the A06B-6114-H211 with care during transportation to avoid any damage that could impair its performance.

When using an amplifier, excessive vibration, shock, and humidity should be avoided. When transporting the amplifier, make sure to use its original packaging or a proper safety case to prevent any damage from occurring.

Safety Precautions

Turn off the power and properly ground the power source before connecting all electrical connections to the A06B-6114-H211. Wear appropriate protective equipment, such as safety glasses or gloves, when working on the module to avoid injury.

They should only be used by trained and qualified personnel. To ensure proper handling and operation, reading and understanding the manual before working on the equipment is critical.

Overcurrent protection, overvoltage protection, and a built-in cooling fan to prevent overheating are all built into the A06B-6114-H211. In the event of a fault, this helps to protect the servo motor and amplifier from damage.
