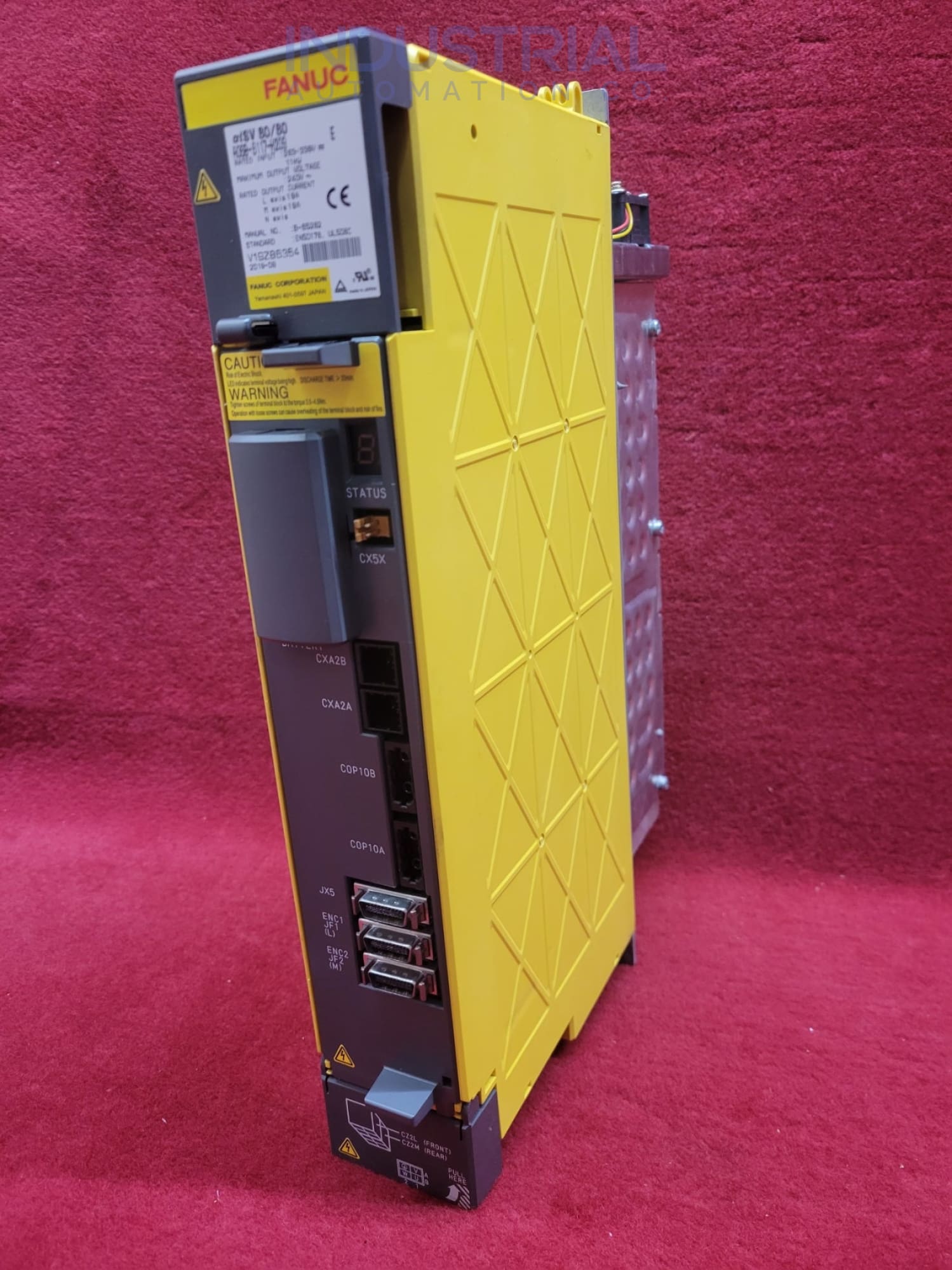

FANUC A06B-6117-H209
FANUC A06B-6117-H209
Among the well-known Alpha series, the FANUC A06B-6117-H209 stands out as a high-performance servo amplifier unit. In rigorous industrial settings, this model is engineered to provide exact control and outstanding dependability. For the most effective and efficient automation, it works in tandem with FANUC's CNC systems.
Technical Specifications:
Precision and reliability are hallmarks of servo motors, especially the AISV-80/80 FANUC A06B-6117-H209. This three-phase input makes it excellent for steady and consistent industrial situations. The 50 Hz servo motor works with numerous power supplies worldwide.
Due to its 19 A Land M-axis current, this unit can easily run high loads. The unit has 240V of maximum output to handle high-power applications. Its 11 kW power rating shows it can efficiently drive large gear. The servo motor's high-resolution encoder delivers precise positioning and control feedback for applications that require consistent, fine-tuned motion.
The FANUC A06B-6117-H209 is adaptable to various industrial settings because of its wide input voltage range of 283-339 V. Its dual-axis control capability makes it suitable for tasks that call for coordinated and accurate motion in multiple axes. The capacity to move in two directions simultaneously increases its usefulness in automated systems and complicated machining processes, allowing it to blend in with preexisting control frameworks and boost operational efficiency.
The FANUC A06B-6117-H209 is surprisingly small for its power and capabilities, weighing only about 55 kg. Its adaptability to several mounting configurations, such as flange and foot mounting, provides installation flexibility and may be used with various machinery and equipment.
Applications:
Due to its effectiveness and reliability, A06B-6117-H209 FANUCs are employed in numerous industries. They complement robotics, automated assembly lines, and CNC machining centers. This servo amplifier allows precise control over cutting tools and workpieces in computer numerical control machining, improving component precision and quality.
Robots with dual-axis control can move in sync, which is essential for jobs like welding, painting, and material handling that demand great accuracy and synchronization. Because of its strong build and high power rating, it is perfect for demanding tasks requiring constant operation and a lot of torque.
Mounting Guidelines:
If you want your FANUC A06B-6117-H209 to last as long as possible and work as well as possible, you must mount it correctly. To avoid overheating, ensure it is installed in a room with good ventilation. There needs to be enough room for air to circulate and for maintenance to be accessible around the unit. Mount the unit upright on a solid, vibration-free surface for optimal operational stability.
Furthermore, ensure the item is well fastened with the right hardware so it won't move or shift while working. It is crucial to adhere to the manufacturer's instructions when connecting electrical components to keep the unit and any associated gear safe from harm. The equipment must be grounded properly to improve operational safety and reduce electrical noise.
Frequently Asked Questions:
What is the voltage rating, and how much current does A06B-6117-H209 consume?
Power rated at 11 kW, the FANUC A06B-6117-H209 has a rated current of 19 A on the L and M axes. The device can efficiently handle significant loads because of this.
How does the A06B-6117-H209 regulate output voltage and frequency?
The FANUC A06B-6117-H209 runs at 50Hz and has a maximum of 240V output voltage.
Is it possible to utilize the FANUC A06B-6117-H209 in robotic systems and CNC machining?
Robotic systems and CNC machining centers are perfect fits for the FANUC A06B-6117-H209. Its dual-axis capability and accurate control make complex automation operations easier.
Product Specifications Table:
| Attributes | Specification |
|---|---|
| Manufacturer | FANUC |
| Product Type | Servo Amplifier |
| M-axis Rated Current | 19 A |
| Input Phase | Three Phase |
| Frequency | 50Hz |
| L-axis Rated Current | L-axis 19 A |
| Max Output Voltage | 240 V |
| Power Rating | 11 kW |
| Rated Input Voltage | 283-339 V |
| Axis | 2-axis |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
