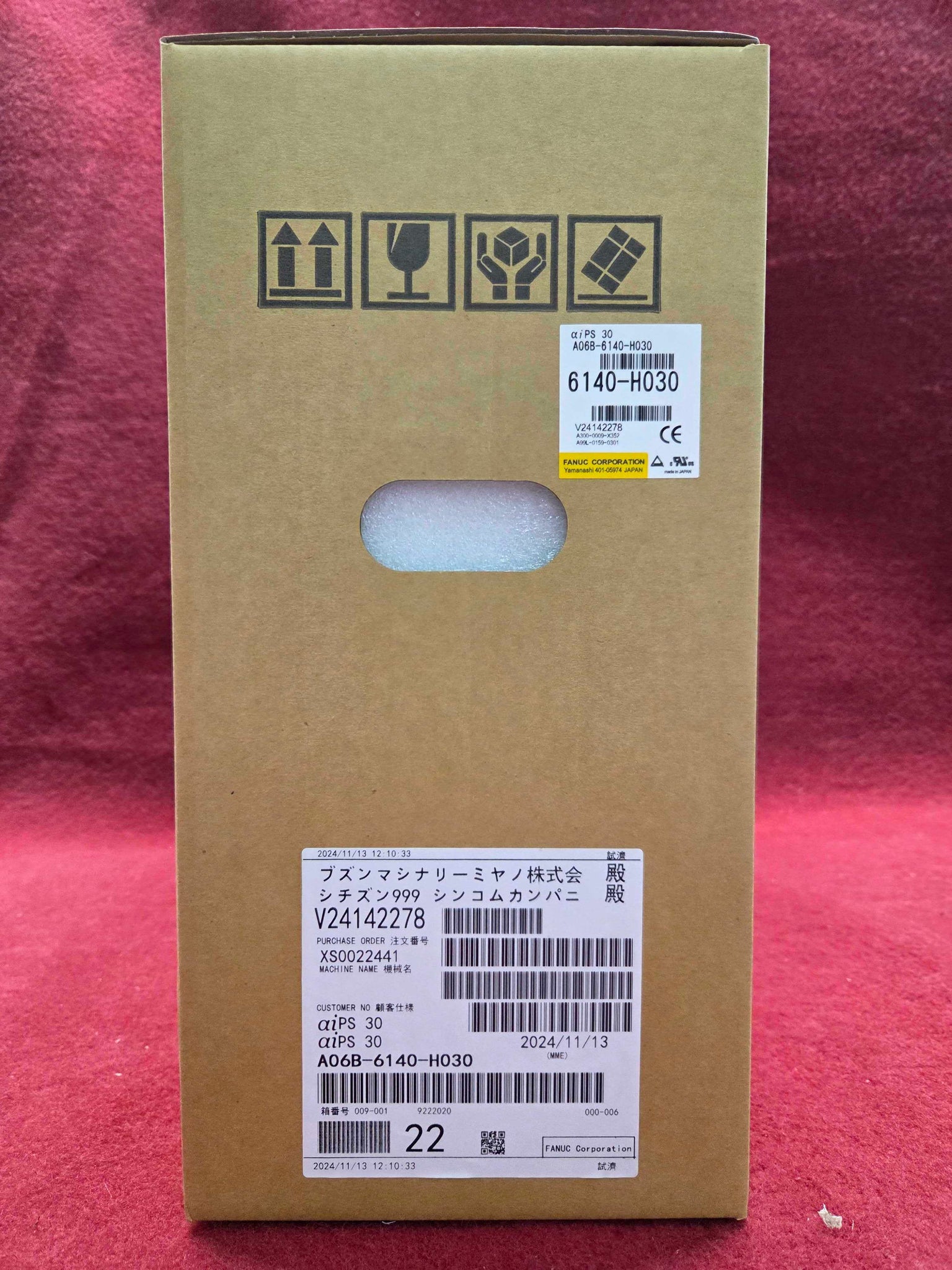

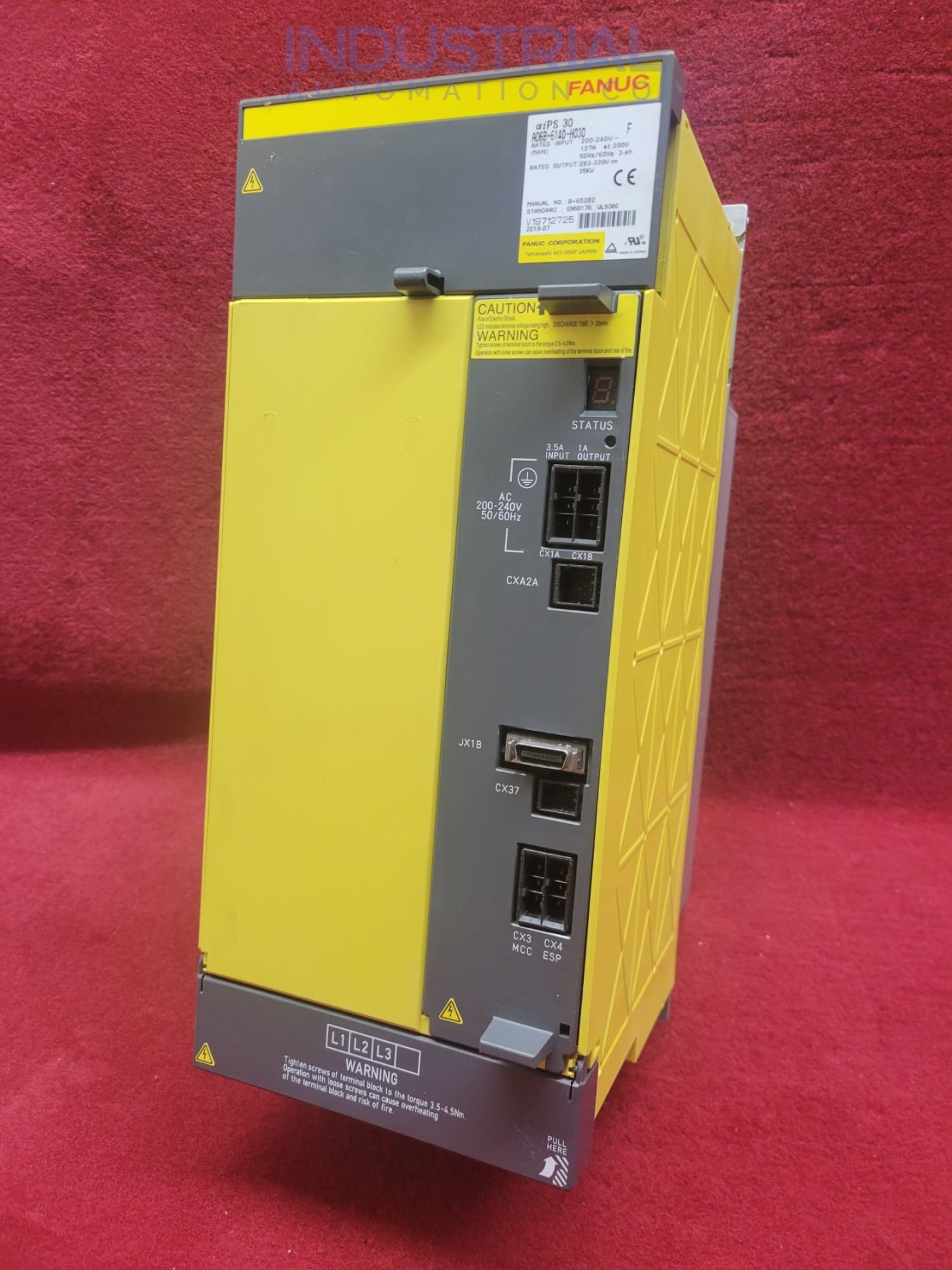

FANUC A06B-6140-H030

Fanuc A06B-6140-H030

FANUC A06B-6140-H030

As a well-known ?i series component, the FANUC A06B-6140-H030 power supply module is efficient and dependable. With its cutting-edge design, sturdy specifications, and emphasis on industrial performance, this power supply is an excellent pick for precise motion control.

Technical Specifications:

The FANUC A06B-6140-H030 runs on a three-phase, 200 to 240 VAC ±10%, 50/60Hz ±1Hz main power source. Its 44 kVA main circuit equipment capacity is more than enough to handle demanding duties. Thanks to the 0.7kVA control power equipment, control power is stable. Regenerative control helps the amplifier conserve energy, and its 35kW output provides constant and strong performance.

This power supply module works with 64 kW motors, making it perfect for high-power applications. Its 283–325V DC input voltage ensures versatility and adaptation in various operating conditions. Internal fan cooling controls heat dissipation to maintain system temperatures.

The 5.5-kg FANUC A06B-6140-H030 is designed for easy installation and handling. The IP20 certification protects the gadget against dust and other environmental threats, extending its lifespan and reliability.

Due to its small and efficient proportions, the module may fit into tight spaces. Furthermore, when used with FANUC CNC systems, the optical interface guarantees smooth integration and connection with other control system components.

Operating Conditions:

No matter the environment, the FANUC A06B-6140-H030 will keep running smoothly. It is used in various industrial settings because of its efficient operation in temperatures ranging from 0 to 55 degrees Celsius.

Even when stored at -40°C to 70°C, the device remains structurally intact and usable. Even in damp conditions, a non-condensing humidity tolerance of 95% RH or lower assures reliable operation. The gadget is reliable in mechanically vibrating areas due to its 5.9 m/s² (0.6 G) vibration resistance at 10-55 Hz.

Application:

The FANUC ?i series power supply A06B-6140-H030 is designed with efficiency and portability in mind. Its modular architecture makes it thinner and helps save energy by minimizing heat production.

The unit's fin depth was reduced to 100 mm using a low-loss power device and a high-efficiency radiator. This narrowed the breadth by 30%, which saves space in industrial environments.

Redesigned cable connectors reduce control board cable protrusion, simplifying cabling. Installing amplifiers with one cable is easy. The ground connection to the flange is also present so that you won't need another. For the control board to work, connect the top of the flange to the system ground.

Safety:

The FANUC A06B-6140-H030 has several safety features for reliable operation. The unit is protected against overvoltage and undervoltage to avoid damage and maintain functionality. Short-circuit protection protects the device and its components from electrical failures. Regenerative braking increases safety by managing energy dissipation during deceleration. The power supply module supports multiple communication protocols for secure data transfer with other system components.

Frequently Asked Questions:

What is the FANUC A06B-6140-H030's rated output and primary power supply?

The FANUC A06B-6140-H030 features a three-phase, 200 to 240 VAC ±10%, at 50/60Hz ±1Hz main power supply. Its rated output of 35 kW provides consistent power for industrial applications.

What is the weight and cooling method of the FANUC A06B-6140-H030?

The FANUC A06B-6140-H030's internal fan cooling achieves optimal temperature control. At about 5.5 kg, it is rather easy to install and handle.

What is the maximum output of the motor and the capacity of the primary circuit equipment in the FANUC A06B-6140-H030?

With 44kVA, the FANUC A06B-6140-H030 can power the main circuit equipment. It is built to handle high-power applications since it is compatible with motors that can reach a maximum output of 64kW.

Product Specifications Table:

Attribute Specification
Type Power supply Module
Main power supply 200 to 240 VAC ±10%, 3? 50/60Hz ±1Hz
Main circuit equip. capacity 44kVA
Control power equip capacity 0.7kVA
Rated output 35kW
Control method Regenerative control
Motor max output 64kW
Input Voltage 283 - 325V DC
Cooling Method Internal fan cooling
Weight Approximately 5.5 kg

FANUC A06B-6140-H030

Regular price
$1,949.00
Sale price
$1,949.00
We currently have 2 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

FANUC A06B-6140-H030

As a well-known ?i series component, the FANUC A06B-6140-H030 power supply module is efficient and dependable. With its cutting-edge design, sturdy specifications, and emphasis on industrial performance, this power supply is an excellent pick for precise motion control.

Technical Specifications:

The FANUC A06B-6140-H030 runs on a three-phase, 200 to 240 VAC ±10%, 50/60Hz ±1Hz main power source. Its 44 kVA main circuit equipment capacity is more than enough to handle demanding duties. Thanks to the 0.7kVA control power equipment, control power is stable. Regenerative control helps the amplifier conserve energy, and its 35kW output provides constant and strong performance.

This power supply module works with 64 kW motors, making it perfect for high-power applications. Its 283–325V DC input voltage ensures versatility and adaptation in various operating conditions. Internal fan cooling controls heat dissipation to maintain system temperatures.

The 5.5-kg FANUC A06B-6140-H030 is designed for easy installation and handling. The IP20 certification protects the gadget against dust and other environmental threats, extending its lifespan and reliability.

Due to its small and efficient proportions, the module may fit into tight spaces. Furthermore, when used with FANUC CNC systems, the optical interface guarantees smooth integration and connection with other control system components.

Operating Conditions:

No matter the environment, the FANUC A06B-6140-H030 will keep running smoothly. It is used in various industrial settings because of its efficient operation in temperatures ranging from 0 to 55 degrees Celsius.

Even when stored at -40°C to 70°C, the device remains structurally intact and usable. Even in damp conditions, a non-condensing humidity tolerance of 95% RH or lower assures reliable operation. The gadget is reliable in mechanically vibrating areas due to its 5.9 m/s² (0.6 G) vibration resistance at 10-55 Hz.

Application:

The FANUC ?i series power supply A06B-6140-H030 is designed with efficiency and portability in mind. Its modular architecture makes it thinner and helps save energy by minimizing heat production.

The unit's fin depth was reduced to 100 mm using a low-loss power device and a high-efficiency radiator. This narrowed the breadth by 30%, which saves space in industrial environments.

Redesigned cable connectors reduce control board cable protrusion, simplifying cabling. Installing amplifiers with one cable is easy. The ground connection to the flange is also present so that you won't need another. For the control board to work, connect the top of the flange to the system ground.

Safety:

The FANUC A06B-6140-H030 has several safety features for reliable operation. The unit is protected against overvoltage and undervoltage to avoid damage and maintain functionality. Short-circuit protection protects the device and its components from electrical failures. Regenerative braking increases safety by managing energy dissipation during deceleration. The power supply module supports multiple communication protocols for secure data transfer with other system components.

Frequently Asked Questions:

What is the FANUC A06B-6140-H030's rated output and primary power supply?

The FANUC A06B-6140-H030 features a three-phase, 200 to 240 VAC ±10%, at 50/60Hz ±1Hz main power supply. Its rated output of 35 kW provides consistent power for industrial applications.

What is the weight and cooling method of the FANUC A06B-6140-H030?

The FANUC A06B-6140-H030's internal fan cooling achieves optimal temperature control. At about 5.5 kg, it is rather easy to install and handle.

What is the maximum output of the motor and the capacity of the primary circuit equipment in the FANUC A06B-6140-H030?

With 44kVA, the FANUC A06B-6140-H030 can power the main circuit equipment. It is built to handle high-power applications since it is compatible with motors that can reach a maximum output of 64kW.

Product Specifications Table:

Attribute Specification
Type Power supply Module
Main power supply 200 to 240 VAC ±10%, 3? 50/60Hz ±1Hz
Main circuit equip. capacity 44kVA
Control power equip capacity 0.7kVA
Rated output 35kW
Control method Regenerative control
Motor max output 64kW
Input Voltage 283 - 325V DC
Cooling Method Internal fan cooling
Weight Approximately 5.5 kg

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
IAC Certified Refurbished A06B-6140-H030-R $1,949.00 USD 2 Year Extended Warranty 2 In Stock in US!
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
